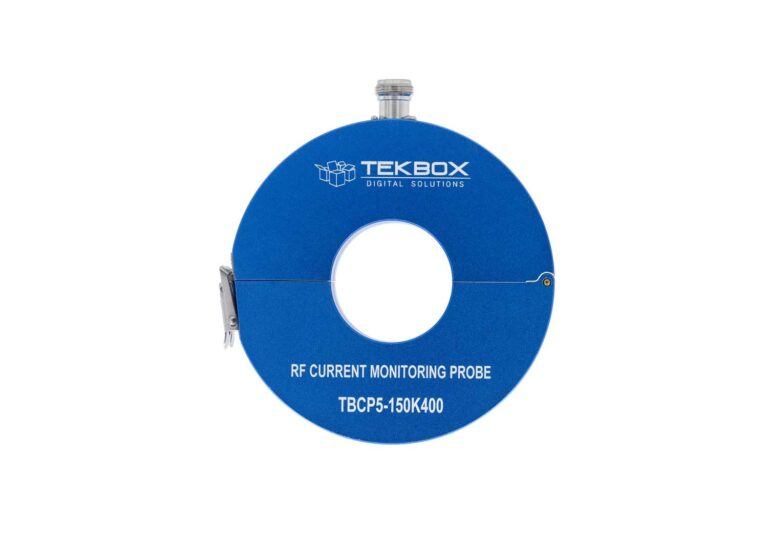

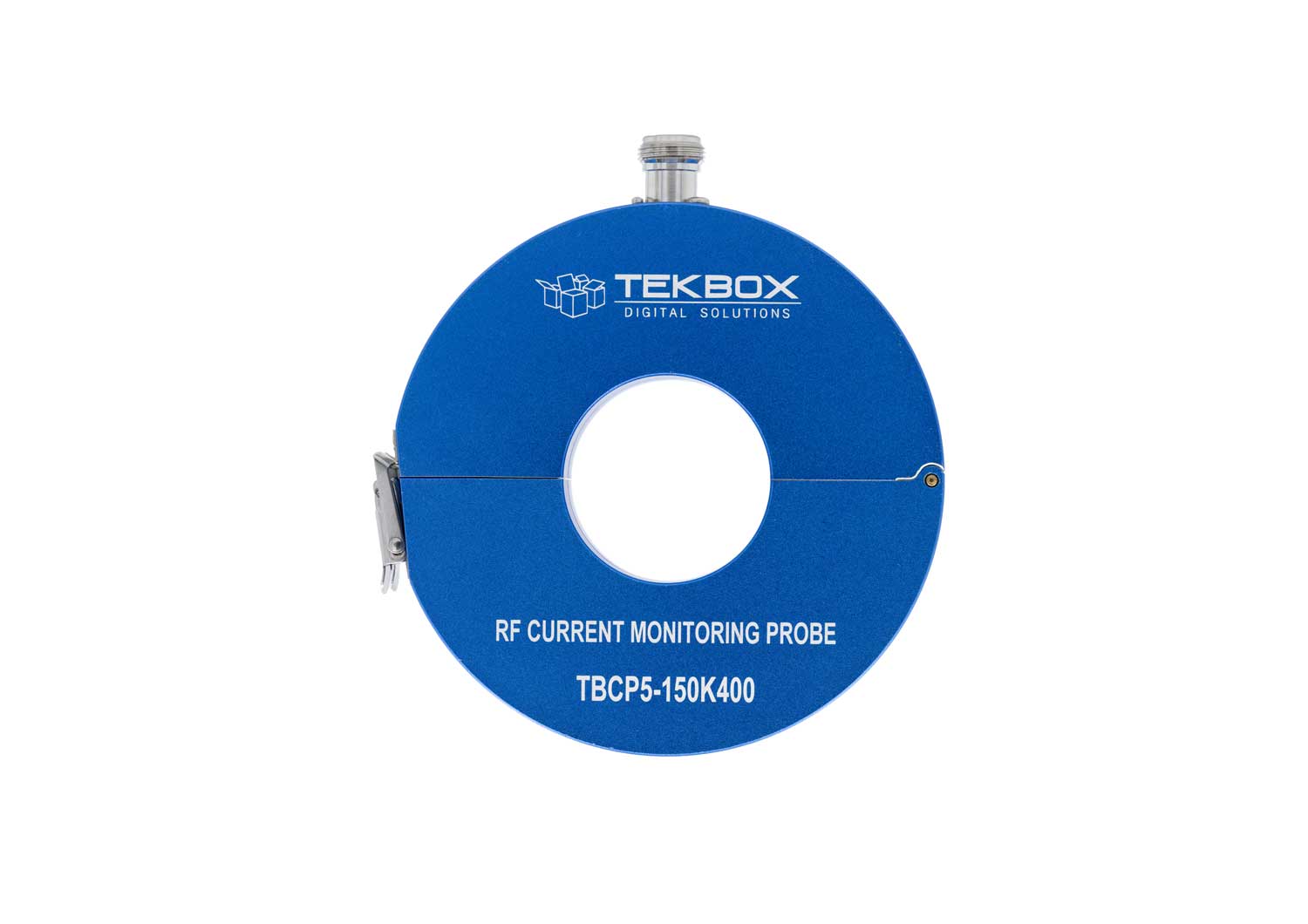

Image of Tekbox tbcp5 150k400 front telonic uk

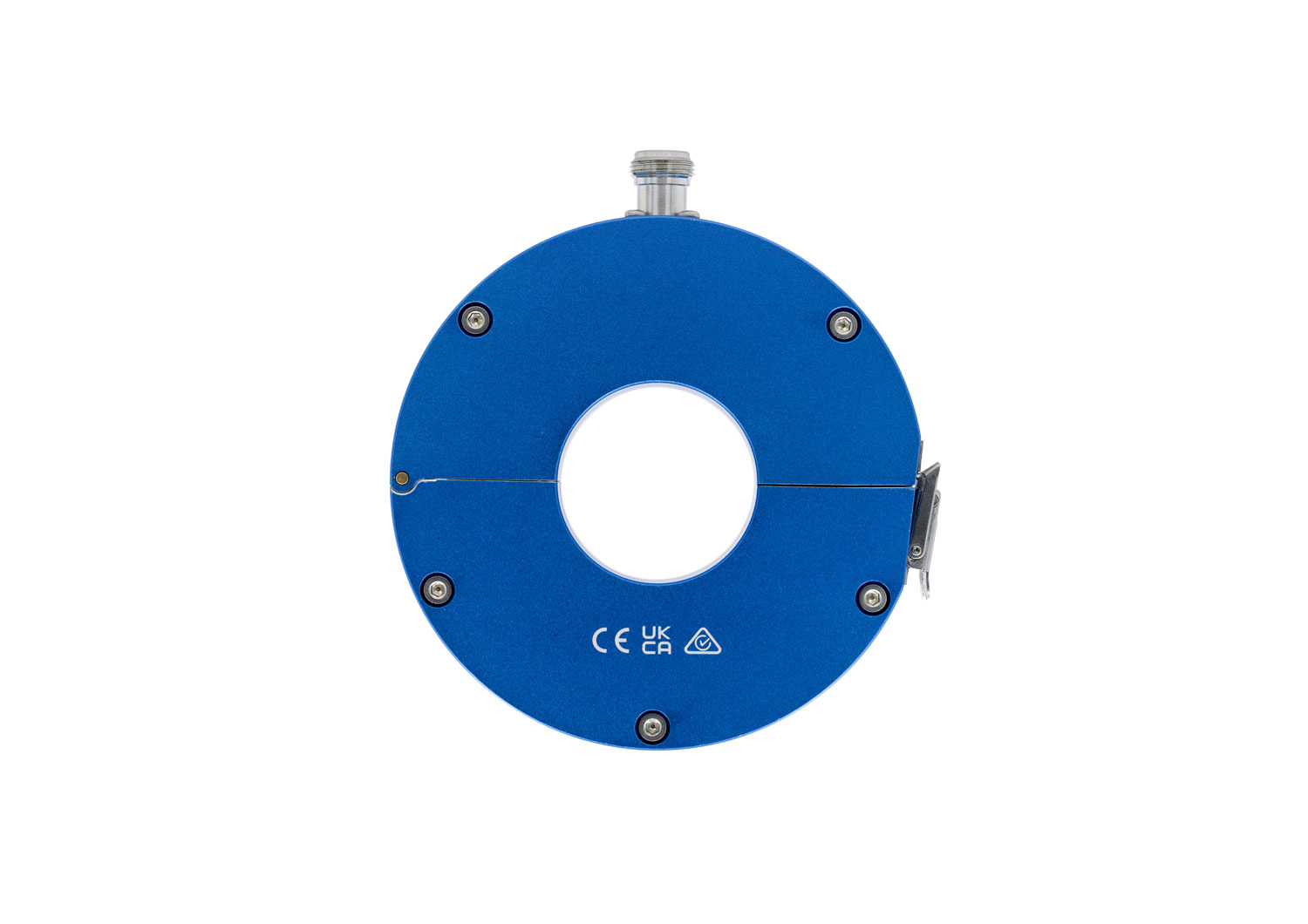

Image of Tekbox tbcp5 150k400 back telonic uk

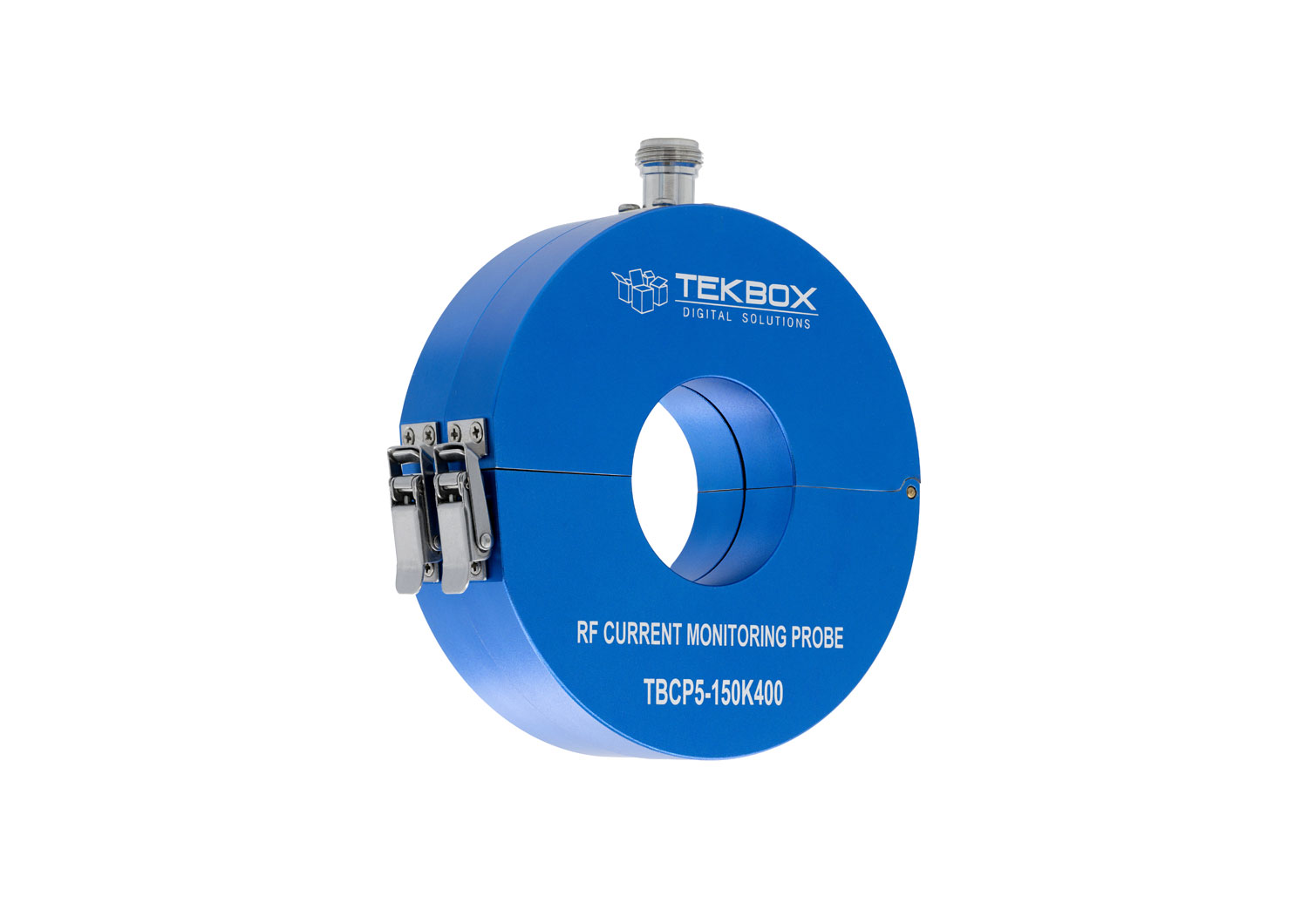

TEKBOX TBCP5-150K400 RF Current Monitoring Probe

Name: TEKBOX TBCP5-150K400 RF Current Monitoring Probe
Brand: Tekbox
SKU: TBCP5-150K400
Price: 791.00 GBP
Availability: BackOrder

£791.00 (£949.20 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Facebook

Post

SKU: TBCP5-150K400 Categories: EMC, Hardware, RF Current Monitoring Probes, Tekbox Brand: Tekbox

Compare with other RF Current Monitoring Probes

SKU	Brand	Types	Frequency Range	Bandwidth	Trans-Impedance	Aperture Diameter	Snap-On Hinge	Stock	Price
TBCP5-150K400	Tekbox	High Saturation	10 Hz to 500 MHz	150 kHz to 400 MHz	11 dBΩ	46 mm	Yes	On Backorder	£791.00
TBCP2-750	Tekbox	Standard	1 kHz to 1 GHz	1.5 MHz to 850 MHz	20 dBΩ	32 mm	Yes	3	£680.00
TBPCP1-20100Low stock	Tekbox	Pulse	1 Hz to 200 MHz	20 Hz to 100 MHz	-20 dBΩ	25 mm	No	1	£820.00
TBPCP2-3070	Tekbox	Pulse	1 Hz to 200 MHz	30 Hz to 70 MHz	-26 dBΩ	5.5 mm	No	On Backorder	£820.00
TBCCP1-2K70Low stock	Tekbox	Coaxial	10 Hz to 100 MHz	2 kHz to 70 MHz	0 dBΩ	N/A	No	2	£882.00
TBCCP1-3K100Low stock	Tekbox	Coaxial	10 Hz to 100 MHz	3 kHz to 100 MHz	5 dBΩ	N/A	No	1	£829.00
TBCCP1-400K600Low stock	Tekbox	Coaxial	10 Hz to 600 MHz	400 kHz to 600 MHz	23 dBΩ	N/A	No	2	£829.00
TBCP1-200	Tekbox	Standard	1 kHz to 500 MHz	40 kHz to 200 MHz	17 dBΩ	25 mm	No	5	£279.00
TBCP1-250	Tekbox	Standard	1 kHz to 300 MHz	300 kHz to 250 MHz	18 dBΩ	25 mm	No	3	£302.00
TBCP-1500Low stock	Tekbox	Standard	1 kHz to 500 MHz	400 kHz to 500 MHz	19 dBΩ	25 mm	No	1	£372.00
TBCP2-20M700	Tekbox	High Saturation	10 kHz to 800 MHz	20 MHz to 700 MHz	20 dBΩ	32 mm	Yes	On Backorder	£1,062.00
TBCP2-250	Tekbox	Standard	1 kHz to 400 MHz	300 kHz to 300 MHz	13 dBΩ	32 mm	Yes	4	£578.00
TBCP2-30K400	Tekbox	Standard	10 Hz to 500 MHz	30 kHz to 400 MHz	3 dBΩ	32 mm	Yes	On Backorder	£633.00
TBCP2-30M1000	Tekbox	High Saturation	10 Hz to 1 GHz	30 MHz to 900 MHz	22 dBΩ ± 2	32 mm	Yes	On Backorder	£1,062.00
TBCP2-500	Tekbox	Standard	1 kHz to 600 MHz	1 MHz to 500 MHz	16 dBΩ	32 mm	Yes	On Backorder	£633.00
TBCP3-1000Low stock	Tekbox	Standard	1 kHz to 1 GHz	3 MHz to 1 GHz	20 dBΩ	17 mm	No	2	£541.00
TBCP4-250	Tekbox	Standard	1 kHz to 400 MHz	200 kHz to 300 MHz	13 dBΩ	32 mm	No	3	£345.00
TBCP4-500Low stock	Tekbox	Standard	1 kHz to 600 MHz	400 kHz to 500 MHz	16 dBΩ	32 mm	No	1	£437.00
TBCP4-750	Tekbox	Standard	1 kHz to 1 GHz	1.5 MHz to 850 MHz	20 dBΩ	32 mm	No	On Backorder	£541.00
TBPCP3-05H30	Tekbox	Pulse	0.1 Hz to 100 MHz	0.5 Hz to 30 MHz	-26 dBΩ	15 mm	No	On Backorder	£749.00
TBPCP3-100H80	Tekbox	Pulse	1 Hz to 100 MHz	100 Hz to 80 MHz	-6 dBΩ	15 mm	No	On Backorder	£754.00
TBPCP3-20H70	Tekbox	Pulse	1 Hz to 100 MHz	20 Hz to 70 MHz	-12 dBΩ	15 mm	No	On Backorder	£749.00
TBPCP3-2H40	Tekbox	Pulse	1 Hz to 100 MHz	2 Hz to 40 MHz	-20 dBΩ	15 mm	No	On Backorder	£749.00
TBPCP4-100H60	Tekbox	Pulse	1 Hz to 100 MHz	130 Hz to 60 MHz	-6 dBΩ	46 mm	No	On Backorder	£814.00
TBPCP4-1H30	Tekbox	Pulse	0.1 Hz to 100 MHz	1 Hz to 30 MHz	-26 dBΩ	46 mm	No	On Backorder	£814.00
TBPCP4-50H50	Tekbox	Pulse	1 Hz to 100 MHz	5 Hz to 50 MHz	-12 dBΩ	46 mm	No	On Backorder	£814.00
TBPCP4-5H50	Tekbox	Pulse	1 Hz to 100 MHz	50 Hz to 50 MHz	-20 dBΩ	46 mm	No	On Backorder	£814.00
TBSCP1-10M500	Tekbox	Surface	30 kHz to 400 MHz	N/A	-5 dBΩ	N/A	No	On Backorder	£480.00
TBSCP1-5M300	Tekbox	Surface	30 kHz to 600 MHz	N/A	-7 dBΩ	N/A	No	On Backorder	£410.00

Description

TEKBOX TBCP5-150K400 RF Current Monitoring Probe

The TBCP5-150K400 is a snap-on RF current monitoring probe, expanding the Tekbox product range of affordable test equipment.

The probe has a flat response from 150 kHz to 400 MHz and is characterized over the frequency range from 10 Hz to 500 MHz. The TBCP5-150K400 is designed for RF current monitoring applications, which need very high magnetic saturation. The TBCP5-150K400 transimpedance characteristic is not influenced by bias currents as high as 200 Ampere.

The aperture of the RF current monitoring probe is 46 mm. The transfer impedance is 11 dB Ohm with a 3dB bandwidth from 150kHz to 400 MHz.

Optional Hardware Accessories

TEKBOX TBAS3 RF Attenuator Set
£143
Tekbox TBCP5_CAL RF Current Monitoring Probe Calibration Fixtures
£428
TEKBOX TBFL1 Transient Limiter / Attenuator
£279

Documentation

Documents: Bulk Current Injection Probes

TBBCI1-200K280 Manual

TBBCI1-300K420-HV Manual

TBBCI1-800K420 Manual

Documents: Coaxial RF Current Monitoring Probes

TBCCP1 2K70 Manual

TBCCP1 3K100 Manual

TBCCP1 400K600 Manual

Documents: Current Coupler

TBMHA1 Manual

Documents: Current Probe calibration ﬁxtures

TBBCI1 Calibrator Manual

Tbcpx Calibrators Manual

TBEMCL1 CAL Manual

Documents: High Saturation RF Current Monitoring Probes

Documents: RF Current Monitoring Probes

Documents: RF pulse Current Monitoring Probes

Documents: RF Surface Current Monitoring Probes

TBSCP1 10M500 Manual

TBSCP1 5M300 Manual

Characterized frequency range: 10 Hz to 500 MHz3 dB bandwidth: 150 kHz to 400 MHz, typ.
Transfer impedance: 11 dBΩ (3.5 Ω) in the flat region, typ. (50 Ω load impedance)
Insertion impedance: <400mΩ up to 400 MHz (series measurement method)
Shunt capacitance: <1 pF (concentric cable with ⌀ 10 mm)
Output impedance: 50 Ω (resistive matching)
Max. bias current (DC – 400 Hz): 200 A (no influence on transimpedance)
Max. primary current (RF): 2 A
Max. core temperature: 125 °C
Connector type: N female
Aperture diameter: 46 mm
Outside diameter: 124 mm
Height: 36 mm
Weight: 320 g
