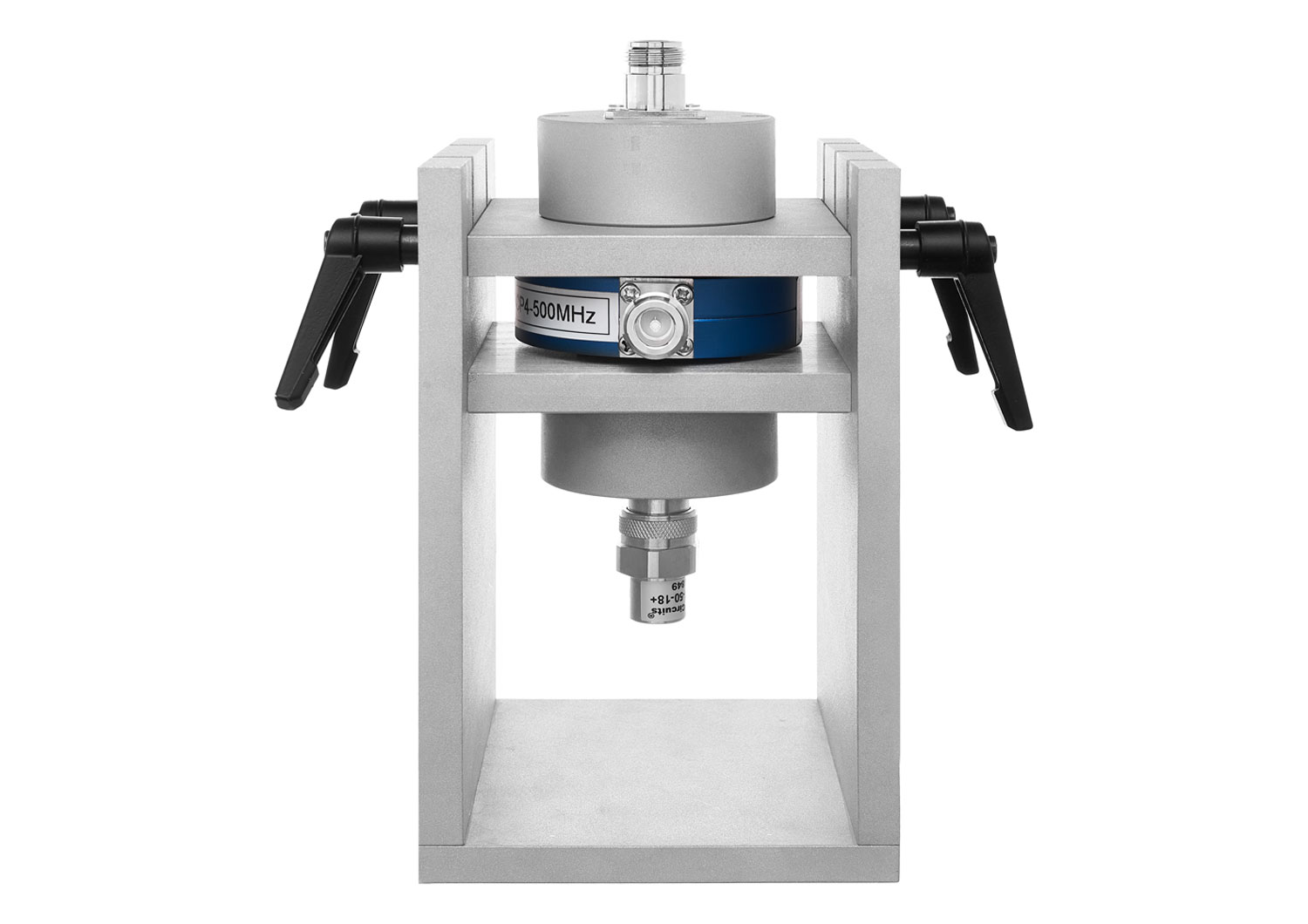

Tekbox TBCP4-750 10kHz to 750MHz RF Current Monitoring Probe

£552.00 (£662.40 inc VAT)

Only 1 left in stock!

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Price Match Guarantee
SKU: TBCP4-750 Category:

Description


Tekbox TBCP4-750 RF Current Monitoring Probe

The TBCP4-750 is a 10 kHz to 750 MHz fixed aperture RF current monitoring probe, it has a very flat response with a 3dB bandwidth of 750 MHz and is characterized and usable over the frequency range from 10kHz to 800 MHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is close to 20 dB Ohm in the range from 400 kHz to 750 MHz. Features:
  • Characterized frequency range: 10 kHz to 750 MHz
  • Aperture diameter: 32 mm
  • Outside diameter: 73 mm
  • Height: 20 mm
  • Weight: 320 g
  • Connector type: N female
  • Transfer impedance: 20 dBΩ
  • Max. primary current (DC – 400 Hz): 80 A
  • Max. primary current (RF): 3 A
  • Max. core temperature: 125 °C

Documentation

Specifications
Characterised frequency range 10 kHz to 750 MHz
Aperture diameter 32 mm
Outside diameter 73 mm
Height 20mm
Weight 320g
Connector type N female
Transfer impedance 20 dBΩ
Max. primary current (DC – 400 Hz) 80 A
Max. primary current (RF) 3A
Max. core temperature 125 °C



Frequency (MHz) Transfer Impedance (dBΩ) Frequency (MHz) Transfer Impedance (dBΩ)
0.01 -19.50 70 20.97
0.02 -13.84 80 20.97
0.03 -9.93 90 20.97
0.04 -7.61 100 20.95
0.05 -5.59 125 20.91
0.06 -4.00 150 20.87
0.07 -2.67 175 20.77
0.08 -1.51 200 20.93
0.09 -0.48 225 21.09
0.1 0.42 250 21.09
0.2 6.33 275 21.00
0.3 9.77 300 20.73
0.4 12.11 325 20.66
0.5 13.83 350 20.69
0.6 15.16 375 20.93
0.7 16.23 400 20.96
0.8 17.07 425 20.83
0.9 17.76 450 20.61
1 18.29 475 20.46
2 19.72 500 20.55
3 19.87 525 20.52
4 20.00 550 20.41
5 20.08 575 20.10
6 20.17 600 19.97
7 20.24 625 19.81
8 20.31 650 19.61
9 20.38 675 19.35
10 20.41 700 18.88
20 20.71 725 17.36
30 20.86 750 17.66
40 20.92 775 16.79
50 20.95 800 15.47
60 20.97
