Kikusui PXZ Series High-Capacity Regenerative Electronic Loads

Slide

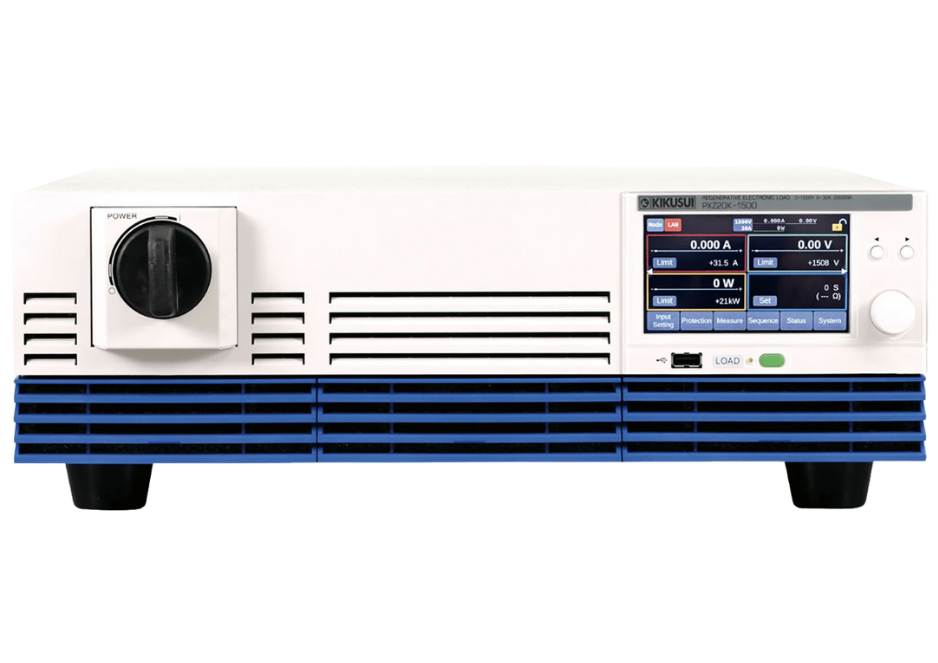

PXZ Series
High-Capacity Regenerative Electronic Loads

- High Power: 20 kW in a 3U size
- High Voltage: Up to 1500 V
- Scalable: Up to 500 kW (25 units) in parallel
- Efficient: Over 90% regenerative efficiency
- User-Friendly: Touch panel & multi-interface control

The PXZ series of highly efficient, reliable, high-capacity regenerative electronic loads has a rated power of 20 kW in 3U. In addition to the constant-current, constant-resistance, constant-voltage, and constant-power operating modes, this series has an I-V characteristic function that allows the user to set arbitrary I-V characteristics for each CC and CV operating mode. The series is also equipped with various functions, such as sequence, pre-charge, synchronous operation, pulse, sine, and VMCB functions.

LAN, USB, and RS232C communication functions are included as standard, allowing easy integration into various evaluation systems. The PXZ series is highly scalable, and its capacity can be increased up to 500 kW when operating in parallel (up to 25 units).

SKUImageInput Voltage / Current / PowerModesCC Dynamic Mode FrequencyCurrent Slew RateReadback Current ResolutionPortsStock StatusPrice
PXZ20K-1000Image of Pxz top body telonicuk1000 V / 60 A / 20 kWCC / CR / CV / CP1 kHz0.15–≥60 A/ms1 mALAN / USB / RS-232 / GPIB (Optional)On Backorder£13,816.00
PXZ20K-1500Image of Pxz top body telonicuk1500 V / 30 A / 20 kWCC / CR / CV / CP1 kHz0.075–≥30 A/ms1 mALAN / USB / RS-232 / GPIB (Optional)On Backorder£13,816.00
PXZ20K-50Image of Pxz top body telonicuk50 V / 800 A / 20 kWCC / CR / CV / CP1 kHz2–≥800 A/ms1 mALAN / USB / RS-232 / GPIB (Optional)On BackorderCall Us
PXZ20K-500Image of Pxz top body telonicuk500 V / 120 A / 20 kWCC / CR / CV / CP1 kHz0.3–≥120 A/ms1 mALAN / USB / RS-232 / GPIB (Optional)On Backorder£13,816.00

Showing all 6 results
