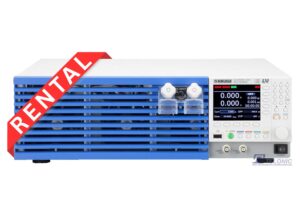

Kikusui PLZ1205W DC Electronic Load 1-150V 0-240A 1200W

£4352.00 (£5222.40 inc VAT)

Available on back-order, delivery normally 1 - 2 weeks

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Free Shipping Free Calibration Price Match Guarantee

Description

Kikusui PLZ1205W DC Electronic Load

The PLZ1205W (1-150V 0-240A 1200W) high performance electronic load is the successor to the highly respected PLZ-4W series, whilst still retaining the same high specification and build quality. Advances include a high visibility colour display, low voltage operation from a minimum of 1 V to a maximum of 150 V. Programmable profiles of voltage/current can be applied (using the new ARB function, as used in LED/solar testing) in addition to the inherited 6 modes of operation: Constant Current, Constant Resistance, Constant Voltage, Constant Power, Constant Current + Constant Voltage, Constant Resistance + Constant Voltage. Equipped with a high-speed response feature boasting a maximum slew rate of 60 A/μs (PLZ1205W) and a minimum setting resolution of 10 μA (PLZ205W). Additional features of the PLZ205W include: Soft-start function, variable slew rate, selectable response (CV/CR mode), switching function, ABC preset memory, 20 user-defined set-up configurations, and a sequence operation function. The advanced high-speed response makes the PLZ-5W ideal for the development and testing of today's modern power supplies that require variable high-speed current changes. This advantage extends to the testing of current clamps/transducers. The following communication interfaces are installed as standard: LAN (LXI compliant), USB, RS232C and analog control. An optional GPIB interface is available. Features:
  • Equipped with six modes (Constant Current / Constant Resistance / Constant Voltage / Constant Power / Constant Current + Constant Voltage / Constant Resistance + Constant Voltage)
  • Arbitrary I-V Characteristics (ARB) mode to reproduce nonlinear load characteristics.
  • High-speed response with 4 μs start-up time.
  • Sequence control functionality enables actual-load simulations.
  • Parallel operation enables scalability.
  • LAN, RS-232C and USB communication interfaces installed as a standard feature. *GPIB Option

Product Videos

How to Perform Transient Response Test
How to Measure Battery Capacity
Fast Slew Rate Demo - 60A/μs!

Documentation

PLZ-5W Specifications
Model PLZ205W PLZ405W PLZ1205W
Ratings
Operating Voltage 1V to 150V 1V to 150V 1V to 150V
Current 40A 80A 240A
Power 200W 400W 1200W
The minimum
operating voltage
approximately 0.05 V.
(At the load input terminals on the rear panel.)
approximately 0.05 V.
(At the load input terminals on the rear panel.)
approximately 0.05 V.
(At the load input terminals on the rear panel.)
Input resistance
when the load is off
Approx. 660 kΩ Approx. 660 kΩ Approx. 660 kΩ
Load input terminal’s
isolation voltage
±500 V ±500 V ±500 V
Constant Current (CC) Mode
Operating Range
H Range 0A to 40A 0A to 80A 0A to 240A
M Range 0A to 4A 0A to 8A 0A to 24A
L Range 0A to 0.4A 0A to 0.8A 0A to 2.4A
Setting Range
H Range 0A to 42A 0A to 84A 0A to 252A
M Range 0A to 4.2A 0A to 8.4A 0A to 25.2A
L Range 0A to 0.42A 0A to 0.84A 0A to 2.52A
Resolution
H Range 1mA 2mA 5mA
M Range 0.1mA 0.2mA 0.5mA
L Range 0.01mA 0.02mA 0.05mA
Setting Accuracy
H Range ± (0.2% of set + 0.1% of range) ± (0.2% of set + 0.1% of range) ± (0.2% of set + 0.1% of range)
M Range ± (0.2% of set + 0.3% of range) ± (0.2% of set + 0.3% of range) ± (0.2% of set + 0.3% of range)
L Range ± (0.2% of set + 1% of range) ± (0.2% of set + 1% of range) ± (0.2% of set + 1% of range)
Parallel Operation
H Range ± (0.4% of set + 0.8% of range) ± (0.4% of set + 0.8% of range) ± (0.4% of set + 0.8% of range)
M Range ± (0.4% of set + 0.8% of range) ± (0.4% of set + 0.8% of range) ± (0.4% of set + 0.8% of range)
L Range ± (0.4% of set + 5% of range) ± (0.4% of set + 5% of range) ± (0.4% of set + 5% of range)
Input Line Regulation 4mA 8mA 24mA
Ripple rms: 4mA
p-p: 40mA
rms: 8mA
p-p: 80mA
rms: 24mA
p-p: 200mA
Constant Current (CR) Mode
Operating Range
H Range 40 S to 0.002 S
(0.025 Ω to 500 Ω)
80 S to 0.004 S
(0.0125 Ω to 250 Ω)
240 S to 0.012 S
(0.0042 Ω to 83.333 Ω)
M Range 4 S to 0.0002 S
(0.25 Ω to 5000 Ω)
8 S to 0.0004 S
(0.125 Ω to 2500 Ω)
24 S to 0.0012 S
(0.042 Ω to 833.33 Ω)
L Range 400 mS to 0.02 mS
(2.5 Ω to 50000 Ω)
800 mS to 0.04 mS
(1.25 Ω to 25000 Ω)
2 400 mS to 0.12 mS
(0.42 Ω to 8333.3 Ω)
Setting Range
H Range 42 S to 0 S
(0.0238 Ω to Open)
84 S to 0 S
(0.0119 Ω to Open)
252 S to 0 S
(0.00397 Ω to Open)
M Range 4.2 S to 0 S
(0.238 Ω to Open)
8.4 S to 0 S
(0.119 Ω to Open)
25.2 S to 0 S
(0.0397 Ω to Open)
L Range 420 mS to 0 S
(2.38 Ω to Open)
840 mS to 0 S
(1.19 Ω to Open)
2520 mS to 0 S
(0.397 Ω to Open)
Resolution
H Range 1mS 2mS 5mS
M Range 0.1mS 0.2mS 0.5mS
L Range 0.01mS 0.02mS 0.05mS
Setting Accuracy
H Range ± (0.5% of set + 0.5% of range) ± (0.5% of set + 0.5% of range) ± (0.5% of set + 0.5% of range)
M Range ± (0.5% of set + 0.5% of range) ± (0.5% of set + 0.5% of range) ± (0.5% of set + 0.5% of range)
L Range ± (0.5% of set + 1.5% of range) ± (0.5% of set + 1.5% of range) ± (0.5% of set + 1.5% of range)
Parallel Operation
H Range ± (0.5% of set + 1.5% of range) ± (0.5% of set + 1.5% of range) ± (0.5% of set + 1.5% of range)
M Range ± (0.5% of set + 1.5% of range) ± (0.5% of set + 1.5% of range) ± (0.5% of set + 1.5% of range)
L Range ± (0.5% of set + 5% of range) ± (0.5% of set + 5% of range) ± (0.5% of set + 5% of range)

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
