Sale!

Rigol DSA705 500MHz Spectrum Analyser (Clearance)

Original price was: £842.00.Current price is: £650.00. (£780.00 inc VAT)

1 in stock

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Description


The DSA705 has a Minimum Resolution Bandwidth of 100Hz and a Frequency Range of 100kHz to 500MHz. Lowering the cost of ownership for users working below 1GHz and featuring a powerful combination of quality, performance and functionality, the new Rigol DSA700 series of spectrum analysers – Available in 500MHz (DSA705) and 1GHz (DSA710) models.

Compact, light weight, easy to use and great value for money, the performance and features of these versatile instruments make them ideally suited to various environments – Hobbyists, R&D laboratories, manufacturing, colleges and universities alike. Several options are available.

A Rigol DSA700 series spectrum analyser would form the basis of a powerful and cost effective EMC pre-compliance test system – An effective de-risking strategy, potentially saving a small fortune and project delays due to re-tests at an EMC Test House. For other system components, please refer to the Rigol S1210 EMI pre-compliance test PC software, the Rigol EMI-DSA800 EMI filter and quasi-peak detector licence and the TEKBOX range of EMC pre-compliance test equipment (near-field probes, LISNs, modulated amplifiers and TEM cells).

Features:

  • Frequency range from 100kHz to 500MHz
  • Displayed average noise level (DANL) <-155dBm/Hz typ. with preamplifier on
  • Minimum resolution bandwidth (RBW) 100Hz
  • Phase noise <-80dBc/Hz @10kHz offset
  • Level measurement uncertainty <1.5dB
  • 8″ (800 x 480) high-definition display
  • Linear and logarithmic frequency axis
  • Connectivity: LAN(LXI), USB Host & Device
  • PictBridge support
  • Compact size and light weight
  • Supplied with… UK & European mains leads, quick guide,
  • Optional PC software… Ultra Spectrum, S1210 EMI Pre-Compliance Test
  • Other options include… EMI filter & quasi-peak detector, advanced measurement functions, 2FSK measurement & analysis in signal seamless capture mode, USB to GPIB module, rack mount kit, soft carry bag, RF transmitter demo kit, RF receiver demo kit, high power attenuator, RCL Standard Calibration

Rigol DSA700 Spectrum Analyser Comparison Table

Model Frequency Range Minimum Resolution Bandwidth (RBW) Maximum CW RF Power SSB Phase Noise (@ 10kHz Offset) DANL, Preamplifier OFF (Typ. 1MHz – 500MHz) DANL, Preamplifier ON (Typ. 1MHz – 500MHz) Preamplifier Tracking Generator EMI Filter & Quasi-Peak Detector
DSA705 100kHz – 500MHz 100Hz 20dBm (100mW) <-80dBc/Hz <-135dBm/Hz <-155dBm/Hz Standard Not Available Optional
DSA710 100kHz – 1GHz 100Hz 20dBm (100mW) <-80dBc/Hz <-135dBm/Hz <-155dBm/Hz Standard Not Available Optional

Documentation

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Mandatory Accessories …

  • UK Power Cord

    .
    Read more

Optional Accessories …

  • Rigol USB-GPIB USB to GPIB Interface Converter

    £287.00
    Add to basket
  • Rigol Ultra Spectrum PC Software Licence

    £176.00
    Add to basket
  • Rigol S1210 EMI Pre-Compliance Test PC Software Licence

    £407.00
    Add to basket
  • Tekbox TBMA4 CISPR16 1GHz to 8GHz Double Ridged Horn Antenna

    £646.53

    1 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • Rigol SSC-DSA Signal Seamless Mode Licence

    £170.00
    Add to basket
  • Tekbox TBMA2 Biconical Antenna 30MHz to 300MHz

    £937.42

    1 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • Rigol RM-DSA800 Rack Mount Kit

    £332.00
    Add to basket
  • The Physical Basis of EMC – Keith Armstrong

    £26.25
    Add to basket
  • Rigol DSA Utility Kit

    £590.00

    1 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • Rigol RX1000 RF Demo Kit (Receiver)

    £781.00
    Add to basket
  • Rigol TX1000 RF Transmitter Demo Kit

    £781.00
    Add to basket

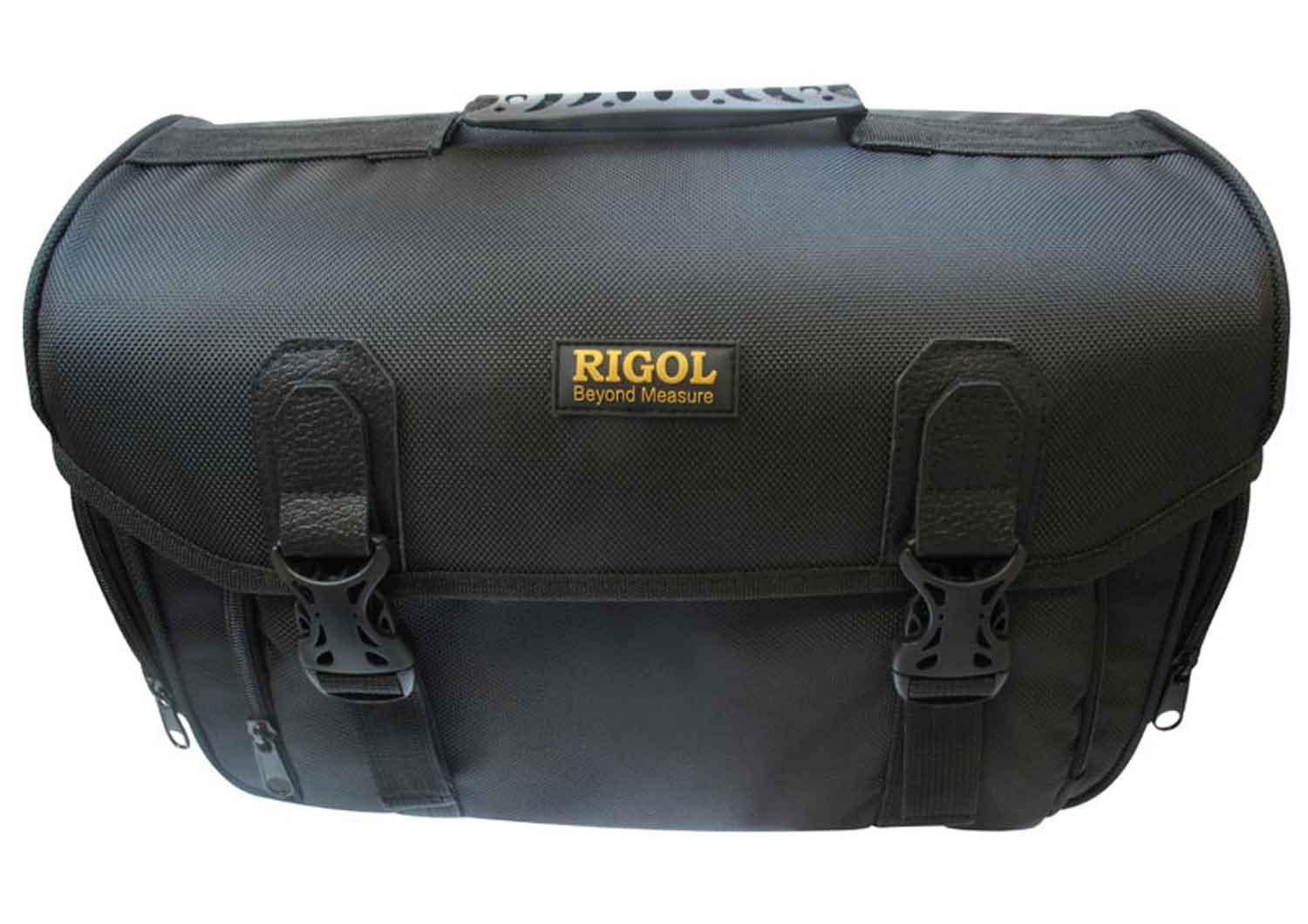

  • Rigol BAG-G1 Soft Carry Bag
