Sale!

Siglent SDS2202X-E 2Ch, 200MHz, 2GSa/s, Super Phosphor Oscilloscope Save 20% to be Discontinued

(1 customer review)

Original price was: £483.00.Current price is: £386.00. (£463.20 inc VAT)

5 in stock

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Description


Siglent SDS2202X-E Super Phosphor Oscilloscope

The SDS2202X-E is a 2CH, 200MHz, Super Phosphor Oscilloscope and has a maximum sampling rate of 2GSa/s with a standard record length of 28Mpts. The most commonly used functions can be accessed with its user-friendly one-button design. The SDS2000X-E series employs a new generation of SPO technology. With its excellent signal fidelity, background noise is lower than similar products in the industry. It has a minimum vertical input range of 500uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). It also employs a 256-level intensity grading display function and a colour temperature display mode not found in other models in this class.

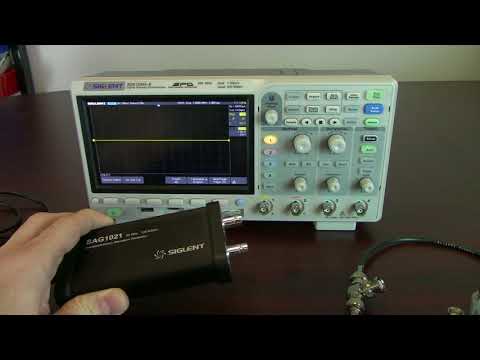

Siglent’s newest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering and decoding. History waveform recording and sequential triggering allow for extended waveform records to be captured, stored, and analysed. Also included is the deep memory FFT. This math function uses up to 1 M samples for the FFT calculation, providing the SDS2000X-E with very high frequency resolution. The hardware co-processor executes true fast measurement and math to all of 28M sample points so that there is minimal distortion on analysis. It also supports searching and navigating, on-screen Bode plot, 16 channel digital /MSO (optional), an external USB powered 25 MHz AWG function generator module (option), a USB WIFI adapter for wireless control and monitoring (option), and an embedded application that allows remote control via a web browser. The features and high-performance of the SDS2000X-E oscilloscopes cannot be matched else anywhere at this price.

Features:

  • Intelligent triggers: Edge, Slope, Pulse, Width, Window, Runt, Interval, Time out (Dropout), Pattern
  • Serial bus triggering and decoding (standard), supports protocols IIC, SPI, UART, CAN, LIN
  • Low background noise with voltage scales from 500μV/div to 10V/DIV
  • 10 Types of one-button shortcuts, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print
  • History waveform record (History) function (maximum recorded waveform length is 80,000 frames)
  • 1 Mpt FFT
  • Math and measurement function use all sampled data points in memory (up to 28Mpts)
  • Math functions (FFT, addition, subtraction, multiplication, division, integration, differential, square root)
  • Large 7-inch TFT-LCD display with 800 * 480 resolution
  • Supports multi-language display and embedded online help

Siglent SDS2000X-E Oscilloscope Comparison Table

Model Channels Bandwidth Real Time Sampling Rate Capture Rate Memory Depth
SDS2202X-E 2 + EXT 200MHz 2GSa/s 110,000wfm/s (Normal Mode) 28Mpts/CH
SDS2352X-E 2 + EXT 350MHz 2GSa/s 110,000wfm/s (Normal Mode) 28Mpts/CH

Product Videos

    Optional Software Accessories

Documentation

Acquisition System
Sampling Rate 2GSa/s (single channel), 1 GSa/s (two channels)
Memory Depth Max 28 Mpts/Ch (single channel), 14 Mpts/Ch(two channels)
Peak Detect 1 nsec
Average Averages: 4, 16, 32, 64, 128, 256, 512, 1024
Eres Enhance bits: 0.5, 1.5, 2, 2.5, 3
Waveform Interpolation Sin(x)/x, Linear
Input
Channels 2 + EXT
Coupling DC, AC, GND
Impedance DC 1 MΩ: (1 MΩ ± 2%) || (18 pF ± 2 pF)
DC 50 Ω: 50 Ω ± 2%
Max. Input voltage 1 MΩ: ≤ 400 Vpk (DC + Peak AC <= 10 kHz)
50 Ω: ≤ 5V rms
CH to CH Isolation DC-Max BW :> 40 dB
Probe attenuation 0.1X, 0.2X, 0.5X, 1X, 2X, 5X, 10X……1000X, 2000X, 5000X, 10000X, Custom
Vertical System
Bandwidth ( -3 dB ) 350 MHz (SDS2352X-E)
200 MHz (SDS2202X-E)
Vertical Resolution 8-bit
Vertical Scale (Probe 1 X) 500 μV/div – 10 V/div (1-2-5 sequence)
Offset Range (Probe 1 X) 500 μV – 100 mV: ± 2 V
102 mV- 1 V: ± 20 V
1.02 V – 10 V: ± 200 V
Bandwidth Limit 20 MHz ± 40%
Channel Flatness (Inner 50 Ω) DC – 60% (BW): ± 1 dB
60% – 100% (BW): + 1 dB/-3 dB
Low Frequency Response (AC -3 dB) ≤ 2 Hz (at input BNC)
Noise ST-DEV ≤ 0.5 division (< 1 mV/div)
ST-DEV ≤ 0.2 division (< 2 mV/div)
ST-DEV ≤ 0.1 division (≥ 2 mV/div)
SFDR including harmonics ≥35 dB
DC Gain Accuracy ≤ ± 3.0%: 5 mV/div-10 V/div
≤ ± 4.0%: ≤ 2 mV/div
Offset Accuracy ± (1% * Offset + 1.5% * 8 * div + 2 mV): ≥2 mV/div
± (1% * Offset + 1.5% * 8 * div + 500 uV): ≤1 mv/div
Risetime Typical 1.0 ns (SDS2352X-E)
Typical 1.8 ns (SDS2202X-E)
Horizontal System
Timebase Scale 500 ps/div-100 s/div
Channel Skew <100 ps
Waveform Capture Rate Up to 110,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)
Intensity Grading 256 Levels
Display Format Y-T, X-Y, Roll
Timebase Accuracy ±25 ppm
Roll Mode 50 ms/div-100 s/div (1-2-5 step)
Trigger Systems
Trigger Mode Auto, Normal, Single
Trigger Level Internal: ±4.5 div from the center of the screen
EXT: ±0.6 V
EXT/5: ±3 V
Holdoff Range 80 ns – 1.5 s
Trigger Coupling AC
DC
LFRJ
HFRJ
Noise RJ
Coupling Frequency Response DC: Passes all components of the signal
AC: Blocks DC components and attenuates signals below 8 Hz
LFRJ: Blocks the DC component and attenuates the low-frequency components below 2 MHz
HFRJ: Attenuates the high-frequency components above 1.2 MHz
Coupling Frequency Response (EXT) DC: Passes all components of the signal
AC: Blocks DC components and attenuates signals below 10 Hz
LFRJ: Blocks the DC components and attenuates low-frequency components below 6 KHz
HFRJ: Attenuates high-frequency components above 200 KHz
Trigger Accuracy (typical) Internal: ±0.2 div
EXT: ±0.4 div
Trigger Sensitivity DC – Max BW 0.6 div
EXT: 200 mVpp DC – 10 MHz
300 mVpp 10 MHz – BW frequency (External 50 Ω)
EXT/5: 1 Vpp DC – 10 MHz
1.5 Vpp 10 MHz -BW frequency (External 50 Ω)
Trigger Jitter < 100 ps
Trigger Displacement Pre-Trigger: 0 – 100% Memory
Delay Trigger: 0 to 10,000 div
Edge Trigger
Slope Rising, Falling, Rising&Falling
Source All channels / EXT / (EXT/5) / AC Line
Slope Trigger
Slope Rising, Falling
LimitRange <, >, <>, ><
Source All channels
TimeRange 2 ns – 4.2 s
Resolution 1 ns
Pulse Trigger
Polarity +wid , -wid
Limit Range <, >, <>, ><
Source All channels
Pulse Range 2 ns – 4.2 s
Resolution 1 ns
Video Trigger
Signal Standard NTSC, PAL, 720p/50, 720p/60, 1080p/50, 1080p/60, 1080i/50, 1080i/60, Custom
Source All channels
Sync Any, Select
Trigger condition Line, Field
Window Trigger
Window Type Absolute, Relative
Source All channels
Interval Trigger
Slope Rising, Falling
Limit Range <, >, <>, ><
Source All channels
Time Range 2 ns – 4.2 s
Resolution 1 ns
Dropout Trigger
Timeout Type Edge, State
Source All channels
Slope Rising, Falling
Time Range 2 ns – 4.2 s
Resolution 1 ns
Runt Trigger
Polarity +wid , -wid
Limit Range <, >, <>, ><
Source All channels
Time Range 2 ns – 4.2 s
Resolution 1 ns
Pattern Trigger
Pattern Setting Invalid, Low, High
Logic AND, OR, NAND, NOR
Source All channels
Limit Range <, >, <>, ><
Time Range 2 ns – 4.2 s
Resolution 1 ns
General Specification
Input Voltage 100 – 240 Vrms (± 10%), 50 / 60 Hz
100 – 120 Vrms (± 10%), 400 Hz
Power 50W Max
Dimensions Length: 312 mm
Width: 132.6 mm
Height: 151 mm
Weight N.W: 2.6 kg; G.W: 3.8 kg
Temperature Operating: 0℃ ~ +40℃
Non-operating: -20℃ ~ +60℃
Humidity Operating: 85% RH, 40℃ , 24 hours
Non-operating: 85% RH, 65℃ , 24 hours
Height Operating: ≤3000 m
Non-operating: ≤15,000 m
Display Type 7-inch TFT LCD
Display Resolution 800 × 480 pixels
Display Colour 24-bit
Contrast (Typical) 500:1
Backlight 300 nits
Range 8 x 14 divisions

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
