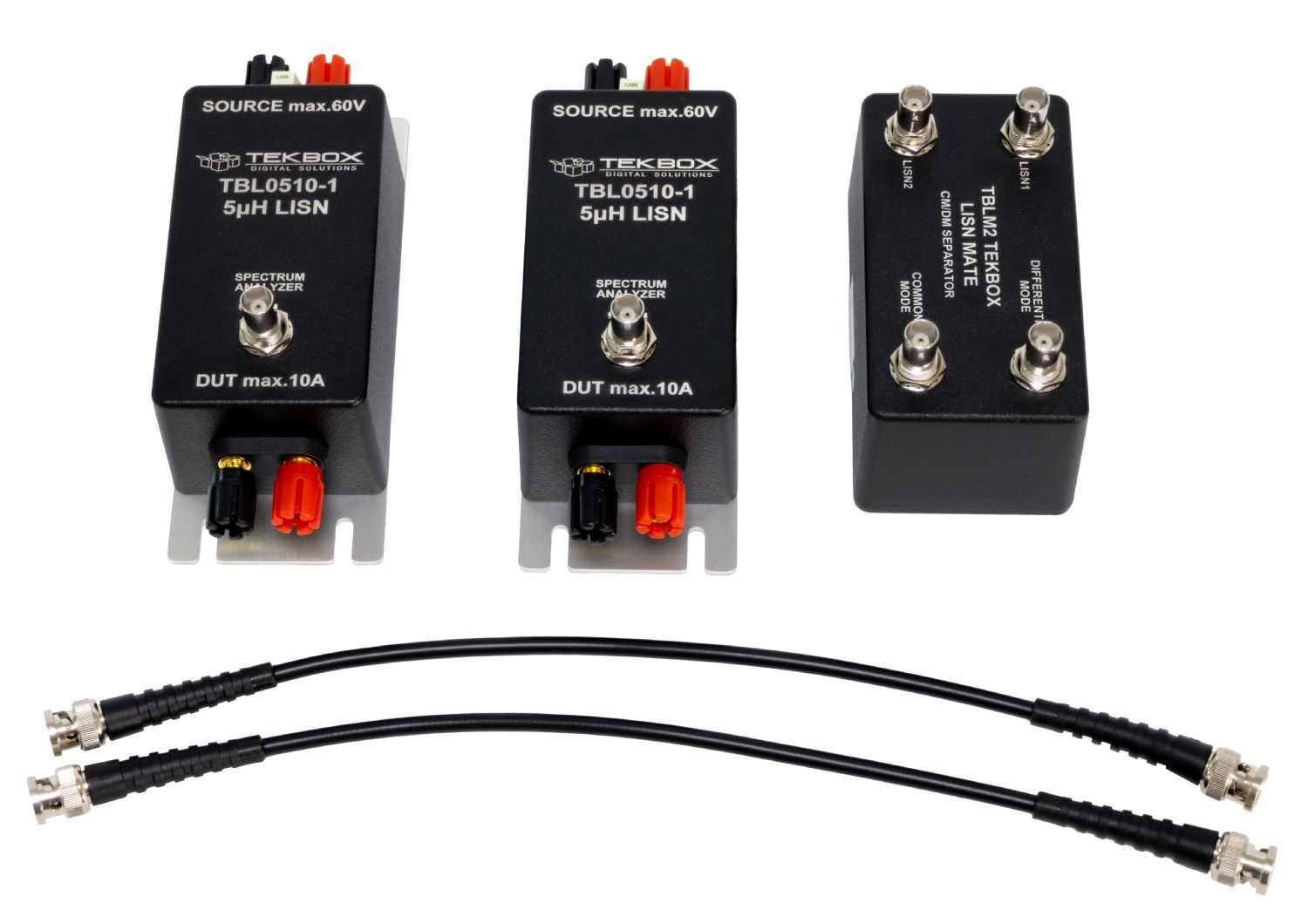

Image of Dc lisn combo1c 1 telonicuk

Tekbox DC-LISN-Combo1C LISN Combo Bundle

£628.00 (£753.60 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: DC-LISN-Combo1C Categories: , , , Brand:

Compare with other DC & High-Current LISNs

Product NameImageImpendanceFrequency RangePathCurrentVoltageEUT SocketAdditional FeaturesStandardStockPrice
DC-LISN-Combo1CImage of Dc lisn combo1c 1 telonicuk5µH // 50Ω10 Hz – 400 MHz, 150 kHz – 110 MHz210A60V nominal, Component rating: 200V4mm (banana)2x TBL0510-1, TBLM02, BNC Termination, N-Male to BNC-Male 75cm RG58, 2x BNC-Male to BNC-Male 35cm RG223CISPR-25, MIL-STD-461F, DO-160, AECTP-500, ISO 7637-2On Backorder£628.00
TBL50100-1Image of Tbl50100 1 50uh line impedance stabilisation network lisn – cispr 1650µH // 50Ω150 kHz – 30 MHz1100A250VPhoenix High CurrentJumperable impedance networks, no 250µH pre-filterCISPR 16-1-2On Backorder£1,297.00
TBLDC32-2 V-Y-Δ DCImage of Tbldc32 2 front150Ω9 kHz – 30 MHz232A1000V DC4mm safety150Ω DC LISN A/B, Common Mode & Differential Mode operationCISPR 16-1-2, CISPR 11On Backorder£1,815.00
TBL0510-1Low stockImage of Tbl0510 1 telonicuk5µH // 50Ω150 kHz – 108 MHz110A60V nominal, Component rating: 250V4mm (banana)4mm (banana)None2£252.00
TBL05-100-1-B-Low stockImage of Tbl05100 1 b angle telonicuk5µH // 50Ω10 kHz – 400 MHz1100A0–500V AC @ 50/60 Hz, 250V AC @ 400 Hz, 1000V DCPhoenix High CurrentJumper configurable to various standardsCISPR 16-1-2, MIL-STD-461G1£1,222.00
TBL05100-1CImage of Tbl05100 1c side telonicuk5µH // 50Ω150 kHz – 400 MHz1100A0–500V AC @ 50/60 Hz, 250V AC @ 400 Hz, 1000V DCWing-nut binding postJumper configurable to various standardsCISPR 25, MIL-STD-461G, ISO 11452-4, ISO 7637-2On Backorder£1,226.00
TBL0550-1BImage of Tbl0550 1b side telonicuk5µH // 50Ω150 kHz – 400 MHz150A250V DC, 250V AC @ 50/60 Hz, 130V AC @ 400 HzWing-nut binding postJumper configurable to various standardsCISPR-25, MIL-STD-461F, DO-160, AECTP-500, ISO 7637-2On Backorder£577.00
TBL501000-1Image of Tbl501000 1 side telonicuk50µH // 50 Ω150 kHz – 30 MHz11000A1000V DC, 500V AC16mm wing terminalsInternal HPFCISPR 16-1-2On Backorder£5,136.00
TBL5016-1Image of Tekbox tbl5016 1 front50µH // 50Ω, (50µH+5Ω) // 50Ω150 kHz – 30 MHz116A250VPhoenix High CurrentJumper configurable to various standardsCISPR 16-1-2, MIL-STD-461FOn Backorder£578.00
TBL5032-1Image of Tbl5032 1 side 2 telonicuk50µH // 50Ω, (50µH+5Ω) // 50Ω10 kHz – 30 MHz132A500V DC, 270V AC @ 50/60 Hz, 120V AC @ 400 Hz4mm (banana)Jumper configurable to various standardsCISPR 16-1-2, MIL-STD-461GOn Backorder£692.00

Description


Tekbox DC-LISN-Combo1C LISN Combo Bundle

The TekBox TBLM02 LISN MATE is a companion device for LISNs that separates common-mode and differential-mode conducted noise. It connects to the outputs of two LISNs: one inserted into the positive supply line and one into the negative supply line. Since the output signal of a LISN contains both common-mode and differential-mode noise components, the TBLM02 separates these and provides them individually at dedicated BNC output ports.

What's Included
  • 2 x TBL0510-1 LISNs
  • 1 x TBLM02 LISN Mate
  • 1 x BNC termination
  • 1 x N-male to BNC-male 75 cm RG58 cable
  • 2 x BNC-male to BNC-male 35 cm RG223 cables

Product Videos

YouTube Video
EMC Conducted Emissions: Accurate Lab-Quality Testing You Can Do In-House
YouTube Video
Telonic Instruments - Your Guide to our Tekbox LISNs by Dr Min Zhang

Tekbox DC-LISN-Combo1C LISN Combo Bundle 2 TBL0510-1, 1 TBLM02, 1 BNC Termination, 1x N-Male to BNC-Male 75 cm RG58, 2x BNC-Male to BNC-Male 35 cm RG223
