Tekbox TBL0550-1B 5uH 50A Line Impedance Stabilisation Network LISN

£577.00 (£692.40 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBL0550-1B Categories: , , , Brand:

Compare with other DC & High-Current LISNs

Product NameImageImpendanceFrequency RangePathCurrentVoltageEUT SocketAdditional FeaturesStandardStockPrice
TBL0550-1BImage of Tbl0550 1b side telonicuk5µH // 50Ω150 kHz – 400 MHz150A250V DC, 250V AC @ 50/60 Hz, 130V AC @ 400 HzWing-nut binding postJumper configurable to various standardsCISPR-25, MIL-STD-461F, DO-160, AECTP-500, ISO 7637-2On Backorder£577.00
TBL50100-1Image of Tbl50100 1 50uh line impedance stabilisation network lisn – cispr 1650µH // 50Ω150 kHz – 30 MHz1100A250VPhoenix High CurrentJumperable impedance networks, no 250µH pre-filterCISPR 16-1-2On Backorder£1,297.00
TBLDC32-2 V-Y-Δ DCImage of Tbldc32 2 front150Ω9 kHz – 30 MHz232A1000V DC4mm safety150Ω DC LISN A/B, Common Mode & Differential Mode operationCISPR 16-1-2, CISPR 11On Backorder£1,815.00
DC-LISN-Combo1CImage of Dc lisn combo1c 1 telonicuk5µH // 50Ω10 Hz – 400 MHz, 150 kHz – 110 MHz210A60V nominal, Component rating: 200V4mm (banana)2x TBL0510-1, TBLM02, BNC Termination, N-Male to BNC-Male 75cm RG58, 2x BNC-Male to BNC-Male 35cm RG223CISPR-25, MIL-STD-461F, DO-160, AECTP-500, ISO 7637-2On Backorder£628.00
TBL0510-1Low stockImage of Tbl0510 1 telonicuk5µH // 50Ω150 kHz – 108 MHz110A60V nominal, Component rating: 250V4mm (banana)4mm (banana)None2£252.00
TBL05-100-1-B-Low stockImage of Tbl05100 1 b angle telonicuk5µH // 50Ω10 kHz – 400 MHz1100A0–500V AC @ 50/60 Hz, 250V AC @ 400 Hz, 1000V DCPhoenix High CurrentJumper configurable to various standardsCISPR 16-1-2, MIL-STD-461G1£1,222.00
TBL05100-1CImage of Tbl05100 1c side telonicuk5µH // 50Ω150 kHz – 400 MHz1100A0–500V AC @ 50/60 Hz, 250V AC @ 400 Hz, 1000V DCWing-nut binding postJumper configurable to various standardsCISPR 25, MIL-STD-461G, ISO 11452-4, ISO 7637-2On Backorder£1,226.00
TBL501000-1Image of Tbl501000 1 side telonicuk50µH // 50 Ω150 kHz – 30 MHz11000A1000V DC, 500V AC16mm wing terminalsInternal HPFCISPR 16-1-2On Backorder£5,136.00
TBL5016-1Image of Tekbox tbl5016 1 front50µH // 50Ω, (50µH+5Ω) // 50Ω150 kHz – 30 MHz116A250VPhoenix High CurrentJumper configurable to various standardsCISPR 16-1-2, MIL-STD-461FOn Backorder£578.00
TBL5032-1Image of Tbl5032 1 side 2 telonicuk50µH // 50Ω, (50µH+5Ω) // 50Ω10 kHz – 30 MHz132A500V DC, 270V AC @ 50/60 Hz, 120V AC @ 400 Hz4mm (banana)Jumper configurable to various standardsCISPR 16-1-2, MIL-STD-461GOn Backorder£692.00

Description


Tekbox TBL0550-1B 5uH 50A Line Impedance Stabilisation Network LISN

The TBL0550-1B is an affordable 5µH LISN designed for conducted emission measurements / line termination in the frequency range of 100 kHz to 400 MHz. It complies with CISPR-25 (EN 55025), numerous automotive manufacturer standards, MIL-STD-461F, DO-160, AECTP-500 and ISO 7637-2.

LISNs are inserted into the supply lines of the EUT (Equipment Under Test). Conducted noise which is present at the supply terminals of the EUT can be measured at the BNC connectors using a spectrum analyser or a measurement receiver. The source (supply) terminal and the EUT terminal are decoupled by a 5µH inductor.

Two TBL0550-1B units in combination with the Tekbox LISN Mate enable separate measurement of common mode and differential mode noise.

Product Videos

YouTube Video
EMC Conducted Emissions: Accurate Lab-Quality Testing You Can Do In-House
YouTube Video
Telonic Instruments - Your Guide to our Tekbox LISNs by Dr Min Zhang

Documentation


  • Topology: single path, configurable, 50Ω // 5µH + 1Ω, 50Ω // 5µH; the internal capacitor can be disconnected for ISO 7637-2 and DO-160 set ups; an external 10µF capacitor is required for DO -160; the LISN is factory setup to 50Ω // 5µH + 1Ω, other configurations require setting of an internal high current jumper.
  • Supported standards: CISPR 16-1-2, CISPR 25, MIL-STD-461G, DO-160, ISO11452-4 and ISO 7637-2
  • Characterized frequency range: 10 kHz – 400 MHz
  • DC Resistance: < 5 mΩ Source+ to EUT+; < 5 mΩ Source- to EUT
  • Maximum current: 50A continuous; see plot with heat up characteristics, chapter 1.8
  • Maximum operating voltage range: 0 – 250V AC @50/60 Hz, 130V AC @ 400Hz, 250V DC.
  • Absolute maximum rating of internal components: 450V DC.
  • EUT connector: binding post, M6, 4mm center hole, 63A, 1kV, Schützinger POL 631 L
  • SOURCE connector: binding post, M6, 4mm center hole, 63A, 1kV, Schützinger POL 631 L
  • EARTH: 6 mm Earth stud with wing-nut, exposed stainless steel bottom panel with mounting slots and countersunk hole for 4mm screw
  • Jumper: Harwin D3087-98
  • Dimensions: 125 mm x 125 mm x 275 mm
  • Weight: 1.75 kg

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Related products

  • Image of Tekbox tbl5016 2c front telonic uk

    TEKBOX TBL5016-2C 50µH Single Phase AC Line Impedance Stabilisation Network LISN

    £884.00 (£1,060.80 inc. VAT)

    1 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • Image of Tbcg1

    TEKBOX TBCG1-100MHz Radiating Comb Generator

    £95.00 (£114.00 inc. VAT)

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • Image of Tekbox nm smam rg58 rg223 telonicuk

    TEKBOX NM-SMAM/75/RG223 50Ω RF Cable

    £14.00 (£16.80 inc. VAT)

    5+ In UK Stock

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • Image of Tbtc3

    TEKBOX TBTC3 Open TEM Cell

    £933.00 (£1,119.60 inc. VAT)

    1 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket

Optional Accessories …

  • Image of Tbcdnm5ap front telonicuk

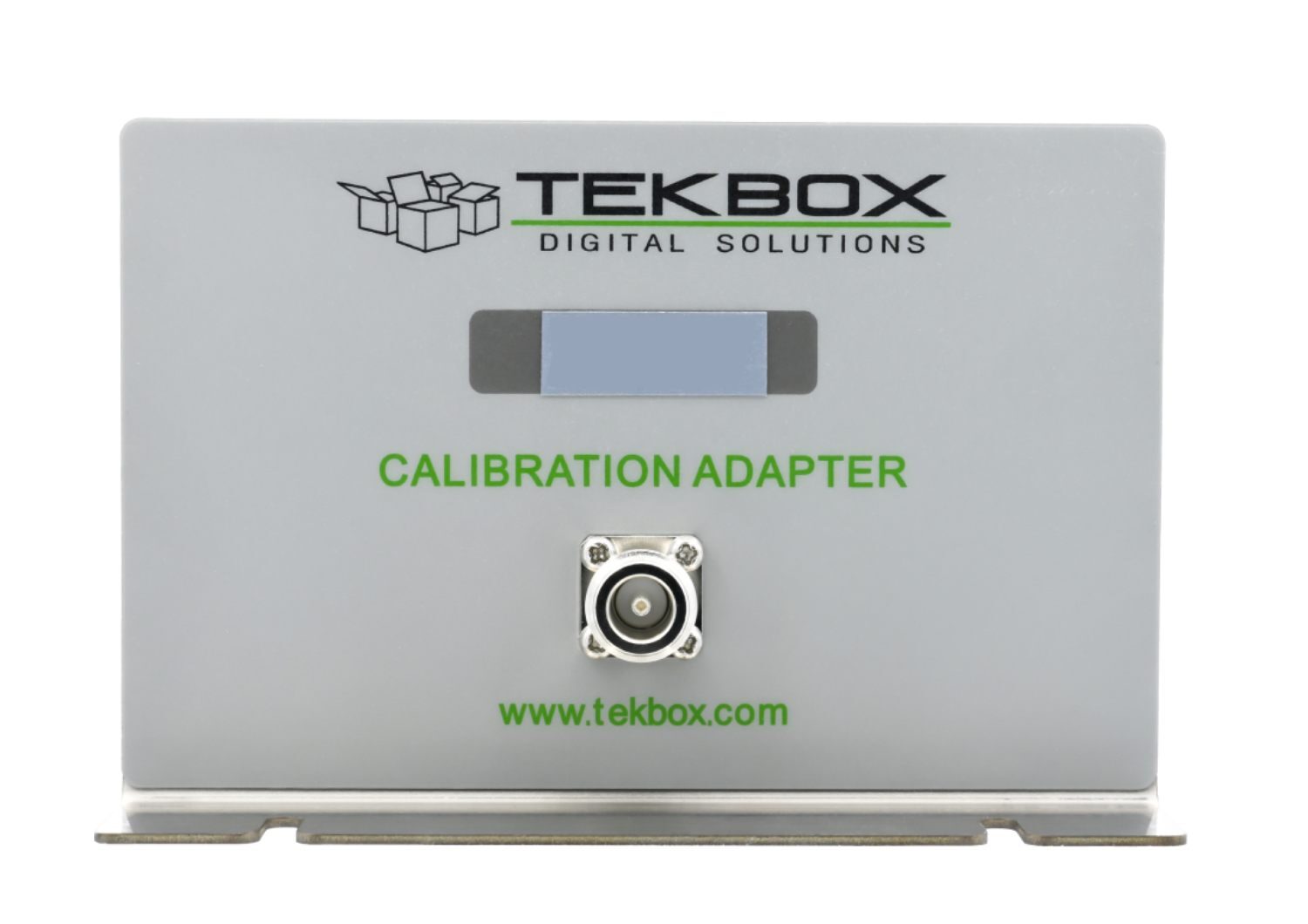

    Tekbox TBL0550-1B-CAL Calibration Kit
