Tekbox TBL501000-1 50uH 1000A Line Impedance Stabilisation Network LISN

Name: Tekbox TBL501000-1 50uH 1000A Line Impedance Stabilisation Network LISN
Brand: Tekbox
SKU: TBL501000-1
Price: 5136.00 GBP
Availability: BackOrder

£5136.00 (£6163.20 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Facebook

Post

SKU: TBL501000-1 Categories: DC & High-Current LISNs, EMC, Line Impedance Stabilisation Network (LISN) Brand: Tekbox

Compare with other DC & High-Current LISNs

Product Name	Impendance	Frequency Range	Path	Current	Voltage	EUT Socket	Additional Features	Standard	Stock	Price
TBL501000-1	50µH // 50 Ω	150 kHz – 30 MHz	1	1000A	1000V DC, 500V AC	16mm wing terminals	Internal HPF	CISPR 16-1-2	On Backorder	£5,136.00
TBL50100-1	50µH // 50Ω	150 kHz – 30 MHz	1	100A	250V	Phoenix High Current	Jumperable impedance networks, no 250µH pre-filter	CISPR 16-1-2	On Backorder	£1,297.00
TBLDC32-2 V-Y-Δ DC	150Ω	9 kHz – 30 MHz	2	32A	1000V DC	4mm safety	150Ω DC LISN A/B, Common Mode & Differential Mode operation	CISPR 16-1-2, CISPR 11	On Backorder	£1,815.00
DC-LISN-Combo1C	5µH // 50Ω	10 Hz – 400 MHz, 150 kHz – 110 MHz	2	10A	60V nominal, Component rating: 200V	4mm (banana)	2x TBL0510-1, TBLM02, BNC Termination, N-Male to BNC-Male 75cm RG58, 2x BNC-Male to BNC-Male 35cm RG223	CISPR-25, MIL-STD-461F, DO-160, AECTP-500, ISO 7637-2	On Backorder	£628.00
TBL0510-1Low stock	5µH // 50Ω	150 kHz – 108 MHz	1	10A	60V nominal, Component rating: 250V	4mm (banana)	4mm (banana)	None	2	£252.00
TBL05-100-1-B-Low stock	5µH // 50Ω	10 kHz – 400 MHz	1	100A	0–500V AC @ 50/60 Hz, 250V AC @ 400 Hz, 1000V DC	Phoenix High Current	Jumper configurable to various standards	CISPR 16-1-2, MIL-STD-461G	1	£1,222.00
TBL05100-1C	5µH // 50Ω	150 kHz – 400 MHz	1	100A	0–500V AC @ 50/60 Hz, 250V AC @ 400 Hz, 1000V DC	Wing-nut binding post	Jumper configurable to various standards	CISPR 25, MIL-STD-461G, ISO 11452-4, ISO 7637-2	On Backorder	£1,226.00
TBL0550-1B	5µH // 50Ω	150 kHz – 400 MHz	1	50A	250V DC, 250V AC @ 50/60 Hz, 130V AC @ 400 Hz	Wing-nut binding post	Jumper configurable to various standards	CISPR-25, MIL-STD-461F, DO-160, AECTP-500, ISO 7637-2	On Backorder	£577.00
TBL5016-1	50µH // 50Ω, (50µH+5Ω) // 50Ω	150 kHz – 30 MHz	1	16A	250V	Phoenix High Current	Jumper configurable to various standards	CISPR 16-1-2, MIL-STD-461F	On Backorder	£578.00
TBL5032-1	50µH // 50Ω, (50µH+5Ω) // 50Ω	10 kHz – 30 MHz	1	32A	500V DC, 270V AC @ 50/60 Hz, 120V AC @ 400 Hz	4mm (banana)	Jumper configurable to various standards	CISPR 16-1-2, MIL-STD-461G	On Backorder	£692.00

Description

Tekbox TBL501000-1 50uH 1000A Line Impedance Stabilisation Network LISN

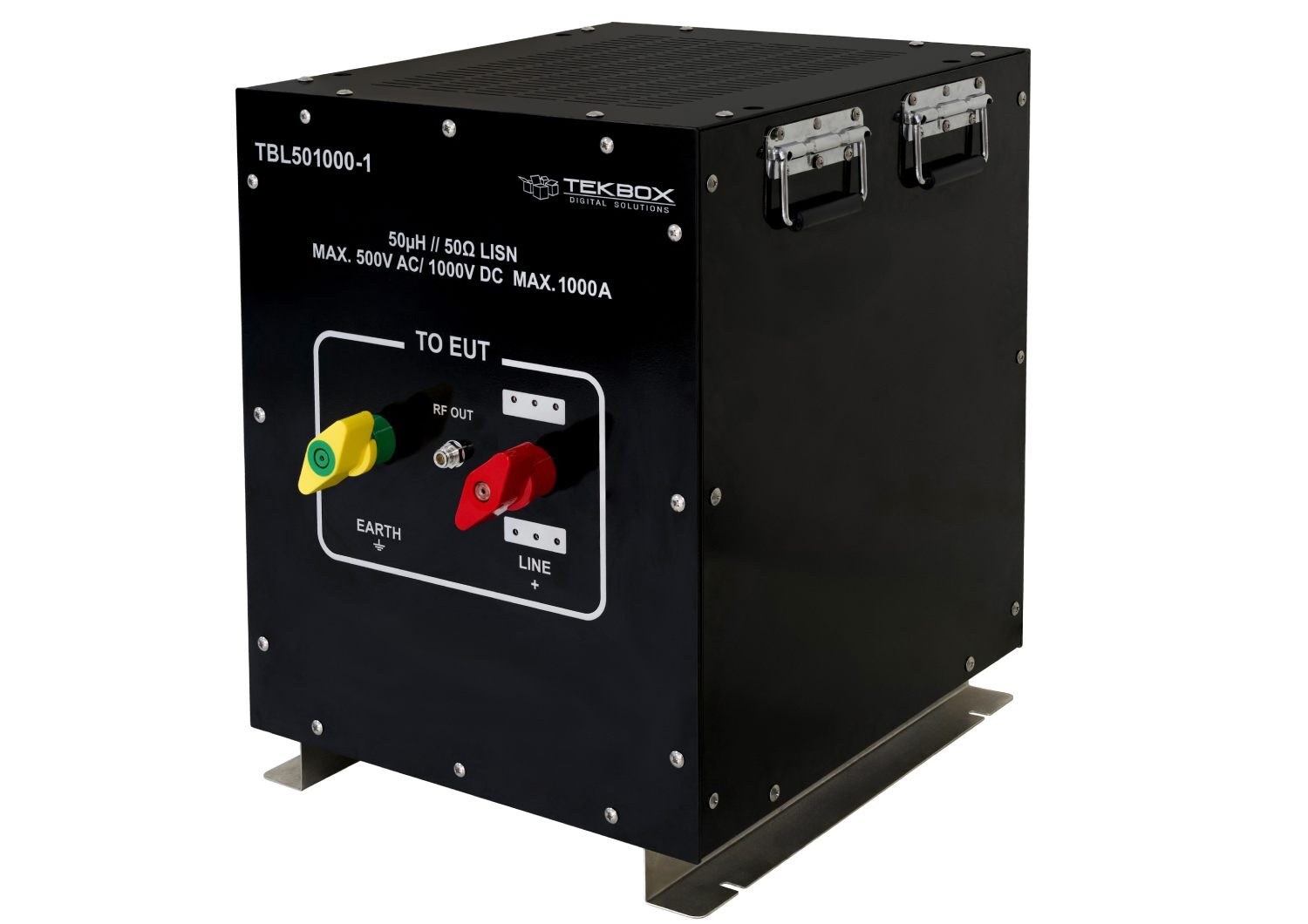

The TBL501000-1 is a high current single path 50µH // 50 Ω LISN for conducted emission measurements of DC or AC-powered electronic equipment. It is designed according to the CISPR 16-1-2 standard and characterised in the frequency range of 150 kHz to 30 MHz.

Combining two LISNs with the Tekbox LISN Mate enables separate measurement of common mode and differential mode noise. EUTs with a three-phase supply require three or four pieces of TBL501000-1, depending on whether the product is supplied in delta or star configuration.

The LISN is equipped with fans to enable continuous operation up to 1000 A. The fans are available with either 100 V – 120 V or with 200V – 240 V supply voltage. A C14 connector with integrated switch sits on the rear panel. The LISN can be operated continuously with up to 500 A without fan.

An exposed stainless steel bottom profile enables convenient ground plane connection.

Product Videos

EMC Conducted Emissions: Accurate Lab-Quality Testing You Can Do In-House

Telonic Instruments - Your Guide to our Tekbox LISNs by Dr Min Zhang

Documentation

LISN type: single path V-AMN, 50Ω // 50µH; no 250µH pre-filter
Characterized Frequency range: 100 kHz – 30 MHz
DC Resistance: < 3 mΩ Maximum current: 1000 A continuous with fan ON; 500 A continuous without fan Operating voltage range: 0 – 1000V DC; 0 – 500V AC (50/60 Hz) High pass to suppress residual AC: default jumpered ON; residual AC suppression > 66dB; RF out not terminated
EUT connector: High current wing terminal, M16 x 1.5
Source connector: High current wing terminal, M16 x 1.5
Earth: exposed stainless steel profile with mounting slots
RF connector: N-Female
Fan: Available with 100V-120V or 220V-240V supply voltage; C14 connector with integrated switch on rear panel
Dimensions: W x H x L; 480 mm x 600 mm x 660 mm;
Weight: 70 kg
