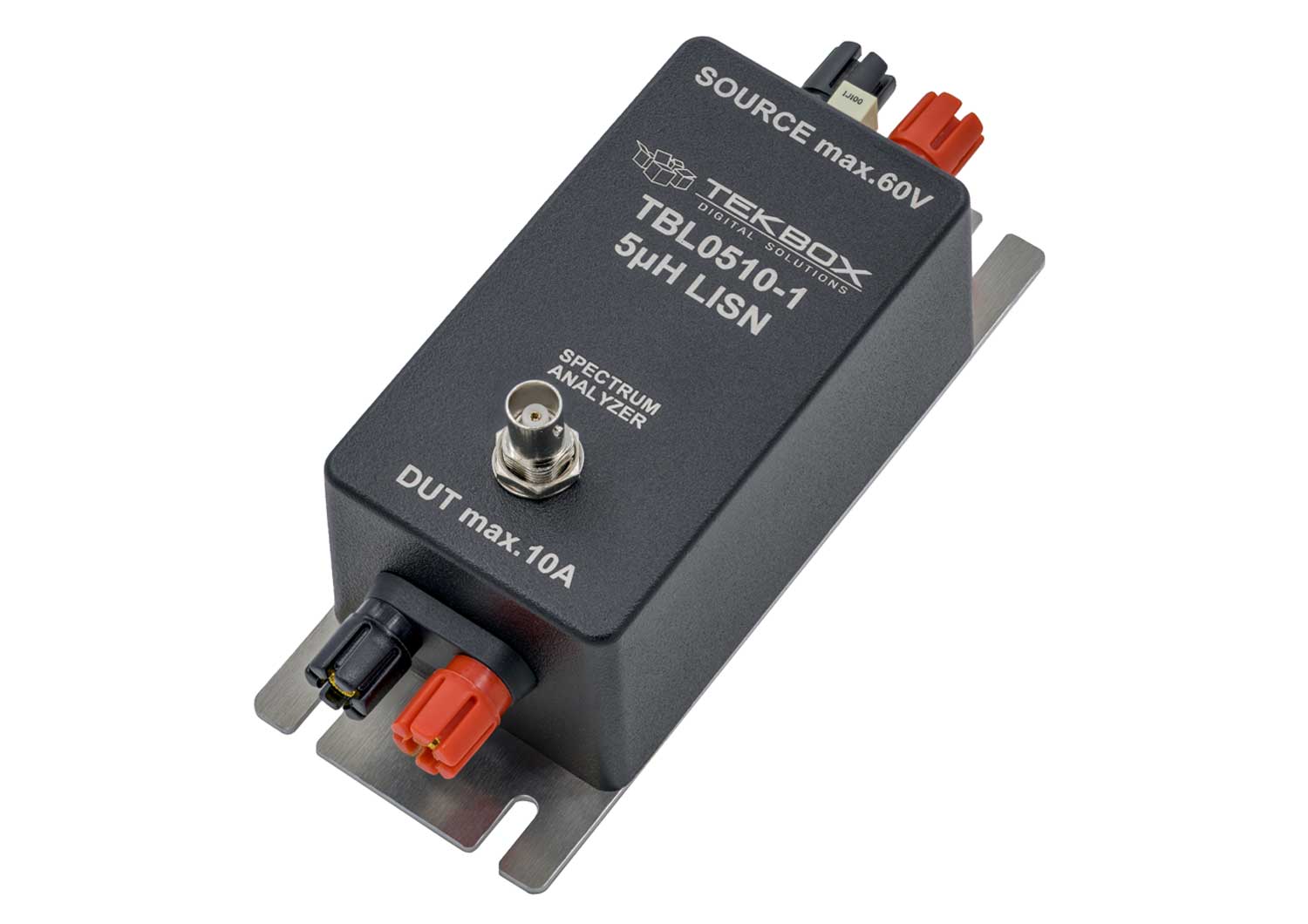

TEKBOX TBL0510-1 5uH Line Impedance Stabilisation Network LISN

£252.00 (£302.40 inc. VAT)

2 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBL0510-1 Categories: , , , , , , , Brand:

Compare with other Automotive, Aerospace & Defence LISNs

Product NameImageImpendanceFrequency RangePathCurrentVoltageEUT SocketAdditional FeaturesStandardStockPrice
TBL0510-1Low stockImage of Tbl0510 1 telonicuk5µH // 50Ω150 kHz – 108 MHz110A60V nominal, Component rating: 250V4mm (banana)4mm (banana)None2£252.00
DC-LISN-Combo1CImage of Dc lisn combo1c 1 telonicuk5µH // 50Ω10 Hz – 400 MHz, 150 kHz – 110 MHz210A60V nominal, Component rating: 200V4mm (banana)2x TBL0510-1, TBLM02, BNC Termination, N-Male to BNC-Male 75cm RG58, 2x BNC-Male to BNC-Male 35cm RG223CISPR-25, MIL-STD-461F, DO-160, AECTP-500, ISO 7637-2On Backorder£628.00
TBL05-100-1-B-Low stockImage of Tbl05100 1 b angle telonicuk5µH // 50Ω10 kHz – 400 MHz1100A0–500V AC @ 50/60 Hz, 250V AC @ 400 Hz, 1000V DCPhoenix High CurrentJumper configurable to various standardsCISPR 16-1-2, MIL-STD-461G1£1,222.00
TBL05100-1CImage of Tbl05100 1c side telonicuk5µH // 50Ω150 kHz – 400 MHz1100A0–500V AC @ 50/60 Hz, 250V AC @ 400 Hz, 1000V DCWing-nut binding postJumper configurable to various standardsCISPR 25, MIL-STD-461G, ISO 11452-4, ISO 7637-2On Backorder£1,226.00
TBL0550-1BImage of Tbl0550 1b side telonicuk5µH // 50Ω150 kHz – 400 MHz150A250V DC, 250V AC @ 50/60 Hz, 130V AC @ 400 HzWing-nut binding postJumper configurable to various standardsCISPR-25, MIL-STD-461F, DO-160, AECTP-500, ISO 7637-2On Backorder£577.00

Description


TBL0510-1 5uH Line Impedance Stabilisation Network LISN

The TBL0510-1 is an affordable 5µH LISN designed for conducted emission measurements in the frequency range of 100 kHz to 400 MHz. It complies with CISPR-25 (EN 55025), numerous automotive manufacturer standards, MIL-STD-461F, DO-160, AECTP-500 and ISO 7637-2.

LISNs are inserted into the supply lines of the EUT (Equipment Under Test). Conducted noise, which is present at the supply terminals of the DUT, can be measured at the BNC connectors using a spectrum analyser or a measurement receiver. The source (supply) terminal and the DUT terminal are decoupled by a 5µH inductor. Two TBL0510-1 in combination with the Tekbox LISN Mate enable the separate measurement of common mode and differential mode noise.

Specifications
  • Frequency range: 10 kHz – 400 MHz; depending on standard and external capacitor
  • DC Resistance: 40 mΩ
  • Continuous current: 10A
  • Nominal operating voltage range: 0 – 60V DC
  • Absolute maximum rating of internal components: 200V DC; external 1µF capacitor: 100V
  • Built in surge protection
  • External 1µF source capacitor, for easy removal when using the LISN for 7637-2 tests
