Rent/Hire Kikusui PLZ1005WH2 DC Electronic Load

The Kikusui PLZ1005WH2 (10V-1000V 0-20A 1kW) High Voltage DC Electronic Load (CC/CR/CV/CP/ARB) forms part of the new Kikusui PLZ-5WH2 series where durable, reliable ingenuity meets multifunctional high power design. Providing a choice of five power range line-ups, from 1 kW bench top style model to a high power floor standing model that can sink up to 20 kW of power in a single unit, now making it easy to select the correct power electronic load to test your EUT at full power. Load simulation can be achieved faster than ever before thanks to the reliable, high speed design of the PLZ-5WH current control circuits. Accurate current measurements can be made with the electronic loads extremely high setting resolution. A colour LCD display allows user-friendly front panel operation.
RS232C, USB, and LAN digital interfaces are included as standard for simple integration into any system.

    Features:

  • Equipped with four modes (Constant Current, Constant Resistance Constant Voltage, Constant Power) plus Arbitrary IV Characteristics (ARB) mode to reproduce nonlinear load characteristics
  • Load On/Off
  • Cutoff Function
  • Changing the Response Speed
  • Soft Start
  • Sequence control functionality enables actual-load simulations
  • Parallel operation enables scalability
  • Data Logging Function
  • Integrated Data Function
  • Saving Measurement Data
  • Pulse Function
  • Sine Function
  • Sequence Function
  • Alarm Function
  • ABC Preset Memories
  • Setup Memory
  • External Control
  • Current and Voltage Monitor
  • USB Keyboard
  • Synchronised Operation
  • Remote Sensing
  • Comes with LAN, RS232C and USB communication interfaces installed as a standard feature. *GPIB Option.

Product Images

Product Videos

YouTube Video

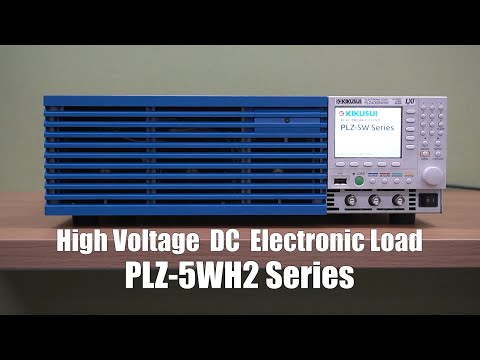

High Voltage DC Electronic Load PLZ-5WH2 Series overview

Documentation

Datasheet

Kikusui PLZ-5WH2 Datasheet



User Manual

Kikusui PLZ-5WH2 User Manual



Interface Manual

Kikusui PLZ-5WH2 Interface Manual



Application Notes

PLZ-5WH Series allow you to set various loading test conditions

A compact size electronic load, which equips wheels to move

User-friendly Graphical User Interface (GUI)

PLZ Series: How to Effectively Improve Safety during Load Testing of Non-isolated AC/DC Converter

Blown Fuse Testing Precautions When Using Electronic Load

Using Electronic Load to Battery Charger Testing

PLZ Series Easy Way to Expand Electronic Load Capacity in CV Mode

DC Electronic Load – Part 6: Application and Example (2)

DC Electronic Load – Part 2: Basic Operation Mode and Principle (1)

How to Minimise Power Supply Noise in Test Systems

Choosing Electronic Load that Best Fits Your Switch Testing System

Two Methods to Absorb Motor’s Regenerative Current Using Electronic Load

DC Electronic Load – Part 1: What is a DC Electronic Load?

How to Balance Battery Module Charge-Discharge

DC Electronic Load – Part 4: How Each Operation Mode Works with Other Modes?



PLZ-5WH2 Specifications
ModelPLZ1005WH2PLZ2005WH2PLZ4005WH2PLZ12005WH2PLZ20005WH2
Ratings
Operating voltage (DC)10 V to 1000 V10 V to 1000 V10 V to 1000 V10 V to 1000 V10 V to 1000 V
Power1000W2000W4000W12000W20000W
Current20A40A80A240A400A
DC INPUT terminal’s isolation
voltage		Positive pin: ±1000 V, Negative pin: ±900 VPositive pin: ±1000 V, Negative pin: ±900 VPositive pin: ±1000 V, Negative pin: ±900 VPositive pin: ±1000 V, Negative pin: ±900 VPositive pin: ±1000 V, Negative pin: ±900 V
Minimum
operating
voltage		At the rated current: 10V
When the current begins to flow: 1.5 V or less		At the rated current: 10V
When the current begins to flow: 1.5 V or less		At the rated current: 10V
When the current begins to flow: 1.5 V or less		At the rated current: 10V
When the current begins to flow: 1.5 V or less		At the rated current: 10V
When the current begins to flow: 1.5 V or less
Constant Resistance (CR) Mode
Operating Range
H Range500 mS to 0 S1 S to 0 S2 S to 0 S6 S to 0 S10 S to 0 S
L Range5 mS to 0 S10 mS to 0 S20 mS to 0 S60 mS to 0 S100 mS to 0 S
Setting Range
H Range505.00 mS to 0.00 S1.01000 S to 0.00000 S2.02000 S to 0.00000 S6.0600 S to 0.00000 S10.1000 S to 0.0000 S
L Range5.0500 mS to 0.0000 S10.1000 mS to 0.0000 S20.2000 mS to 0.000 S60.600 mS to 0.000 S101.000 mS to 0.000 S
Resolution
H Range0.01 mS0.00002 S0.00005 S0.0002 S0.0002 S
L Range0.0001 mS0.0002 mS0.0005 mS0.002 mS0.002 mS
Setting Accuracy
H Range±(0.5 % of setting + 0.5 % of rating)±(0.5 % of setting + 0.5 % of rating)±(0.5 % of setting + 0.5 % of rating)±(0.5 % of setting + 0.5 % of rating)±(0.5 % of setting + 0.5 % of rating)
L Range±(0.5 % of setting + 0.2 % of rating)±(0.5 % of setting + 0.2 % of rating)±(0.5 % of setting + 0.2 % of rating)±(0.5 % of setting + 0.2 % of rating)±(0.5 % of setting + 0.2 % of rating)
Parallel Operation
H Range±(1.0 % of setting + 1.0 % of rating)±(1.0 % of setting + 1.0 % of rating)±(1.0 % of setting + 1.0 % of rating)±(1.0 % of setting + 1.0 % of rating)±(1.0 % of setting + 1.0 % of rating)
L Range±(1.0 % of setting + 0.4 % of rating)±(1.0 % of setting + 0.4 % of rating)±(1.0 % of setting + 0.4 % of rating)±(1.0 % of setting + 0.4 % of rating)±(1.0 % of setting + 0.4 % of rating)
Response SpeedNORM/FASTNORM/FASTNORM/FASTNORM/FASTNORM/FAST
Constant Current (CC) Mode
Operating range0 A to 20 A0 A to 40 A0 A to 80 A0 A to 240 A0 A to 400 A
Setting range0.0000 A to 20.2000 A0.000 A to 40.400 A0.000 A to 80.800 A0.00 A to 242.40 A0.00 A to 404.00 A
Resolution0.0005A0.001A0.002A0.005A0.01A
Setting accuracy±(0.2 % of setting + 0.1 % of rating)±(0.2 % of setting + 0.1 % of rating)±(0.2 % of setting + 0.1 % of rating)±(0.2 % of setting + 0.1 % of rating)±(0.2 % of setting + 0.1 % of rating)
Parallel operation±(0.4 % of setting + 0.2 % of rating)±(0.4 % of setting + 0.2 % of rating)±(0.4 % of setting + 0.2 % of rating)±(0.4 % of setting + 0.2 % of rating)±(0.4 % of setting + 0.2 % of rating)

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
