Kikusui PLZ-5WH2 Series High Voltage DC Electronic Loads

Input Voltage: 10-1000V | Input Current: -0400A | Power: 1kW, 2kW, 4kW, 12kW, 20kW

  • Available Operation modes: Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), Constant Power (CP) and Arbitrary I-V characteristics (ARB)
  • Operating voltage ranges from 10 V to 1000 V. Minimum operating voltage required to sink current is 1.5 V
  • The PLZ-5WH2 series boasts a 20 μs rise time*, easily satisfying the critical needs of power supply evaluation tests demanding a fast transient response. *When using the PLZ20005WH2
  • In ARB mode, arbitrary I-V characteristics can be set by registering multiple I-V characteristic points (pairs of voltage and current values). Three up to 100 points can be registered, and the space between two points is linearly interpolated.
  • Up to 100 kW with parallel operation (Max. 5 units)
  • LAN(LXI), USB and RS232C standard digital interface. *GPIB Option

The PLZ-5WH2 high power DC Electronic Load Series is where durable, reliable ingenuity meets multi-functional and high power design. Providing 5 variety of power range line-ups, from 1kW bench top style model to high power model that can sink up to 20kW of power in a single unit. Possible to easily selects applicable power range depends on the load.

Model Operating Voltage (DC) Current Power Operation Modes Communication Interface Price From
PLZ1005WH2 10V – 1000V 0 – 20A 1kW CC, CR, CV, CP, ARB LAN, RS232C, USB. *GPIB Optional Please Call
PLZ2005WH2 10V – 1000V 0 – 40A 2kW CC, CR, CV, CP, ARB LAN, RS232C, USB. *GPIB Optional Please Call
PLZ4005WH2 10V – 1000V 0 – 80A 4kW CC, CR, CV, CP, ARB LAN, RS232C, USB. *GPIB Optional Please Call
PLZ12005WH2 10V – 1000V 0 – 240A 12kW CC, CR, CV, CP, ARB LAN, RS232C, USB. *GPIB Optional Please Call
PLZ20005WH2 10V – 1000V 0 – 400A 20kW CC, CR, CV, CP, ARB LAN, RS232C, USB. *GPIB Optional Please Call

Showing all 5 results

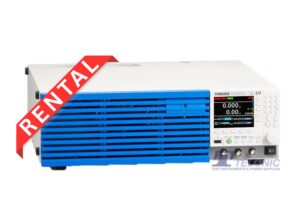

  • Kikusui PLZ1005WH2 DC Electronic Load 10V-1000V 0-20A 1kW

    .
    Read more
    Please Call For More Information On Pricing.

    Available on back-order, delivery normally 1 - 2 weeks

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Free Shipping Free Calibration Price Match Guarantee
  • Kikusui PLZ12005WH2 DC Electronic Load 10V-1000V 0-240A 12kW

    .
    Read more
    Please Call For More Information On Pricing.

    Available on back-order, delivery normally 1 - 2 weeks

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Free Shipping Free Calibration Price Match Guarantee
  • Kikusui PLZ20005WH2 DC Electronic Load 10V-1000V 0-400A 20kW

    .
    Read more
    Please Call For More Information On Pricing.

    Available on back-order, delivery normally 1 - 2 weeks

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Free Shipping Free Calibration Price Match Guarantee
  • Kikusui PLZ2005WH2 DC Electronic Load 10V-1000V 0-40A 2kW

    .
    Read more
    Please Call For More Information On Pricing.

    Available on back-order, delivery normally 1 - 2 weeks

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Free Shipping Free Calibration Price Match Guarantee
  • Kikusui PLZ4005WH2 DC Electronic Load 10V-1000V 0-80A 4kW

    .
    Read more
    Please Call For More Information On Pricing.

    Available on back-order, delivery normally 1 - 2 weeks

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Free Shipping Free Calibration Price Match Guarantee
