Sale!

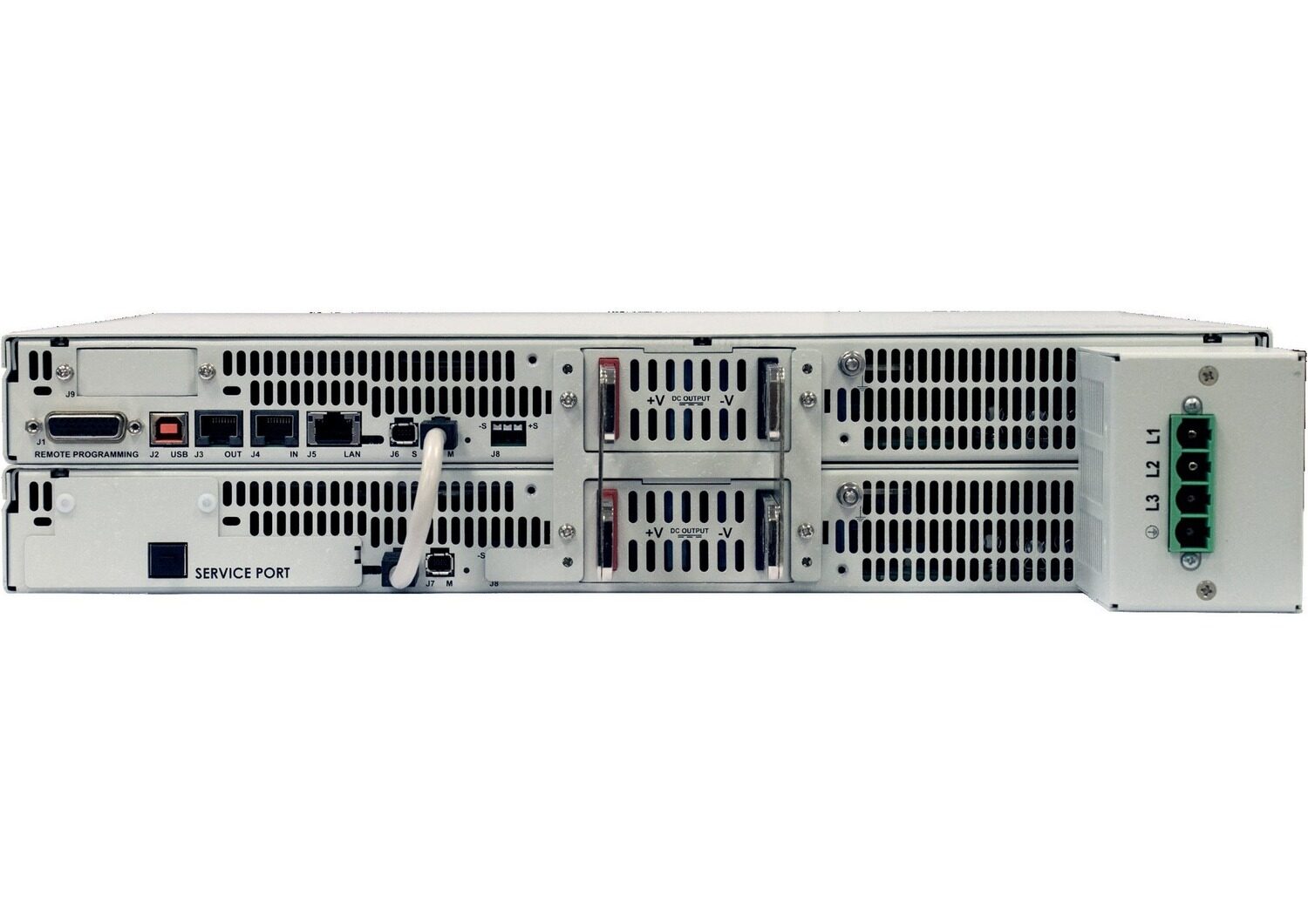

Image of Tdk lambda gsp500 20 back telonicuk

Used TDK-Lambda GSP500-20 GENESYS+ programmable DC supply, 0-500 V, 0-20 A, 10 kW, 2U

Name: Used TDK-Lambda GSP500-20 GENESYS+ programmable DC supply, 0-500 V, 0-20 A, 10 kW, 2U
Brand: EA Elektro-Automatik
SKU: GSP500-20-USED
Price: 4860.00 GBP
Availability: InStock

Original price was: £8100.00.Current price is: £4860.00. (£5832.00 inc. VAT)

CONDITION: GOOD

Normal signs of previous use, including minor marks, scratches or general wear.

2 in stock

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Facebook

Post

SKU: GSP500-20-USED Categories: DC Power Supplies, Used & Refurbished DC Power Supplies, Used & Refurbished Test Equipment Brand: EA Elektro-Automatik

Compare with other Used & Refurbished DC Power Supplies

SKU	Voltage	Current	Power	Size	Stock	Price
GSP500-20-USEDSaleNewLow stock	500 V	20 A	10000 W	3U	2	£8,100.00 £4,860.00
CPX400S-USEDSaleNewLow stock	60 V	20 A	420 W	½ rack 3U	2	£765.00 £459.00
SM500-CP-90-USEDSaleNewLow stock	500V	90A	15000W	3U	2	£9,000.00 £5,400.00
PS 9080-120-USEDSaleNewLow stock	80 V	120 A	3000 W	2U	1	£3,333.00 £1,999.80
G500-10-USEDSaleNewLow stock	500 V	10 A	5000 W	1U	1	£6,500.00 £3,900.00
GEN40-38-USEDSaleNewLow stock	40 V	38 A	1520 W	1U	1	£1,987.00 £1,192.20
GH60-25-USEDSaleNew	60 V	25 A	1500 W	1U	4	£3,000.00 £1,800.00
GSP500-30-USEDSaleNewLow stock	500 V	30 A	15000 W	3U	2	£10,500.00 £6,300.00

Description

Used TDK-Lambda GSP500-20 GENESYS+ programmable DC supply, 0-500 V, 0-20 A, 10 kW, 2U

The TDK-Lambda GSP500-20 Genesys+ Advanced DC Power Supply is a cutting-edge power supply offering remarkable power density, with 10kW in a compact 2U design form factor. This versatile power supply can deliver output voltages and currents spanning from 0-500V/0-20A, ensuring adaptability for a wide range of applications. The GSP500-20 operates seamlessly in constant voltage, constant current, and constant power modes and includes advanced features such as voltage and current slew-rate control, arbitrary waveform generation and storage, and internal resistance simulation.

The TDK-Lambda GSP500-20 Genesys+ Advanced DC Power Supply offers easy connectivity with standard interfaces such as LAN, USB, RS-232/RS-485, and isolated analogue interfaces. This power supply can be configured to accept various input voltages, making it highly adaptable, and can also offer an easy auto-configuring parallel system for enhanced power capabilities. Whether it’s for industrial, research, or testing purposes, the GSP500-20 can deliver exceptional power and control in a compact package.

Highest Power Density Available – 10kW in 2U, 15kW in 3U
Arbitrary Waveform Generation and Storage
Programmable Slew Rate Control
Constant Voltage, Constant Current and Constant Power Limit Operation
Internal Resistance Programming
Built-In LAN, USB, RS-232/RS-485 and Isolated Analogue Interfaces
Optional EtherCAT, Modbus-TCP and IEEE488 Interfaces
Blank Front Panel Option
Easy Auto-configuring Parallel System for Increased Power

Documentation

GENESYS+ Datasheet

Electrical Characteristics
Specification	Value
Input	3-phase
Input Voltage Range[AC]	342 to 528Vac
Input Frequency Range	47 to 63Hz
Rated Output Voltage[DC]	500Vdc
Output Voltage[DC]	0 to 500Vdc
Rated Output Current	20A
Output Current	0 to 20A
Rated Output Power	10kW
Efficiency	91% Typ.
Voltage Ripple Noise	0.08Vrms (5Hz to 1MHz)
Current Ripple Noise	0.008Arms (5Hz to 1MHz)

Package Type & Size
Specification	Value
Package Type	2U Rack mount / Bench top
Width(W)	423 mm Nom.
Height(H)	88 mm Nom.
Depth(D)	441.5 mm Nom.
Weight	15.5kg Typ.

Other
Specification	Value
Interfaces / Features Included	LAN (LXI compliant), USB, RS-232, RS-485, Isolated analogue voltage control
Operating Temp Range	0 to 50°C
Certified Standards	IEC61010-1 CSA C22.2 No.61010-1 EN61010-1 UL61010-1
Conformed Standards	CE / UKCA Mark
