Description

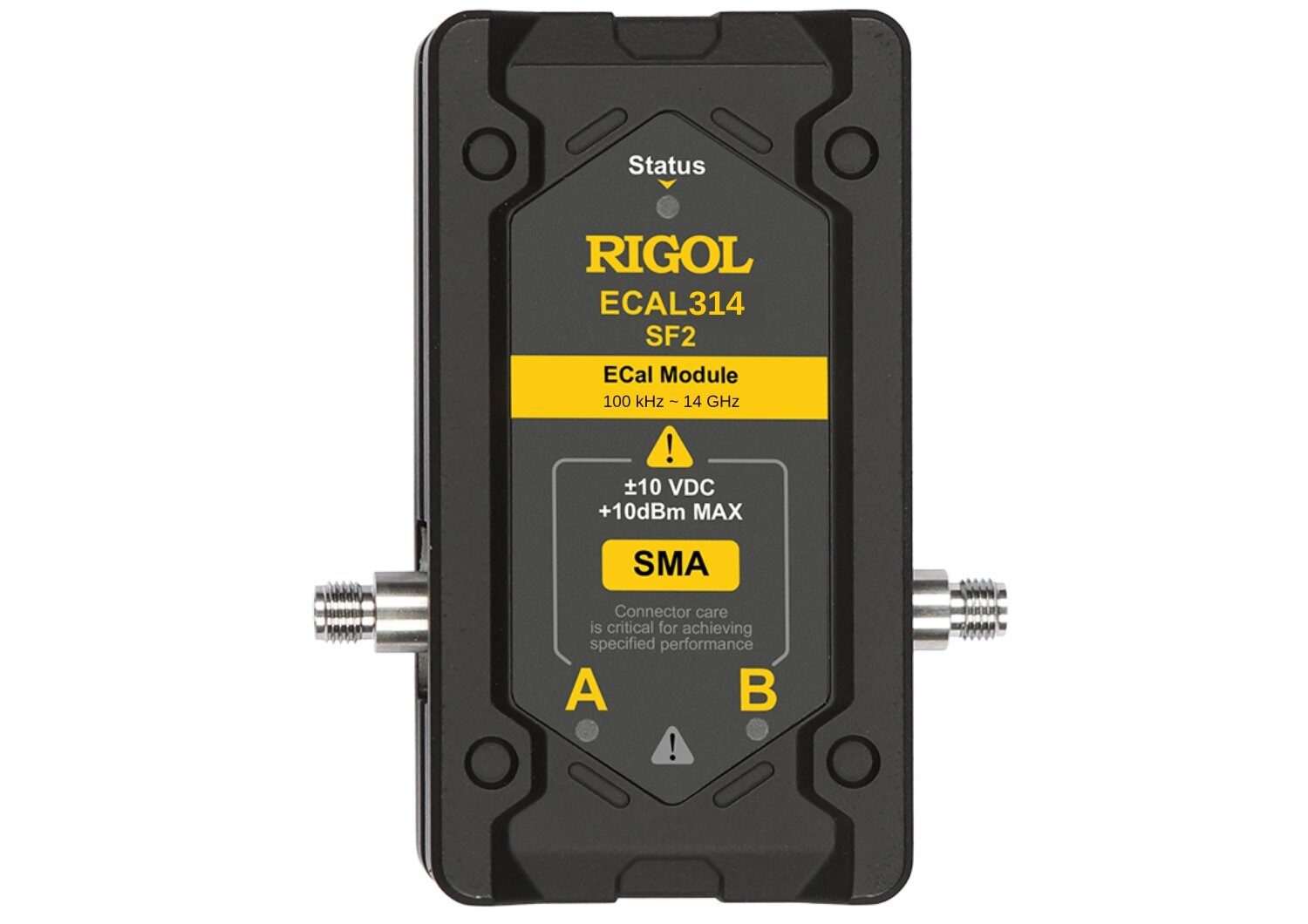

Rigol ECAL314-SF2 2-Port Electronic Calibration Module, SMA Female, 100 kHz to 14 GHz
The ECAL314-SF2 is a 2-port ECAL300 electronic calibration module for calibrating and correcting errors in RIGOL vector network analysers. It covers 100 kHz to 14 GHz and uses SMA Female calibration ports, with USB 2.0 providing communication and power.
Key Features
- 2 calibration ports
- 100 kHz to 14 GHz frequency range
- SMA Female calibration ports
- USB 2.0 communication and power
- Maximum calibration input power: -5 dBm
- Maximum port power: +10 dBm
- Maximum protected DC voltage: ±10 VDC (AC coupled)
Applications
- Calibration of compatible RIGOL vector network analysers
- VNA error correction
- Electronic calibration where fewer reconnections are required
