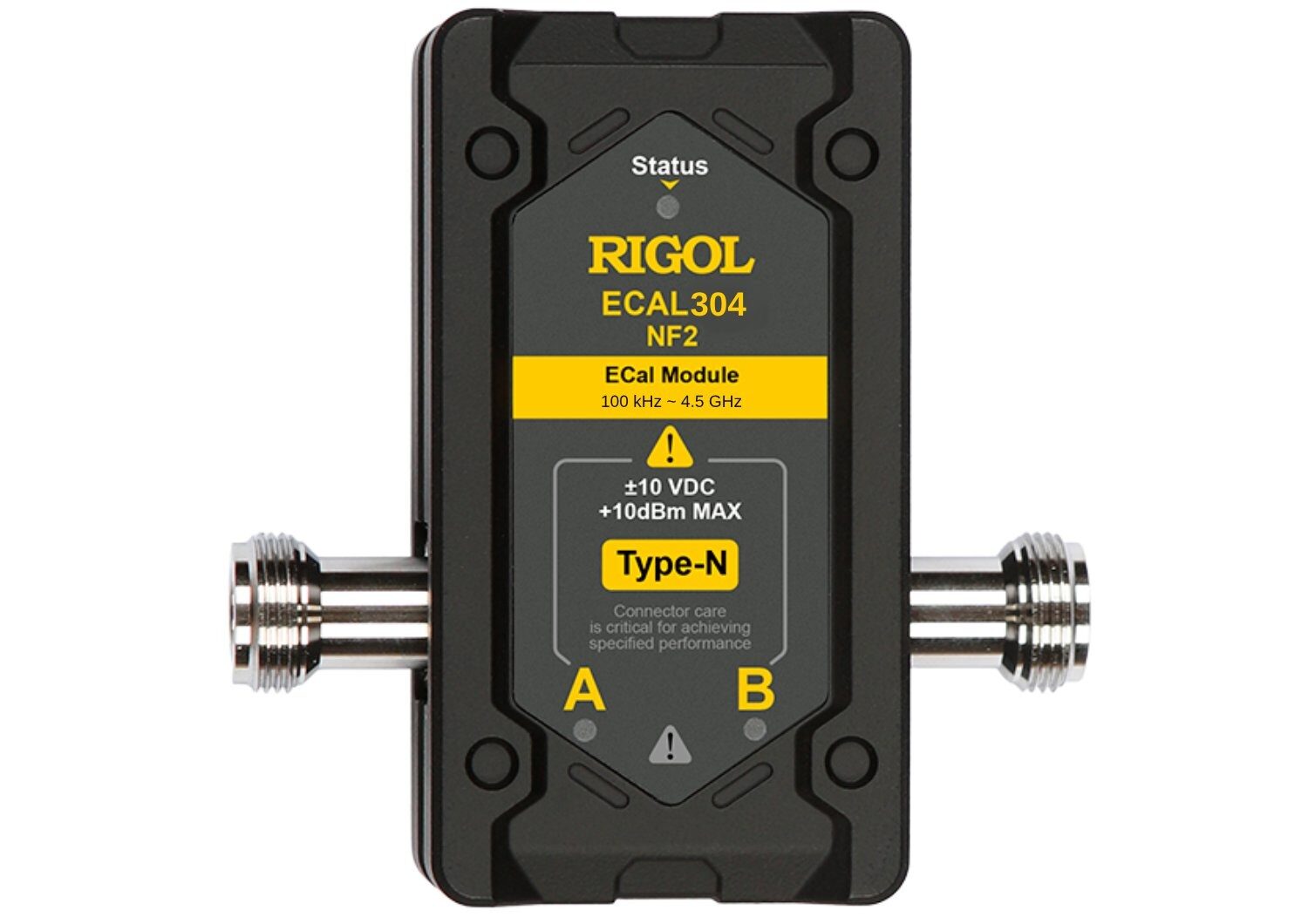

Rigol ECAL304-NF2 Economy Electronic Calibration Module, 100 kHz ~ 4.5 GHz, Type-N (f), 50 Ω, 2 ports

Name: Rigol ECAL304-NF2 Economy Electronic Calibration Module, 100 kHz ~ 4.5 GHz, Type-N (f), 50 Ω, 2 ports
Brand: Rigol
SKU: ECAL304-NF2
Price: 815.00 GBP
Availability: BackOrder

£815.00 (£978.00 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Facebook

Post

SKU: ECAL304-NF2 Categories: Hardware, Optional Accessories Brand: Rigol

Description

Rigol ECAL304-NF2 Economy Electronic Calibration Module, 100 kHz ~ 4.5 GHz, Type-N (f), 50 Ω, 2 ports

The electronic calibration module is a device that automates the calibration of vector network analysers (VNAs). It simplifies the process, reduces setup time, and minimises the human factor.

The module includes: a short-circuit measure (Short), an open-circuit measure (Open), a matched-load measure (Load), and a transition (Thru).

The module enables dual-port SOLT calibration with a single connection, making it significantly more efficient than traditional mechanical methods. The ECAL304-SF2 connects to the VNA via a USB interface, and subsequent calibration is controlled by software.

The module memory stores individually measured S-parameters of each calibration element, which ensures high accuracy and repeatability of results.

Specification	Frequency range	ECAL304-SF2	ECAL309-SF2	ECAL314-SF2	ECAL304-NF2	ECAL309-NF2	ECAL314-NF2
Operating range		100 kHz – 4.5 GHz	100 kHz – 9 GHz	100 kHz – 14 GHz	100 kHz – 4.5 GHz	100 kHz – 9 GHz	100 kHz – 14 GHz
Number of ports		2	2	2	2	2	2
Impedance		50 Ohm	50 Ohm	50 Ohm	50 Ohm	50 Ohm	50 Ohm
Connector type		SMA socket	SMA socket	SMA socket	N socket	N socket	N socket
Maximum input power calibration		-5 dBm	-5 dBm	-5 dBm	-5 dBm	-5 dBm	-5 dBm
Maximum port power		+10 dBm	+10 dBm	+10 dBm	+10 dBm	+10 dBm	+10 dBm
Control port type		USB	USB	USB	USB	USB	USB
DC power supply		+5 V, 500 mA	+5 V, 500 mA	+5 V, 500 mA	+5 V, 500 mA	+5 V, 500 mA	+5 V, 500 mA
Direction	100 kHz – 10 MHz	40 dB	40 dB	40 dB	40 dB	40 dB	40 dB
	10 MHz – 4.5 GHz	38 dB	38 dB	38 dB	38 dB	38 dB	38 dB
	4.5 GHz – 9 GHz	—	36 dB	36 dB	—	36 dB	36 dB
	9 GHz – 14 GHz	—	—	36 dB	—	—	36 dB
Source approval	100 kHz – 10 MHz	30 dB	30 dB	30 dB	30 dB	30 dB	30 dB
	10 MHz – 4.5 GHz	30 dB	30 dB	30 dB	30 dB	30 dB	30 dB
	4.5 GHz – 9 GHz	—	28 dB	28 dB	—	28 dB	28 dB
	9 GHz – 14 GHz	—	—	28 dB	—	—	28 dB
Load matching	100 kHz – 10 MHz	35 dB	35 dB	35 dB	35 dB	35 dB	35 dB
	10 MHz – 4.5 GHz	32 dB	32 dB	32 dB	32 dB	32 dB	32 dB
	4.5 GHz – 9 GHz	—	30 dB	30 dB	—	30 dB	30 dB
	9 GHz – 14 GHz	—	—	28 dB	—	—	28 dB
Unevenness of the reflection coefficient	100 kHz – 10 MHz	±0.13 dB	±0.13 dB	±0.13 dB	±0.13 dB	±0.13 dB	±0.13 dB
	10 MHz – 4.5 GHz	±0.18 dB	±0.18 dB	±0.18 dB	±0.18 dB	±0.18 dB	±0.18 dB
	4.5 GHz – 9 GHz	—	±0.25 dB	±0.25 dB	—	±0.25 dB	±0.25 dB
	9 GHz – 14 GHz	—	—	±0.25 dB	—	—	±0.25 dB
Unevenness of the transmission coefficient	100 kHz – 10 MHz	±0.15 dB	±0.15 dB	±0.15 dB	±0.15 dB	±0.15 dB	±0.15 dB
	10 MHz – 4.5 GHz	±0.20 dB	±0.20 dB	±0.20 dB	±0.20 dB	±0.20 dB	±0.20 dB
	4.5 GHz – 9 GHz	—	±0.22 dB	±0.22 dB	—	±0.22 dB	±0.22 dB
	9 GHz – 14 GHz	—	—	±0.30 dB	—	—	±0.30 dB
Operating temperature range		+15°C – +35°C	+15°C – +35°C	+15°C – +35°C	+15°C – +35°C	+15°C – +35°C	+15°C – +35°C
Geometric dimensions		86 mm × 84 mm × 28.42 mm	86 mm × 84 mm × 28.42 mm	86 mm × 84 mm × 28.42 mm	86 mm × 84 mm × 28.42 mm	86 mm × 84 mm × 28.42 mm	86 mm × 84 mm × 28.42 mm
Weight		180 g	180 g	180 g	180 g	180 g	180 g
