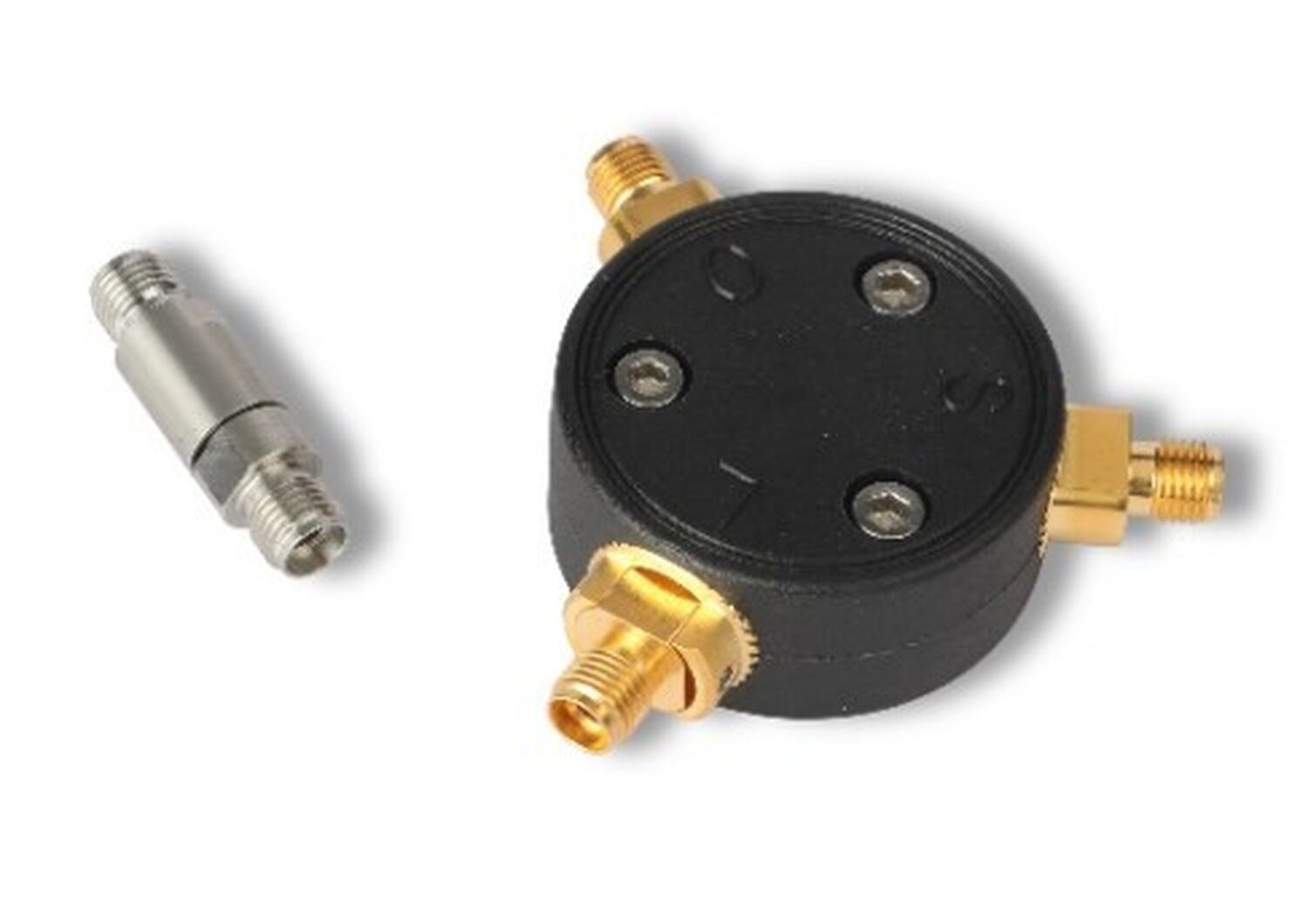

Image of Rigol mcal109 sf1 telonicuk

Rigol MCAL109-SF1 Mechanical Calibration Kit, 3.5 mm Female, DC to 9 GHz

£1371.00 (£1645.20 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: MCAL109-SF1 Categories: , , Brand:

Description


Rigol MCAL109-SF1 Mechanical Calibration Kit, 3.5 mm Female, DC to 9 GHz

The MCAL109-SF1 is a precision coaxial mechanical calibration kit for characterising systematic errors and improving network-analyser measurement accuracy. It covers DC to 9 GHz and provides 3.5 mm Female calibration standards.

Key Features
  • DC to 9 GHz frequency range
  • 3.5 mm Female standards
  • Open, short and fixed-load calibration standards
  • Open, short, load and 3.5 mm Female-to-Female adapter
  • Load VSWR: ≤ 1.02
  • Adapter VSWR: ≤ 1.06
Applications
  • Calibration of vector network analysers
  • Calibration of scalar network analysers
  • RF and microwave measurement-system error correction

Documentation


Brand RIGOL
Model MCAL109-SF1
Product type Mechanical calibration kit
Calibration method Open / Short / Load / adapter
Frequency range DC to 9 GHz
Connector 3.5 mm Female
Kit contents Open, short, load and 3.5 mm Female-to-Female adapter
Load VSWR ≤ 1.02
Adapter VSWR ≤ 1.06
