Description

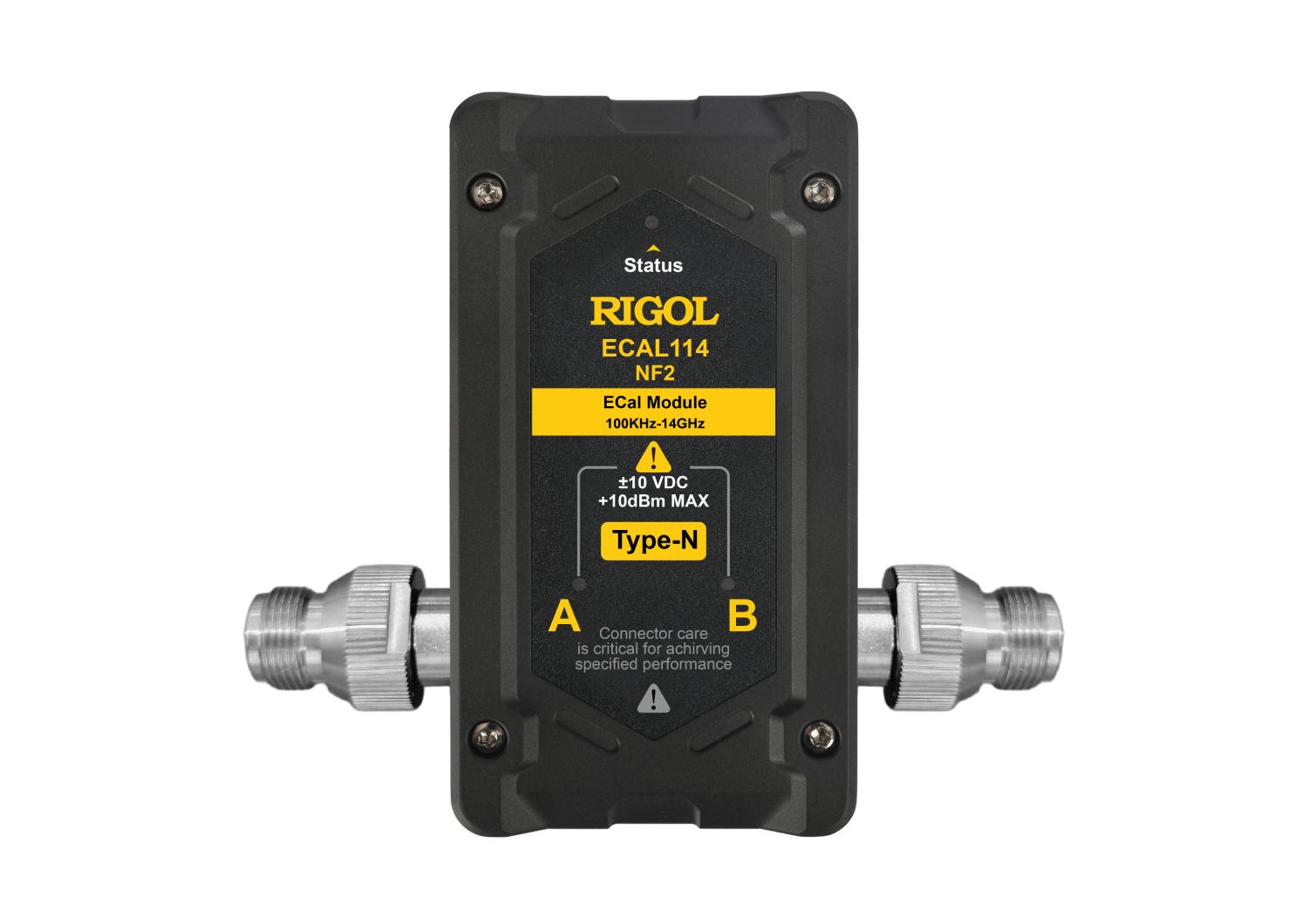

Rigol ECAL114-NF2 2-Port Electronic Calibration Module, Type-N Female, 100 kHz to 14 GHz
The ECAL114-NF2 is a 2-port ECAL100 electronic calibration module for calibrating and correcting errors in RIGOL vector network analysers. It covers 100 kHz to 14 GHz and uses Type-N Female calibration ports, with USB 2.0 providing communication and power.
Key Features
- 2 calibration ports
- 100 kHz to 14 GHz frequency range
- Type-N Female calibration ports
- USB 2.0 communication and power
- Maximum calibration input power: -5 dBm
- Maximum port power: +10 dBm
- Maximum protected DC voltage: ±10 VDC (AC coupled)
Applications
- Calibration of compatible RIGOL vector network analysers
- VNA error correction
- Electronic calibration where fewer reconnections are required
Rigol Ecalmodule Datasheet EN
