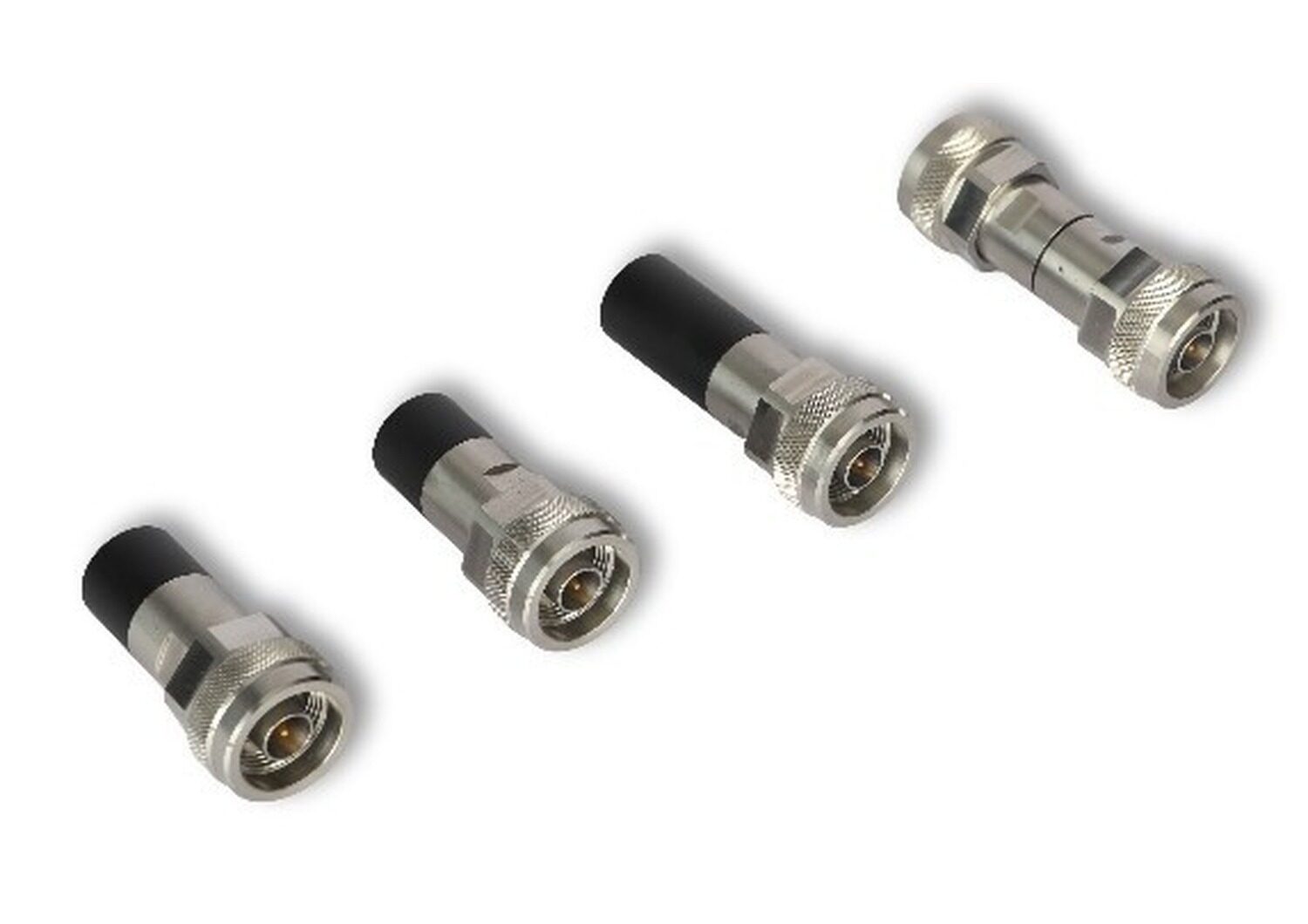

Image of Rigol mcal109 nm1 telonicuk

Rigol MCAL109-NM1 Mechanical Calibration Kit, Type-N Male, DC to 9 GHz

£1114.00 (£1336.80 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: MCAL109-NM1 Categories: , , Brand:

Description


Rigol MCAL109-NM1 Mechanical Calibration Kit, Type-N Male, DC to 9 GHz

The MCAL109-NM1 is a precision coaxial mechanical calibration kit for characterising systematic errors and improving network-analyser measurement accuracy. It covers DC to 9 GHz and provides Type-N Male calibration standards.

Key Features
  • DC to 9 GHz frequency range
  • Type-N Male standards
  • Open, short and fixed-load calibration standards
  • Open, short, load and Type-N Male-to-Male adapter
  • Load VSWR: ≤ 1.025
  • Adapter VSWR: ≤ 1.06
Applications
  • Calibration of vector network analysers
  • Calibration of scalar network analysers
  • RF and microwave measurement-system error correction

Documentation


Brand RIGOL
Model MCAL109-NM1
Product type Mechanical calibration kit
Calibration method Open / Short / Load / adapter
Frequency range DC to 9 GHz
Connector Type-N Male
Impedance 50 Ω
Kit contents Open, short, load and Type-N Male-to-Male adapter
Load VSWR ≤ 1.025
Adapter VSWR ≤ 1.06
