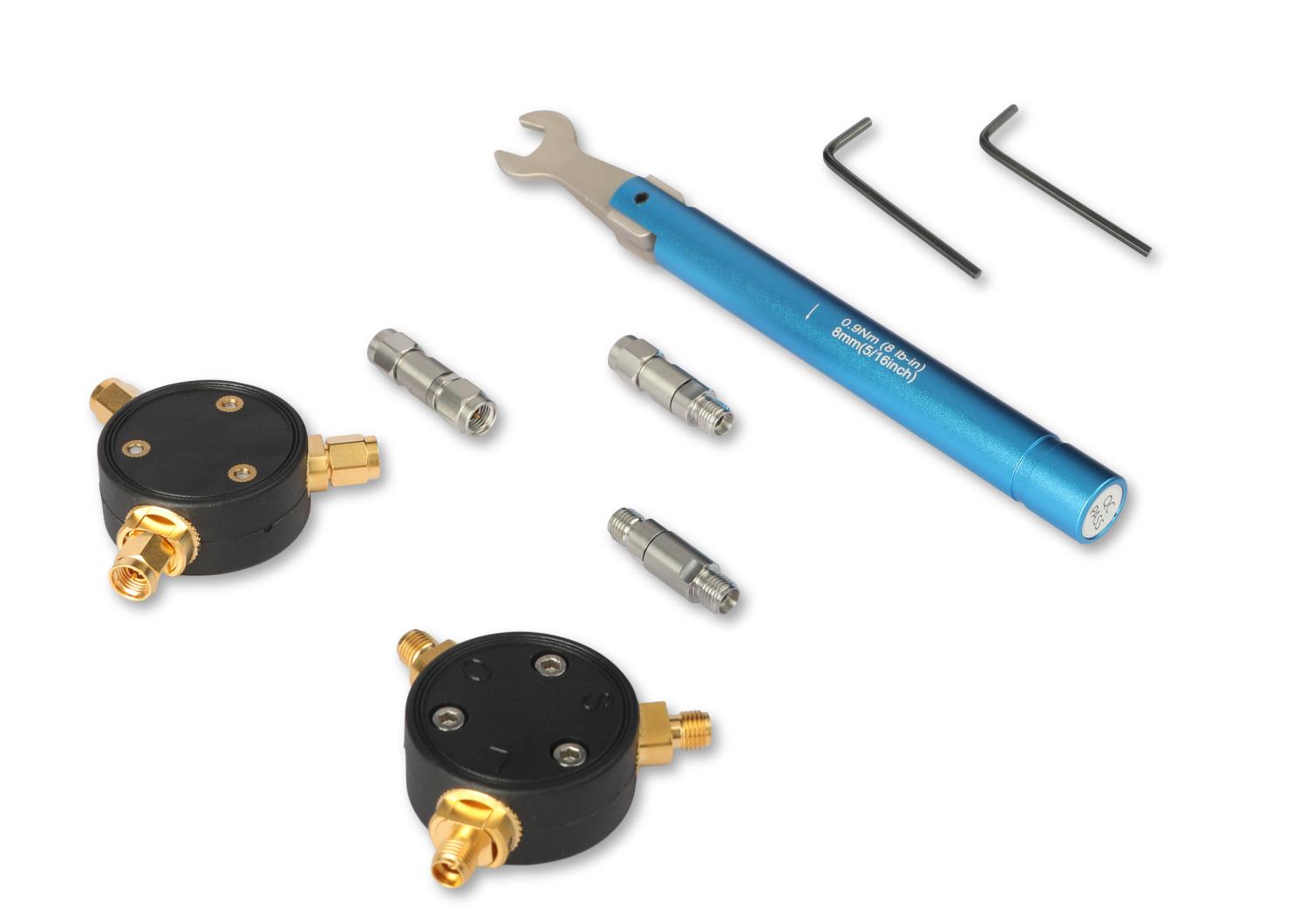

Image of Mcal109 sk1 telonicuk

Rigol MCAL109-SK1 Mechanical Calibration Kit, 3.5 mm Male and Female, DC to 9 GHz

£2370.00 (£2844.00 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: MCAL109-SK1 Categories: , , Brand:

Description


Rigol MCAL109-SK1 Mechanical Calibration Kit, 3.5 mm Male and Female, DC to 9 GHz

The MCAL109-SK1 is a precision coaxial mechanical calibration kit for characterising systematic errors and improving network-analyser measurement accuracy. It covers DC to 9 GHz and provides 3.5 mm Male and Female calibration standards.

Key Features
  • DC to 9 GHz frequency range
  • 3.5 mm Male and Female standards
  • Open, short and fixed-load calibration standards
  • Male and female open, short and load standards; three 3.5 mm adapters; connector bodies; torque wrench; hex wrenches; tool kit
  • Load VSWR: ≤ 1.02
  • Adapter VSWR: ≤ 1.06
Applications
  • Calibration of vector network analysers
  • Calibration of scalar network analysers
  • RF and microwave measurement-system error correction

Documentation


Brand RIGOL
Model MCAL109-SK1
Product type Mechanical calibration kit
Calibration method Open / Short / Load / adapter
Frequency range DC to 9 GHz
Connector 3.5 mm Male and Female
Kit contents Male and female open, short and load standards; three 3.5 mm adapters; connector bodies; torque wrench; hex wrenches; tool kit
Load VSWR ≤ 1.02
Adapter VSWR ≤ 1.06
