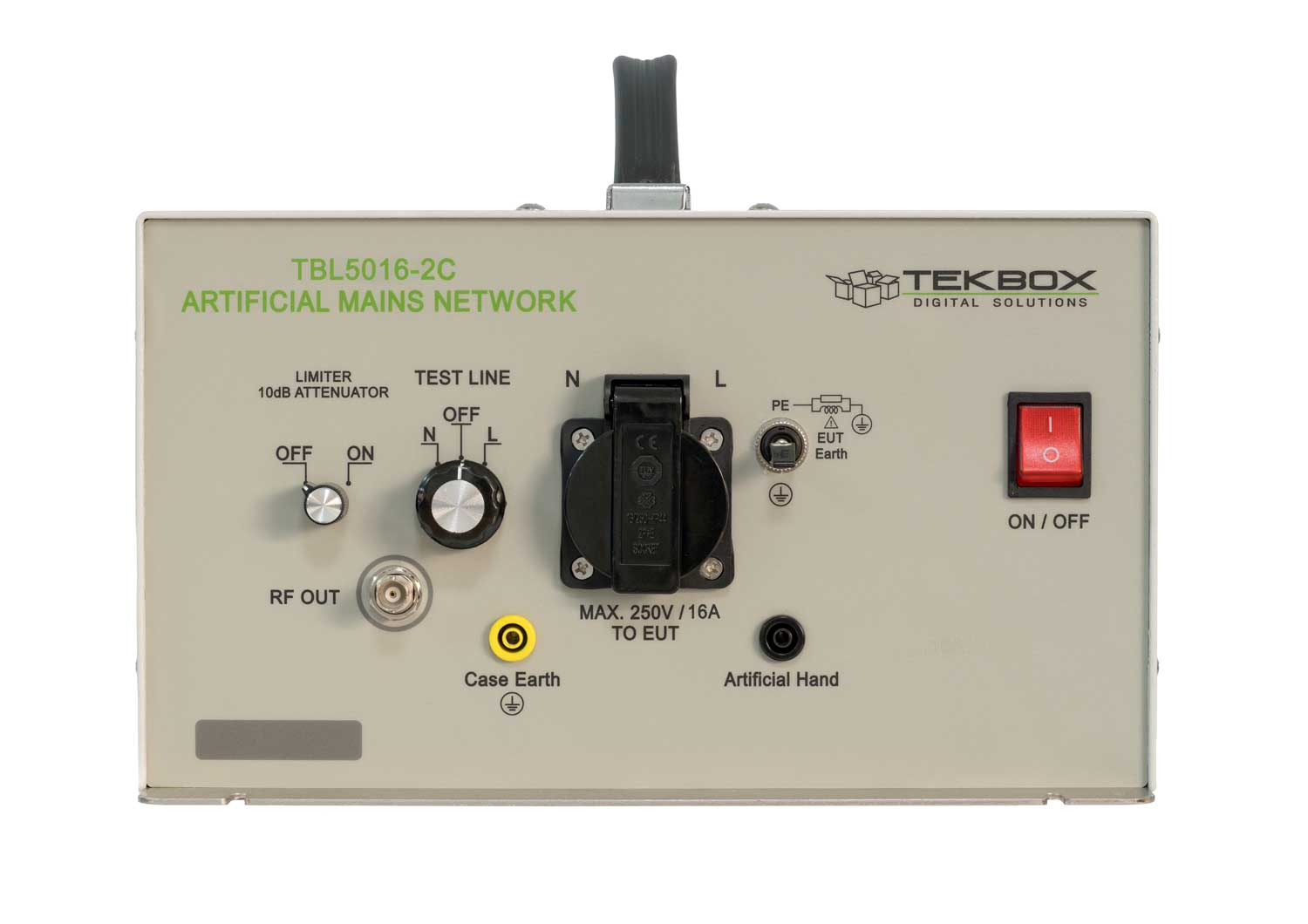

Image of Tekbox tbl5016 2c front telonic uk

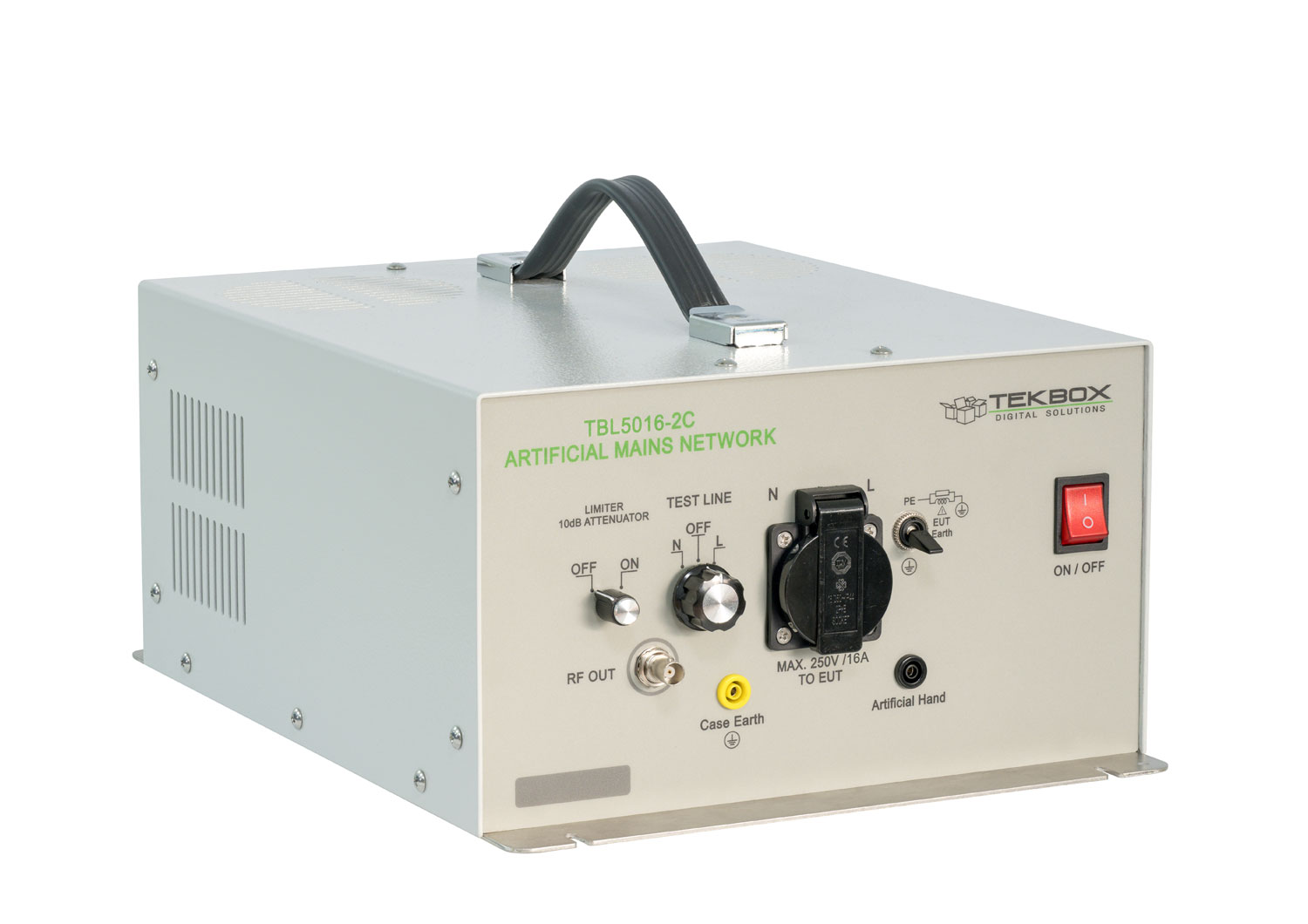

Image of Tekbox tbl5016 2c side telonic uk

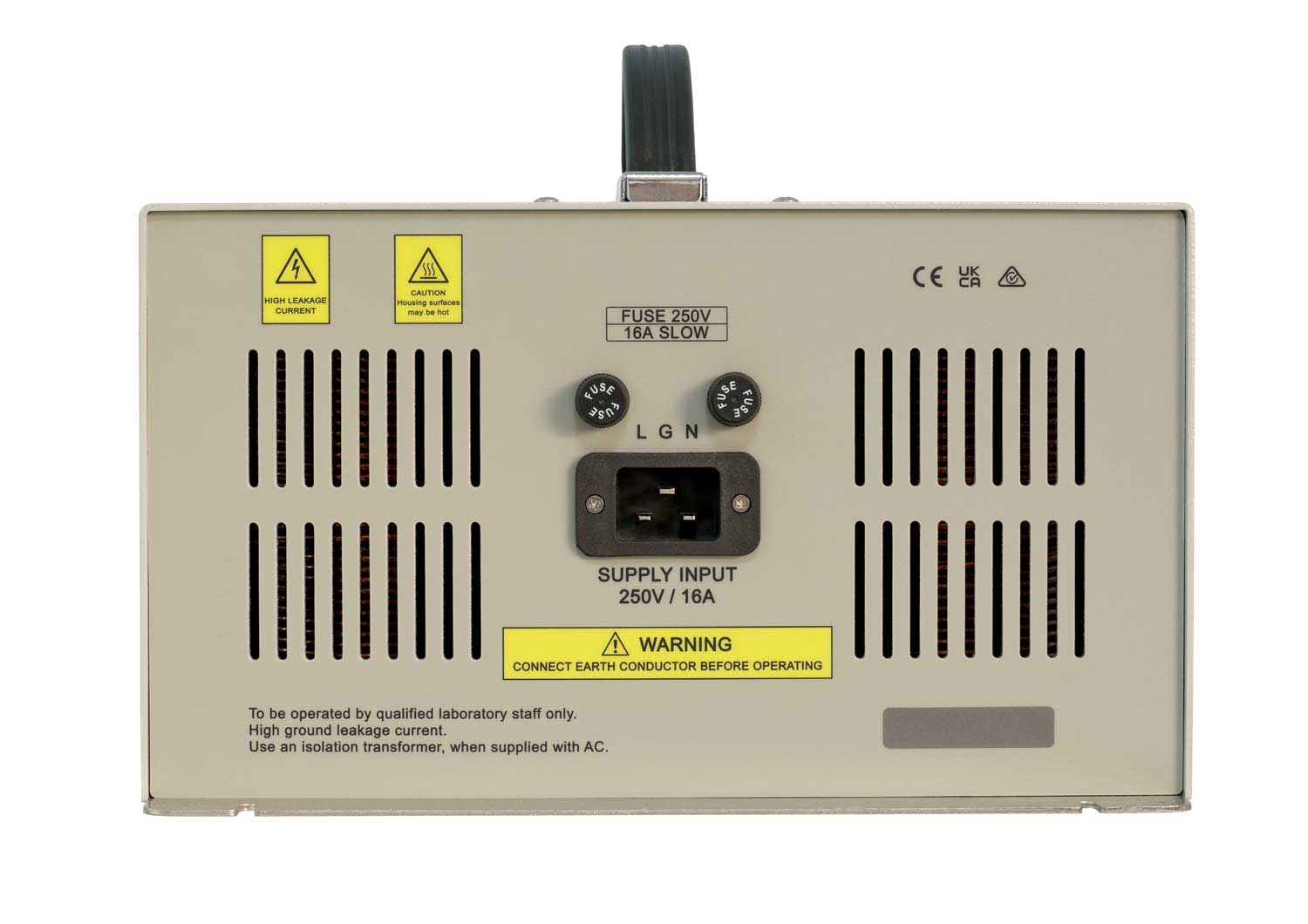

Image of Tekbox tbl5016 2c back telonic uk

TEKBOX TBL5016-2C 50µH Single Phase AC Line Impedance Stabilisation Network LISN

£884.00 (£1060.80 inc. VAT)

1 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBL5016-2C Categories: , , , , Brand:

Compare with other Single-Phase AC LISNs

Product NameImageImpendanceFrequency RangePathCurrentVoltageEUT SocketAdditional FeaturesStandardStockPrice
TBL5016-2CLow stockImage of Tekbox tbl5016 2c front telonic uk9 kHz – 30 MHz216A250V AC @ 50/60 Hz / DCCountry specific mains socketSwitchable Filter/Limiter/Attenuator, Artificial hand connection PE switchable (50Ω // 50µH)CISPR 16-1-2CISPR 16-1-21£884.00
TBL5008-2BLow stockImage of New project(50µH+5Ω) // 50Ω9 kHz – 30 MHz28A Max250V AC @ 50-60 Hz / DCCountry specific mains socketSeparate RF outputs enabling LISN-Mate connectivity, Artificial hand connection PE switchable (50Ω // 50µH)CISPR 16-1-22£619.00
TBL5008-2CImage of Tekbox tbl5008 2c front telonic uk(50µH+5Ω) // 50Ω9 kHz – 30 MHz28A Max250V AC @ 50-60 Hz / DCCountry specific mains socketSwitchable Filter/Limiter/Attenuator, Artificial hand connection PE switchable (50Ω // 50µH)CISPR 16-1-25£686.00
TBL5016-1Image of Tekbox tbl5016 1 front50µH // 50Ω, (50µH+5Ω) // 50Ω150 kHz – 30 MHz116A250VPhoenix High CurrentJumper configurable to various standardsCISPR 16-1-2, MIL-STD-461FOn Backorder£578.00
TBL5016-2BLow stockImage of Tekbox tbl5016 2b front telonic uk'-(50µH+5Ω) // 50Ω9 kHz – 30 MHz216A250V AC @ 50/60 Hz / DCCountry specific mains socketCISPR 16-1-22£653.00
TBL5032-1Image of Tbl5032 1 side 2 telonicuk50µH // 50Ω, (50µH+5Ω) // 50Ω10 kHz – 30 MHz132A500V DC, 270V AC @ 50/60 Hz, 120V AC @ 400 Hz4mm (banana)Jumper configurable to various standardsCISPR 16-1-2, MIL-STD-461GOn Backorder£692.00

Description


Tekbox TBL5016-2C LISN

The TBL5016-2C is a Line Impedance Stabilization Network designed to measure conducted emissions on power supply lines in the 9kHz to 30MHz frequency range, as specified by the CISPR 16-1-2 standard. The device is designed for testing single phase, AC -powered equipment with supply voltages up to maximum 2 50V and 16 A. Conducted noise can be measured on the phase and on the neutral conductor. The TBL5016-2C features a line selector switch, a switchable limiter / highpass filter / attenuator, a PE switch to mimic extension cables and an artificial hand connection.
The device is available with country-specific EUT connectors.

Features
  • Frequency range: 9 kHz to 30 MHz
  • Impedance: 50 Ω ║ (50 µH + 5 Ω)
  • Artificial hand: 220 pF + 511 Ω
  • Switchable PE: 50 Ω ║ 50 µH
  • Limiter / attenuator / highpass filter: +6dBm / 10 dB /150 kHz to 30 MHz
  • Air core inductors
  • Line voltage: max. 250V / 50/ 60 Hz or DC
  • Max. current: 16 A @ 23°C
  • EUT socket: country specific
  • Measurement connector: 50 Ω BNC
  • Power connector: IEC 60320 C19
  • Operating Temperature Range: +5°C … + 40°C; 5% to 80% RH

Product Videos

YouTube Video

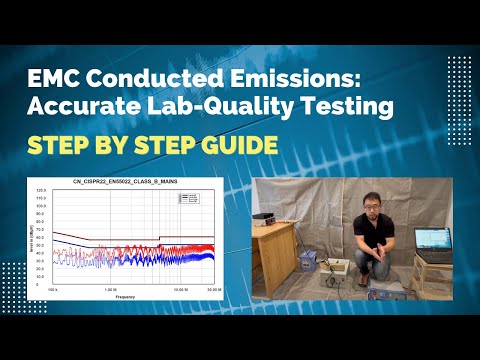

EMC Conducted Emissions: Accurate Lab-Quality Testing You Can Do In-House
YouTube Video
Telonic Instruments - Your Guide to our Tekbox LISNs by Dr Min Zhang
YouTube Video
LISN Selection Guide - 2C or 2B?

Documentation


Features:

  • Frequency range: 9 kHz to 30 MHz
  • Impedance: 50 Ω ║ (50 µH + 5 Ω)
  • Artificial hand: 220 pF + 511 Ω
  • Switchable PE: 50 Ω ║ 50 µH
  • Limiter / attenuator / highpass filter: +6dBm / 10 dB /150 kHz to 30 MHz
  • Air core inductors
  • Line voltage: max. 250V / 50/ 60 Hz or DC
  • Max. current: 16 A @ 23°C
  • EUT socket: country specific
  • Measurement connector: 50 Ω BNC
  • Power connector: IEC 60320 C19
  • Operating Temperature Range: +5°C … + 40°C; 5% to 80% RH
