Tekbox TBHPF1-150KHZ High Pass Filter

£83.51 (£100.21 inc VAT)

Available on back-order

Request QuoteRemove from Quote
Request Quote
SKU: TBHPF1-150kHz Categories: , , ,

Description

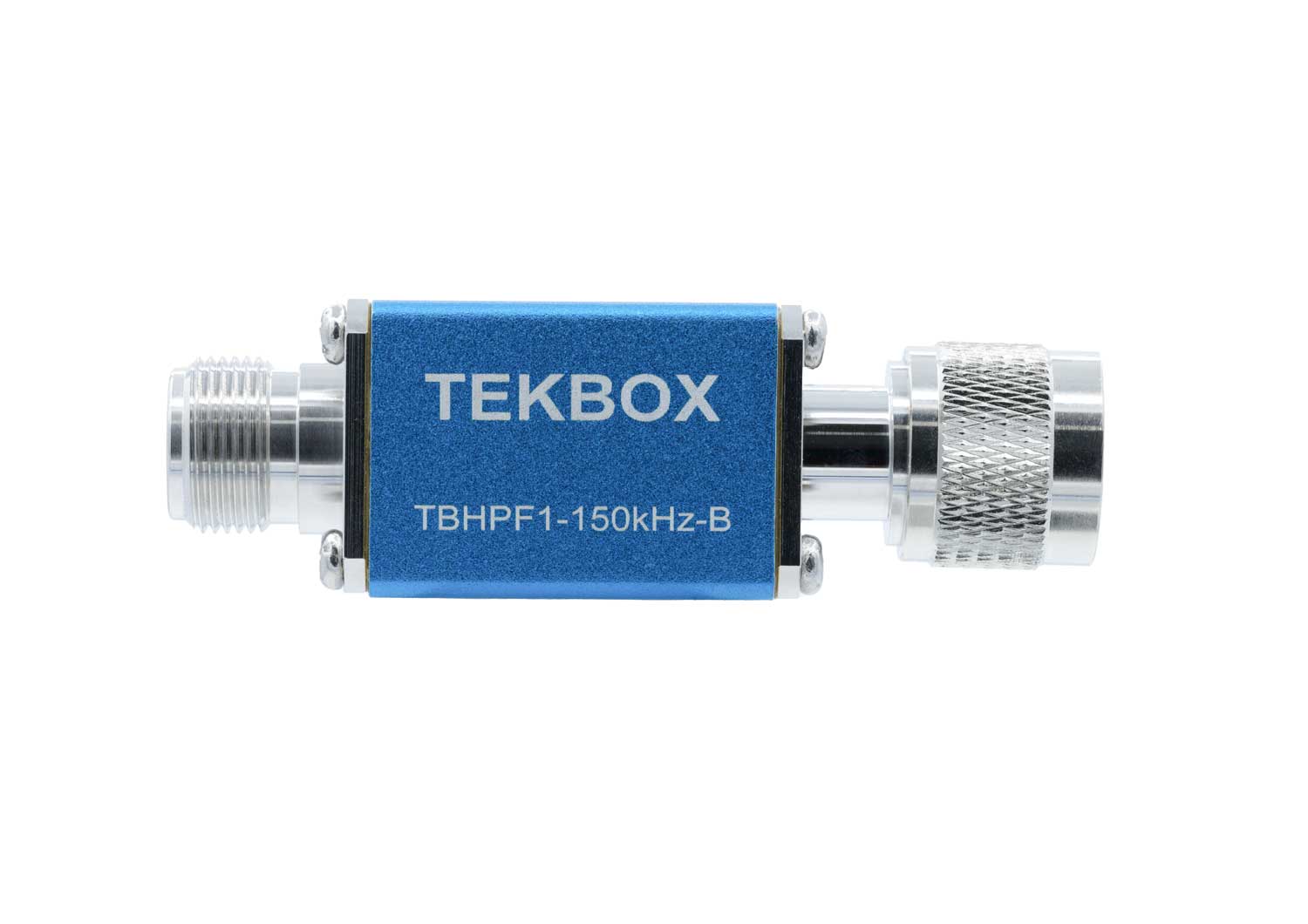

Tekbox TBHPF1-150KHZ High Pass Filter

150 kHz Highpass Filter for protection of spectrum analyzer or EMI-receiver RF inputs against high amplitude subharmonics and residual 50 Hz voltage in conducted emission measurement set ups.

Specification:

  • High Pass Filter, reflective, 50 Ohm
  • 3dB bandwidth: 150 kHz – 3 GHz
  • Maximum input voltage: 100V; 250V for < 5 sec.
  • Maximum permitted input current at frequencies < 150kHz and open output: 650 mA
  • Maximum input power at frequencies 300 kHz – 1 GHz: 10W
  • Connectors: N-Male / N-Female
  • Dimensions: 26 x 26 x 82 mm
  • Weight: ca. 100g

Product Images

Documentation

User Manual

Tekbox TBHPF1-150kHz User Manual


Specifications
Maximum input voltage: 100V; 250V for < 5 sec.
3 dB bandwidth: 150 kHz – 3 GHz
Footprint 26 x 26 x 82 mm
Weight 100 g
Connector type N-Male / N-Female
Transfer impedance 23 dB Ohm
Maximum permitted input current at frequencies < 150kHz and open output: 650 mA
Maximum input power at frequencies 300 kHz – 1 GHz: 10W



Frequency (MHz) Transfer Impedance (dBΩ) Frequency (MHz) Transfer Impedance (dBΩ)
30 -100.48 13000 -38.18
40 -99.76 14000 -36.91
50 -99.58 15000 -35.72
100 -92.72 20000 -30.78
250 -97.32 25000 -26.98
500 -89.77 50000 -15.47
750 -85.71 100000 -5.84
1000 -81.59 250000 -0.80
2500 -66.11 500000 -0.21
5000 -54.48 1000000 -0.07
6000 -51.41 10000000 -0.05
7000 -48.77 30000000 -0.06
8000 -46.52 100000000 -0.17
9000 -44.50 250000000 -0.26
10000 -42.69 500000000 -0.32
11000 -41.05 750000000  -0.20
12000 -39.56 1000000000 -0.21
