Description

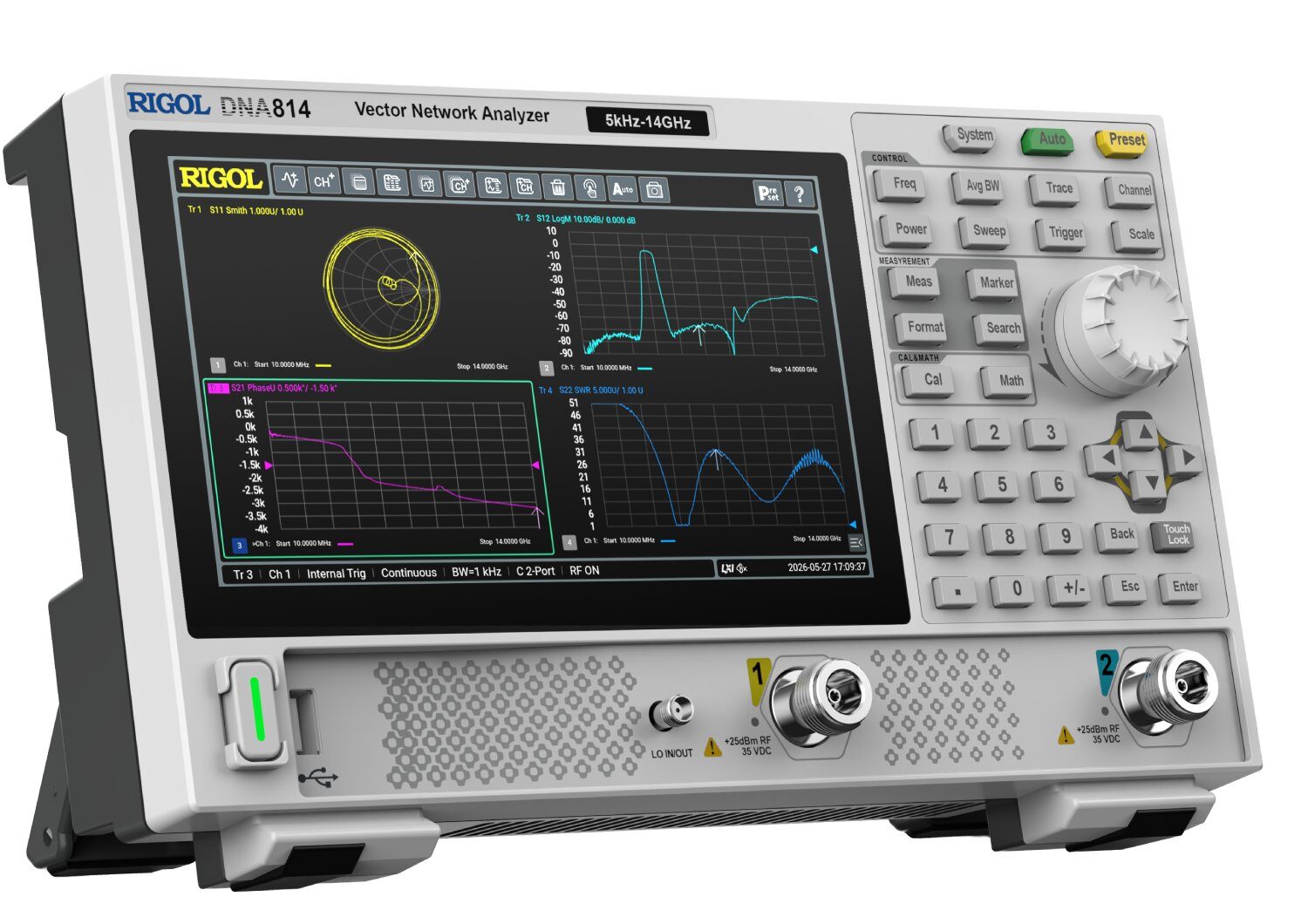

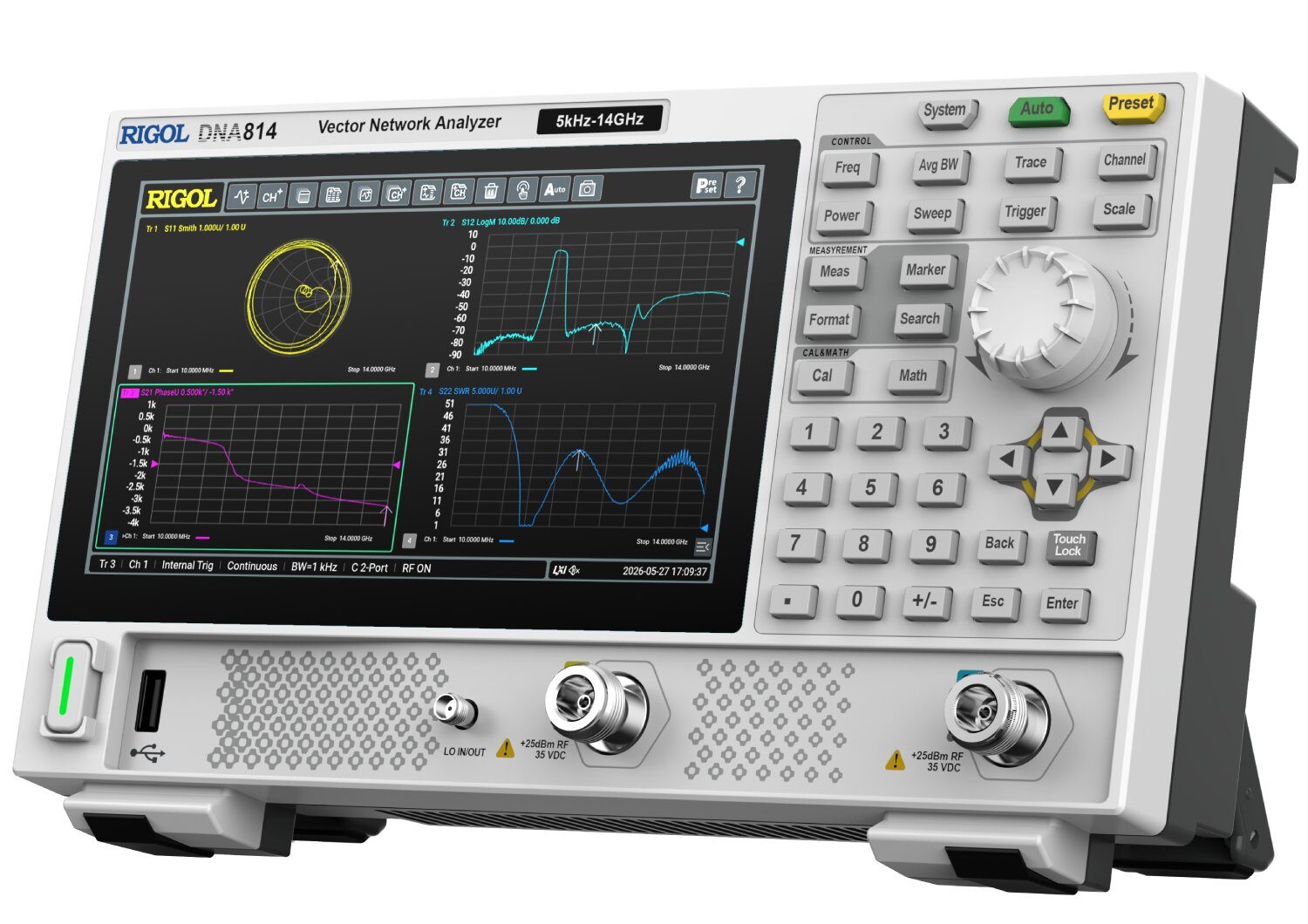

RIGOL DNA804 4.5 GHz, 125 dB, 2-Port Vector Network Analyser (VNA)
The Rigol DNA804, part of the DNA800 Series 2-Port Vector Network Analyser Series, delivers laboratory-grade precision in an ultra-compact, low-noise design. Operating from 5 kHz to 4.5 GHz, it offers an intuitive 7-inch HD touchscreen interface alongside advanced measurement capabilities—including S-parameters, impedance, and time-domain analysis. Engineered to maintain high-end specifications while prioritising portability, it seamlessly integrates into modern workflows via USB, LAN, and HDMI interfaces, providing a premium testing experience without the bulk of a traditional benchtop unit.
Key Features
- Premium Performance: Features a high dynamic range of 125 dB (typ.), 1 Hz frequency resolution, and an ultra-low 0.005 dB trace noise for highly accurate data.

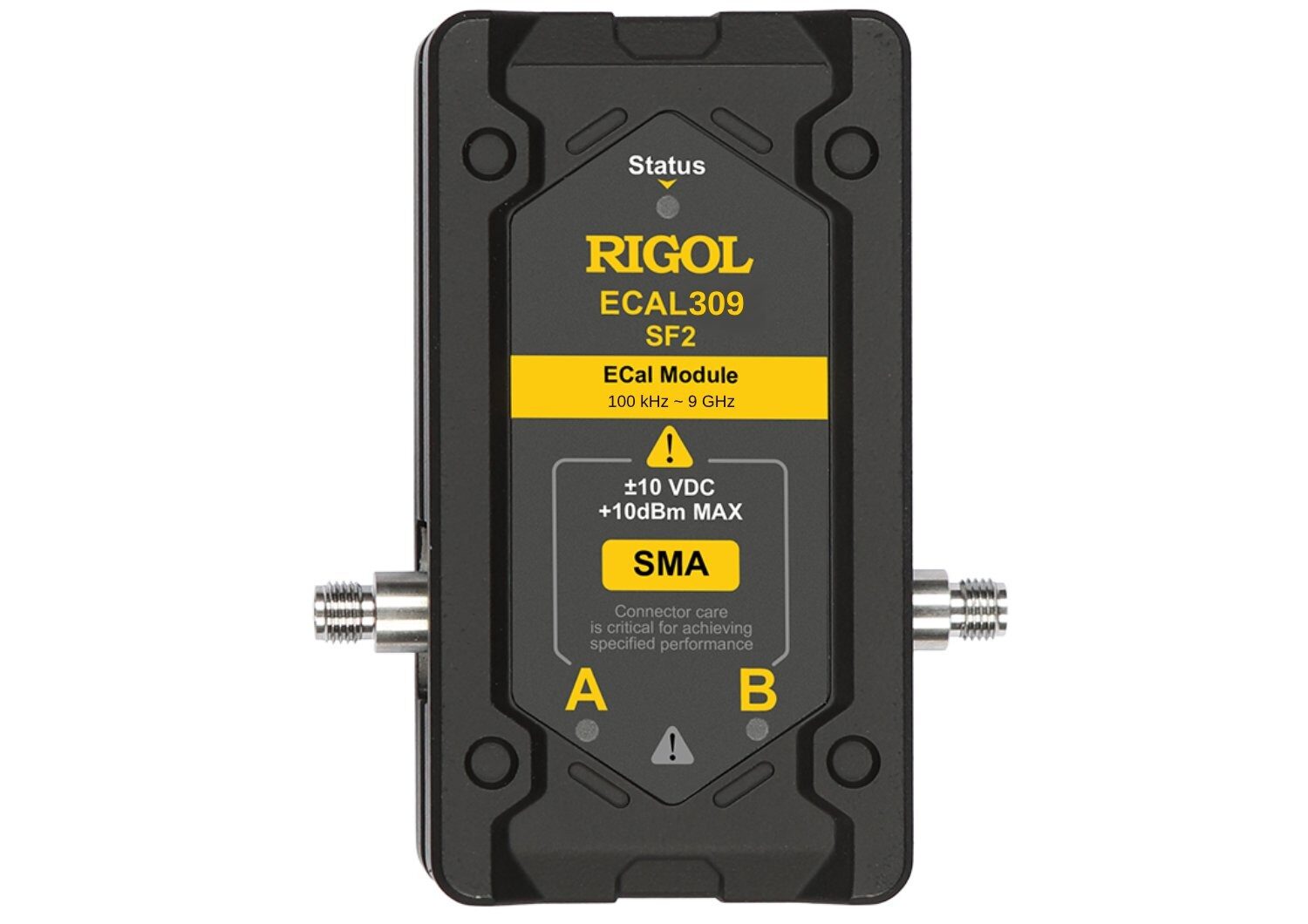

- Versatile Calibration & Analysis: Supports standard mechanical and ECal electronic calibration kits (SOLT, OSL, Response), alongside built-in fixture embedding/de-embedding and VSWR testing.
- Flexible Operation & Automation: Fully compatible with standard SCPI instruction sets and Web Control for remote operation, with inputs supporting touch, physical keys, or an external mouse and keyboard.
- Highly Portable Form Factor: Weighs just 1.9 kg with a compact footprint (265.35 mm × 161.75 mm × 77.38 mm) and features an ergonomic carrying handle.
Applications
- R&D Engineering: Evaluating and optimising RF components, circuits, and microwave networks during the development phase.
- Production & Automated Testing: Streamlining quality assurance on manufacturing lines using SCPI automation and rapid measurement sweeps.
- Communications Infrastructure: Testing and verifying antennas, cables, and base station components in the field or lab.
- Academic & Electronic Research: Providing high-precision RF analysis for university laboratories and advanced electronics testing.
Product Images

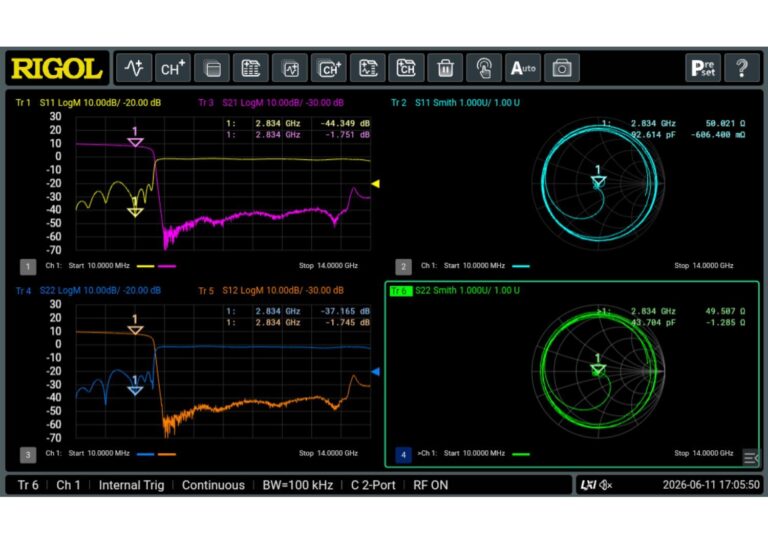

Comprehensive RF Analysis

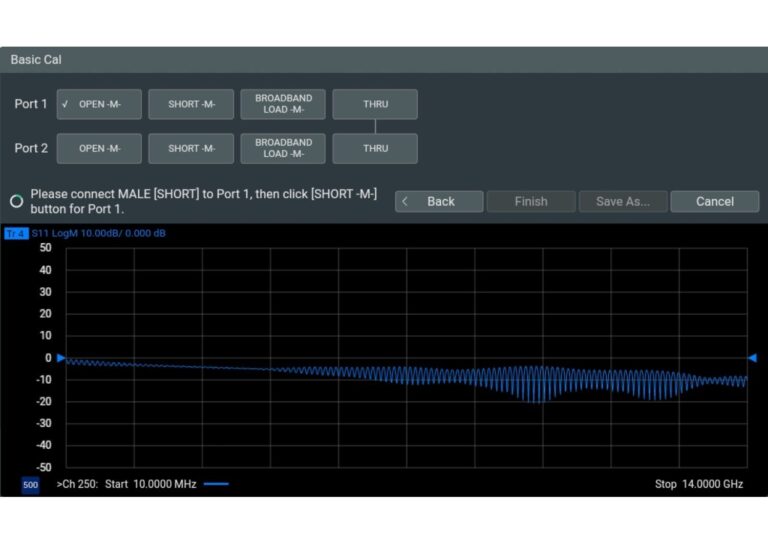

Professional Calibration Options

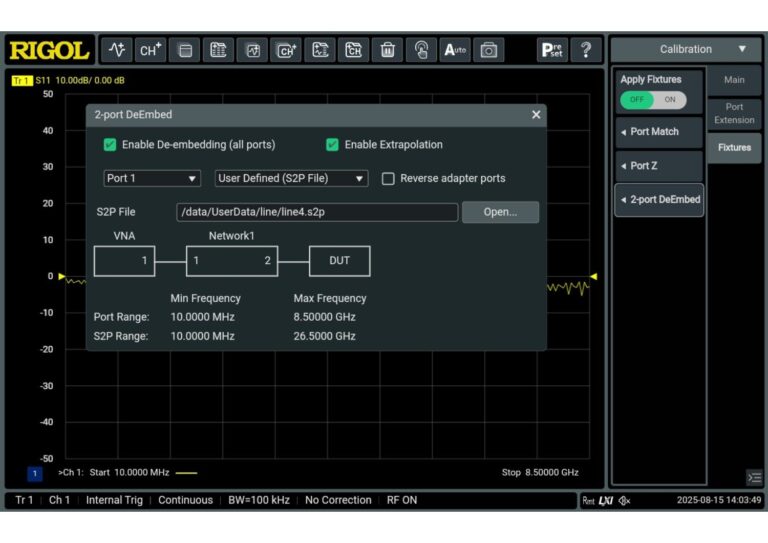

Fixture De-Embedding

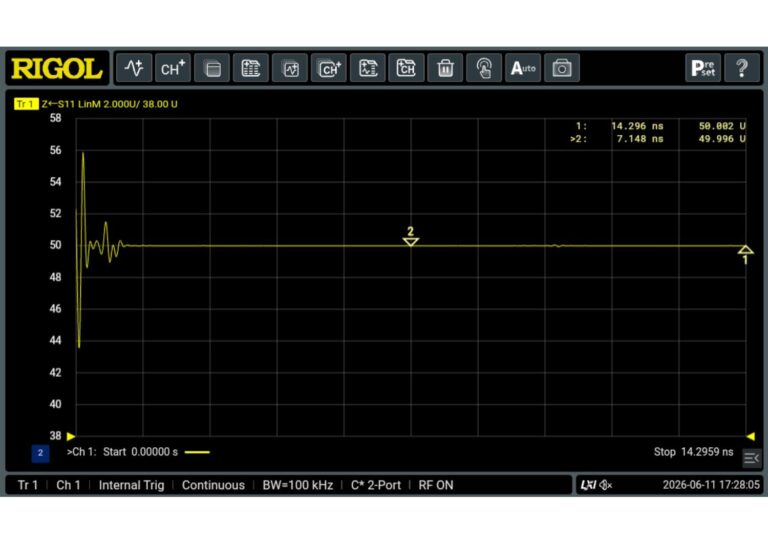

Time Domain Analysis

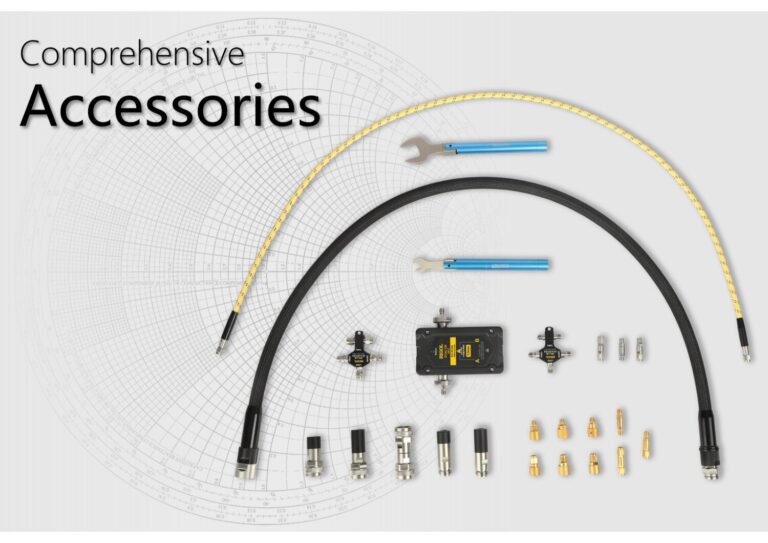

Expand Your Measurement Capability
×
![]()
DNA800 Datasheet
