RF Cables

Connectors Length Cable VSWR @ 3 GHz Ins. Loss @ 3 GHz Ins. Loss @ 6 GHz VSWR @ 8.5 GHz Ins. Loss @ 6 GHz (8.5) Ins. Loss @ 8.5 GHz Connector Material Part Number
N-Male to N-Male 30 cm RM141 ≤ 1.2 ≤ 0.6 dB ≤ 0.7 dB stainless steel NM-NM/30/RM141
N-Male to N-Male 35 cm RG 223/U ≤ 1.2 ≤ 0.7 dB ≤ 1.2 dB copper-tin-zinc plated brass NM-NM/35/RG223
N-Male to N-Male 50 cm RM141 ≤ 1.2 ≤ 0.8 dB ≤ 0.9 dB stainless steel NM-NM/50/RM141
N-Male to N-Male 75 cm RG 58/U ≤ 1.2 ≤ 1.3 dB ≤ 2 dB copper-tin-zinc plated brass NM-NM/75/RG58
N-Male to N-Male 75 cm RG 223/U ≤ 1.2 ≤ 1.1 dB ≤ 1.5 dB copper-tin-zinc plated brass NM-NM/75/RG223
N-Male to N-Male 75 cm RG 142 ≤ 1.12 ≤ 0.8 dB ≤ 1.2 dB armored stainless steel NM-NM/75/RG142/Test
N-Male to N-Male 1 m RM141 ≤ 1.2 ≤ 1.4 dB ≤ 1.6 dB stainless steel NM-NM/100/RM141
N-Male to N-Male 1.25 m RG 223/U copper-tin-zinc plated brass NM-NM/125/RG223
N-Male to N-Male 3.12 m RG 213/U ≤ 1.25 ≤ 2.6 dB ≤ 4.5 dB copper-tin-zinc plated brass NM-NM/312/RG213
N-Male to N-Male 3 m RG 142 ≤ 1.2 ≤ 3.1 dB ≤ 4.8 dB copper-tin-zinc plated brass NM-NM/300/RG142
N-Male to N-Male 5 m RG 223/U ≤ 1.2 ≤ 5.3 dB ≤ 7.5 dB copper-tin-zinc plated brass NM-NM/500/RG223
N-Male to N-Male 5 m RG 213/U ≤ 1.25 ≤ 4.7 dB ≤ 6.8 dB copper-tin-zinc plated brass NM-NM/500/RG213
N-Male to N-Male 10 m RG 142 ≤ 1.2 ≤ 9.4 dB ≤ 14.8 dB copper-tin-zinc plated brass NM-NM/1000/RG142
N-Male to SMA-Male 30 cm RM141 ≤ 1.18 ≤ 0.5 dB ≤ 0.6 dB stainless steel NM-SMAM/30/RM141
N-Male to SMA-Male 35 cm RG 223/U ≤ 1.2 ≤ 0.7 dB ≤ 1.2 dB N: copper-tin-zinc, SMA: gold-plated brass NM-SMAM/35/RG223
N-Male to SMA-Male 50 cm RM141 ≤ 1.18 ≤ 0.7 dB ≤ 0.8 dB stainless steel NM-SMAM/50/RM141
N-Male to SMA-Female 50 cm RM141 N: stainless steel; SMA-F: gold-plated brass NM-SMAF/50/RM141
N-Male to SMA-Male 75 cm RG 58 ≤ 1.2 ≤ 1.3 dB ≤ 2 dB N: copper-tin-zinc, SMA: gold-plated brass NM-SMAM/75/RG58
N-Male to SMA-Male 75 cm RG 223/U ≤ 1.2 ≤ 1.1 dB ≤ 1.5 dB N: copper-tin-zinc, SMA: gold-plated brass NM-SMAM/75/RG223
N-Male to SMA-Male 75 cm RG 142 ≤ 1.12 ≤ 0.8 dB ≤ 1.2 dB armored stainless steel NM-SMAM/75/RG142/Test
N-Male to SMA-Male 1 m RM141 ≤ 1.18 ≤ 1.3 dB ≤ 1.5 dB stainless steel NM-SMAM/100/RM141
N-Male to SMA-Female 1 m RM141 stainless steel NM-SMAF/100/RM141
N-Male to SMA-Male 1.25 m RG 223/U copper-tin-zinc plated brass NM-SMAM/125/RG223

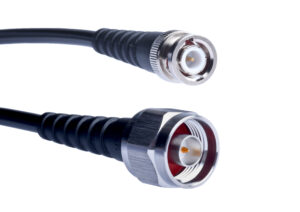

N-Male to BNC-Male 35 cm RG 223/U ≤ 0.8 dB copper-tin-zinc plated brass NM-BNCM/35/RG223
N-Male to BNC-Male 75 cm RG 58/U ≤ 1.4 dB copper-tin-zinc plated brass NM-BNCM/75/RG58
N-Male to BNC-Male 75 cm RG 223/U ≤ 1.2 dB copper-tin-zinc plated brass NM-BNCM/75/RG223
N-Male to BNC-Male 1.25 m RG 223/U copper-tin-zinc plated brass NM-BNCM/125/RG223
BNC-Male to BNC-Male 35 cm RG 223/U ≤ 0.85 dB copper-tin-zinc plated brass BNCM-BNCM/35/RG223
BNC-Male to BNC-Male 75 cm RG 58/U copper-tin-zinc plated brass BNCM-BNCM/75/RG58
BNC-Male to BNC-Male 75 cm RG 223/U copper-tin-zinc plated brass BNCM-BNCM/75/RG223
BNC-Male to BNC-Male 1.25 m RG 223/U copper-tin-zinc plated brass BNCM-BNCM/125/RG223

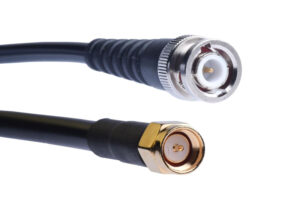

BNC-Male to SMA-Male 35 cm RG 223/U ≤ 0.8 dB BNC: copper-tin-zinc; SMA: gold-plated brass BNCM-SMAM/35/RG223
SMA-Male to SMA-Male 25 cm RG 316/U ≤ 1.2 ≤ 0.5 dB ≤ 0.9 dB gold plated brass SMAM-SMAM/25/RG316
SMA-Male to SMA-Male 30 cm RM141 ≤ 1.15 ≤ 0.4 dB ≤ 0.5 dB stainless steel SMAM-SMAM/30/RM141
SMA-Male to SMA-Male 50 cm RM141 ≤ 1.15 ≤ 0.6 dB ≤ 0.8 dB stainless steel SMAM-SMAM/50/RM141
SMA-Male to SMA-Female 50 cm RM141 SMA-M: stainless steel; SMA-F: gold plated brass SMAM-SMAF/50/RM141
SMA-Male to SMA-Male 75 cm RG 316/U ≤ 1.2 ≤ 2.7 dB gold plated brass SMAM-SMAM/75/RG316
SMA-Male to SMA-Male 75 cm RG 142 ≤ 1.12 ≤ 0.8 dB ≤ 1.2 dB armored stainless steel SMAM-SMAM/75/RG142/Test
SMA-Male to SMA-Male 1 m RM141 ≤ 1.15 ≤ 1.2 dB ≤ 1.2 dB stainless steel SMAM-SMAM/100/RM141
SMA-Male to SMA-Female 1 m RM141 stainless steel SMAM-SMAF/100/RM141
SMA-Male to SMA-Male 1.25 m RG 223/U gold plated brass SMAM-SMAM/125/RG223
SMA-Male to SMB-Female 75 cm RG 316/U ≤ 1.2 gold plated brass SMAM-SMBF/75/RG316
  • NM-BNCM/75/RG58 N-Male to BNC-Male, 75cm 50Ω RF Cable

    NM-BNCM/75/RG58 N-Male to BNC-Male, 75cm 50Ω RF Cable

    £9.00

    5+ In UK Stock

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • TEKBOX NM-BNCM/75/RG223 N-Male to BNC-Male, 75cm, 50Ω RF Cable

    TEKBOX NM-BNCM/75/RG223 N-Male to BNC-Male, 75cm, 50Ω RF Cable

    £13.00

    3 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • TEKBOX-NM-NM-RG58-RG223-Telonic-Uk

    TEKBOX NM-NM/125/RG223 RF Cable

    £18.00

    3 in stock

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • TEKBOX-NM-NM-RG142-Telonic-Uk

    TEKBOX NM-NM/300/RG142 RF Cable

    £101.00

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • TEKBOX NM-NM/500/RG213 RF Cable

    TEKBOX NM-NM/500/RG213 RF Cable

    £52.00

    1 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • TEKBOX NM-NM/500/RG223 RF Cable

    TEKBOX NM-NM/500/RG223 RF Cable

    £53.00

    3 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • TEKBOX NM-NM/75/RG142 N-Male to N-Male, 75cm, Double Shielded, 50Ω RF Cable

    TEKBOX NM-NM/75/RG142 N-Male to N-Male, 75cm, Double Shielded, 50Ω RF Cable

    £106.00

    2 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • TEKBOX NM-NM/75/RG223 RF Cable

    TEKBOX NM-NM/75/RG223 RF Cable

    £14.00

    5+ In UK Stock

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • TEKBOX NM-NM/75/RG58 N-Male to N-Male, 75cm 50Ω RF Cable

    TEKBOX NM-NM/75/RG58 N-Male to N-Male, 75cm 50Ω RF Cable

    £10.00

    5+ In UK Stock

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • TEKBOX NM-SMAM/75/RG142 N-Male to SMA-Male, 75cm, Double Shielded, 50Ω RF Cable

    TEKBOX NM-SMAM/75/RG142 N-Male to SMA-Male, 75cm, Double Shielded, 50Ω RF Cable

    £112.00

    5+ In UK Stock

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • TEKBOX NM-SMAM/75/RG223 50Ω RF Cable

    TEKBOX NM-SMAM/75/RG223 50Ω RF Cable

    £14.00

    4 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • TEKBOX NM-SMAM/75/RG58 N-Male to SMA-Male, 75cm 50Ω RF Cable

    TEKBOX NM-SMAM/75/RG58 N-Male to SMA-Male, 75cm 50Ω RF Cable

    £10.00

    4 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • TEKBOX SMAM-SMAM/75/RG142 SMA-Male to SMA-Male, 75cm, Double Shielded, 50Ω RF Cable

    TEKBOX SMAM-SMAM/75/RG142 SMA-Male to SMA-Male, 75cm, Double Shielded, 50Ω RF Cable

    £106.00

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • TEKBOX SMAM-SMBF/75/RG316 SMB-Female to SMA-Male, 75cm, 50Ω RF Cable

    TEKBOX SMAM-SMBF/75/RG316 SMB-Female to SMA-Male, 75cm, 50Ω RF Cable

    £10.00

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • Placeholder

    Tekbox TBLCAL-UK

    £77.00

    Out of stock

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Read more
