Rigol CB6101B RF Cable, 2.4 mm-Male, 2.4 mm-Female 50.0 GHz

Name: Rigol CB6101B RF Cable, 2.4 mm-Male, 2.4 mm-Female 50.0 GHz
Brand: Rigol
SKU: CB6101B
Price: 334.00 GBP
Availability: BackOrder

£334.00 (£400.80 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Facebook

Post

SKU: CB6101B Categories: Hardware, Optional Accessories, RF Cables Tag: Safety & Compliance Brand: Rigol

Compare with other RF Cables

Cable Num	Brand	Connector A	Connector B	Length (cm)	Impedance	Frequency range (DC)	Cable	Performance	Stock	Price
CB6101BNew	Rigol	2.4 mm-Male	2.4 mm-Female	100.0 cm	50 Ω	50.0 GHz	RG50 armoured, low-loss, phase-stabilised RF cable	VSWR ≤1.27 Ins. loss ≤4.1 dB	On Backorder	£334.00
NM-BNCM-75-RG58	Tekbox	N-Male	BNC-Male	75.0 cm	50 Ω	5.8 GHz	RG 58/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.3 at 3 GHz Ins. loss ≤1.4 dB at 3 GHz	5+	£9.00
CB6100BNew	Rigol	2.4 mm-Male	2.4 mm-Male	100.0 cm	50 Ω	50.0 GHz	RG50 armoured, low-loss, phase-stabilised RF cable	VSWR ≤1.27 Ins. loss ≤4.1 dB	On Backorder	£334.00
CB6200ANew	Rigol	3.5 mm-Male	3.5 mm-Female	100.0 cm	50 Ω	26.5 GHz	RG26 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.9 dB	On Backorder	£291.00
CB6200BNew	Rigol	2.4 mm-Male	3.5 mm-Male	100.0 cm	50 Ω	26.5 GHz	RG26 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.9 dB	On Backorder	£291.00
CB6201ANew	Rigol	SMA-Male	SMA-Female	100.0 cm	50 Ω	18.0 GHz	RG18 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.4 dB	On Backorder	£291.00

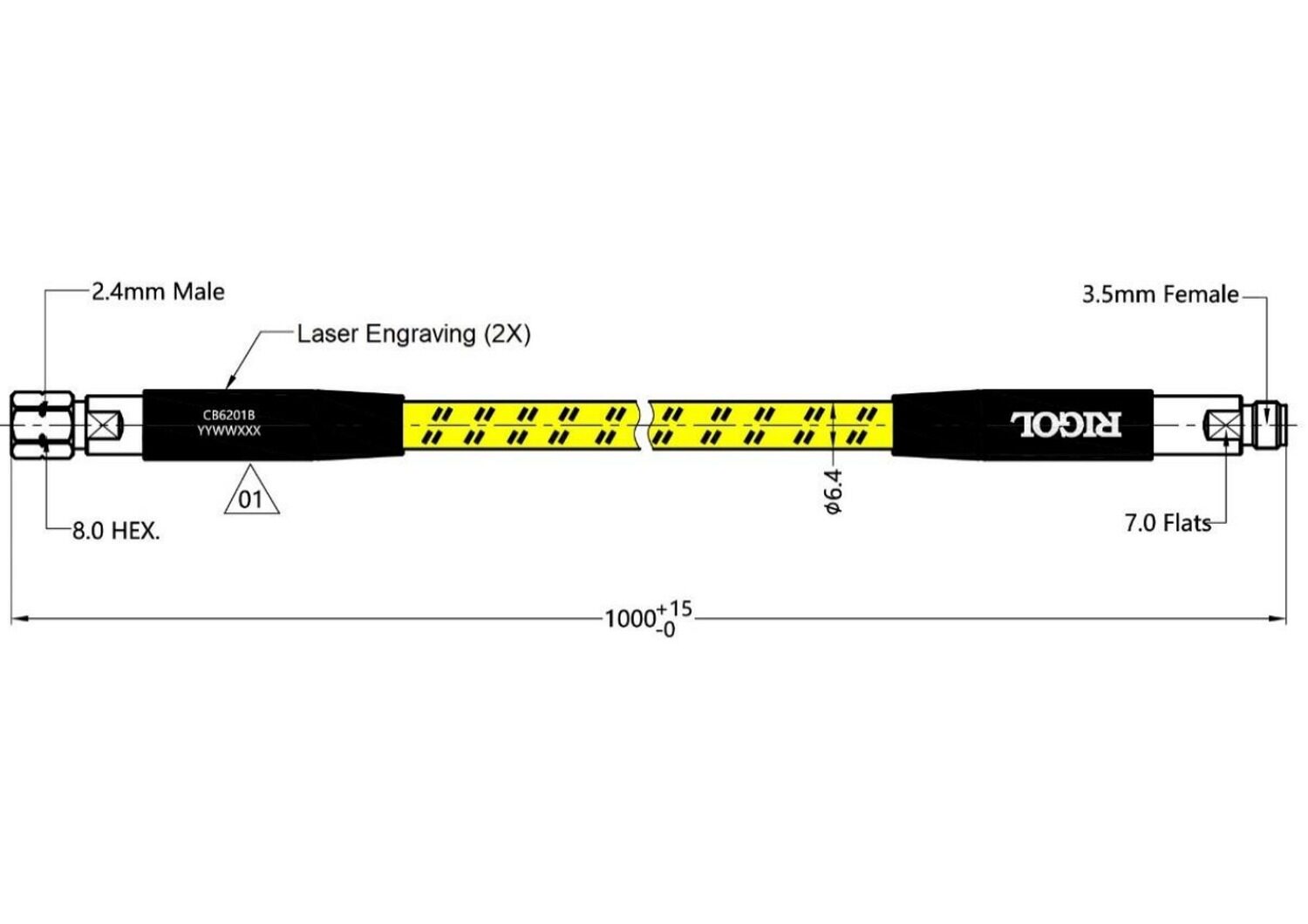

CB6201BNew	Rigol	2.4 mm-Male	3.5 mm-Female	100.0 cm	50 Ω	26.5 GHz	RG26 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.9 dB	On Backorder	£291.00
CB6202ANew	Rigol	N-Male	N-Female	100.0 cm	50 Ω	18.0 GHz	RG18 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.4 dB	On Backorder	£291.00
CB6203ANew	Rigol	N-Male	SMA-Female	100.0 cm	50 Ω	18.0 GHz	RG18 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.4 dB	On Backorder	£291.00
CB6204ANew	Rigol	N-Male	3.5 mm-Female	100.0 cm	50 Ω	18.0 GHz	RG18 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.4 dB	On Backorder	£291.00
CB-NM-3.5M-100-L-18G	Rigol	N-Male	3.5 mm-Male	100.0 cm	50 Ω	18.0 GHz	RG18 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.4 dB	On Backorder	£260.00
CB-NM-NM-100-L-18G	Rigol	N-Male	N-Male	100.0 cm	50 Ω	18.0 GHz	RG18 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.4 dB	On Backorder	£260.00
CB-NM-SMAM-100-L-18G	Rigol	N-Male	SMA-Male	100.0 cm	50 Ω	18.0 GHz	RG18 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.4 dB	On Backorder	£260.00
CB-SMAM-SMAM-100-L-18G	Rigol	SMA-Male	SMA-Male	100.0 cm	50 Ω	18.0 GHz	RG18 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.4 dB	On Backorder	£260.00
CB-3.5M-3.5M-100-L-26G	Rigol	3.5 mm-Male,	3.5 mm-Male,	100.0 cm	50 Ω	26.5 GHz	RG26 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.9 dB	On Backorder	£295.00
CB-NMD3.5F-3.5F-63-L-26G	Rigol	NMD 3.5 mm-Female,	3.5 mm-Female	63.5 cm	50 Ω	26.5 GHz	Stainless-steel double-buckle black nylon armour	VSWR ≤1.25 Ins. loss ≤2.0 dB	On Backorder	£782.00
N-BNC-2L	Siglent	N-Male	BNC-Male	70.0 cm	50 Ω	2.0 GHz	RG223 coax	VSWR ≤1.20 over DC–2 GHz Ins. loss ≤1.0 dB at 2 GHz	On Backorder	£30.00
N-N-18L	Siglent	N-Male	N-Male	100.0 cm	50 Ω	18.0 GHz	RTK Flex 402-YB low-insertion-loss cable, or equivalent; armoured	VSWR ≤1.35 to 18 GHz Ins. loss ≤2.3 dB over DC–18 GHz	On Backorder	£189.00
N-N-6L	Siglent	N-Male	N-Male	70.0 cm	50 Ω	6.0 GHz	RG223 coax	VSWR ≤1.25 at 6 GHz Ins. loss ≤1.8 dB at 6 GHz	On Backorder	£39.00
N-SMA-6L	Siglent	N-Male	SMA-Male	70.0 cm	50 Ω	6.0 GHz	RG223 coax	VSWR ≤1.25 at 6 GHz Ins. loss ≤1.8 dB at 6 GHz	On Backorder	£40.00
N-SMA-18L	Siglent	N-Male	SMA-Male	100.0 cm	50 Ω	18.0 GHz	RTK Flex 402-YB low-insertion-loss cable, or equivalent; armoured	VSWR ≤1.35 to 18 GHz Ins. loss ≤2.3 dB over DC–18 GHz	On Backorder	£189.00
S06-NMSF-1MNew	Siglent	N-Male	SMA-Female	100.0 cm	50 Ω	6.0 GHz	FS-6134 ultra-low-loss, phase-stable coax	VSWR ≤1.30 over DC–6 GHz Ins. loss ≤2.30 dB over DC–6 GHz	On Backorder	£39.00
S18-NMSF-1M	Siglent	N-Male	SMA-Female	100.0 cm	50 Ω	18.0 GHz	FSB500PK armoured, low-pass, phase-stable RF cable	VSWR ≤1.30 over DC–18 GHz Ins. loss ≤1.56 dB over DC–18 GHz	On Backorder	£189.00
S40-29M29F-1M	Siglent	2.92 mm-Male	2.92 mm-Female	100.0 cm	50 Ω	40.0 GHz	Air-dielectric precision connector	Not specified	On Backorder	£393.00
SMA-SMA-18L	Siglent	SMA-Male	SMA-Male	100.0 cm	50 Ω	18.0 GHz	RTK Flex 402-YB low-insertion-loss cable, or equivalent; armoured	VSWR ≤1.25 to 18 GHz Ins. loss ≤2.3 dB over DC–18 GHz	On Backorder	£189.00
SMA-SMA-26L	Siglent	SMA-Male	SMA-Male	100.0 cm	50 Ω	26.5 GHz	RTK 161-YB cable, or equivalent; armoured	VSWR ≤1.3 to 26.5 GHz Ins. loss ≤2.0 dB over DC–18 GHz	On Backorder	£269.00
SMAF-SMA-26L	Siglent	SMA-Male	SMA-Female	100.0 cm	50 Ω	26.5 GHz	RTK 161-YB cable, or equivalent; armoured	VSWR ≤1.3 to 26.5 GHz Ins. loss ≤1.6 dB over DC–18 GHz Ins. loss ≤2.0 dB over 18–26.5 GHz	On Backorder	£269.00
V26-N35FA35F-25IN	Siglent	NMD 3.5 mm-Female	APC 3.5 mm-Female	63.5 cm	50 Ω	26.5 GHz	Stainless-steel double-buckle black nylon armour	VSWR ≤1.25 Ins. loss ≤2.16 dB	On Backorder	£943.00
V26-N35MN35F-25IN	Siglent	NMD 3.5 mm-Female	NMD 3.5 mm-Male	63.5 cm	50 Ω	26.5 GHz	Stainless-steel double-buckle black nylon armour	VSWR ≤1.25 Ins. loss ≤2.16 dB	On Backorder	£943.00
BNCM-BNCM-300-RG6-75Q	Tekbox	BNC-Male	BNC-Male	300.0 cm	75 Ω	Not specified	RG6 75 Ω coax; copper-tin-zinc plated brass connectors	Not specified	On Backorder	£34.00
BNCM-BNCM/125/RG223	Tekbox	BNC-Male	BNC-Male	125.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	Not specified	On Backorder	£17.54
BNCM-BNCM/150/RG6/75Ω	Tekbox	BNC-Male	BNC-Male	150.0 cm	50 Ω	Not specified	RG6 75 Ω coax; copper-tin-zinc plated brass connectors	Not specified	On Backorder	£32.00
BNCM-BNCM/35/RG223	Tekbox	BNC-Male	BNC-Male	35.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.3 at 3 GHz Ins. loss ≤0.85 dB at 3 GHz	5	£11.70
BNCM-BNCM/500/RG6/75Q	Tekbox	BNC-Male	BNC-Male	500.0 cm	75 Ω	Not specified	RG6 75 Ω coax; copper-tin-zinc plated brass connectors	Not specified	On Backorder	£41.81
BNCM-BNCM/75/RG223	Tekbox	BNC-Male	BNC-Male	75.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	Not specified	5+	£14.20
BNCM-BNCM/75/RG58	Tekbox	BNC-Male	BNC-Male	75.0 cm	50 Ω	5.8 GHz	RG 58/U coax; copper-tin-zinc plated brass connectors	Not specified	5	£10.75
BNCM-SMAM/35/RG223	Tekbox	BNC-Male	SMA-Male	35.0 cm	50 Ω	6.0 GHz	RG 223/U coax; BNC: copper-tin-zinc plated brass; SMA: gold plated brass connectors	VSWR ≤1.3 at 3 GHz Ins. loss ≤0.8 dB at 3 GHz	On Backorder	£11.20
NM-BNCM/125/RG223	Tekbox	N-Male	BNC-Male	125.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	Not specified	On Backorder	£18.00
NM-BNCM/35/RG223	Tekbox	N-Male	BNC-Male	35.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.3 at 3 GHz Ins. loss ≤0.8 dB at 3 GHz	On Backorder	£12.57
NM-BNCM-75-RG223	Tekbox	N-Male	BNC-Male	75.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.3 at 3 GHz Ins. loss ≤1.2 dB at 3 GHz	5+	£13.00
NM-NM/100/RM141	Tekbox	N-Male	N-Male	100.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	VSWR ≤1.2 at 8.5 GHz Ins. loss ≤1.4 dB at 6 GHz Ins. loss ≤1.6 dB at 8.5 GHz	On Backorder	£36.45
NM-NM/1000/RG142	Tekbox	N-Male	N-Male	1000.0 cm	50 Ω	6.0 GHz	RG 142 coax; copper-tin-zinc plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤9.4 dB at 3 GHz Ins. loss ≤14.8 dB at 6 GHz	On Backorder	£156.00
NM-NM-125-RG223	Tekbox	N-Male	N-Male	125.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	Not specified	On Backorder	£18.00
NM-NM/30/RM141	Tekbox	N-Male	N-Male	30.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	VSWR ≤1.2 at 8.5 GHz Ins. loss ≤0.6 dB at 6 GHz Ins. loss ≤0.7 dB at 8.5 GHz	On Backorder	£23.29
NM-NM-300-RG142	Tekbox	N-Male	N-Male	300.0 cm	50 Ω	6.0 GHz	RG 142 coax; copper-tin-zinc plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤3.1 dB at 3 GHz Ins. loss ≤4.8 dB at 6 GHz	On Backorder	£101.00
NM-NM/312/RG213	Tekbox	N-Male	N-Male	312.0 cm	50 Ω	3.0 GHz	RG 213/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.25 at 3 GHz Ins. loss ≤2.6 dB at 3 GHz Ins. loss ≤4.5 dB at 6 GHz	5+	£29.25
NM-NM/35/RG223	Tekbox	N-Male	N-Male	35.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤0.7 dB at 3 GHz Ins. loss ≤1.2 dB at 6 GHz	On Backorder	£13.97
NM-NM/50/RM141Low stock	Tekbox	N-Male	N-Male	50.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	VSWR ≤1.2 at 8.5 GHz Ins. loss ≤0.8 dB at 6 GHz Ins. loss ≤0.9 dB at 8.5 GHz	1	£25.25
NM-NM-500-RG213	Tekbox	N-Male	N-Male	500.0 cm	50 Ω	3.0 GHz	RG 213/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.25 at 3 GHz Ins. loss ≤4.7 dB at 3 GHz Ins. loss ≤6.8 dB at 6 GHz	On Backorder	£52.00
NM-NM-500-RG223	Tekbox	N-Male	N-Male	500.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤5.3 dB at 3 GHz Ins. loss ≤7.5 dB at 6 GHz	5	£53.00
NM-NM-75-RG142Low stock	Tekbox	N-Male	N-Male	75.0 cm	50 Ω	6.0 GHz	RG 142 armoured cable; stainless steel connectors	VSWR ≤1.12 at 3 GHz Ins. loss ≤0.8 dB at 3 GHz Ins. loss ≤1.2 dB at 6 GHz	1	£106.00
NM-NM-75-RG223	Tekbox	N-Male	N-Male	75.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤1.1 dB at 3 GHz Ins. loss ≤1.5 dB at 6 GHz	5+	£14.00
NM-NM-75-RG58	Tekbox	N-Male	N-Male	75.0 cm	50 Ω	5.8 GHz	RG 58/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤1.3 dB at 3 GHz Ins. loss ≤2 dB at 6 GHz	5+	£10.00
NM-SMAF/100/RM141	Tekbox	N-Male	SMA-Female	100.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	Not specified	4	£33.70
NM-SMAF/50/RM141Low stock	Tekbox	N-Male	SMA-Female	50.0 cm	50 Ω	18.0 GHz	RM141 coax; N: stainless steel; SMA: gold plated brass connectors	Not specified	1	£25.24
NM-SMAM/100/RM141	Tekbox	N-Male	SMA-Male	100.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	VSWR ≤1.18 at 8.5 GHz Ins. loss ≤1.3 dB at 6 GHz Ins. loss ≤1.5 dB at 8.5 GHz	On Backorder	£33.10
NM-SMAM/125/RG223	Tekbox	N-Male	SMA-Male	125.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	Not specified	On Backorder	£17.55
NM-SMAM/30/RM141	Tekbox	N-Male	SMA-Male	30.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	VSWR ≤1.18 at 8.5 GHz Ins. loss ≤0.5 dB at 6 GHz Ins. loss ≤0.6 dB at 8.5 GHz	On Backorder	£20.50
NM-SMAM/35/RG223	Tekbox	N-Male	SMA-Male	35.0 cm	50 Ω	6.0 GHz	RG 223/U coax; N: copper-tin-zinc plated brass; SMA: gold plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤0.7 dB at 3 GHz Ins. loss ≤1.2 dB at 6 GHz	On Backorder	£12.18
NM-SMAM/50/RM141	Tekbox	N-Male	SMA-Male	50.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	VSWR ≤1.18 at 8.5 GHz Ins. loss ≤0.7 dB at 6 GHz Ins. loss ≤0.8 dB at 8.5 GHz	On Backorder	£23.90
NM-SMAM-75-RG142	Tekbox	N-Male	SMA-Male	75.0 cm	50 Ω	6.0 GHz	RG 142 armoured cable; stainless steel connectors	VSWR ≤1.12 at 3 GHz Ins. loss ≤0.8 dB at 3 GHz Ins. loss ≤1.2 dB at 6 GHz	5+	£112.00
NM-SMAM-75-RG223	Tekbox	N-Male	SMA-Male	75.0 cm	50 Ω	6.0 GHz	RG 223/U coax; N: copper-tin-zinc plated brass; SMA: gold plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤1.1 dB at 3 GHz Ins. loss ≤1.5 dB at 6 GHz	5+	£14.00
NM-SMAM-75-RG58	Tekbox	N-Male	SMA-Male	75.0 cm	50 Ω	5.8 GHz	RG 58 coax; N: copper-tin-zinc plated brass; SMA: gold plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤1.3 dB at 3 GHz Ins. loss ≤2 dB at 6 GHz	4	£10.00
SMAM-SMAF/100/RM141	Tekbox	SMA-Male	SMA-Female	100.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	Not specified	On Backorder	£31.70
SMAM-SMAF/50/RM141	Tekbox	SMA-Male	SMA-Female	50.0 cm	50 Ω	18.0 GHz	RM141 coax; SMA-M: stainless steel; SMA-F: gold plated brass connectors	Not specified	On Backorder	£22.32
SMAM-SMAM/100/RM141	Tekbox	SMA-Male	SMA-Male	100.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	VSWR ≤1.15 at 8.5 GHz Ins. loss ≤1.2 dB at 6 GHz Ins. loss ≤1.2 dB at 8.5 GHz	On Backorder	£31.90
SMAM-SMAM/125/RG223Low stock	Tekbox	SMA-Male	SMA-Male	125.0 cm	50 Ω	6.0 GHz	RG 223/U coax; gold plated brass connectors	Not specified	1	£11.60
SMAM-SMAM/25/RG316	Tekbox	SMA-Male	SMA-Male	25.0 cm	50 Ω	6.0 GHz	RG 316/U coax; gold plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤0.5 dB at 3 GHz Ins. loss ≤0.9 dB at 6 GHz	10+	£10.23
SMAM-SMAM/30/RM141	Tekbox	SMA-Male	SMA-Male	30.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	VSWR ≤1.15 at 8.5 GHz Ins. loss ≤0.4 dB at 6 GHz Ins. loss ≤0.5 dB at 8.5 GHz	On Backorder	£18.50
SMAM-SMAM/50/RM141	Tekbox	SMA-Male	SMA-Male	50.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	VSWR ≤1.15 at 8.5 GHz Ins. loss ≤0.6 dB at 6 GHz Ins. loss ≤0.8 dB at 8.5 GHz	On Backorder	£21.85
SMAM-SMAM-75-RG142	Tekbox	SMA-Male	SMA-Male	75.0 cm	50 Ω	6.0 GHz	RG 142 armoured cable; stainless steel connectors	VSWR ≤1.12 at 3 GHz Ins. loss ≤0.8 dB at 3 GHz Ins. loss ≤1.2 dB at 6 GHz	On Backorder	£106.00
SMAM-SMAM/75/RG316	Tekbox	SMA-Male	SMA-Male	75.0 cm	50 Ω	6.0 GHz	RG 316/U coax; gold plated brass connectors	Not specified	5+	£12.20
SMAM-SMBF/75/RG316	Tekbox	SMA-Male	SMB-Female	75.0 cm	50 Ω	6.0 GHz	RG 316/U coax; gold plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤2.7 dB at 3 GHz	5	£10.00

Description

Rigol CB6101B RF Cable, 2.4 mm-Male, 2.4 mm-Female 50 GHz

The RIGOL CB6101B is a 100 cm, 50 Ω RF cable assembly connecting 2.4 mm male to 2.4 mm female. Supporting frequencies from DC to 50 GHz, it is suited to RF measurement setups using compatible vector network analysers and calibration equipment.

Key Features

2.4 mm male to 2.4 mm female connections
100 cm cable length
50 Ω impedance
DC–50 GHz frequency range
RG50 armoured, low-loss, phase-stabilised RF cable
VSWR ≤1.27
Ins. loss ≤4.1 dB

Applications

Vector network analyser connections
Calibration and RF measurement setups
Laboratory RF signal routing

Documentation

RF Cables And Adapters Datasheet

Brand	RIGOL
Model	CB6101B
Connections	2.4 mm male to 2.4 mm female
Length	100 cm
Impedance	50 Ω
Frequency range	DC–50 GHz
Cable / construction	RG50 armoured, low-loss, phase-stabilised RF cable
VSWR	≤1.27
Insertion loss	≤4.1 dB
