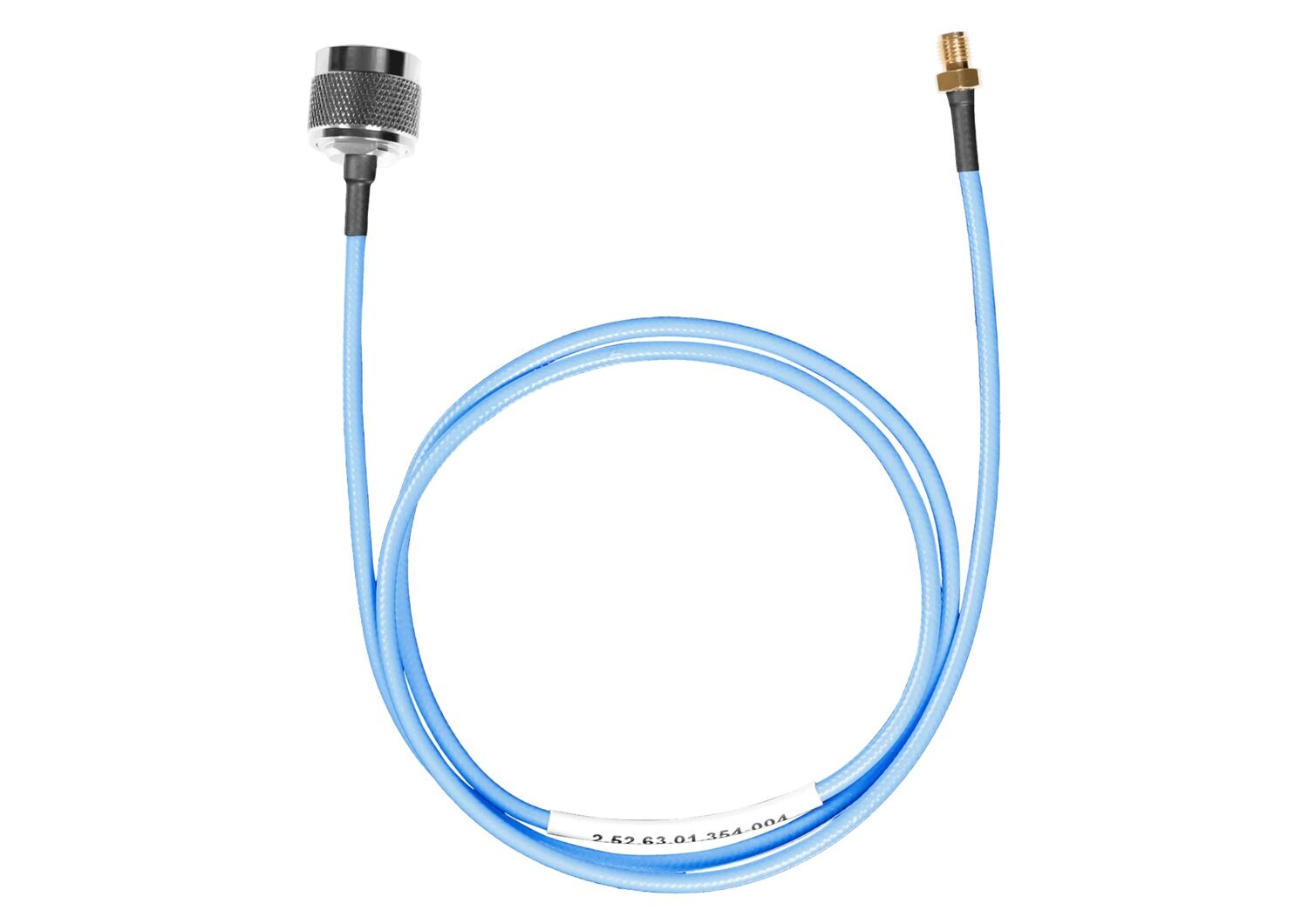

Siglent S06-NMSF-1M Cable

Name: Siglent S06-NMSF-1M Cable
Brand: Siglent
SKU: S06-NMSF-1M
Price: 39.00 GBP
Availability: BackOrder

£39.00 (£46.80 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Facebook

Post

SKU: S06-NMSF-1M Categories: Bench Spectrum Analyser Accessories, Hardware, Optional Accessories, RF Cables, Test & Measurement Tag: RF & Microwave Brand: Siglent

Compare with other RF Cables

Cable Num	Brand	Connector A	Connector B	Length (cm)	Impedance	Frequency range (DC)	Cable	Performance	Stock	Price
S06-NMSF-1MNew	Siglent	N-Male	SMA-Female	100.0 cm	50 Ω	6.0 GHz	FS-6134 ultra-low-loss, phase-stable coax	VSWR ≤1.30 over DC–6 GHz Ins. loss ≤2.30 dB over DC–6 GHz	On Backorder	£39.00
NM-BNCM-75-RG58	Tekbox	N-Male	BNC-Male	75.0 cm	50 Ω	5.8 GHz	RG 58/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.3 at 3 GHz Ins. loss ≤1.4 dB at 3 GHz	5+	£9.00
CB6100BNew	Rigol	2.4 mm-Male	2.4 mm-Male	100.0 cm	50 Ω	50.0 GHz	RG50 armoured, low-loss, phase-stabilised RF cable	VSWR ≤1.27 Ins. loss ≤4.1 dB	On Backorder	£334.00
CB6101BNew	Rigol	2.4 mm-Male	2.4 mm-Female	100.0 cm	50 Ω	50.0 GHz	RG50 armoured, low-loss, phase-stabilised RF cable	VSWR ≤1.27 Ins. loss ≤4.1 dB	On Backorder	£334.00
CB6200ANew	Rigol	3.5 mm-Male	3.5 mm-Female	100.0 cm	50 Ω	26.5 GHz	RG26 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.9 dB	On Backorder	£291.00
CB6200BNew	Rigol	2.4 mm-Male	3.5 mm-Male	100.0 cm	50 Ω	26.5 GHz	RG26 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.9 dB	On Backorder	£291.00
CB6201ANew	Rigol	SMA-Male	SMA-Female	100.0 cm	50 Ω	18.0 GHz	RG18 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.4 dB	On Backorder	£291.00
CB6201BNew	Rigol	2.4 mm-Male	3.5 mm-Female	100.0 cm	50 Ω	26.5 GHz	RG26 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.9 dB	On Backorder	£291.00
CB6202ANew	Rigol	N-Male	N-Female	100.0 cm	50 Ω	18.0 GHz	RG18 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.4 dB	On Backorder	£291.00
CB6203ANew	Rigol	N-Male	SMA-Female	100.0 cm	50 Ω	18.0 GHz	RG18 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.4 dB	On Backorder	£291.00
CB6204ANew	Rigol	N-Male	3.5 mm-Female	100.0 cm	50 Ω	18.0 GHz	RG18 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.4 dB	On Backorder	£291.00
CB-NM-3.5M-100-L-18G	Rigol	N-Male	3.5 mm-Male	100.0 cm	50 Ω	18.0 GHz	RG18 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.4 dB	On Backorder	£260.00
CB-NM-NM-100-L-18G	Rigol	N-Male	N-Male	100.0 cm	50 Ω	18.0 GHz	RG18 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.4 dB	On Backorder	£260.00
CB-NM-SMAM-100-L-18G	Rigol	N-Male	SMA-Male	100.0 cm	50 Ω	18.0 GHz	RG18 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.4 dB	On Backorder	£260.00
CB-SMAM-SMAM-100-L-18G	Rigol	SMA-Male	SMA-Male	100.0 cm	50 Ω	18.0 GHz	RG18 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.4 dB	On Backorder	£260.00
CB-3.5M-3.5M-100-L-26G	Rigol	3.5 mm-Male,	3.5 mm-Male,	100.0 cm	50 Ω	26.5 GHz	RG26 armoured, low-loss, phase-stable RF cable	VSWR ≤1.25 Ins. loss ≤2.9 dB	On Backorder	£295.00
CB-NMD3.5F-3.5F-63-L-26G	Rigol	NMD 3.5 mm-Female,	3.5 mm-Female	63.5 cm	50 Ω	26.5 GHz	Stainless-steel double-buckle black nylon armour	VSWR ≤1.25 Ins. loss ≤2.0 dB	On Backorder	£782.00
N-BNC-2L	Siglent	N-Male	BNC-Male	70.0 cm	50 Ω	2.0 GHz	RG223 coax	VSWR ≤1.20 over DC–2 GHz Ins. loss ≤1.0 dB at 2 GHz	On Backorder	£30.00
N-N-18L	Siglent	N-Male	N-Male	100.0 cm	50 Ω	18.0 GHz	RTK Flex 402-YB low-insertion-loss cable, or equivalent; armoured	VSWR ≤1.35 to 18 GHz Ins. loss ≤2.3 dB over DC–18 GHz	On Backorder	£189.00
N-N-6L	Siglent	N-Male	N-Male	70.0 cm	50 Ω	6.0 GHz	RG223 coax	VSWR ≤1.25 at 6 GHz Ins. loss ≤1.8 dB at 6 GHz	On Backorder	£39.00
N-SMA-6L	Siglent	N-Male	SMA-Male	70.0 cm	50 Ω	6.0 GHz	RG223 coax	VSWR ≤1.25 at 6 GHz Ins. loss ≤1.8 dB at 6 GHz	On Backorder	£40.00
N-SMA-18L	Siglent	N-Male	SMA-Male	100.0 cm	50 Ω	18.0 GHz	RTK Flex 402-YB low-insertion-loss cable, or equivalent; armoured	VSWR ≤1.35 to 18 GHz Ins. loss ≤2.3 dB over DC–18 GHz	On Backorder	£189.00
S18-NMSF-1M	Siglent	N-Male	SMA-Female	100.0 cm	50 Ω	18.0 GHz	FSB500PK armoured, low-pass, phase-stable RF cable	VSWR ≤1.30 over DC–18 GHz Ins. loss ≤1.56 dB over DC–18 GHz	On Backorder	£189.00
S40-29M29F-1M	Siglent	2.92 mm-Male	2.92 mm-Female	100.0 cm	50 Ω	40.0 GHz	Air-dielectric precision connector	Not specified	On Backorder	£393.00
SMA-SMA-18L	Siglent	SMA-Male	SMA-Male	100.0 cm	50 Ω	18.0 GHz	RTK Flex 402-YB low-insertion-loss cable, or equivalent; armoured	VSWR ≤1.25 to 18 GHz Ins. loss ≤2.3 dB over DC–18 GHz	On Backorder	£189.00
SMA-SMA-26L	Siglent	SMA-Male	SMA-Male	100.0 cm	50 Ω	26.5 GHz	RTK 161-YB cable, or equivalent; armoured	VSWR ≤1.3 to 26.5 GHz Ins. loss ≤2.0 dB over DC–18 GHz	On Backorder	£269.00
SMAF-SMA-26L	Siglent	SMA-Male	SMA-Female	100.0 cm	50 Ω	26.5 GHz	RTK 161-YB cable, or equivalent; armoured	VSWR ≤1.3 to 26.5 GHz Ins. loss ≤1.6 dB over DC–18 GHz Ins. loss ≤2.0 dB over 18–26.5 GHz	On Backorder	£269.00
V26-N35FA35F-25IN	Siglent	NMD 3.5 mm-Female	APC 3.5 mm-Female	63.5 cm	50 Ω	26.5 GHz	Stainless-steel double-buckle black nylon armour	VSWR ≤1.25 Ins. loss ≤2.16 dB	On Backorder	£943.00
V26-N35MN35F-25IN	Siglent	NMD 3.5 mm-Female	NMD 3.5 mm-Male	63.5 cm	50 Ω	26.5 GHz	Stainless-steel double-buckle black nylon armour	VSWR ≤1.25 Ins. loss ≤2.16 dB	On Backorder	£943.00
BNCM-BNCM-300-RG6-75Q	Tekbox	BNC-Male	BNC-Male	300.0 cm	75 Ω	Not specified	RG6 75 Ω coax; copper-tin-zinc plated brass connectors	Not specified	On Backorder	£34.00
BNCM-BNCM/125/RG223	Tekbox	BNC-Male	BNC-Male	125.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	Not specified	On Backorder	£17.54
BNCM-BNCM/150/RG6/75Ω	Tekbox	BNC-Male	BNC-Male	150.0 cm	50 Ω	Not specified	RG6 75 Ω coax; copper-tin-zinc plated brass connectors	Not specified	On Backorder	£32.00
BNCM-BNCM/35/RG223	Tekbox	BNC-Male	BNC-Male	35.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.3 at 3 GHz Ins. loss ≤0.85 dB at 3 GHz	5	£11.70
BNCM-BNCM/500/RG6/75Q	Tekbox	BNC-Male	BNC-Male	500.0 cm	75 Ω	Not specified	RG6 75 Ω coax; copper-tin-zinc plated brass connectors	Not specified	On Backorder	£41.81
BNCM-BNCM/75/RG223	Tekbox	BNC-Male	BNC-Male	75.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	Not specified	5+	£14.20
BNCM-BNCM/75/RG58	Tekbox	BNC-Male	BNC-Male	75.0 cm	50 Ω	5.8 GHz	RG 58/U coax; copper-tin-zinc plated brass connectors	Not specified	5	£10.75
BNCM-SMAM/35/RG223	Tekbox	BNC-Male	SMA-Male	35.0 cm	50 Ω	6.0 GHz	RG 223/U coax; BNC: copper-tin-zinc plated brass; SMA: gold plated brass connectors	VSWR ≤1.3 at 3 GHz Ins. loss ≤0.8 dB at 3 GHz	On Backorder	£11.20
NM-BNCM/125/RG223	Tekbox	N-Male	BNC-Male	125.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	Not specified	On Backorder	£18.00
NM-BNCM/35/RG223	Tekbox	N-Male	BNC-Male	35.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.3 at 3 GHz Ins. loss ≤0.8 dB at 3 GHz	On Backorder	£12.57
NM-BNCM-75-RG223	Tekbox	N-Male	BNC-Male	75.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.3 at 3 GHz Ins. loss ≤1.2 dB at 3 GHz	5+	£13.00
NM-NM/100/RM141	Tekbox	N-Male	N-Male	100.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	VSWR ≤1.2 at 8.5 GHz Ins. loss ≤1.4 dB at 6 GHz Ins. loss ≤1.6 dB at 8.5 GHz	On Backorder	£36.45
NM-NM/1000/RG142	Tekbox	N-Male	N-Male	1000.0 cm	50 Ω	6.0 GHz	RG 142 coax; copper-tin-zinc plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤9.4 dB at 3 GHz Ins. loss ≤14.8 dB at 6 GHz	On Backorder	£156.00
NM-NM-125-RG223	Tekbox	N-Male	N-Male	125.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	Not specified	On Backorder	£18.00
NM-NM/30/RM141	Tekbox	N-Male	N-Male	30.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	VSWR ≤1.2 at 8.5 GHz Ins. loss ≤0.6 dB at 6 GHz Ins. loss ≤0.7 dB at 8.5 GHz	On Backorder	£23.29
NM-NM-300-RG142	Tekbox	N-Male	N-Male	300.0 cm	50 Ω	6.0 GHz	RG 142 coax; copper-tin-zinc plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤3.1 dB at 3 GHz Ins. loss ≤4.8 dB at 6 GHz	On Backorder	£101.00
NM-NM/312/RG213	Tekbox	N-Male	N-Male	312.0 cm	50 Ω	3.0 GHz	RG 213/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.25 at 3 GHz Ins. loss ≤2.6 dB at 3 GHz Ins. loss ≤4.5 dB at 6 GHz	5+	£29.25
NM-NM/35/RG223	Tekbox	N-Male	N-Male	35.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤0.7 dB at 3 GHz Ins. loss ≤1.2 dB at 6 GHz	On Backorder	£13.97
NM-NM/50/RM141Low stock	Tekbox	N-Male	N-Male	50.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	VSWR ≤1.2 at 8.5 GHz Ins. loss ≤0.8 dB at 6 GHz Ins. loss ≤0.9 dB at 8.5 GHz	1	£25.25
NM-NM-500-RG213	Tekbox	N-Male	N-Male	500.0 cm	50 Ω	3.0 GHz	RG 213/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.25 at 3 GHz Ins. loss ≤4.7 dB at 3 GHz Ins. loss ≤6.8 dB at 6 GHz	On Backorder	£52.00
NM-NM-500-RG223	Tekbox	N-Male	N-Male	500.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤5.3 dB at 3 GHz Ins. loss ≤7.5 dB at 6 GHz	5	£53.00
NM-NM-75-RG142Low stock	Tekbox	N-Male	N-Male	75.0 cm	50 Ω	6.0 GHz	RG 142 armoured cable; stainless steel connectors	VSWR ≤1.12 at 3 GHz Ins. loss ≤0.8 dB at 3 GHz Ins. loss ≤1.2 dB at 6 GHz	1	£106.00
NM-NM-75-RG223	Tekbox	N-Male	N-Male	75.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤1.1 dB at 3 GHz Ins. loss ≤1.5 dB at 6 GHz	5+	£14.00
NM-NM-75-RG58	Tekbox	N-Male	N-Male	75.0 cm	50 Ω	5.8 GHz	RG 58/U coax; copper-tin-zinc plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤1.3 dB at 3 GHz Ins. loss ≤2 dB at 6 GHz	5+	£10.00
NM-SMAF/100/RM141	Tekbox	N-Male	SMA-Female	100.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	Not specified	4	£33.70
NM-SMAF/50/RM141Low stock	Tekbox	N-Male	SMA-Female	50.0 cm	50 Ω	18.0 GHz	RM141 coax; N: stainless steel; SMA: gold plated brass connectors	Not specified	1	£25.24
NM-SMAM/100/RM141	Tekbox	N-Male	SMA-Male	100.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	VSWR ≤1.18 at 8.5 GHz Ins. loss ≤1.3 dB at 6 GHz Ins. loss ≤1.5 dB at 8.5 GHz	On Backorder	£33.10
NM-SMAM/125/RG223	Tekbox	N-Male	SMA-Male	125.0 cm	50 Ω	6.0 GHz	RG 223/U coax; copper-tin-zinc plated brass connectors	Not specified	On Backorder	£17.55
NM-SMAM/30/RM141	Tekbox	N-Male	SMA-Male	30.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	VSWR ≤1.18 at 8.5 GHz Ins. loss ≤0.5 dB at 6 GHz Ins. loss ≤0.6 dB at 8.5 GHz	On Backorder	£20.50
NM-SMAM/35/RG223	Tekbox	N-Male	SMA-Male	35.0 cm	50 Ω	6.0 GHz	RG 223/U coax; N: copper-tin-zinc plated brass; SMA: gold plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤0.7 dB at 3 GHz Ins. loss ≤1.2 dB at 6 GHz	On Backorder	£12.18
NM-SMAM/50/RM141	Tekbox	N-Male	SMA-Male	50.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	VSWR ≤1.18 at 8.5 GHz Ins. loss ≤0.7 dB at 6 GHz Ins. loss ≤0.8 dB at 8.5 GHz	On Backorder	£23.90
NM-SMAM-75-RG142	Tekbox	N-Male	SMA-Male	75.0 cm	50 Ω	6.0 GHz	RG 142 armoured cable; stainless steel connectors	VSWR ≤1.12 at 3 GHz Ins. loss ≤0.8 dB at 3 GHz Ins. loss ≤1.2 dB at 6 GHz	5+	£112.00
NM-SMAM-75-RG223	Tekbox	N-Male	SMA-Male	75.0 cm	50 Ω	6.0 GHz	RG 223/U coax; N: copper-tin-zinc plated brass; SMA: gold plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤1.1 dB at 3 GHz Ins. loss ≤1.5 dB at 6 GHz	5+	£14.00
NM-SMAM-75-RG58	Tekbox	N-Male	SMA-Male	75.0 cm	50 Ω	5.8 GHz	RG 58 coax; N: copper-tin-zinc plated brass; SMA: gold plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤1.3 dB at 3 GHz Ins. loss ≤2 dB at 6 GHz	4	£10.00
SMAM-SMAF/100/RM141	Tekbox	SMA-Male	SMA-Female	100.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	Not specified	On Backorder	£31.70
SMAM-SMAF/50/RM141	Tekbox	SMA-Male	SMA-Female	50.0 cm	50 Ω	18.0 GHz	RM141 coax; SMA-M: stainless steel; SMA-F: gold plated brass connectors	Not specified	On Backorder	£22.32
SMAM-SMAM/100/RM141	Tekbox	SMA-Male	SMA-Male	100.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	VSWR ≤1.15 at 8.5 GHz Ins. loss ≤1.2 dB at 6 GHz Ins. loss ≤1.2 dB at 8.5 GHz	On Backorder	£31.90
SMAM-SMAM/125/RG223Low stock	Tekbox	SMA-Male	SMA-Male	125.0 cm	50 Ω	6.0 GHz	RG 223/U coax; gold plated brass connectors	Not specified	1	£11.60
SMAM-SMAM/25/RG316	Tekbox	SMA-Male	SMA-Male	25.0 cm	50 Ω	6.0 GHz	RG 316/U coax; gold plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤0.5 dB at 3 GHz Ins. loss ≤0.9 dB at 6 GHz	10+	£10.23
SMAM-SMAM/30/RM141	Tekbox	SMA-Male	SMA-Male	30.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	VSWR ≤1.15 at 8.5 GHz Ins. loss ≤0.4 dB at 6 GHz Ins. loss ≤0.5 dB at 8.5 GHz	On Backorder	£18.50
SMAM-SMAM/50/RM141	Tekbox	SMA-Male	SMA-Male	50.0 cm	50 Ω	18.0 GHz	RM141 coax; stainless steel connectors	VSWR ≤1.15 at 8.5 GHz Ins. loss ≤0.6 dB at 6 GHz Ins. loss ≤0.8 dB at 8.5 GHz	On Backorder	£21.85
SMAM-SMAM-75-RG142	Tekbox	SMA-Male	SMA-Male	75.0 cm	50 Ω	6.0 GHz	RG 142 armoured cable; stainless steel connectors	VSWR ≤1.12 at 3 GHz Ins. loss ≤0.8 dB at 3 GHz Ins. loss ≤1.2 dB at 6 GHz	On Backorder	£106.00
SMAM-SMAM/75/RG316	Tekbox	SMA-Male	SMA-Male	75.0 cm	50 Ω	6.0 GHz	RG 316/U coax; gold plated brass connectors	Not specified	5+	£12.20
SMAM-SMBF/75/RG316	Tekbox	SMA-Male	SMB-Female	75.0 cm	50 Ω	6.0 GHz	RG 316/U coax; gold plated brass connectors	VSWR ≤1.2 at 3 GHz Ins. loss ≤2.7 dB at 3 GHz	5	£10.00

Description

Siglent S06-NMSF-1M RF Cable, N-Male, SMA-Female 6 GHz

The Siglent S06-NMSF-1M is a 100 cm, 50 Ω RF cable assembly connecting N male to SMA female. Supporting frequencies from DC to 6 GHz, it is suited to RF test and measurement connections in development, verification and manufacturing environments.

Key Features

N male to SMA female connections
100 cm cable length
50 Ω impedance
DC–6 GHz frequency range
FS-6134 ultra-low-loss, phase-stable coax
VSWR ≤1.30 over DC–6 GHz
Ins. loss ≤2.30 dB over DC–6 GHz

Applications

RF test and measurement
Development and verification setups
Laboratory and manufacturing test connections

Brand	Siglent
Model	S06-NMSF-1M
Connections	N male to SMA female
Length	100 cm
Impedance	50 Ω
Frequency range	DC–6 GHz
Cable / construction	FS-6134 ultra-low-loss, phase-stable coax
VSWR	≤1.30 over DC–6 GHz
Insertion loss	≤2.30 dB over DC–6 GHz
