Description

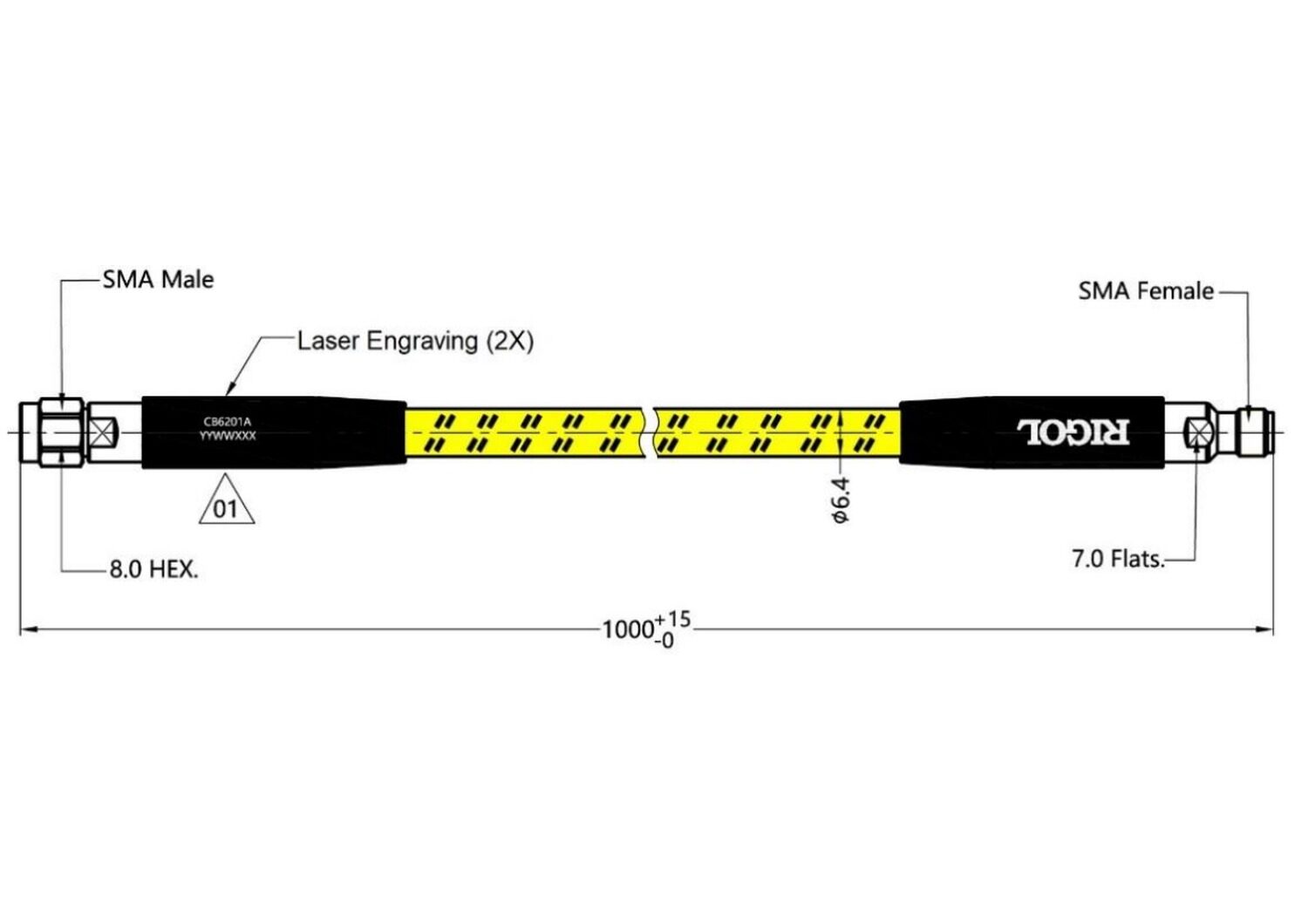

RIGOL CB6201A RF Cable
The RIGOL CB6201A is a 100 cm, 50 Ω RF cable with SMA male to SMA female connections. It supports frequencies from DC to 18 GHz.
| Connections | SMA male to SMA female |
|---|---|
| Length | 100 cm |
| Impedance | 50 Ω |
| Frequency range | DC–18 GHz |
The cable construction is described by RIGOL as RG18 armoured, low-loss, phase-stable RF cable. It is intended for RF measurement connections with compatible vector network analysers and calibration equipment.
Published performance
VSWR ≤1.25
Ins. loss ≤2.4 dB
Typical applications
- Vector network analyser connections
- Calibration and RF measurement setups
- Laboratory RF signal routing
See the Specification tab for the key technical data and the Documentation tab for the manufacturer datasheet, where available.
RF Cables And Adapters Datasheet
