Rigol CB6203A RF Cable, N-Male, SMA-Female 18.0 GHz

Description

RIGOL CB6203A RF Cable

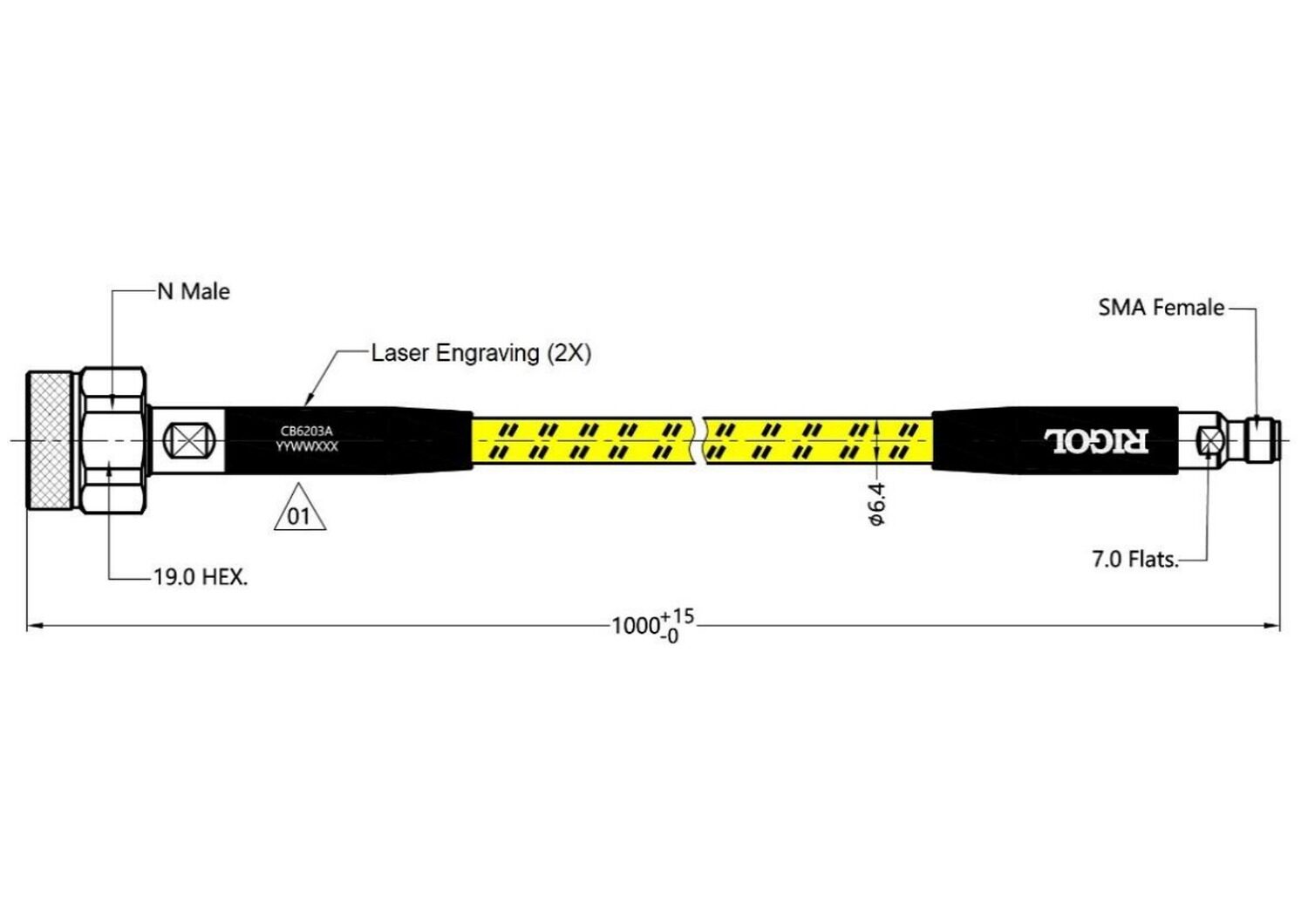

The RIGOL CB6203A is a 100 cm, 50 Ω RF cable with N male to SMA female connections. It supports frequencies from DC to 18 GHz.

The cable construction is described by RIGOL as RG18 armoured, low-loss, phase-stable RF cable. It is intended for RF measurement connections with compatible vector network analysers and calibration equipment.

Published performance
VSWR ≤1.25
Ins. loss ≤2.4 dB

Typical applications

• Vector network analyser connections
• Calibration and RF measurement setups
• Laboratory RF signal routing

See the Specification tab for the key technical data and the Documentation tab for the manufacturer datasheet, where available.
