Description
Langer EMV-Technik OSE 150-2, 2 Channel, 50 Mbps, Optical Fibre Probe Set
With the OSE 150-2 set, it is possible to potentially free oscillograph digital signals from EFT/burst interference. Disturbed signals from the device under test can be easily detected.
The set consists of two single sensors which are used to detect two digital signals within the device under test. It is connected via two fibre-optic cables and two receivers to the oscilloscope. Inside the device under test, a sensor transforms measured logical signals into light signals.
Different types of sensors with different measuring ranges are available for the detection of logical signals in the device under test. The light signals are transmitted to the optical receiver via a fibre-optic cable. The receiver transforms them into digital electrical signals. These can be visualised with an oscilloscope or can be used to control other devices. The system is suitable for signal monitoring from an anechoic chamber, a shielded RF chamber, or in an EMC test lab. Hardware and software can be EMC-optimised.

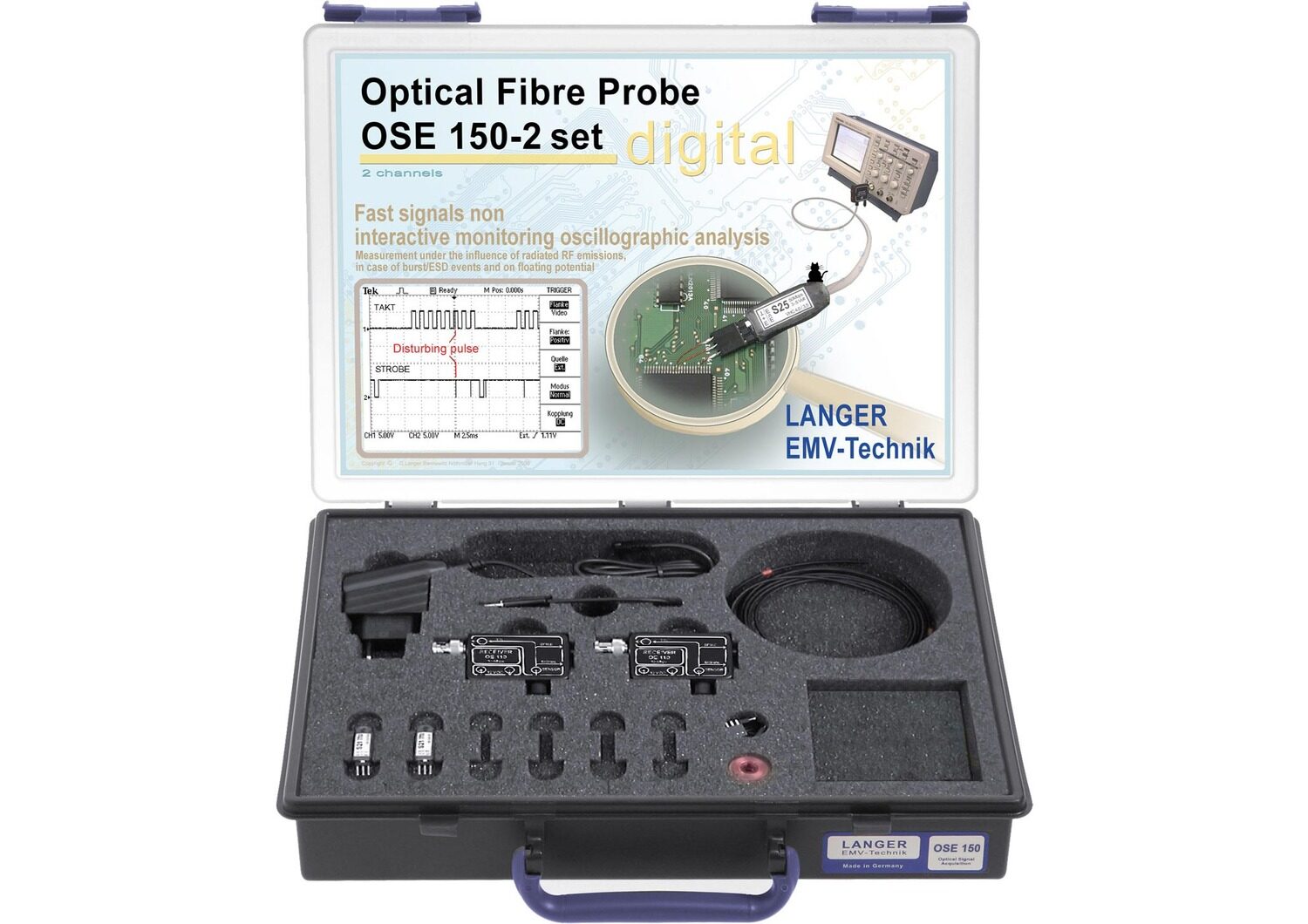

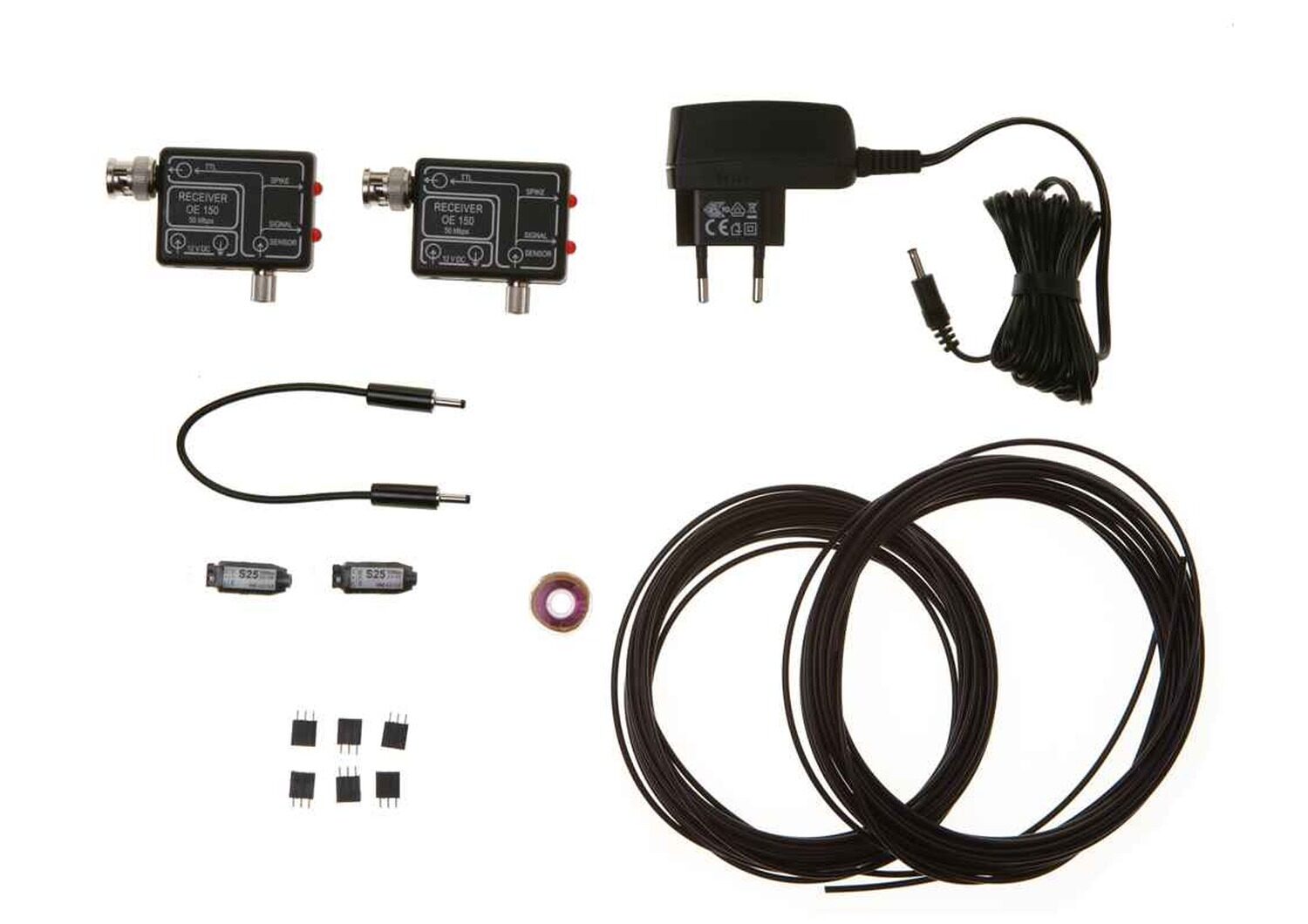

- 2x OE 150, Optical Receiver
- 2x S25, Optical Sensor (50 Mbps)
- 2x LWL Ø 2.2 mm 6 m, Optical Fibre, Single 6 m
- 1x NT FRI EU, Power Supply Unit
- 1x OSE 150-2 acc, Accessories
- 1x OSE 150-2 case, System Case
- 1x Digital m, OSE User Manual
OSE-150-2 Set Datasheet
