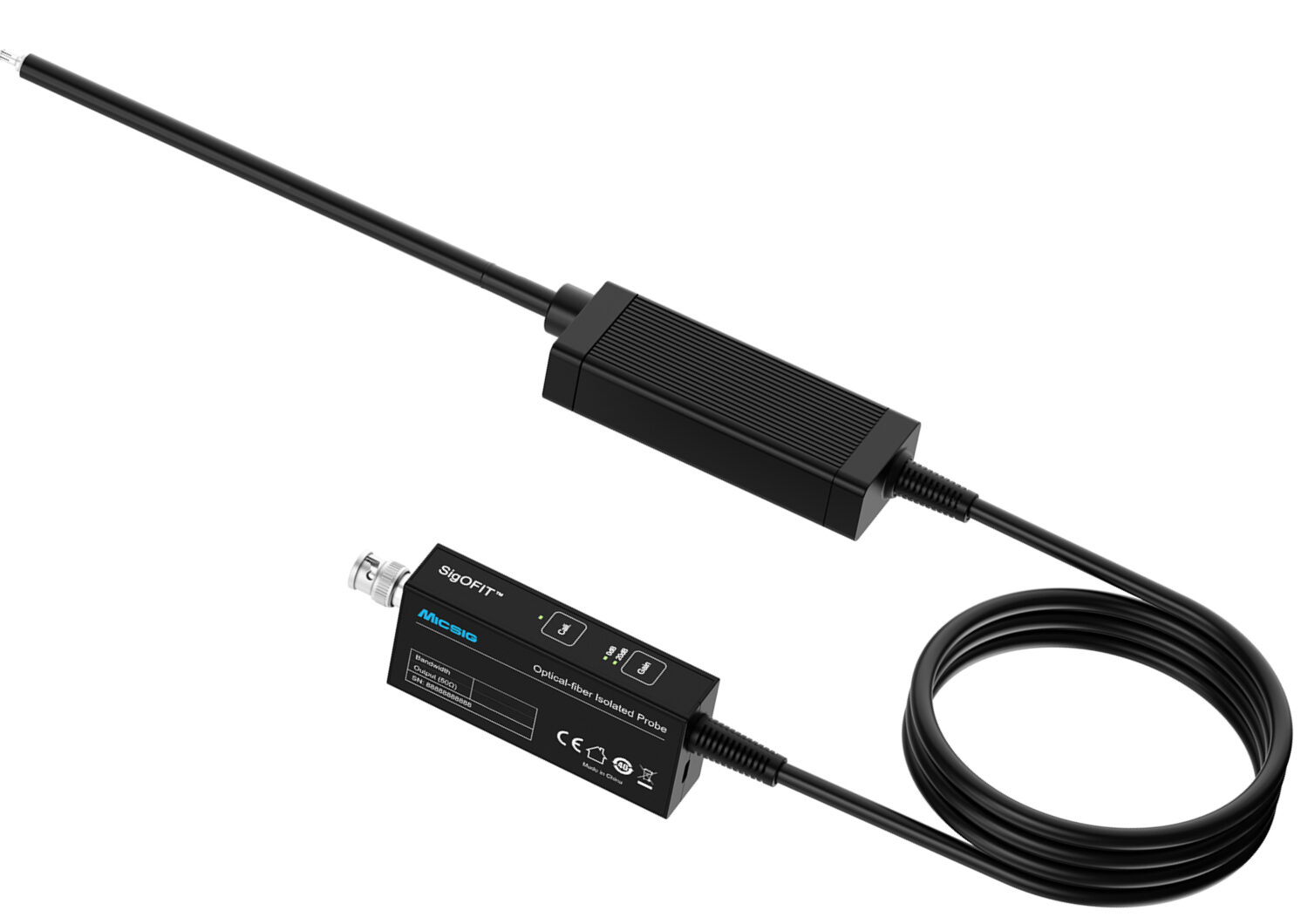

Image of Moip g3 1 telonicuk

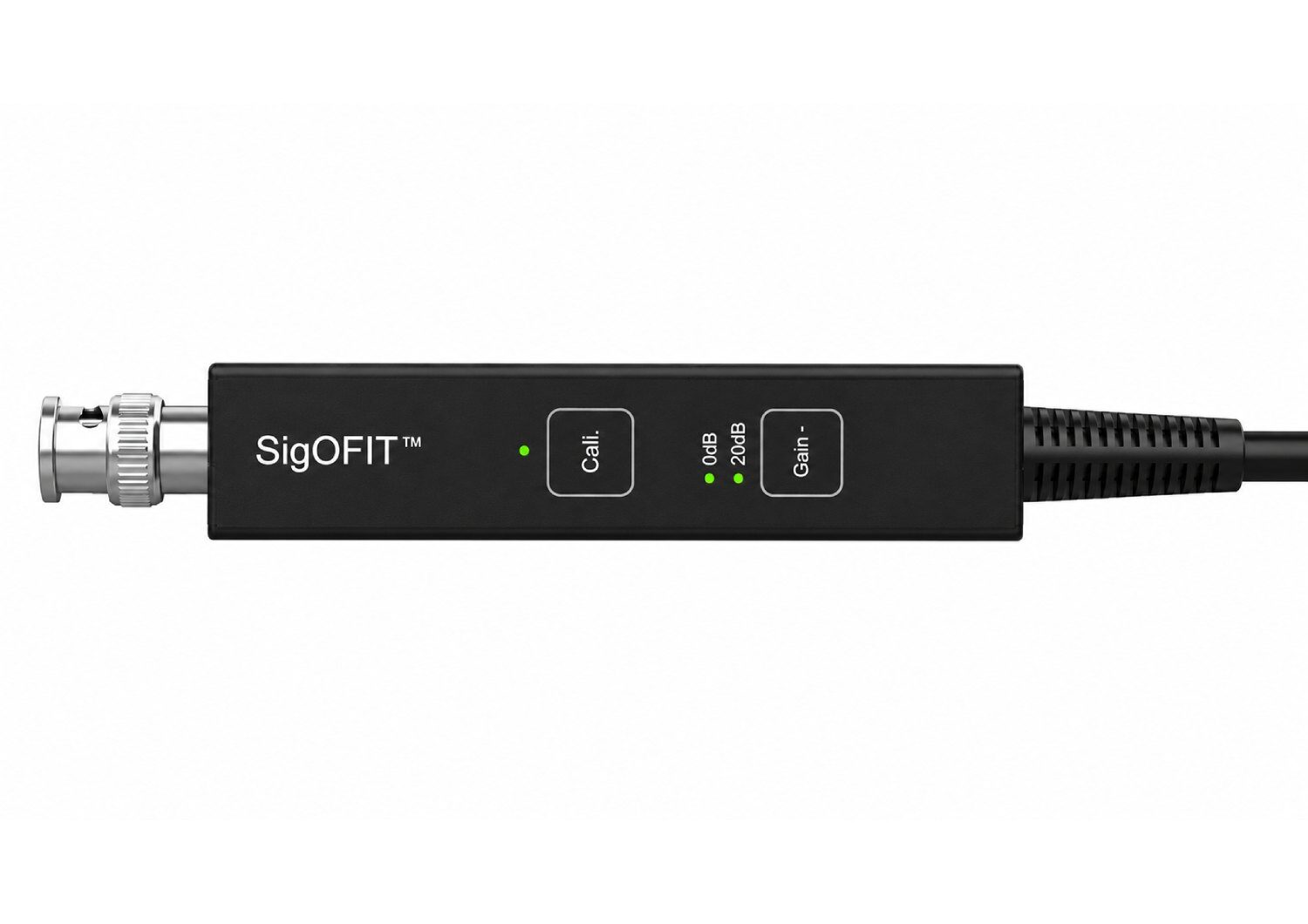

Image of Mixsig optical probe close telonicuk

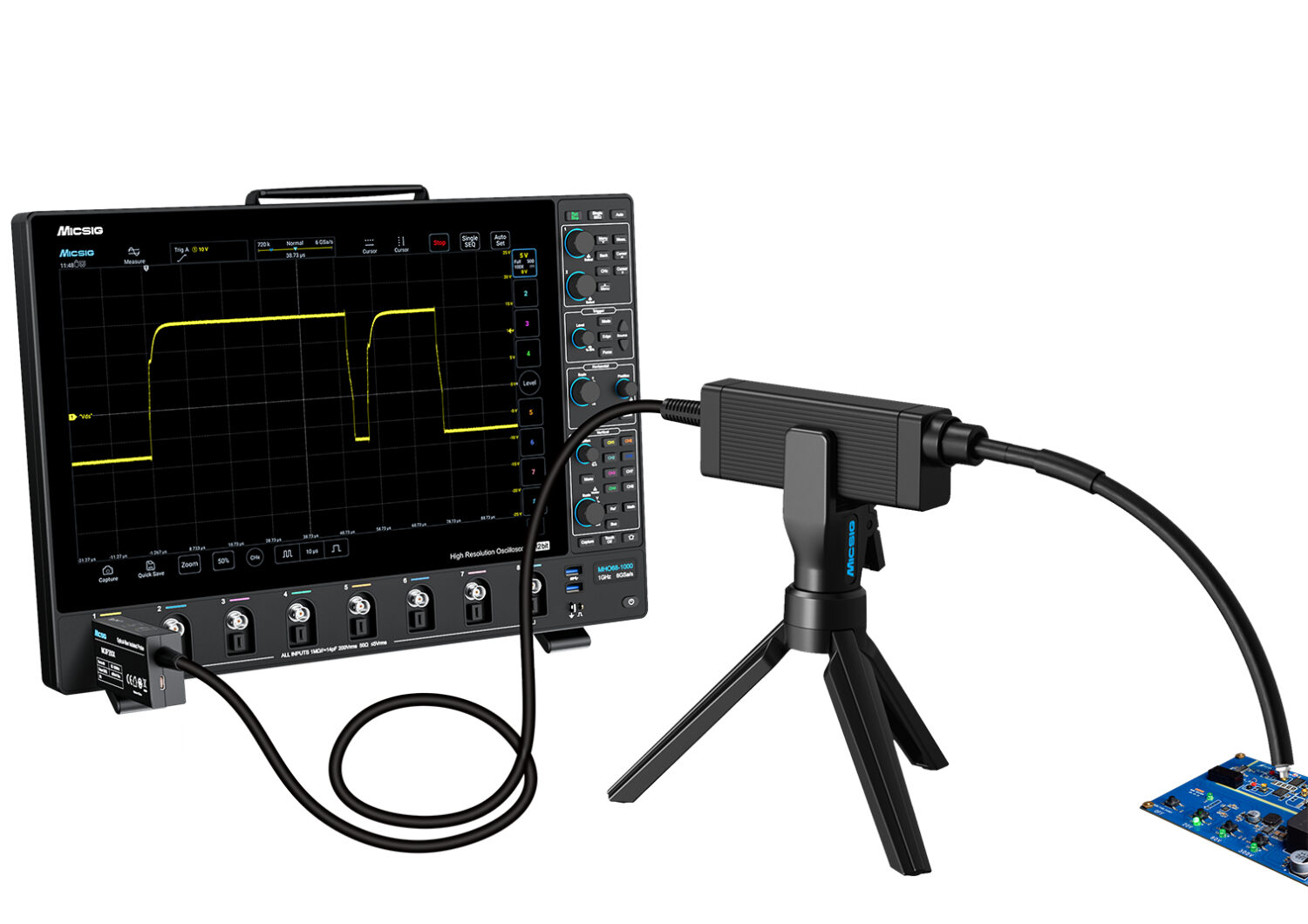

Image of Mixsig optical probe plugged telonicuk

Micsig SigOFIT Generation 3 MOIP350P, 350MHz, Optical-fiber Oscilloscope Isolated Probe

£4309.00 (£5170.80 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: MOIP350P-Gen3 Categories: , , Tag: Brand:

Description


Micsig SigOFIT Generation 3 MOIP350P, 350MHz, Optical-fiber Oscilloscope Isolated Probe

The third-generation Micsig SigOFIT™ optical-isolated probe, MOIP350P, offers a bandwidth of up to 350 MHz, enabling differential measurements from ±0.01 V up to ±20 kV. Built on Micsig’s exclusive SigOFIT™ leading technology, the MOIP Series delivers an exceptionally high CMRR, reaching up to DC: 180dB, with an isolation voltage of up to 85 kV and an ultra-low noise floor of less than 0.3 mVrms. It reveals the complete truth of signals across its bandwidth range, serving as the ultimate referee for verifying the fidelity of signals measured by other voltage probes.

Key Features
  • Automatic calibration: Ready for measurement upon power‑on, no manual calibration required.
  • Complete electrical isolation with an isolation voltage up to 85 kV.
  • Ultra‑high common‑mode rejection ratio (up to 180 dB).
  • High‑speed response for accurate and reliable high‑frequency signal measurement.
  • Low noise and strong immunity to electromagnetic interference.
  • DC gain accuracy better than 1%.
  • Fibre length: 2 m (customizable fibre length available).
  • Compatible with various attenuators, supporting measurement from ±0.01 V to
  • ±20 kV (differential‑mode signals; measurement voltage range is customizable).
Applications
  • Design of motor drive, power converter, and electronic ballast
  • Design of GaN, SiC, IGBT Half/Full bridge devices
  • Design of inverter, UPS and switching power supply
  • Safety test for high-voltage, high-bandwidth applications
  • Power device evaluation
  • Current shunt measurements
  • EMI & ESD troubleshooting
  • Floating measurements

Product Images

SigOFIT probe has highest common mode rejection ratio, or CMRR, up to 122dB at 200MHz, over 100dB at 1GHz. It's the ultimate referee of signal fidelity measured by other voltage probes.

Present True Signal

As the ultimate referee of signal fidelity, SigOFIT optical-fibre isolated probe delivers highest test accuracy. It has excellent amplitude-frequency characteristics, DC gain accuracy ≤1%, while noise ≤ 0.45mVrms. Zero drift<0.1% (works 5 mins later), gain drift also <1%.

Highest Accuracy

SiC & GaN device can switch high voltages in a few nanoseconds, the signal may have high-energy high-frequency harmonics.<br /> <br /> Even at the highest bandwidth, the SigOFIT probe still have nearly 100dB CMRR, perfectly suppressed the oscillation caused by high-frequency common-mode noise, no redundant components. It's the best choice for 3rd-gen semiconductor test & measurement.

Best Probe for Third-Gen Semiconductor

The test leads of SigOFIT probe are short and with coaxial cable transmission, the input capacitance is as low as 1pF minimum, very safe to test GaN.

Safe to Test GaN

Lasers transmit signals + Power over fiber (no batteries needed, the power supply is more pure), realizes continuous test for 365 days.

Real Optical Isolation Technology

×

SigOFIT probe has highest common mode rejection ratio, or CMRR, up to 122dB at 200MHz, over 100dB at 1GHz. It's the ultimate referee of signal fidelity measured by other voltage probes.
As the ultimate referee of signal fidelity, SigOFIT optical-fibre isolated probe delivers highest test accuracy. It has excellent amplitude-frequency characteristics, DC gain accuracy ≤1%, while noise ≤ 0.45mVrms. Zero drift<0.1% (works 5 mins later), gain drift also <1%.
SiC & GaN device can switch high voltages in a few nanoseconds, the signal may have high-energy high-frequency harmonics.

Even at the highest bandwidth, the SigOFIT probe still have nearly 100dB CMRR, perfectly suppressed the oscillation caused by high-frequency common-mode noise, no redundant components. It's the best choice for 3rd-gen semiconductor test & measurement.
The test leads of SigOFIT probe are short and with coaxial cable transmission, the input capacitance is as low as 1pF minimum, very safe to test GaN.
Lasers transmit signals + Power over fiber (no batteries needed, the power supply is more pure), realizes continuous test for 365 days.

Product Videos

YouTube Video
Micsig MOIP Comparison Gen 3 vs Gen 2
YouTube Video
Micsig Optical Isolated Probe MOIP Series Basic Operation and Precuations
YouTube Video
How Optical fiber Probe Wins Over Differential Probe
YouTube Video
EEVblog 1557 - Micsig SigOFIT Optical Fibre Probe + GaN Experiment
YouTube Video
How can you achieve more than 99% power electronic conversion efficiency?
YouTube Video
Micsig | Application of Optical Isolated Probe in Double Pulse Testing 1080p
YouTube Video
Micsig | GaN Blow Up!？Optical Isolated Probe Tells Why 1080p
YouTube Video
Micsig | Optical Isolated Probe MOIP Series Basic Operation and Precautions
YouTube Video
Micsig | SigOFIT Optical Fiber Isolation Probe Introduction
YouTube Video
Micsig | When testing SiC and GaN, you may notice Vgs oscillations or an unstable Miller plateau.

Documentation

3rd Generation:

Probe Comparison

Model MOIP350P MOIP200P
Bandwidth 350MHz 200MHz
Rise Time ≤1ns ≤1.5ns
CMRR DC: 180dB
350MHz: 118dB		 DC: 180dB
200MHz: 122dB
Differential Voltage Range Optional OP20(MMCX), ±10V
Standard OP50(MMCX), ±25V
Optional OP100(MCX), ±50V
Optional OP1000(MCX), ±500V
Optional OP2000(MCX), ±1000V
Standard OP5000(MCX), ±2500V
Optional OP10000(LCX), ±5000V		 Optional OP20(MMCX), ±10V
Standard OP50(MMCX), ±25V
Optional OP100(MCX), ±50V
Optional OP1000(MCX), ±500V
Optional OP2000(MCX), ±1000V
Optional OP5000(MCX), ±2500V
Optional OP10000(LCX), ±5000V
Noise <0.3mVrms <0.3mVrms
DC Gain Accuracy 1%
Common Mode Voltage Range 85kVpk
Interface Universal BNC

Attenuating tips

SigOFIT Model Attenuator Model Jack type Attenuation ratio Voltage range Non-destructive voltage (Max.) Input impedance
MOIP200P OP20-3 MMCX 20:1 @0dB ±10V 1000Vpk 4.47MΩ || 4pF
2:1 @20dB ±1V
OP50-3 (Standard) MMCX 50:1 @0dB ±25V 1000Vpk 4.19MΩ || 2pF
5:1 @20dB ±2.5V
OP100-3 MMCX 200:1 @0dB ±50V 1000Vpk 4.10MΩ || 2pF
20:1 @20dB ±5V
OP1000-3 MCX 1000:1 @0dB ±500V 2500Vpk 20.94MΩ || 1pF
100:1 @20dB ±50V
OP2000-3 MCX 2000:1 @0dB ±1000V 2500Vpk 20.52MΩ || 1pF
200:1 @20dB ±100V
OP5000-3 MCX 5000:1 @0dB ±2500V 2500Vpk 40.82MΩ || 1pF
500:1 @20dB ±250V
OP10000-3 LCX 10000:1 @0dB ±5000V 8000Vpk 40.82MΩ || 1pF
1000:1 @20dB ±500V
