TEKBOX TBL5063-3 50uH Line Impedance Stabilisation Network LISN

£5256.00 (£6307.20 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBL5063-3 Categories: , , , , , , , Brand:

Compare with other Three-Phase AC LISNs

Product NameImageImpendanceFrequency RangePathCurrentVoltageEUT SocketAdditional FeaturesStandardStockPrice
TBL5063-3Image of Tbl5063 3 front telonicuk(50µH+5Ω) // 50Ω9 kHz – 30 MHz363A @ 23°C each (Max)690V, 400VCEE/IEC 60309, 3L+N+PE, 63A femaleseparate RF outputs enabling LISN-Mate connectivity Artificial hand connection PE switchable:50Ω//50µHCISPR 16-1-2On Backorder£5,256.00
TBL5016-1Image of Tekbox tbl5016 1 front50µH // 50Ω, (50µH+5Ω) // 50Ω150 kHz – 30 MHz116A250VPhoenix High CurrentJumper configurable to various standardsCISPR 16-1-2, MIL-STD-461FOn Backorder£578.00
TBL5016-3Low stockImage of Tbl5016 3 50uh 3 phase line impedance stabilisation network lisn – cispr 16 telonic uk(50µH+5Ω) // 50Ω9 kHz – 30 MHz316A450V, 240VCEE/IEC 60309Artificial hand connection PE switchable (50Ω // 50µH)CISPR 16-1-21£1,848.00
TBL5032-1Image of Tbl5032 1 side 2 telonicuk50µH // 50Ω, (50µH+5Ω) // 50Ω10 kHz – 30 MHz132A500V DC, 270V AC @ 50/60 Hz, 120V AC @ 400 Hz4mm (banana)Jumper configurable to various standardsCISPR 16-1-2, MIL-STD-461GOn Backorder£692.00
TBL5032-3Image of Tbl5032 50uh line impedance stabilisation network lisn – cispr 16 telonic uk(50µH+5Ω) // 50Ω9 kHz – 30 MHz332A450V, 240VCEE/IEC 60309Artificial hand connection PE switchable (50Ω // 50µH)CISPR 16-1-2On Backorder£2,324.00

Description

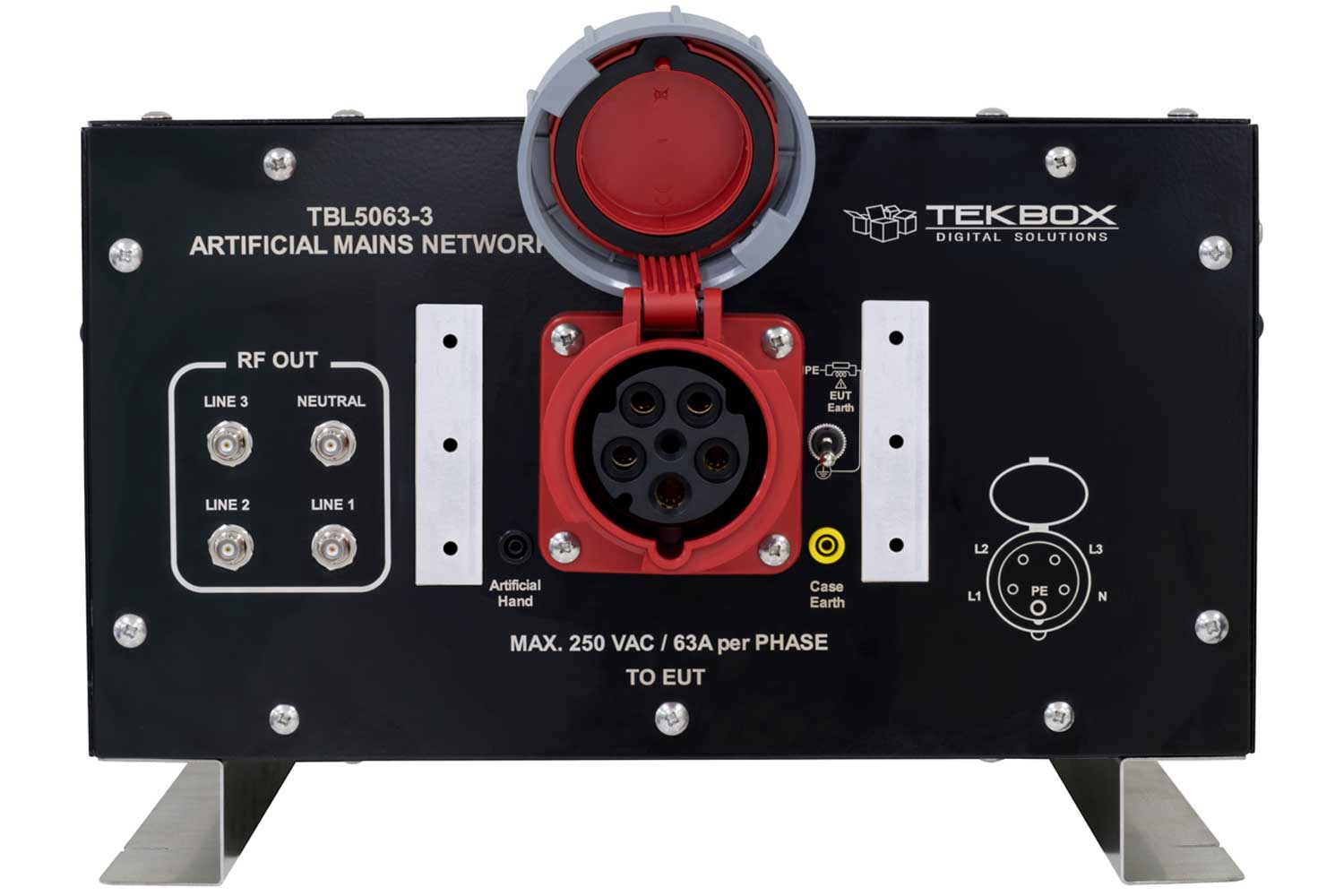

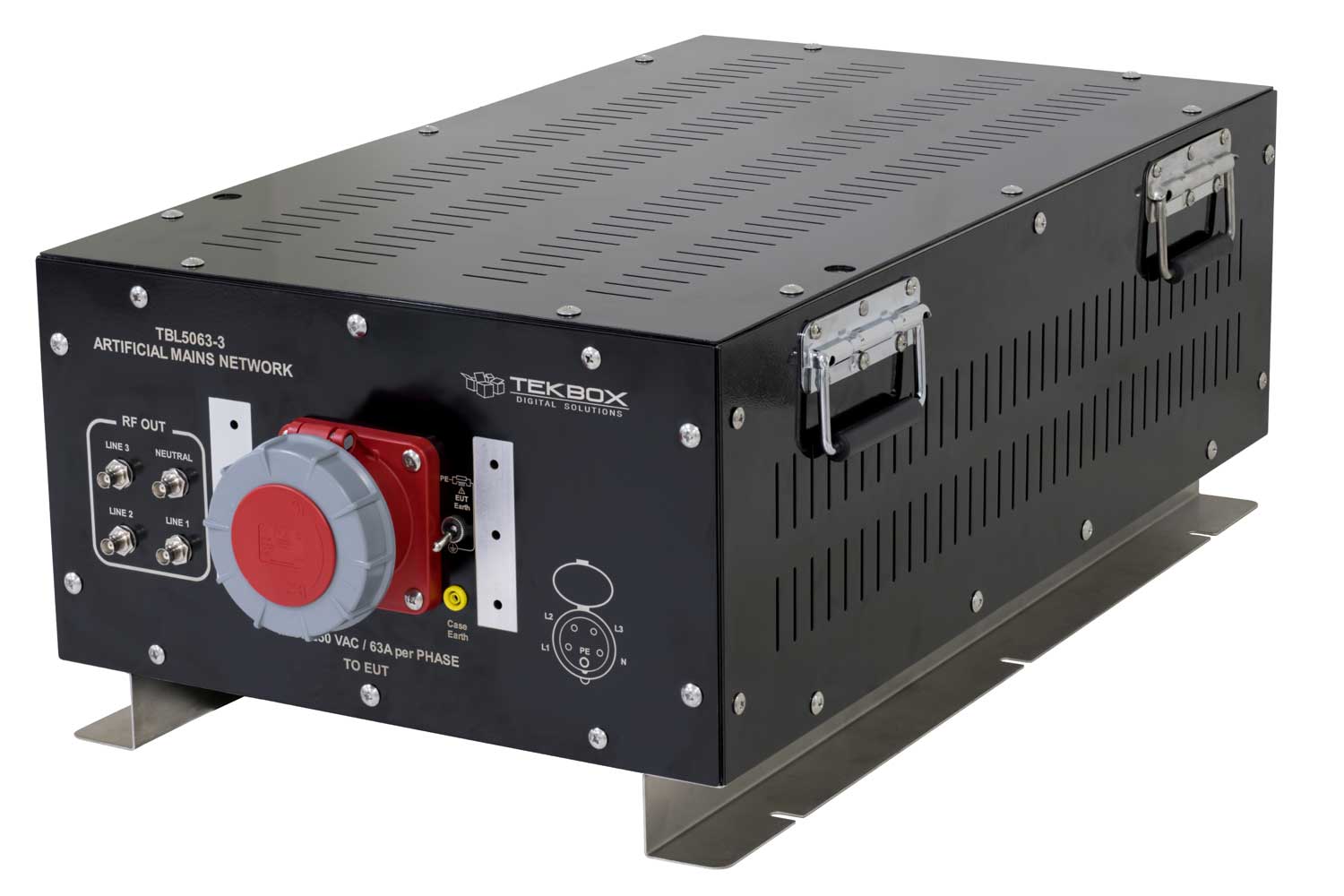

TBL5063-3 50uH Line Impedance Stabilisation Network LISN

The TBL5063-3 is a Line Impedance Stabilisation Network for the measurement of conducted emissions within the range of 9 kHz to 30MHz, according to the CISPR 16-1-2 standard. The device is designed for testing 3-phase, AC-powered equipment with supply voltages up to a maximum 690V/400V and 63A. Conducted noise can be measured on each phase and on the neutral conductor. The TBL5063-3 has separate RF outputs for each phase and neutral and consequently can be coupled with the TBLM02 LISN Mate to split the emissions into its common mode and differential mode components. The TBL5063-3 has no integrated high-pass filter at the RF outputs, but comes with an external 9 kHz coaxial high-pass instead. The LISN is equipped with 63A CEE sockets.

Key Specifications
  • Frequency range: 9 kHz to 30 MHz
  • Impedance: 50 Ω ║ (50 µH + 5 Ω)
  • Artificial hand: 220 pF + 511 Ω
  • Switchable PE: 50 Ω ║ 50 µH
  • 250µH pre-filter
  • Separate RF outputs for each line and neutral
  • Air core inductors
  • Line voltage: max 690V/400V / 50 – 60 Hz
  • Max. current per line and neutral: 63A @ 23°C each
  • 3-phase EUT socket: CEE / IEC60309, 3L+N+PE, 63A, female
  • Power connector: CEE / IEC60309, 3L+N+PE, 63A, male
  • Measurement connectors: 50 Ω BNC
  • External 9 kHz high pass filter, N-male / N-female
  • Operating Temperature Range: +5 °C … + 40 °C; 5% to 80% RH
Available Accessories
  • TBPC- IEC60309-63-3m 3-phase mains power cable, 63A, 3m length, CEE / IEC60309, 3L+N+PE, 63A, male, CEE / IEC60309, 3L+N+PE, 63A, female
  • TBPC- IEC60309-63-5m 3-phase mains power cable, 63A, 5m length, CEE / IEC60309, 3L+N+PE, 63A, male, CEE / IEC60309, 3L+N+PE, 63A, female
  • TBPC- IEC60309-63-10m 3-phase mains power cable, 63A, 10m length, CEE / IEC60309, 3L+N+PE, 63A, male, CEE / IEC60309, 3L+N+PE, 63A, female
  • TBCON-CEE-M-63 CEE / IEC60309-63, 3L+N+PE, 63A, male cable connector
  • TBCON-CEE-F-63 CEE / IEC60309-63, 3L+N+PE, 63A, female cable connector
  • TBLA-3P-63A Coaxial calibration adapter set
Applications
  • EMC conducted emission measurements

Product Videos

YouTube Video
EMC Conducted Emissions: Accurate Lab-Quality Testing You Can Do In-House
YouTube Video
Telonic Instruments - Your Guide to our Tekbox LISNs by Dr Min Zhang

Documentation


Frequency range 9 kHz to 30 MHz
Impedance 50 Ω ║ (50 µH + 5 Ω)
Artificial hand 220 pF + 511 Ω
Switchable PE 50 Ω ║ 50 µH
Pre-filter 250µH pre-filter
RF outputs Separate RF outputs for each line and neutral
Inductors Air core inductors
Line voltage max 690V/400V / 50 – 60 Hz
Max. current per line and neutral 63A @ 23°C each
3-phase EUT socket CEE / IEC60309, 3L+N+PE, 63A, female
Power connector CEE / IEC60309, 3L+N+PE, 63A, male
Measurement connectors 50 Ω BNC
External 9 kHz high pass filter N-male / N-female
Operating Temperature Range +5 °C … + 40 °C; 5% to 80% RH

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Related products

  • Image of Rcl logo 400

    RCL Standard Calibration – Rigol DS6000 Series

    £259.00 (£310.80 inc. VAT)

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • Image of Rcl logo 400

    RCL Standard Calibration – Rigol DSA875

    £187.00 (£224.40 inc. VAT)

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • Image of Usb data cable

    USB Data Cable

    .     Read more
  • Image of Power cord

    UK Power Cord

    .     Read more

Optional Accessories …

  • Image of Tbpc iec60309 63 telonicuk

    TEKBOX TBPC-IEC60309-63-3m Cables for TBL5063-3 LISN

    £54.02 (£64.82 inc. VAT)

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • Image of Tbpc iec60309 63 telonicuk

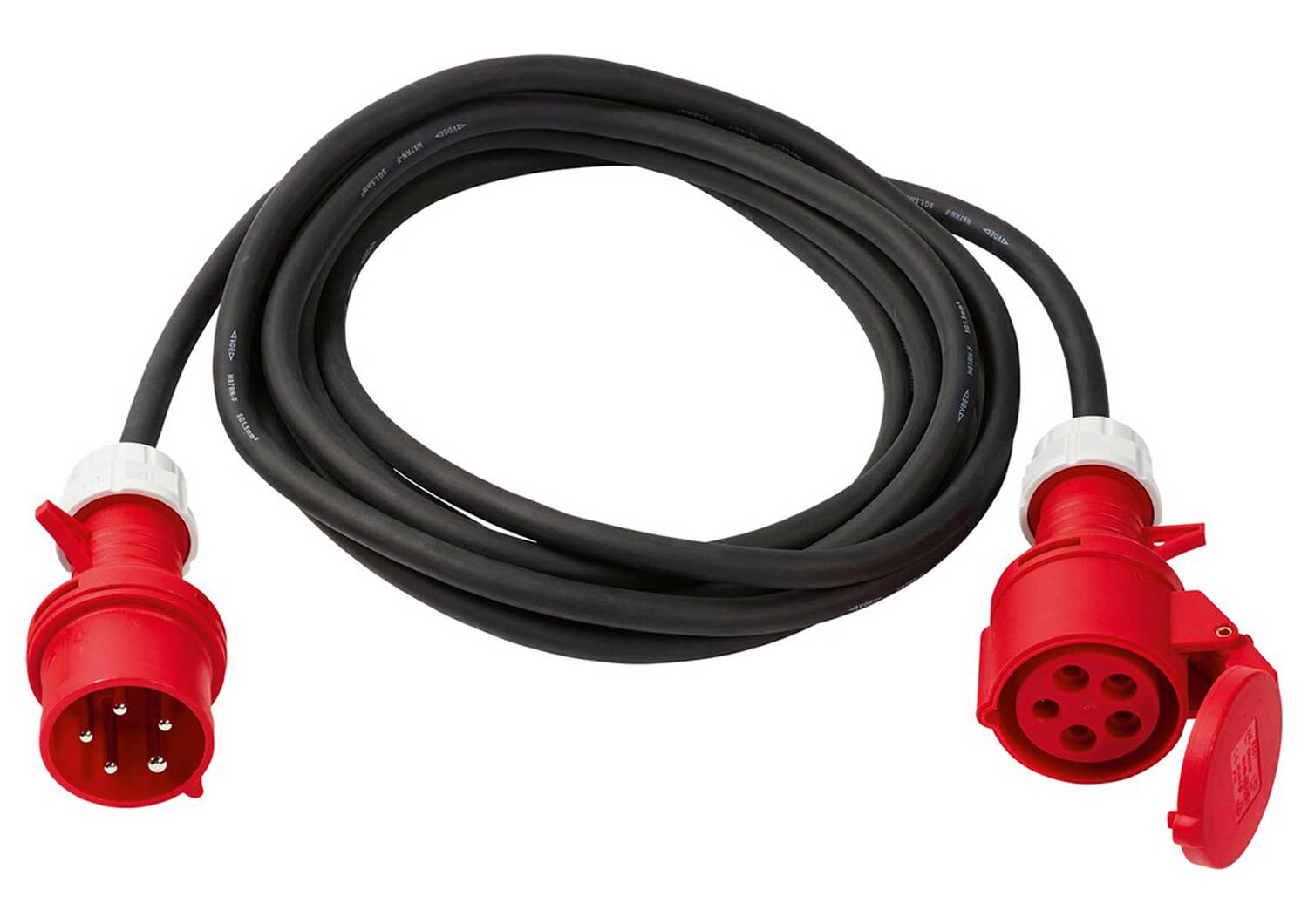

    TEKBOX TBPC-IEC60309-63-10m Cables for TBL5063-3 LISN

    £97.00 (£116.40 inc. VAT)

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • Image of Tbcon cee f telonicuk

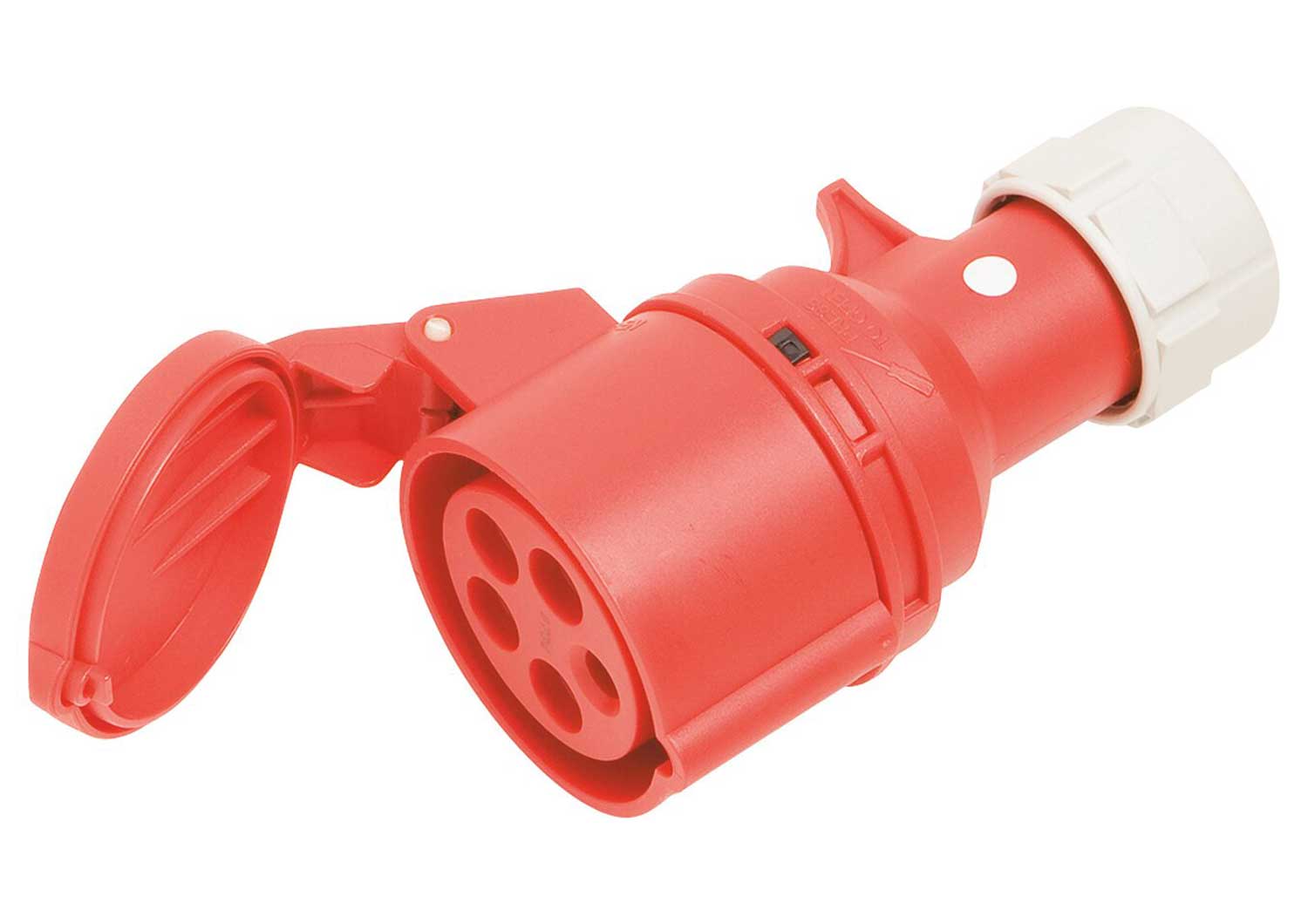

    TEKBOX TBCON-CEE-F Female Connector for TBL5063-3 LISN

    £7.50 (£9.00 inc. VAT)

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • Image of Tbcon cee m telonicuk

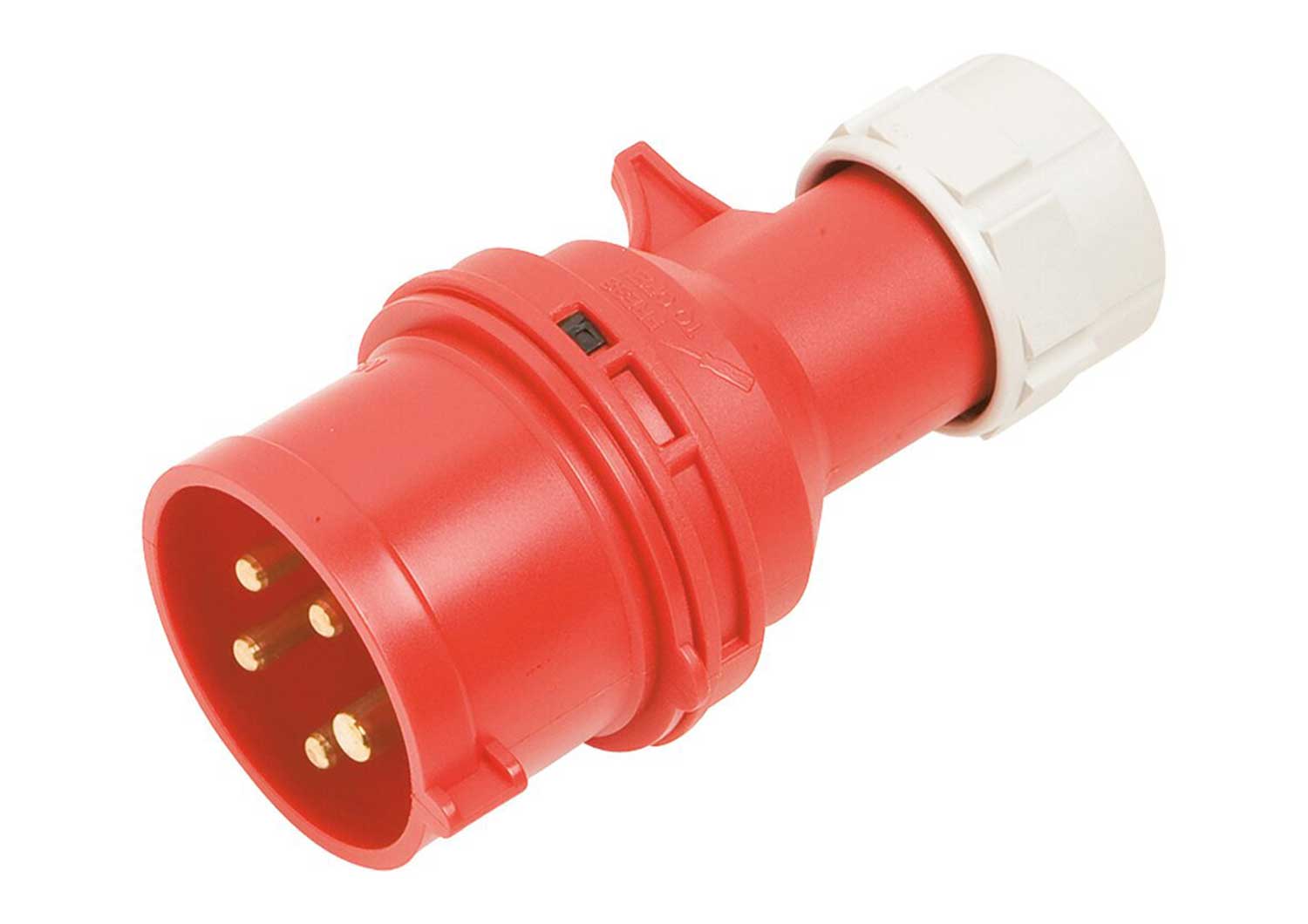

    TEKBOX TBCON-CEE-M Male Connector for TBL5063-3 LISN

    £7.50 (£9.00 inc. VAT)

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • Image of Tbpc iec60309 63 telonicuk

    TEKBOX TBPC-IEC60309-63-5m Cables for TBL5063-3 LISN

    £67.00 (£80.40 inc. VAT)

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • Image of Tbla 3p 63a telonicuk

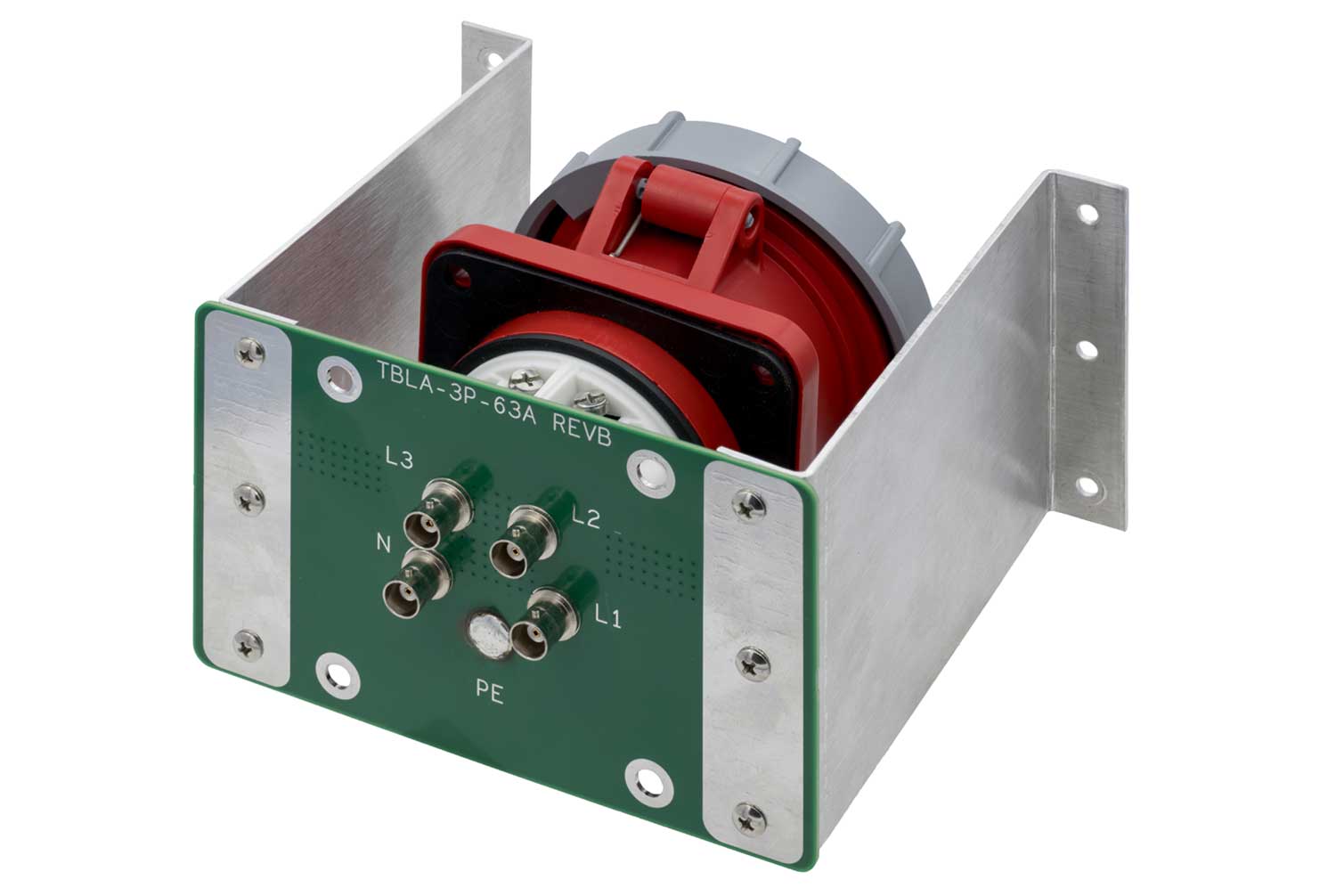

    TEKBOX TBLA-3P-63A Calibrator Adapters for TBL5063-3 LISN
