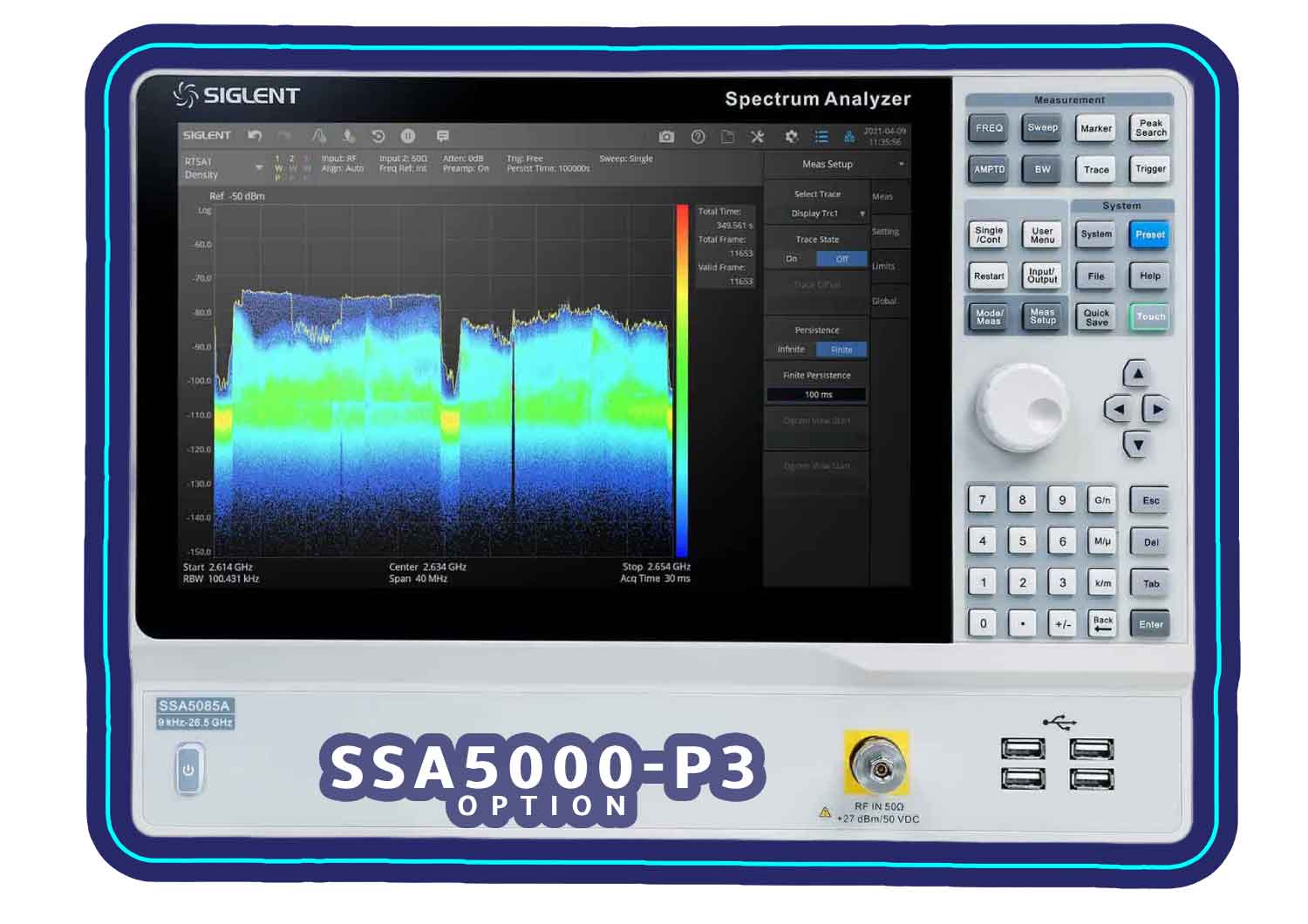

Siglent SSA5085A 26.5GHz Spectrum Analyser

£16714.00 (£20056.80 inc VAT)

FREE OFFER

Purchase a new SSA5000A Analyzer: SSA5083A or SSA5085A

↠ Get free SSA5000-RTA1 (25MHz Real Time Analysis) and SSA5000-B40  upgrade licenses (over  £5000 value!)

EMC Pre-compliance Offer
Purchase SIGLENT spectrum analyser and SRF5030T near-field probe kit* and receive a free EMI option activation license!
Offer from 01 Oct to 31st Dec 23

Available on back-order, delivery normally 1 - 2 weeks

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Free Shipping Free RK Kit Price Match Guarantee

Description


Siglent SSA5085A 26.5GHz Spectrum Analyser

The Siglent SSA5085A has a Minimum Resolution Bandwidth of 1Hz and a Frequency Range of 9kHz to 26.5GHz. SIGLENT’S SSA5000A spectrum analysers are powerful and flexible tools for complex RF spectrum and signal analysis. With the capability of real-time spectrum analysis, the analyser can provide multi-dimensions data displays, and advanced triggering to solve modern RF spectrum challenges, like channel power measurement, hopping frequency, conflict channel, and spectrum interference.

Applications include broadcast monitoring/evaluation, cellular site, IoT, WLAN and Bluetooth surveying, research and development, education, production, and maintenance.

Features:

  • Spectrum Analyser Frequency Range from 9 kHz up to 26.5 GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
  • 25 MHz/40 MHz Real Time Analysis Bandwidth (opt)
  • 100% POI 7.20 μs, Dynamic Range 60 dB, Multi-view for Density, Spectrogram and PvT
  • Channel power, ACPR, OBW, Harmonic, TOI measurement etc. (opt)
  • Analog Modulation Analysis and Vector Digital Modulation Analysis (opt)
  • 12.1 inch Multi-Touch Screen, HDMI output
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation

Siglent SSA5000A Series Spectrum Analyser Comparison Table

Model Frequency Range Resolution Bandwidth (RBW) Phase Noise Total Amplitude Accuracy Display Average Noise Level (DANL)
SSA5083A 9kHz to 13.6GHz 1Hz to 10MHz <- 105dBc/Hz <0.5dB -165dBm/Hz
SSA5085A 9kHz to 26.5GHz 1Hz to 10MHz <- 105dBc/Hz <0.5dB -165dBm/Hz
