Kikusui PWR1201L DC Power Supply

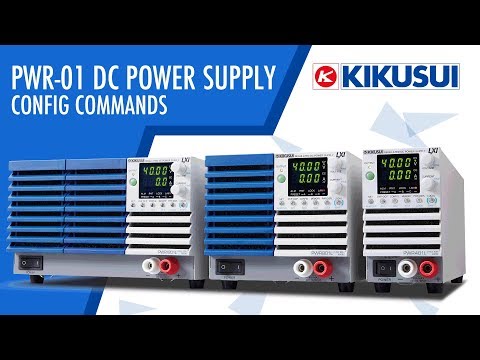

The PWR1201L (0-40V 0-120A 1200W) is part of the Kikusui PWR-01 series of high performance, compact, wide-range Programmable Bench DC power supplies. The series consists of 12 models in total with 4 maximum voltage outputs (L, ML, MH, and H) and 3 maximum power outputs (400 W, 800 W, and 1200 W). With the PWR-01 series you can set sequences with an embedded CPU as well as analogue control. The series is equipped with LAN (LXI), USB, and RS232C as standard interfaces that are essential for system integration. The PWR-01 also features front-facing output terminals in addition to the rear terminals, variable internal resistance, bleeder ON/OFF functions, CC/CV priority switching function, synchronised operation, various protection functions and programmable internal memory.
Features:
- Sequence function (supports triggered synchronization)
- Variable internal resistance function
- LAN (LXI compliant) /USB/RS232C as standard interface
- A virtual multi-channel bus (VMCB) function makes multi-channel operation more efficient
- A wide range of voltage and current settings can be combined within its output power rating (3 to 4 times)
- All models are equipped with front-facing output terminals as standard (maximum 10A)
- Supporting universal input voltage (85V to 265V)
- CONFIG setting shortcut function and display (Up to three parameters can be registered.)
- Setting preset memory function (3 combinations of settings for voltage, current, OVP, OCP, and UVL)
- Bleeder (sink) can be turned on/off, with an even stronger bleeder mode setting available
- Output-on/off delay function
- Soft start/stop function
Kikusui PWR-01 Datasheet
