TEKBOX TBLC08 50uH Single Phase AC Line Impedance Stabilisation Network (LISN), CISPR 16-1-2

£649.00 (£778.80 inc VAT)

Only 1 left in stock!

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Free Shipping Price Match Guarantee

Description

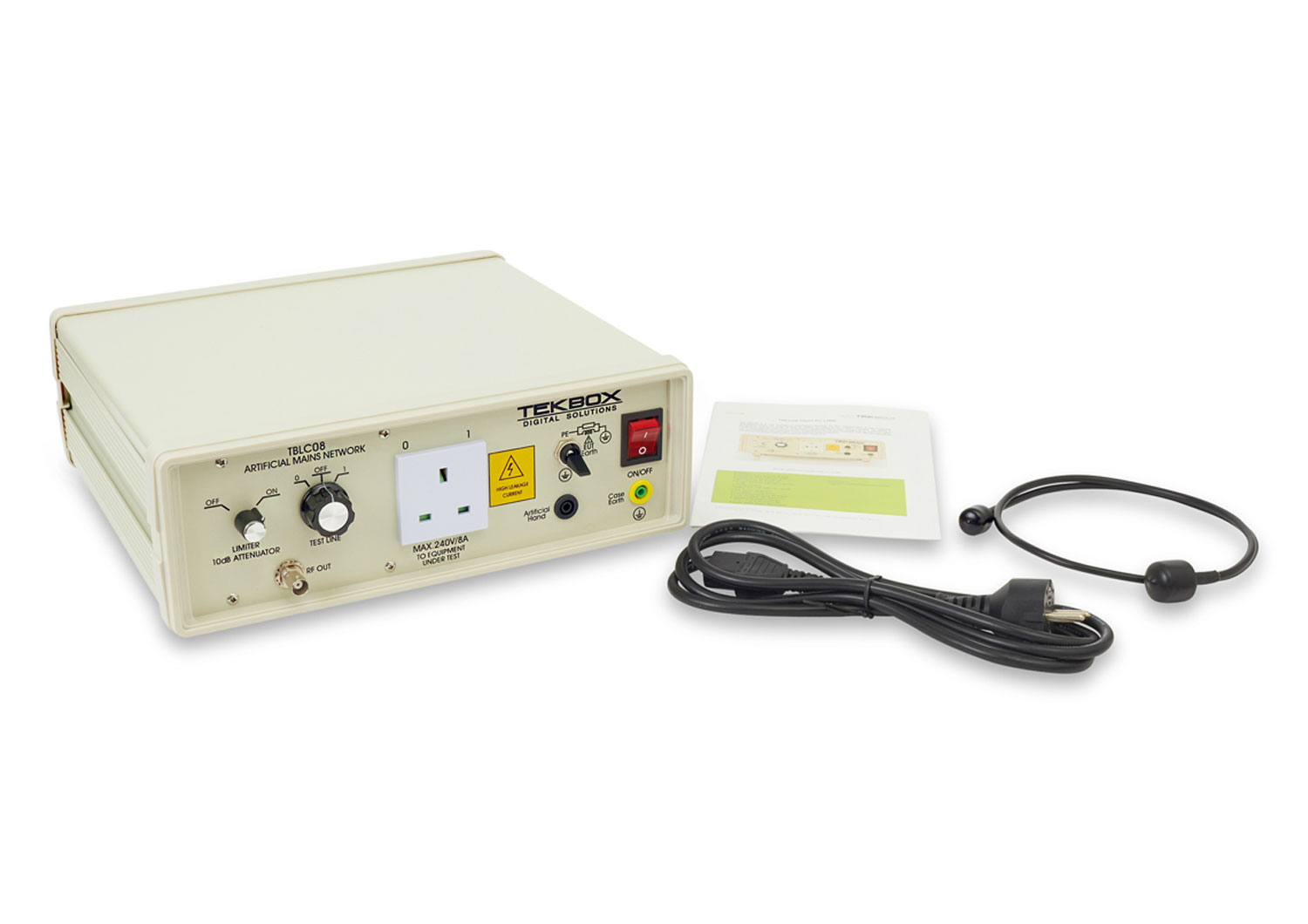

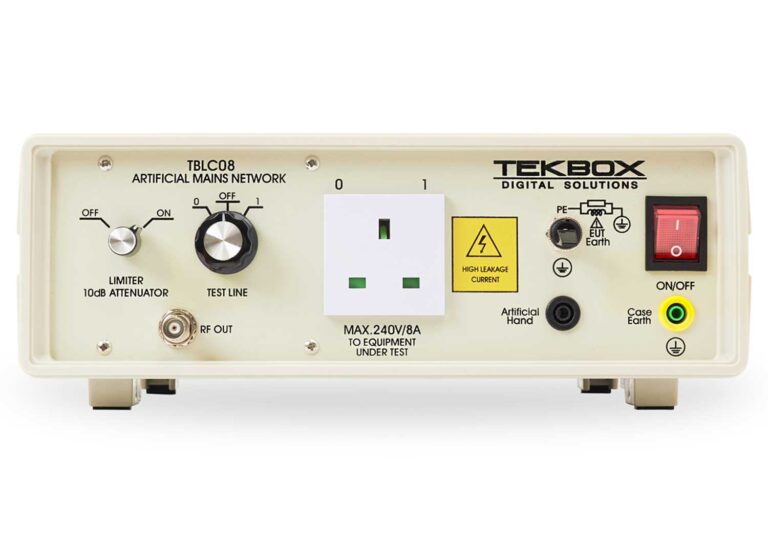

Tekbox TBLC08 LISN

Ideal for EMC pre-compliance testing to CISPR 16 - The TEKBOX TBLC08 is a single phase AC Line Impedance Stabilization Network (LISN) for the measurement of conducted emissions within the range of 9kHz to 30MHz, for devices operating at up to 260V. Conducted noise can be measured on the live and neutral conductors. The TBLC08 is equipped with a switchable limiter / attenuator and an artificial hand connection. Features:
  • Maximum current: 8A
  • Frequency range: 9kHz to 30MHz
  • Impedance: 50Ω ║ (5 µH + 5Ω)
  • Artificial hand: 220pF + 511Ω
  • Switchable PE: 50Ω ║ 50µH
  • Limiter / attenuator: 150kHz to 30MHz; 10dB
  • Line voltage: max. 260V / 50 – 60Hz, CAT ‖
  • DUT socket: Country Specific
  • Measurement connector: 50Ω BNC
  • Power connector: IEC 60320 C13
  • Operating temperature range: +5°C … + 40°C; 5% to 80% RH
  • Safety: Safety class I, IEC 1010-01

Documentation


User Manual

Tekbox TBLC08 User Manual



Specifications
Frequency range 9 kHz to 30 MHz
Impedance 50 Ω ║ (50 µH + 5 Ω)
Artificial hand 220 pF + 511 Ω
Switchable PE 50 Ω ║ 50 µH
Limiter / attenuator 150 kHz to 30 MHz; 10 dB
Line voltage max. 240V / 50 – 60 Hz, CAT ‖
Max. current 8A @ 23°C
DUT socket country specific
Measurement connector 50 Ω BNC
Power connector IEC 60320 C13
Operating Temperature Range +5°C … + 40°C; 5% to 80% RH
Safety Safety Class I, IEC 1010-01
