TEKBOX TBL5016-2B 50µH Line Impedance Stabilisation Network LISN
TEKBOX-TBL5008-2C-back-Telonic-UK
TEKBOX TBL5016-2B 50µH Line Impedance Stabilisation Network LISN

TEKBOX TBL5016-2B 50µH Line Impedance Stabilisation Network LISN

£655.91 (£787.09 inc VAT)

1 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Request QuoteRemove from Quote
Request Quote
SKU: TBL5016-2B Categories: , , , , , Brand:

Description


Tekbox TBL5016-2B LISN

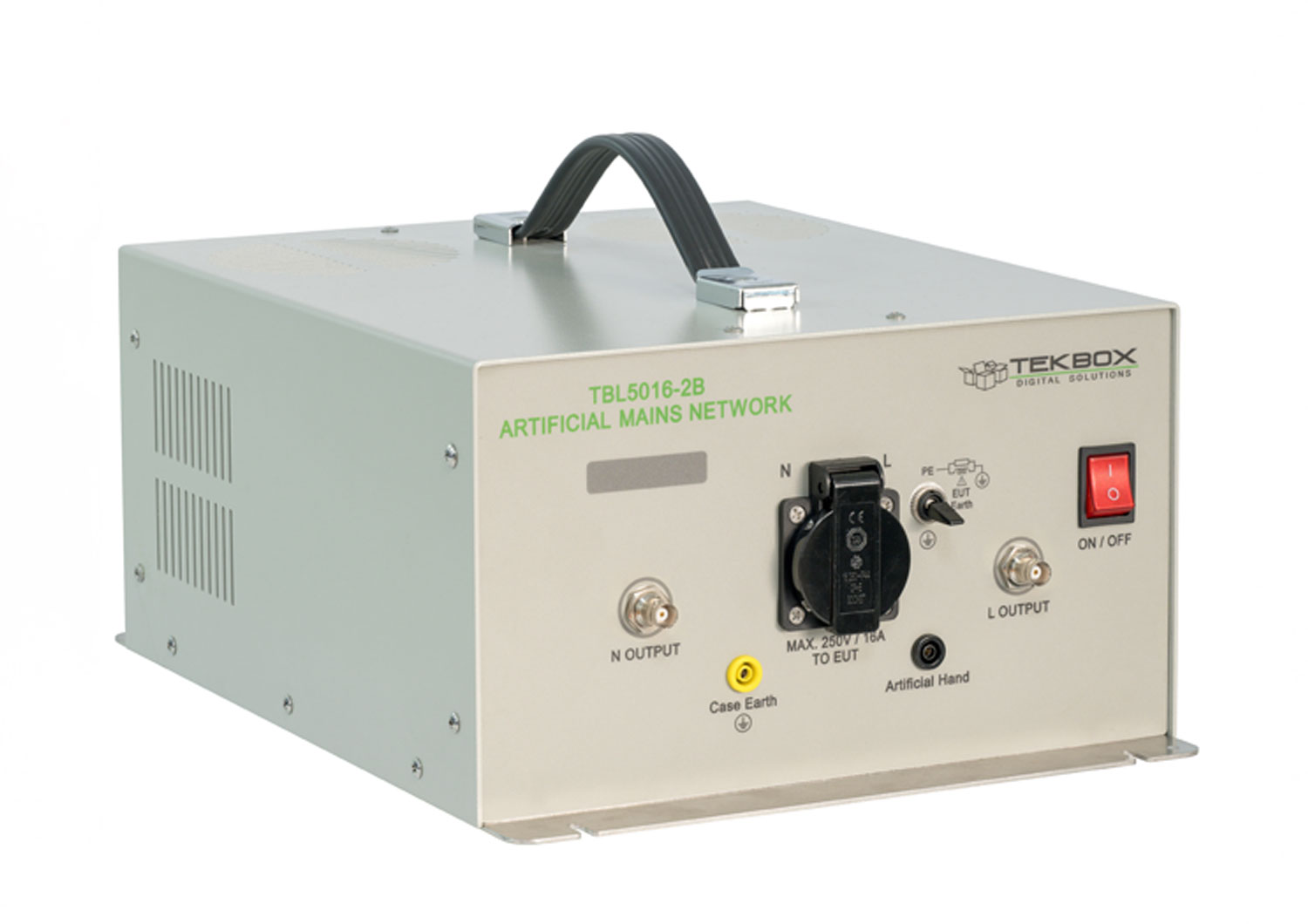

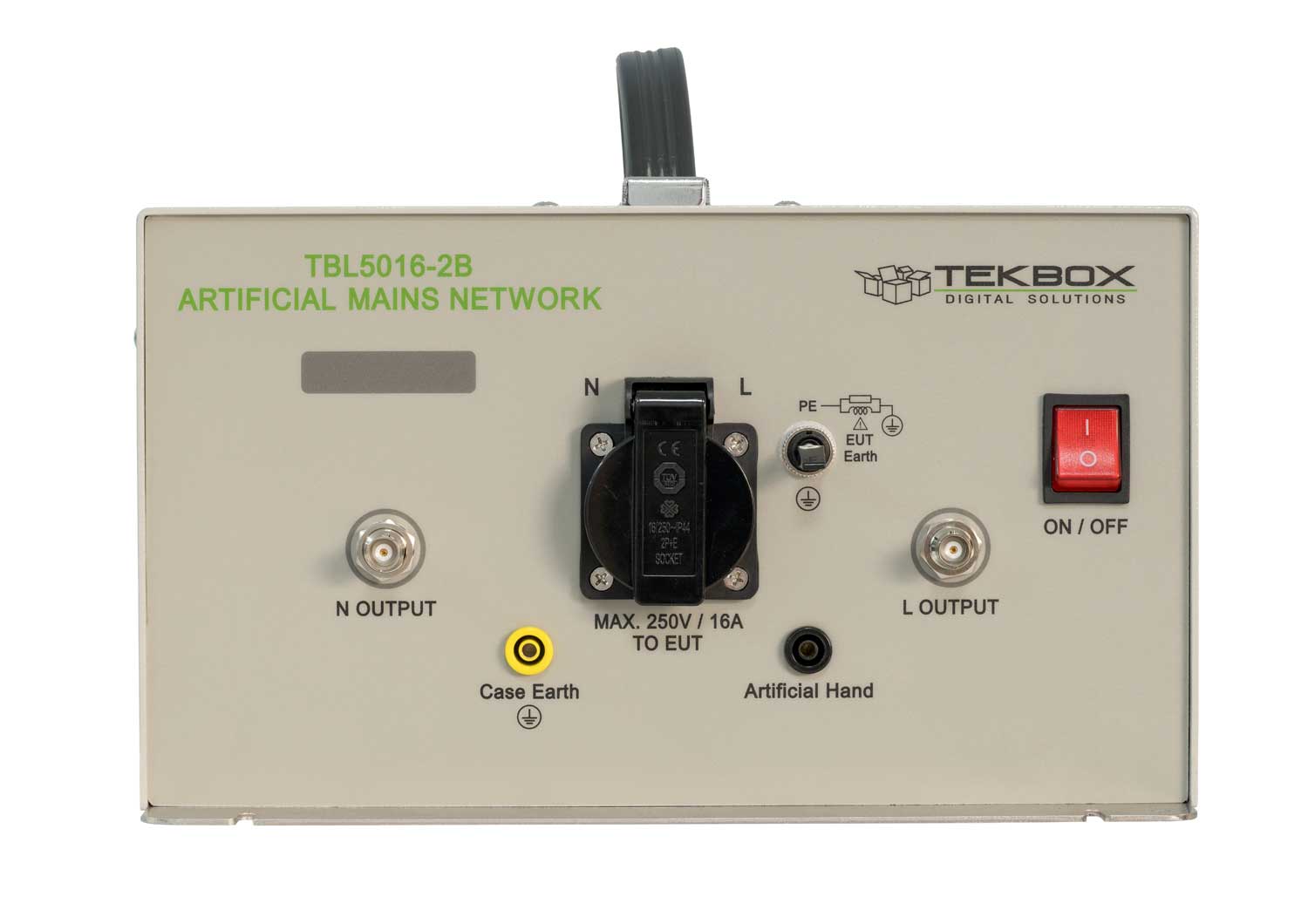

The TBL5016-2B is a Line Impedance Stabilisation Network designed to measure conducted emissions on power supply lines in the 9kHz to 30MHz frequency range, as specified by the CISPR 16-1-2 standard. The device is designed for testing single phase, AC-powered equipment with supply voltages up to maximum 2 50V and 16 A. Conducted noise can be measured on the phase and on the neutral conductor. The TBL5016-2B features separate measurement outputs for each channel to enable connectivity for a common mode / differential mode separator (LISN Mate), a PE switch to mimic extension cables and an artificial hand connection.
The device is available with country-specific EUT connectors.

    Standard Hardware Accessories

Documentation

User Manual

TEKBOX TBL5016-2B User Manual

Useful Documents (Click to View)


Features:

  • Frequency range: 9 kHz to 30 MHz
  • Impedance: 50 Ω ║ (50 µH + 5 Ω)
  • Artificial hand: 220 pF + 511 Ω
  • Switchable PE: 50 Ω ║ 50 µH
  • Independent BNC outputs for line and neutral to provide connectivity for CM/DM separators (LISN Mate)
  • Air core inductors
  • Line voltage: max. 250V / 50/60 Hz or DC
  • Max. current: 16 A @ 23°C
  • EUT socket: country specific
  • Measurement connector: 50 Ω BNC
  • Power connector: IEC 60320 C19
  • Operating Temperature Range: +5°C … + 40°C; 5% to 80% RH

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
