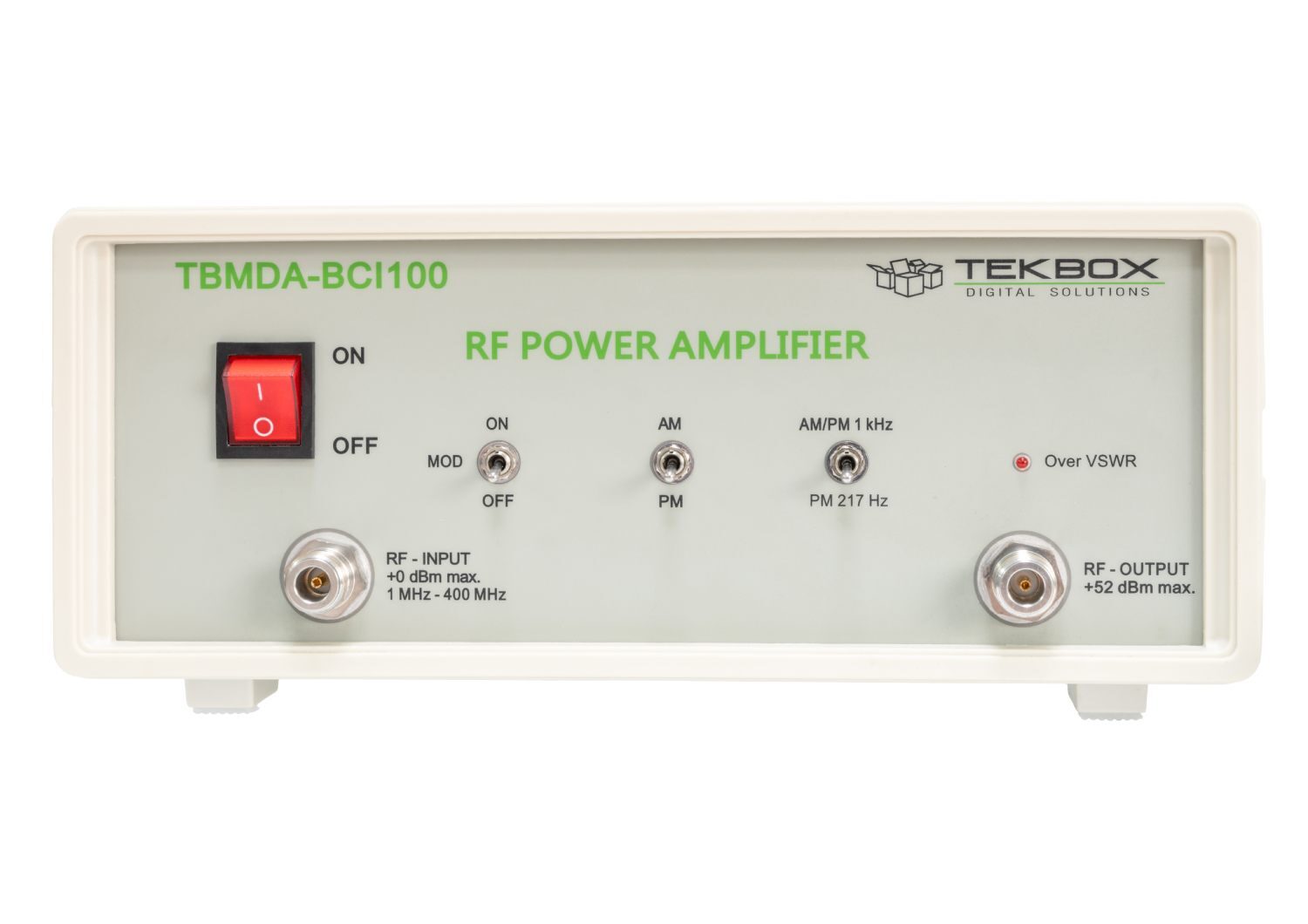

Tekbox TBMDA-BCI100 modulated wideband power amplifier 100W 1 MHz – 400 MHz

Description

Tekbox TBMDA-BCI100 modulated wideband power amplifier 100W 1 MHz – 400 MHz

The TBMDA-BCI100 modulated amplifier provides the necessary bandwidth and modulation for conducted immunity testing using BCI probes per ISO 11452-4 in the frequency range from 1 MHz to 400 MHz. It is designed to be driven by signal generators or by tracking generators of spectrum analysers. With a 1 dB compression point of up to 110 W in the frequency range 1 MHz to 400 MHz it can generate test levels up to Level IV with AM and Level IV with CW. A built in AM / PM – modulator enables use of tracking generators as signal source. The TBMDA-BCI100 has sufficient gain to achieve maximum output power with 0 dBm provided by a spectrum analyser tracking generator.

Besides 1 kHz, 80% AM, the TBMDA-BCI100 provides built in modulation capability to generate 1 kHz, 50% duty cycle PM signals. In PM mode, the TBMDA-BCI100 can also generate a 217 Hz Signal with 12.5% duty cycle in order to simulate mobile phone TDMA noise.

The TBMDA-BCI100 is also usable in the frequency range from 100 kHz to 1 MHz; however, at a reduced output power.
