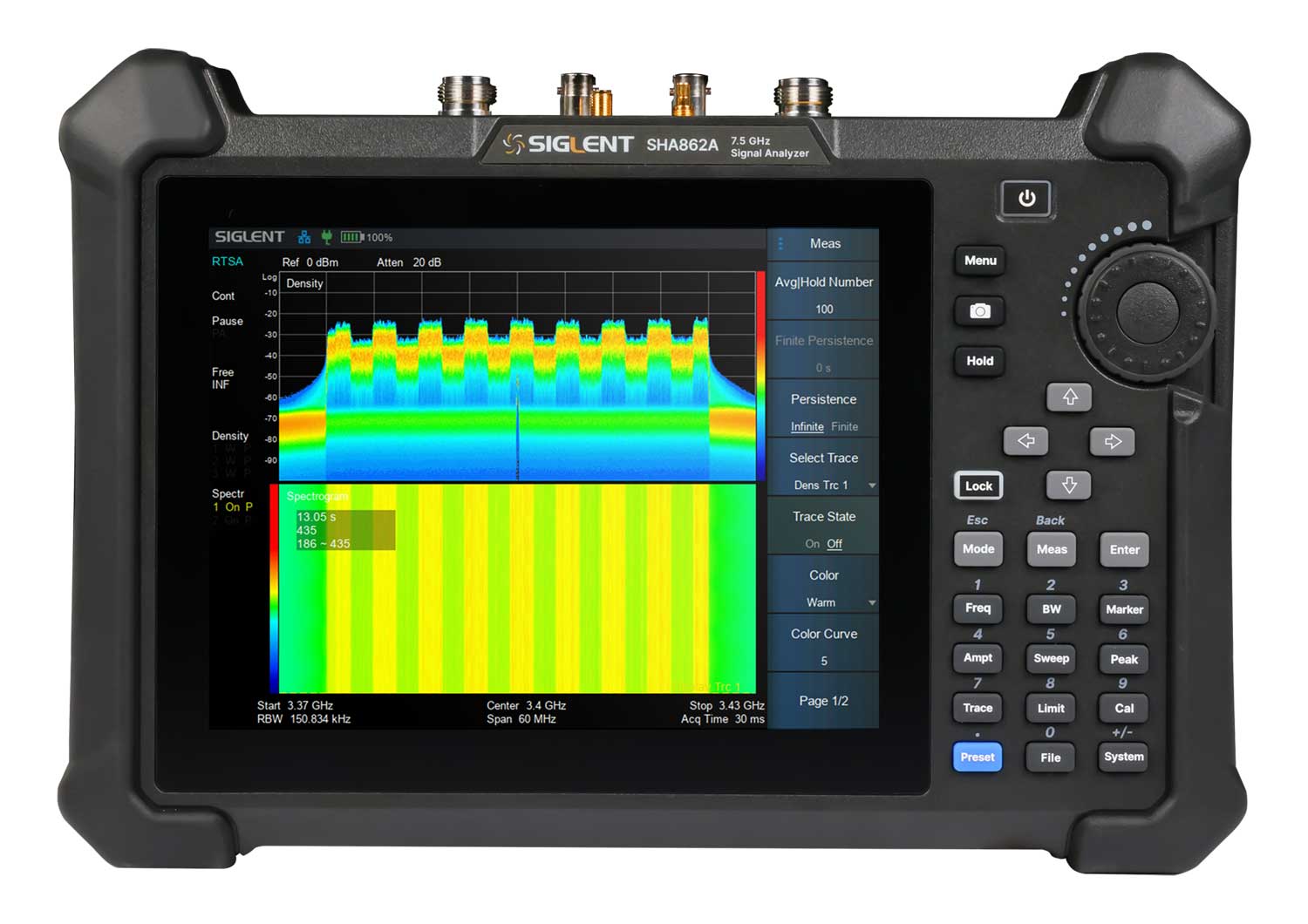

Image of Sha862a front telonicuk

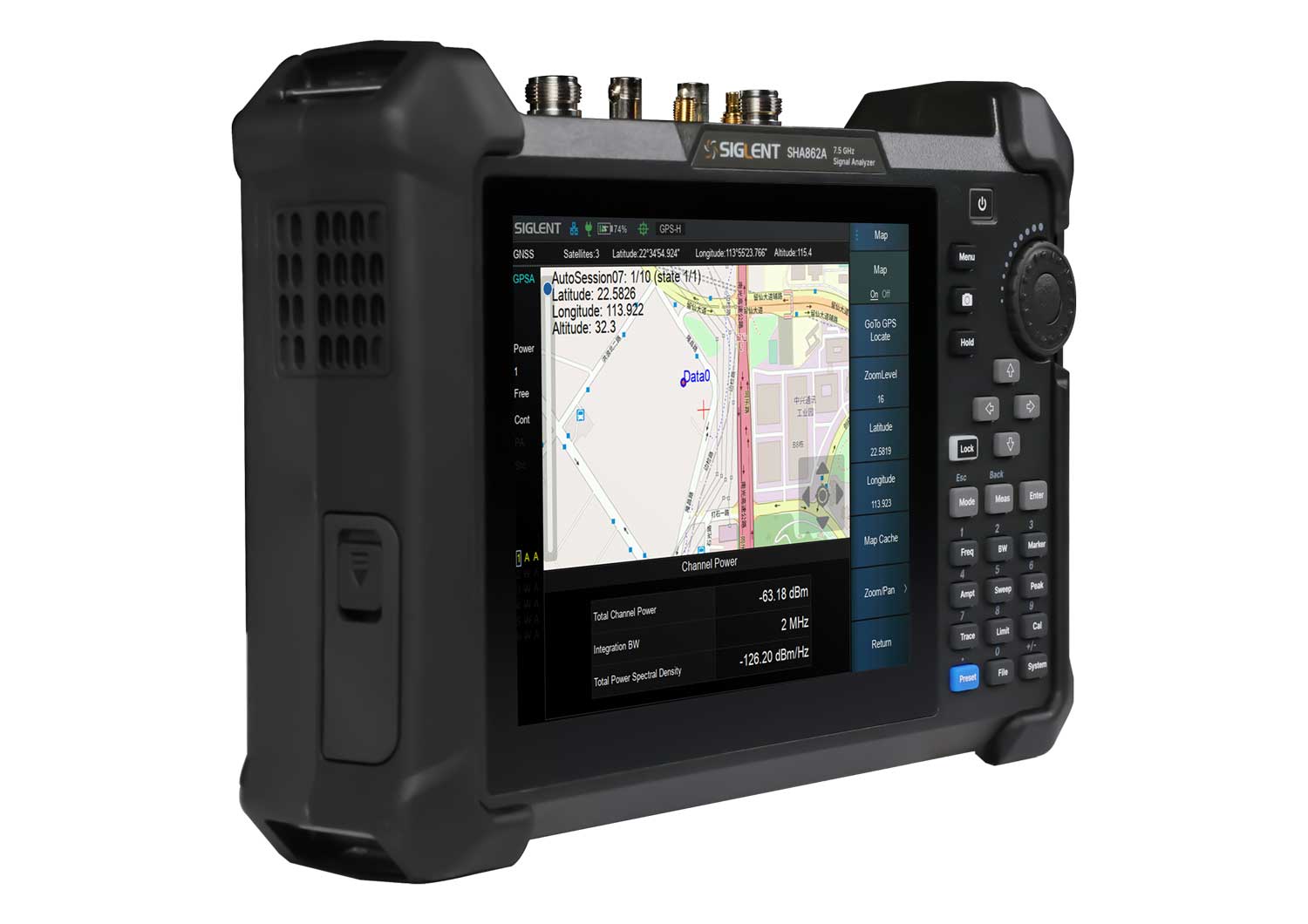

Image of Sha862a angle telonicuk
Image of Sha860a sidet telonicuk
Image of Sha860a port telonicuk
Image of Sha860a back telonicuk

Siglent SHA862A Handheld Spectrum/Cable and Antenna Analyser, 9 kHz – 7.5 GHz

£10501.00 (£12601.20 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Request Demo SKU: SHA862A Categories: , , , Brand:

Compare with other Siglent SHA860A Handheld Spectrum / Vector Network Analysers

SKUImageFrequencyRBWPhase NoisesDANLPre-AmplifierTracking GenStockPrice
SHA862AImage of Sha862a front telonicuk9 kHz–7.5 GHz1 Hz–10 MHz−104 dBc/Hz typ.−165 dBm/Hz typ.StandardYesOn Backorder£10,501.00
SHA861AImage of Sha861a front telonicuk9 kHz–3.6 GHz1 Hz–10 MHz−104 dBc/Hz typ.−165 dBm/Hz typ.StandardYesOn Backorder£7,180.00

Description


Siglent SHA862A Handheld Spectrum / Vector Network Analyser

Siglent SHA860A series, a next-generation handheld signal analyser, integrates spectrum analysis, vector network analysis, and cable/antenna testing into a single portable platform, offering a comprehensive solution for 5G/LTE base station deployment and maintenance. Supporting a 9 kHz to 7.5 GHz frequency range and 110 MHz real-time bandwidth, it features advanced capabilities like 5G NR/LTE OTA testing, real-time spectrum analysis, pulse profile analysis, and GPS-synchronized indoor/outdoor mapping. This empowers technicians to optimize beam performance, troubleshoot interference, and accelerate network deployment with precision, while its integrated design enhances on-site testing efficiency and portability.

Please note: Many advanced features are paid options. Please see the “optional accessories” page if you wish to include these features in your order.

Features
  • Frequency Range 9 kHz~3.6/7.5 GHz
  • Displayed Average Noise Level -165 dBm/Hz
  • Phase Noise -104 dBc/Hz at 1 GHz, 10 kHz offset
  • Real-Time Analysis Bandwidth 40/110 MHz
  • 5G NR and LTE FDD/TDD OTA Measurement
  • Trace Recording/Playback with GNSS Location
  • Standard Preamplifier, 8.4” Touch Screen, 2.5 hours Working Time

Product Images

Intuitive Control Experience<br /> <br /> Large touchscreen + physical knobs, buttons, and keypad for flexible operation.<br /> Glove-friendly oversized buttons and horizontal screen layout.<br /> Logical functional zoning with dedicated panel keys for quick access.<br /> Compact & Lightweight: Saves space while maintaining testing accuracy.<br /> Dual USB Ports: Connect storage devices, peripherals, or external controllers<br /> Smart Operation Features<br /> ⏸️ Measurement Control: Hold/Pause/Resume measurements with one-touch action.<br /> 🔒 Lock Function: Disable touchscreen/keypad to prevent accidental inputs during critical tests.

Intuitive Control Experience

Ultra-Low Noise Performance<br /> <br /> Low DANL: -165 dBm/Hz <br /> Low-Noise Architecture: Minimizes internal noise for precise measurements.<br /> High Sensitivity: Enhanced monitoring of low-level RF signals.

Ultra-Low Noise Performance

Low SSB Phase Noise<br /> <br /> -104 dBc/Hz at 10 kHz offset (fc = 1 GHz).<br /> Critical metric for evaluating oscillator stability and spectral purity.<br /> Excellent phase noise is an important index for evaluating spectrum analyzer.<br />

Low SSB Phase Noise

Measurement Function (Expansion Options)<br /> <br /> Efficiently Meet User's Field Test Requirements

Measurement Function (Expansion Options)

Advanced Calibration Tools<br /> <br /> Calibrating network analyzers is critical for high accuracy measurements and can be particularly challenging in non-coaxial environments. The SHA family supports a broad range of mechanical and electronic calibration kits and offers advanced calibration methods to enhance ease-of-use while providing best-in-class accuracy.

Advanced Calibration Tools

×

Intuitive Control Experience

Large touchscreen + physical knobs, buttons, and keypad for flexible operation.
Glove-friendly oversized buttons and horizontal screen layout.
Logical functional zoning with dedicated panel keys for quick access.
Compact & Lightweight: Saves space while maintaining testing accuracy.
Dual USB Ports: Connect storage devices, peripherals, or external controllers
Smart Operation Features
⏸️ Measurement Control: Hold/Pause/Resume measurements with one-touch action.
🔒 Lock Function: Disable touchscreen/keypad to prevent accidental inputs during critical tests.
Ultra-Low Noise Performance

Low DANL: -165 dBm/Hz
Low-Noise Architecture: Minimizes internal noise for precise measurements.
High Sensitivity: Enhanced monitoring of low-level RF signals.
Low SSB Phase Noise

-104 dBc/Hz at 10 kHz offset (fc = 1 GHz).
Critical metric for evaluating oscillator stability and spectral purity.
Excellent phase noise is an important index for evaluating spectrum analyzer.
Measurement Function (Expansion Options)

Efficiently Meet User's Field Test Requirements
Advanced Calibration Tools

Calibrating network analyzers is critical for high accuracy measurements and can be particularly challenging in non-coaxial environments. The SHA family supports a broad range of mechanical and electronic calibration kits and offers advanced calibration methods to enhance ease-of-use while providing best-in-class accuracy.

Product Videos

YouTube Video
The ALL NEW Siglent SHA860A Series Handheld Spectrum Analysers!

Documentation


Structure
Dimensions 310mm × 215mm × 78.5 mm (W×H×D)
Weight Net: 3.20 kg (7.0 lb)
Display TFT LCD,800 × 600,8.4 inchmulti-touch screen
Storage Internal (Flash) 3.2GByte,external (USB storage device) 32 GByte
Working Environment
Source AC voltage range: 100-240 V,50/60 Hz or 100-120 V,400 Hz;
Power Consumption 27W(typ.)
Temperature Working temperature: 0 °C to 50 °C,
Working whilechargingtemperature: 0 °C to 45 °C,
Storage temperature: -20 °C to 70 °C
Humidity 0 °C to 30 °C,≤ 95% Relative humidity
30 °C to 50 °C,≤ 75% Relative humidity
Altitude Operating: less than 3 km (10000feet)
Calibration Cycle 1 year
Electromagnetic Compatibility
EN 61326-1: 2013 /EN 61000-3-2: 2014 Class A (The active input power of the EUT is less than 75 W. According to EN 61000-3-2,no limits are necessary.)
EN 61000-3-3: 2013 Plt: 0.65 Pst: 1.00,dmax: 4.00 % dc: 3.00 %
dt Lim: 3.30 % dt>Lim: 500ms
Safety
CAN/CSA-C22.2 No. 61010-1:2012/A1:2018-11
CAN/CSA-C22.2 No. 61010-2-030:2018
UL 61010-1:2012/R:2018-11
UL 61010-2-030:2018
RoHS
2011/65/EU

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
