Tekbox TBMA8 30 MHz – 3000 MHz Hybrid Measurement Antenna

£2150.00 (£2,580.00 inc VAT)

Available on back-order

Description


Tekbox TBMA8 30 MHz – 3000 MHz Hybrid Measurement Antenna

The TBMA8 is an affordable hybrid measurement antenna, a combination of a biconical antenna with a logarithmic periodic antenna, covering a frequency range of 30 MHz up to 3 GHz, targeting radiated emission EMC pre-compliance testing.

The TBMA8 is characterized from 30 MHz to 3000 MHz and has VSWR and antenna factor values typical for hybrid measurement antennas.

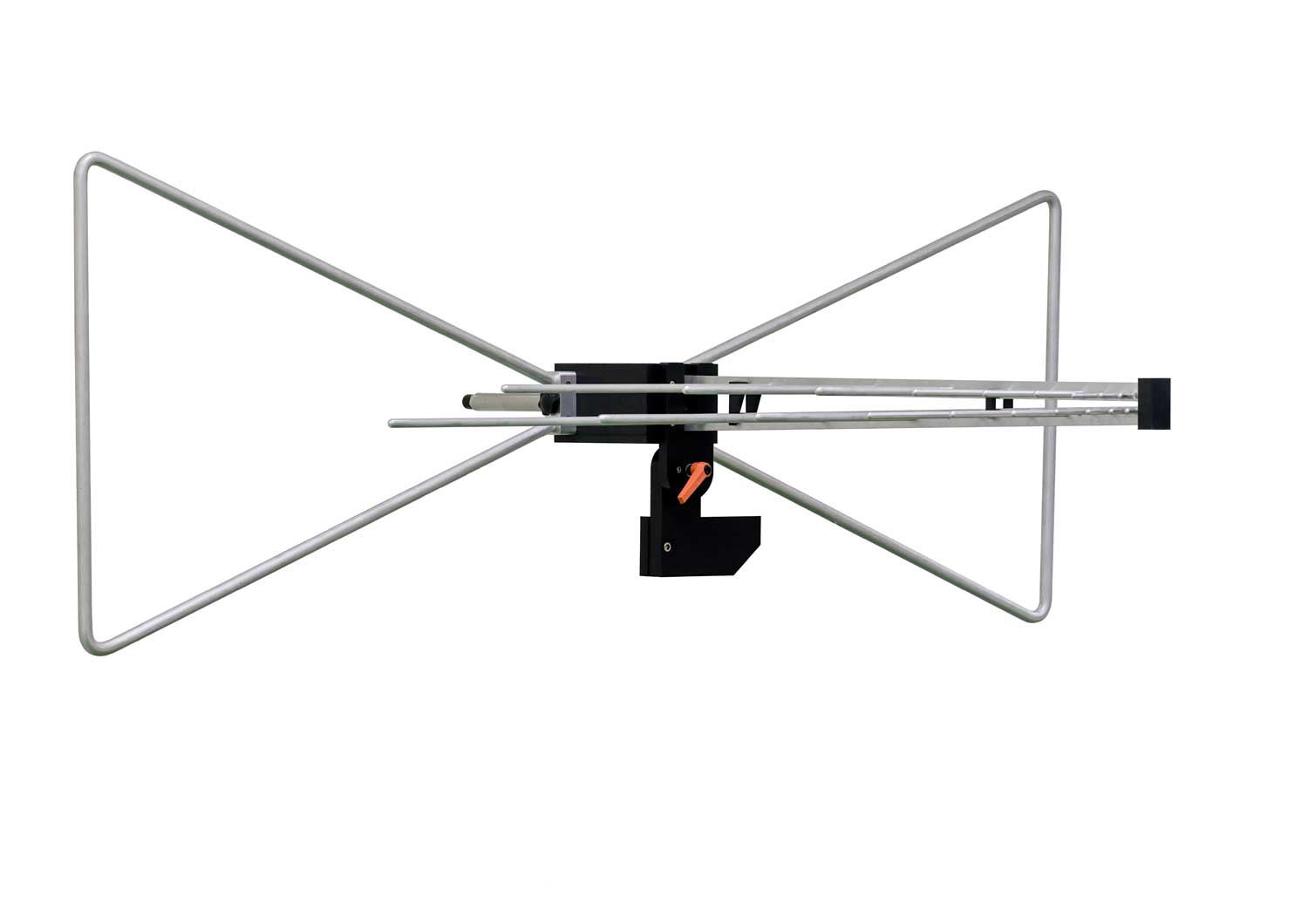

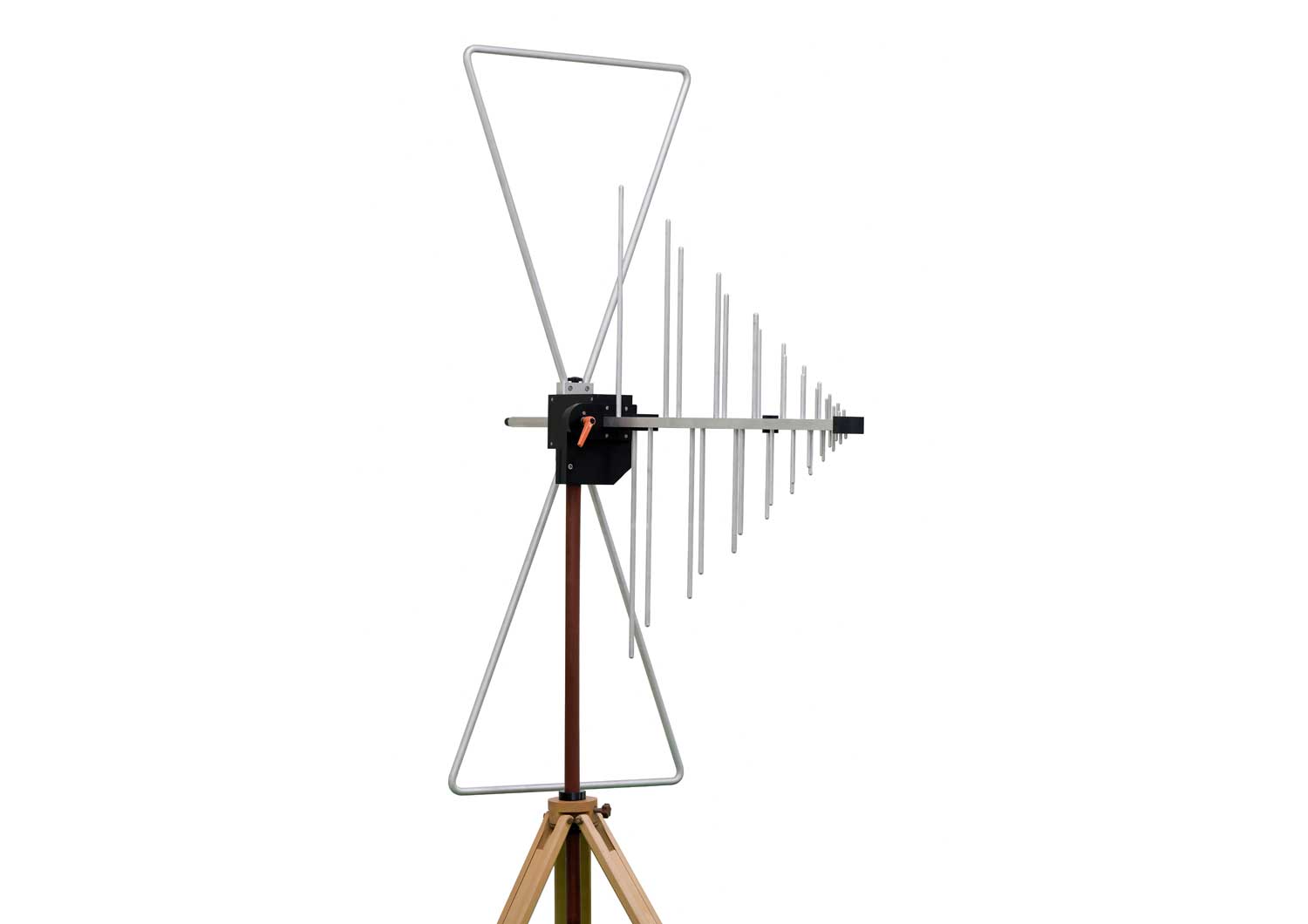

The TBMA8 is an average sized hybrid antenna, with its radiating elements and supporting booms made from aluminum alloy. It is equipped with a standard female N-connector and comes together with two triangular bowtie elements. The antenna provides a 20mm diameter mounting shaft (tube). An alternative, tiltable mounting element and tripods are available as optional accesories.

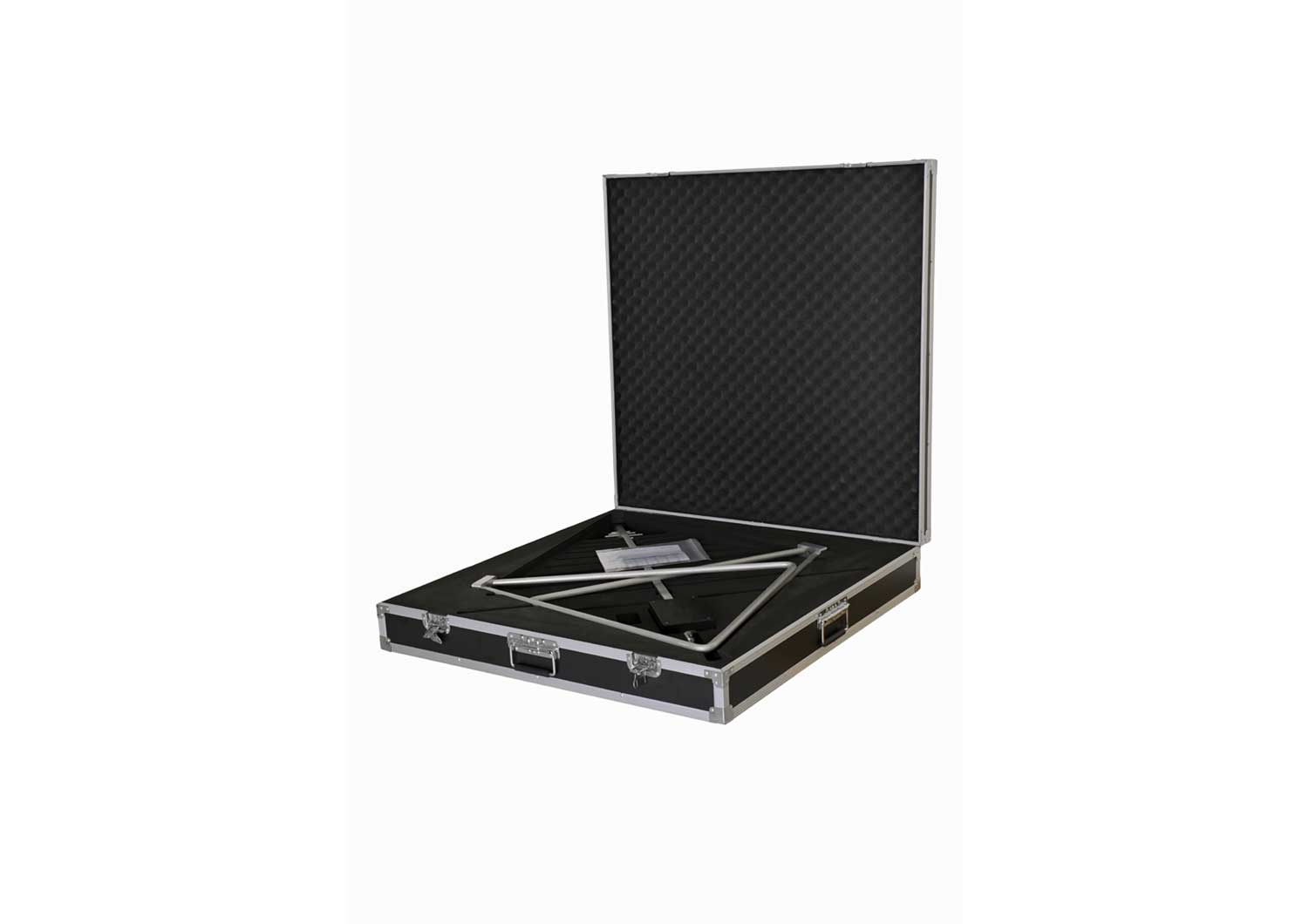

The TBMA8 is shipped in a robust carrying case.

SPECIFICATIONS

  • Type: Hybrid antenna
  • Frequency range: 30 MHz– 3000 MHz

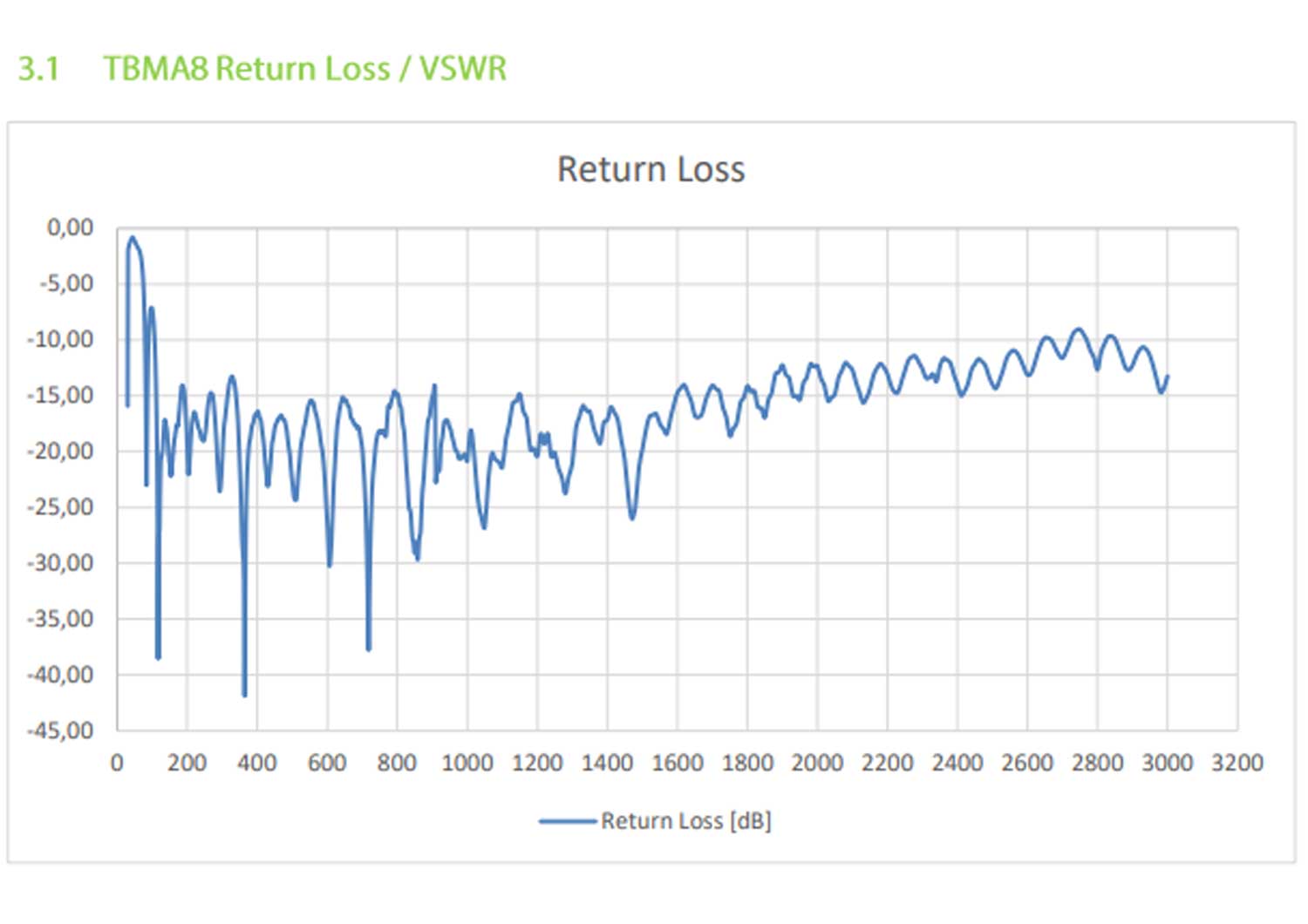

  • VSWR: <2.1 (f > 80 MHz)

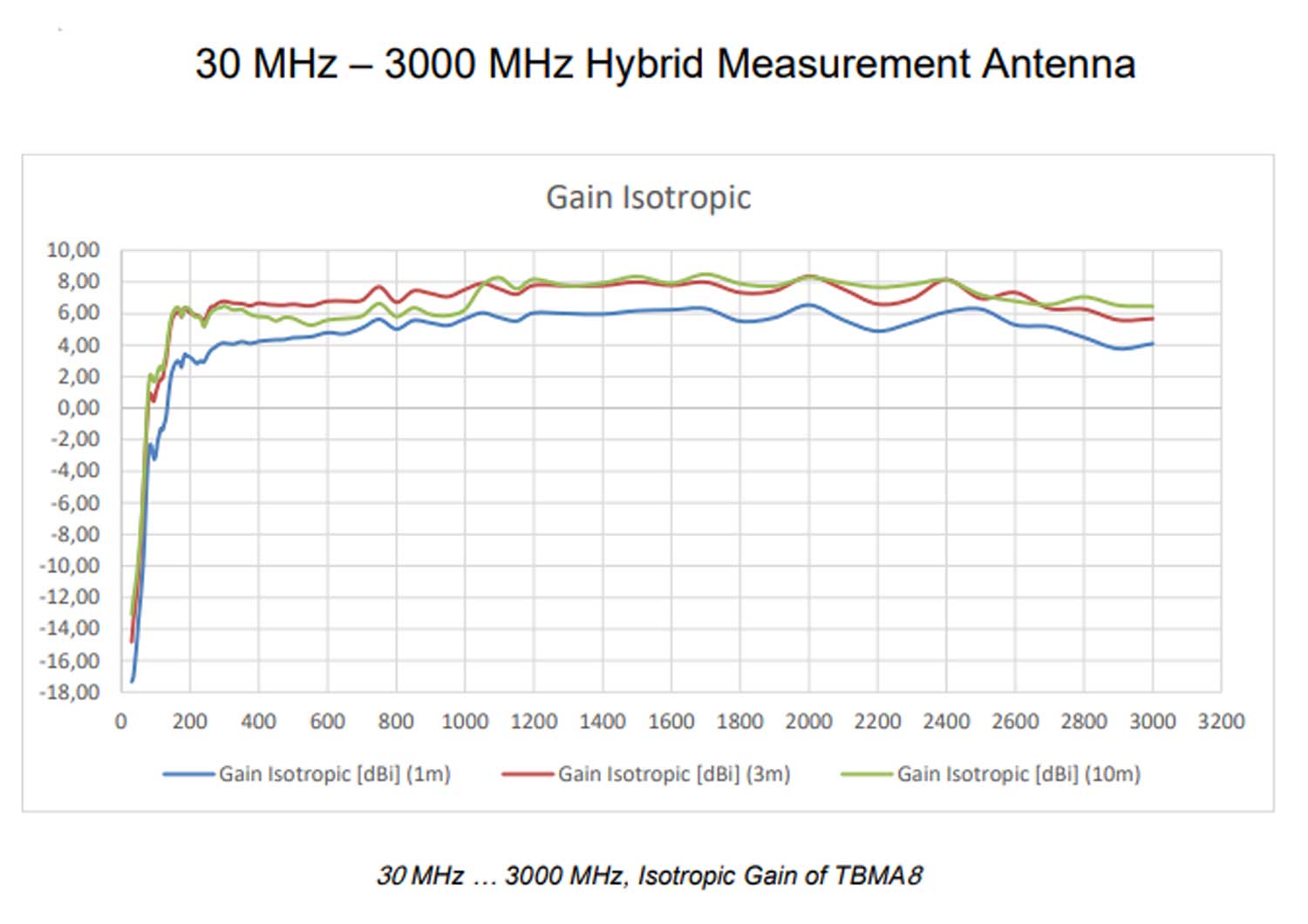

  • Isotropic gain at 3m spacing: -1 … 8 dBi

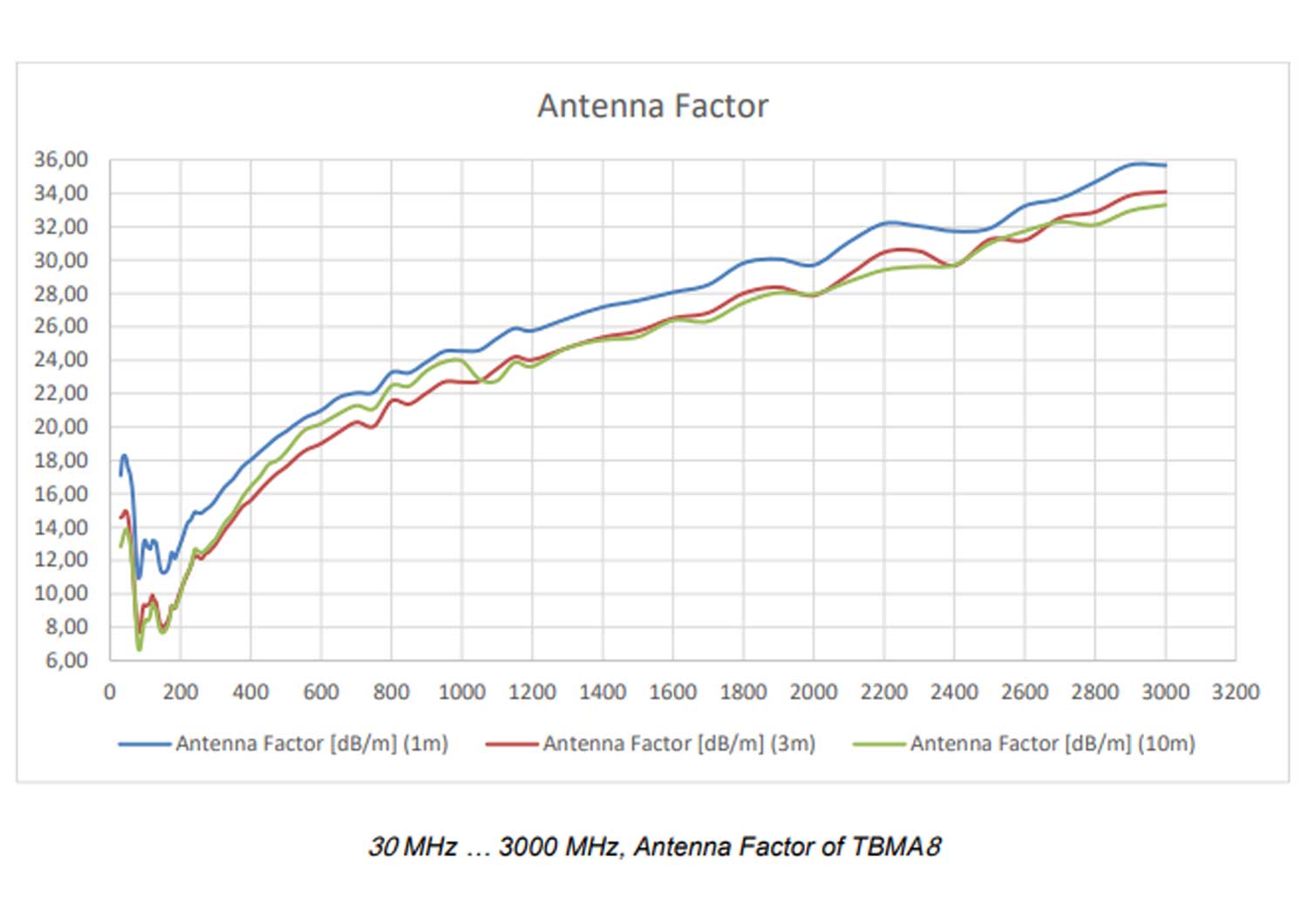

  • Antenna factor at 3m spacing: 8 … 34 dB/m
  • Maximum continuous input RF power: 130W
  • Nominal impedance: 50 Ω
  • RF Connector: N type female
  • Mounting: 22 mm diameter mounting shaft (tube)
  • Mechanical Dimensions: L x W x H: 1504 mm x 1183 mm x 558 mm (59.2” x 46.6” x 22”)
  • Weight: 6.7 kg (14.77 lbs)
  • Documentation

    Specification Type Hybrid Antenna
    Frequency Range 30 MHz – 3000 MHz
    VSWR < 2.1 (f > 80 MHz)
    Isotropic Gain at 3m Spacing -15 – 8 dBi
    Antenna Factor at 3m Spacing 8 – 34 dB/m
    Maximum Continuous Input RF Power 130 W
    Nominal Impedance 50 Ω
    RF Connector N type female
    Mounting 22 mm diameter mounting shaft (tube)
    Mechanical Dimensions (L x W x H) 1504 mm x 1183 mm x 558 mm (59.2” x 46.6” x 22”)
    Weight 6.7 kg (14.77 lbs)
