Optical Fiber Isolated Oscilloscope probe

Slide

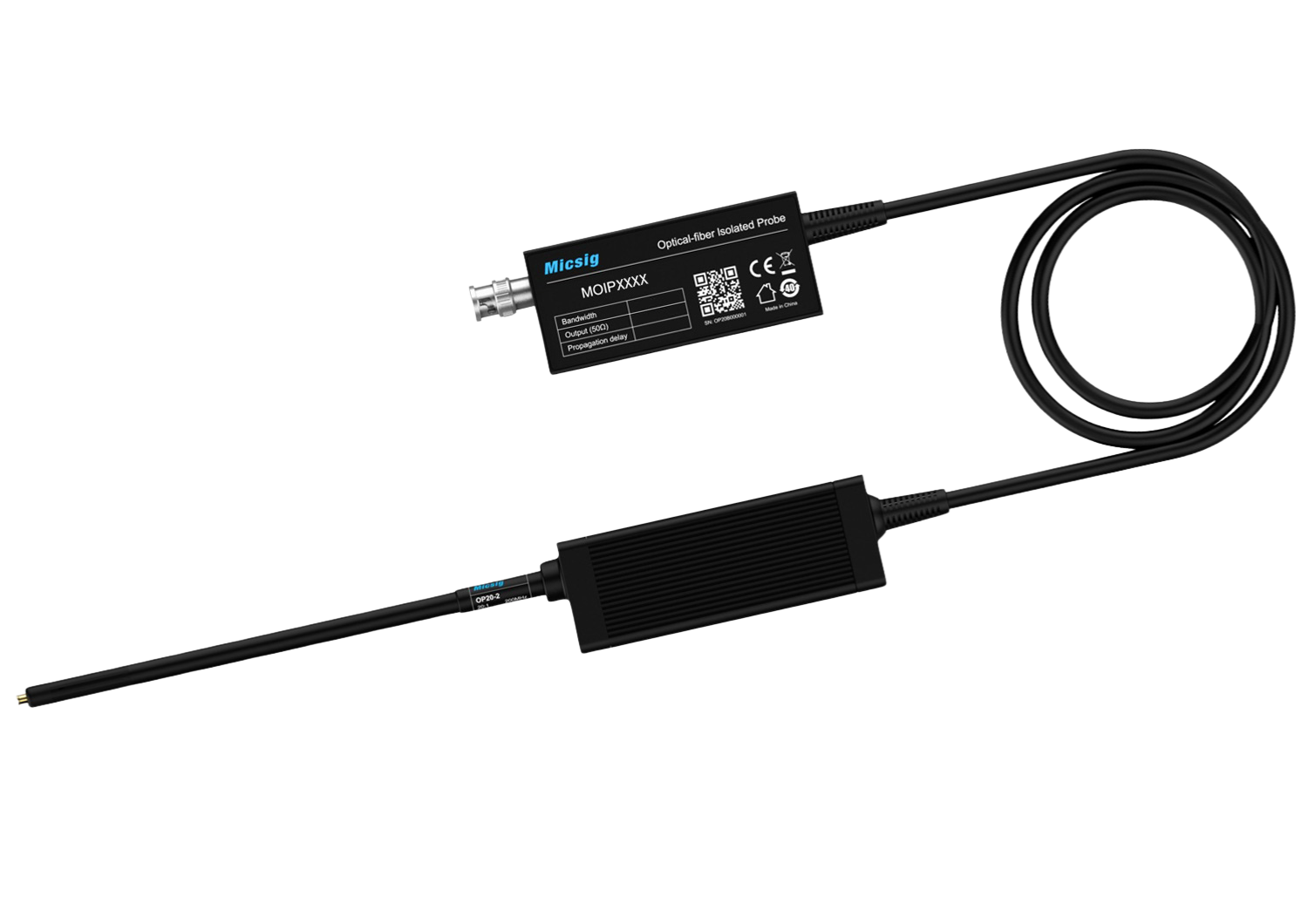

MOIP Series

SigOFIT Optical-fiber Isolated Probe

- Bandwidth: 200MHz - 1GHz
- Common Mode Voltage: 85kVpk
- DC Accuracy: 1%
- CMRR: Up To 180dB
- Interface: BNC

Built on the exclusive SigOFIT™ leading technology, Micsig MOIP Series Optically Isolated Probes boast an extremely CMRR—still as high as 108dB at the 1GHz frequency band, along with an isolation voltage of up to 85kV and a noise floor of less than 0.45mVrms. its bandwidth ranges from 200MHz to 1GHz, capable of measuring differential mode signals from ±0.01V to ±6250V.  It reveals the complete truth of signals within its bandwidth range, serving as the ultimate judge for verifying the authenticity of signals measured by other voltage probes.

The MOIP Series adopts advanced laser power supply technology, utilising laser for both signal transmission and power delivery (no batteries required, ensuring purer power supply). It supports 24*365 uninterrupted testing and features a standard BNC interface, compatible with oscilloscopes of all brands.

Applications

• Design of motor drive, power converter, and electronic ballast
• Design of GaN, SiC, IGBT Half/Full bridge devices
• Design of inverter, UPS and switching power supply
• Safety test for high voltage, high bandwidth applications
• Power device evaluation
• Current shunt measurements
• EMI & ESD troubleshooting
• Floating measurements

Item	Brand	Image	Bandwidth	Rise Time	Output Voltage Range	Noise	Propagation Delay	Power	Fibre Cable Length	Stock	Price
MOIP100P	Micsig		100MHz	≤3.5nsv	±1.25V	<450μVrms	15.42ns (2m fibre length)	DC 12V	2m (Customisable)	On Backorder	£1,810.00
MOIP200P	Micsig		200MHz	≤1.75n	±1.25V	<450μVrms	15.42ns (2m fibre length)	DC 12V	2m (Customisable)	On Backorder	£2,545.00
ODP6050B	Siglent		500MHz	≤0.7ns	±0.5V	1.5mV	14ns	Front end: battery-powered Rear end: USB 5V/2A	2m	On Backorder	£3,792.00
MOIP350P	Micsig		350MHz	≤1ns	±1.25V	<450μVrms	15.42ns (2m fibre length)	DC 12V	2m (Customisable)	On Backorder	£4,212.00
MOIP500P	Micsig		500MHz	≤700ps	±500mV	<450μVrms	16ns (2m fibre length)	DC 12V	2m (Customisable)	On Backorder	£7,159.00
ODP6100B	Siglent		1GHz	≤0.4ns	±0.5V	1.5mV	14ns	Front end: battery-powered Rear end: USB 5V/2A	2m	On Backorder	£7,188.00
MOIP800P	Micsig		800MHz	≤500ps	±500mV	<450μVrms	16ns (2m fibre length)	DC 12V	2m (Customisable)	On Backorder	£10,408.00
MOIP1000P	Micsig		1GHz	≤450ps	±500mV	<450μVrms	16ns (2m fibre length)	DC 12V	2m (Customisable)	On Backorder	£13,524.00

Showing all 8 results

•

  Micsig SigOFIT MOIP1000P, 1GHz, Optical-fiber Oscilloscope Isolated Probe

  £13,524.00

  Available on back-order

  Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

  Add to basket
•

  Micsig SigOFIT MOIP100P, 100MHz, Optical-fiber Oscilloscope Isolated Probe

  £1,810.00

  Available on back-order

  Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

  Add to basket
•

  Micsig SigOFIT MOIP200P, 200MHz, Optical-fiber Oscilloscope Isolated Probe

  £2,545.00

  Available on back-order

  Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

  Add to basket
•

  Micsig SigOFIT MOIP350P, 350MHz, Optical-fiber Oscilloscope Isolated Probe

  £4,212.00

  Available on back-order

  Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

  Add to basket
•

  Micsig SigOFIT MOIP500P, 500MHz, Optical-fiber Oscilloscope Isolated Probe

  £7,159.00

  Available on back-order

  Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

  Add to basket
•

  Micsig SigOFIT MOIP800P, 800MHz, Optical-fiber Oscilloscope Isolated Probe

  £10,408.00

  Available on back-order

  Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

  Add to basket
•

  Siglent ODP6050B, 500 MHz, Optical Isolated Voltage Probe

  £3,792.00

  Available on back-order

  Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

  Add to basket
•

  Siglent ODP6100B, 1GHz, Optical Isolated Voltage Probe

  £7,188.00

  Available on back-order

  Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

  Add to basket
