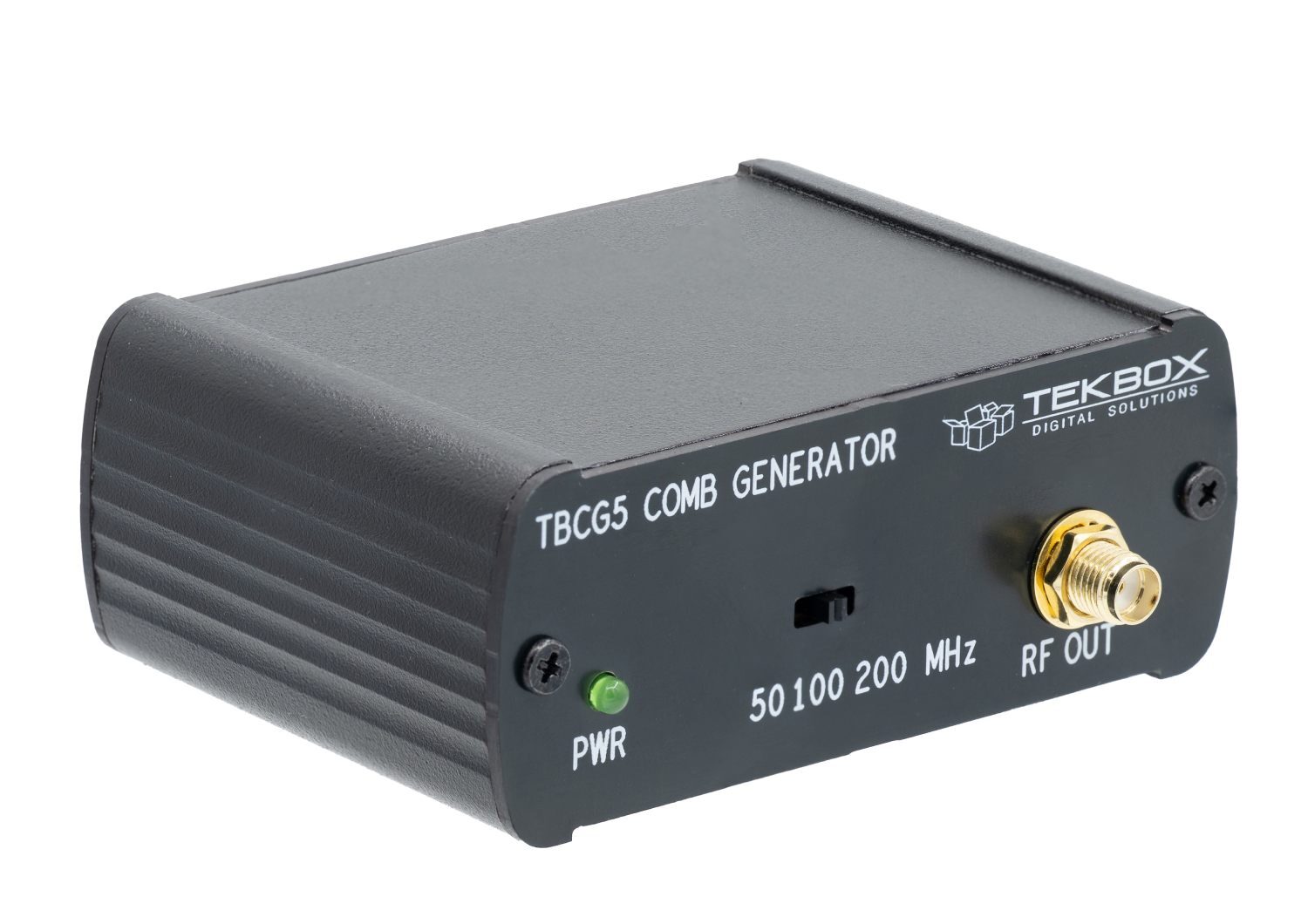

Tekbox TBCG5 General Purpose Comb Generator

£517.00 (£620.40 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBCG5 Categories: , Brand:

Description


Tekbox TBCG5 General Purpose Comb Generator

The TBCG5 is a general-purpose harmonic comb generator with a switchable base frequency of 200 MHz, 100 MHz or 50 MHz. It generates a flat comb spectrum up to 3 GHz and is usable up to 8 GHz. The comb generator is powered via a USB-C socket on the rear panel.

The TBCG5 is designed and characterised to serve as a versatile lab tool for measuring cable resonances, shielding effectiveness, filters, crosstalk, EMC test setups and more. Comb generators are commonly utilised as a general-purpose source for wideband RF signals or narrow pulses with a fast rise time.

Documentation


  • Base frequencies: 50 MHz, 100 MHz, 200 MHz, selected via slide-switch on front panel
  • Characterized comb spectrum: 5 MHz – 3 GHz
  • Typ. output amplitude of 200 MHz comb spectrum: – 5 dBm +/- 3 dB (above 6 th harmonic)
  • Typ. output amplitude of 100 MHz comb spectrum: – 10 dBm +/- 3 dB (above 6 th harmonic)
  • Typ. output amplitude of 50 MHz comb spectrum: – 20 dBm +/- 3 dB (above 6 th harmonic)
  • Spectrum flatness from 50 MHz to 3 GHz: < 10 dB typ. (for spectral lines above the 6th harmonic)
  • Pulse rise time: < 150 ps
  • Output: 50 Ohm, SMA female
  • Power supply: USB C
  • Current consumption: 120 mA
  • Dimensions, L x W x H: 56 mm x 81mm x 33 mm
  • Weight: 95g
