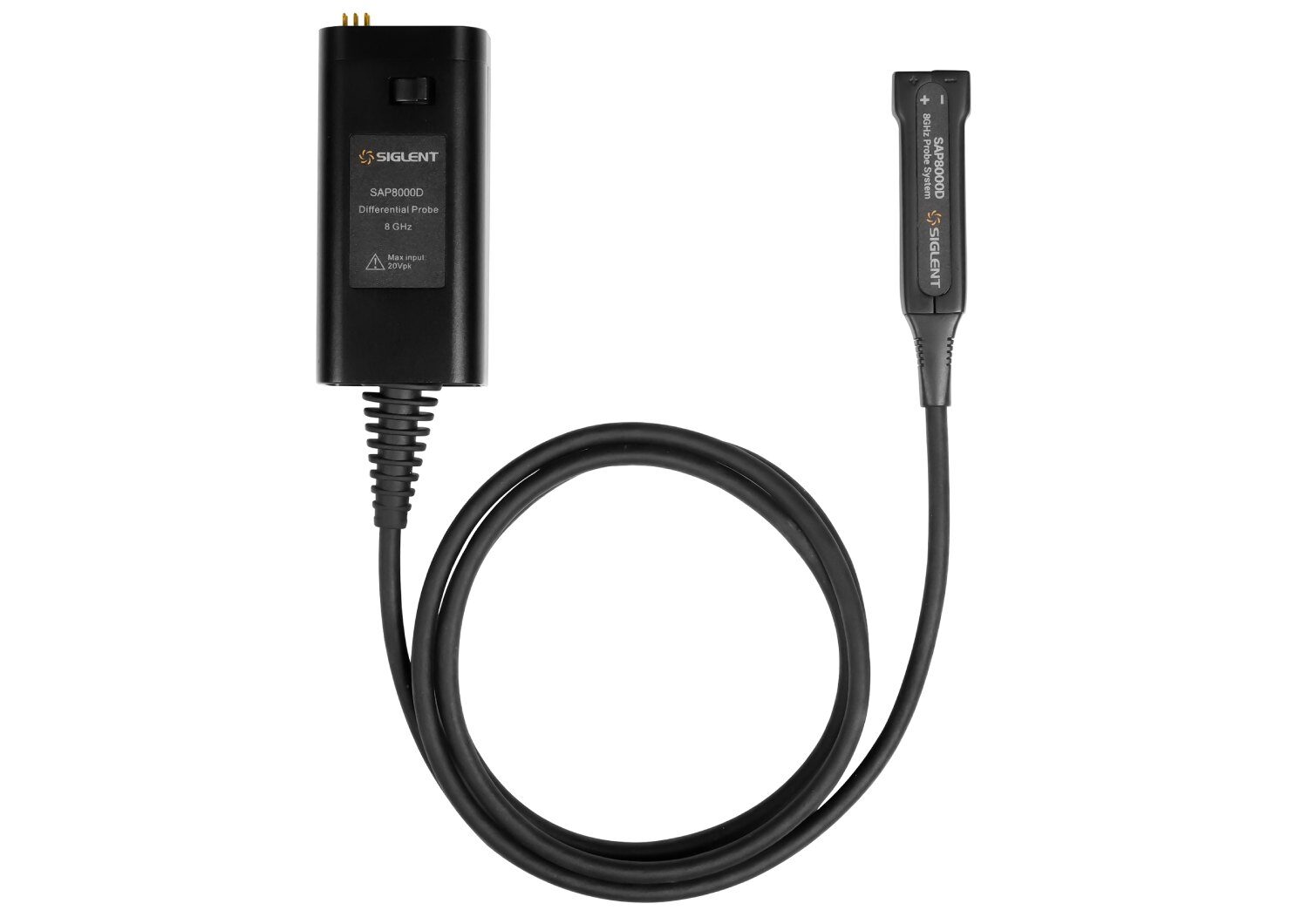

Siglent SAP8000D 8GHz, 10:1, ±2.5V Active Differential Probe

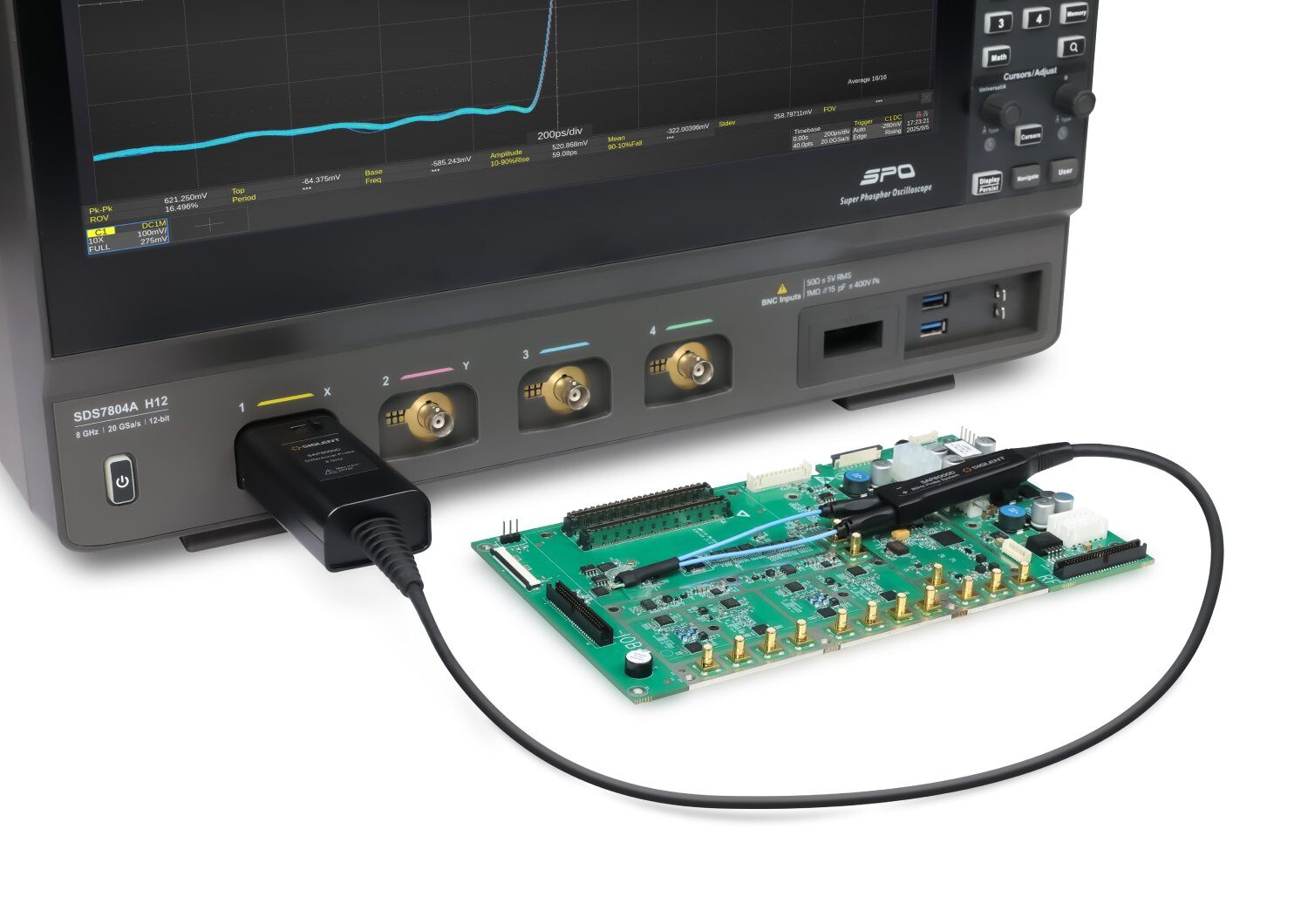

The Siglent SAP8000D is a high-bandwidth differential active probe known for its features such as high bandwidth and low noise, making it suitable for measuring high-speed signals. Its low input capacitance characteristics ensure minimal load is introduced to the measurement system. The SAP8000D active probe utilises the SAPBus interface and is compatible with oscilloscopes that support the SAPBus interface, such as the SDS7000A series oscilloscopes. The SAP series active probes do not require external power sources, as the oscilloscope provides power and a communication interface to the active probe through the SAPBus interface. When connected to the oscilloscope, the SAP series active probes allow you to read probe information from the oscilloscope’s interface.

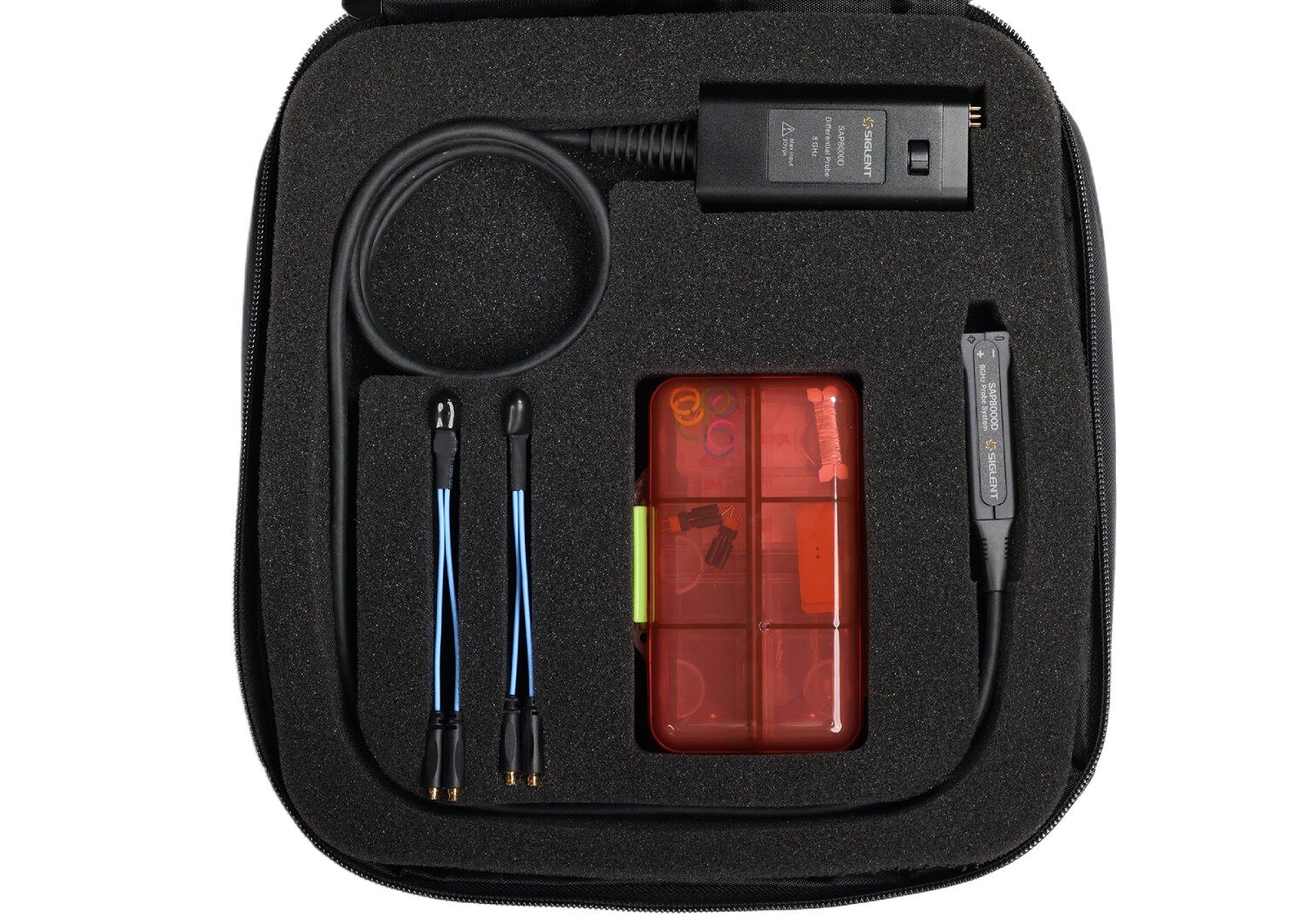

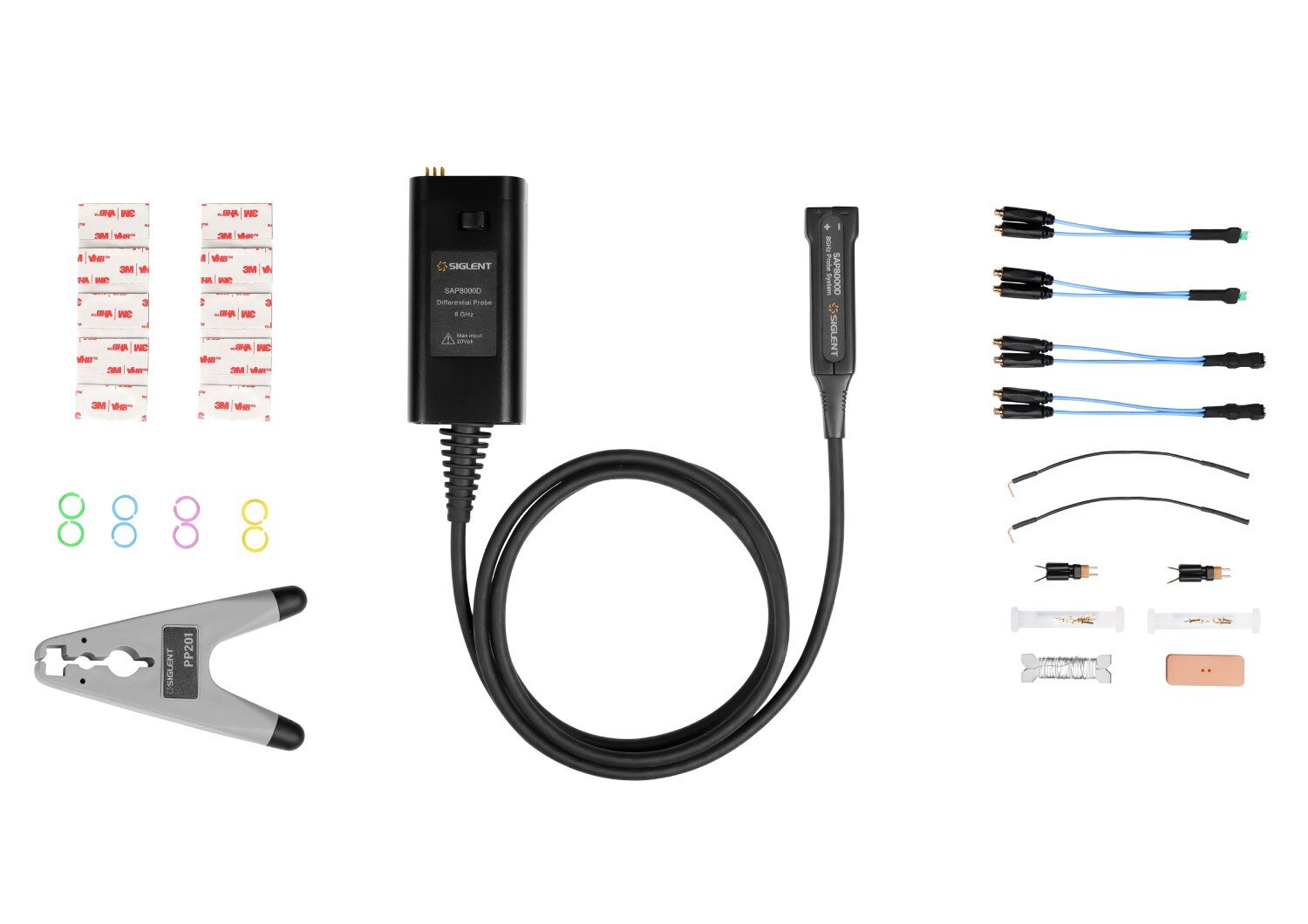

- 1x DSI-01 solder-on differential probe
- 1x SSI-01 solder-on single-ended probe
- 1x DRP-01 socket-type differential probe
- 1x SRP-01 single-ended socket probe
- 1x Thickness gauge
- 2x 10 cm ground cables
- 5x Straight pins
- 5x Pogo pins
- 2x Swivel Pins
- 1 meter of 0.25mm silver wire
- 2 sets of colored identification rings
- 1x PP201 two-legged positioner
- 10x 3M double-sided tape
- Probe Bandwidth: DC to 8GHz
- Single-ended input resistance: 10kΩ
- Differential input resistance: 20kΩ
- Probe gain: ÷10
- Differential input capacitance: 300 fF
- ±2.5V input dynamic range
- ±12V offset voltage setting range
- SAPBus interface
