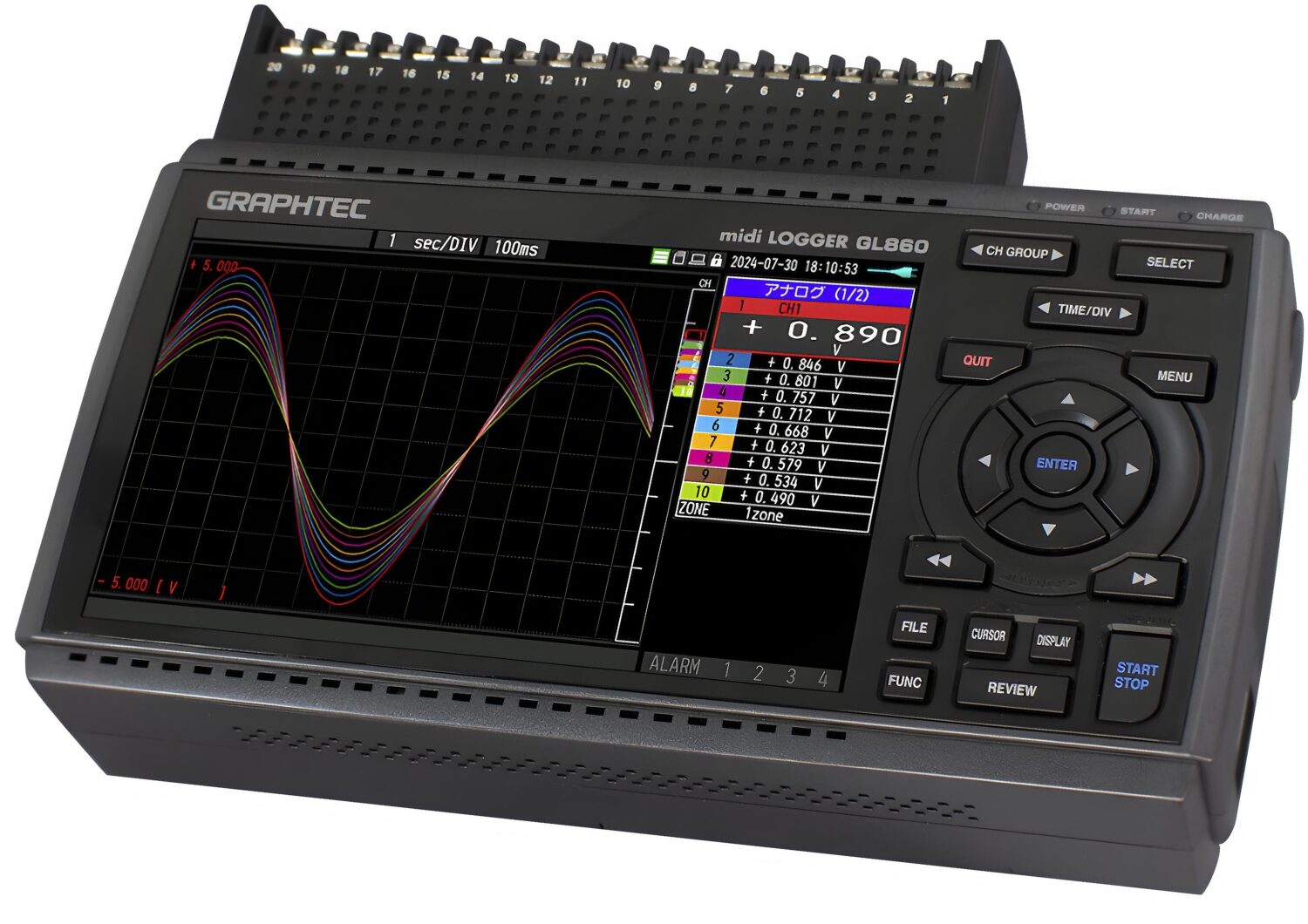

| Number of analogue inputs |
Maximum 200ch available for 1 terminal(20ch/30ch) or extension unit |
External input/
output ※1 |
Input |
Trigger or Sampling (1 channel), Logic/Pulse (4 channels)
Voltage range ：0 – ＋24V（common ground）
Input signal: No-voltage contact (a-contact, b-contact, NO, NC), Open collector, Voltage input |
| Output |
Alarm (4ch)
Output signal: Open collector (pull-up to 5V by 10kΩ resistor) |
| Sampling interval |
5ms – 1h（5ms – 50ms is available for voltage and humidity, Number of channels is limited, external ※1 |
| TIME / DIV |
1s～24h |
| Trigger function |
Repeat action |
Off・On |
| Trigger type |
Start: Data capture starts when a trigger is generated.
Stop: Data capture stops when a trigger is generated. |
| Trigger setting |
(Start / Stop)
Off, Level, Alarm, External, Time, Date, Week |
| Alarm function |
Alarm judgment mode |
Detection method: Level, Edge
Analogue channel judgment mode: H (↑), L (↓), Window In, Window Out
Logic channel judgment mode: H (↑), L (↓)
Pulse channel judgment mode: H (↑), L (↓), Window In, Window Out
Calculation channel judgment mode: H (↑), L (↓), Window In, Window Out |
| Pulse input |
Measurement mode |
Rotation count (RPM) mode
Accumulating count mode
Instant count mode |
| Maximum number of pulse inputs |
Maximum input frequency: 50kHz
Maximum number of count : 50kC/sampling (16-bit counter) |
| PC I/F |
USB2.0 (Hi-speed), Ethernet (10BASE-T / 100BASE-TX), Wireless LAN(using B-568 option)
* B-568 is available in a limited region. |
Storage
device |
Internal |
Built-in 8GB Flash Memory *2 |
| External *3 |
One SD card slot (Support SDHC memory card, up to 32GB)*2*3 |
| Saved contents |
Setup conditions
Measured data
Screen copy |
| Operating environment |
0 to 45 ºC, 5 to 85 % RH
(0 to 40°C when operated on batteries/15 to 35°C when a battery is charging) |
| Power supply |
AC adapter |
AC100～240V / 50～60Hz |
| DC input |
DC8.5 – 24V (Max. 26.4V) |
| Battery pack *Optional item |
DC7.2V (2875ｍAh) (*Two packs can be mounted) |
| Power consumption |
36VA or lower (When using the AC adapter, the LCD is on. During battery recharging, AC100V) |
| Vibration- tested conditions |
Equivalent to Automobile parts Type 1 Class A Buzzer |
