Graphtec B-565 High Withstand Voltage 20 Channel, CAT II 300V Screw Input Terminal

Name: Graphtec B-565 High Withstand Voltage 20 Channel, CAT II 300V Screw Input Terminal
Brand: Graphtec
SKU: GR-B-565
Price: 1045.00 GBP
Availability: BackOrder

£1045.00 (£1254.00 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Facebook

Post

SKU: GR-B-565 Categories: Graphtec Data Logger Accessories, Hardware, Optional Accessories, Test & Measurement Brand: Graphtec

Description

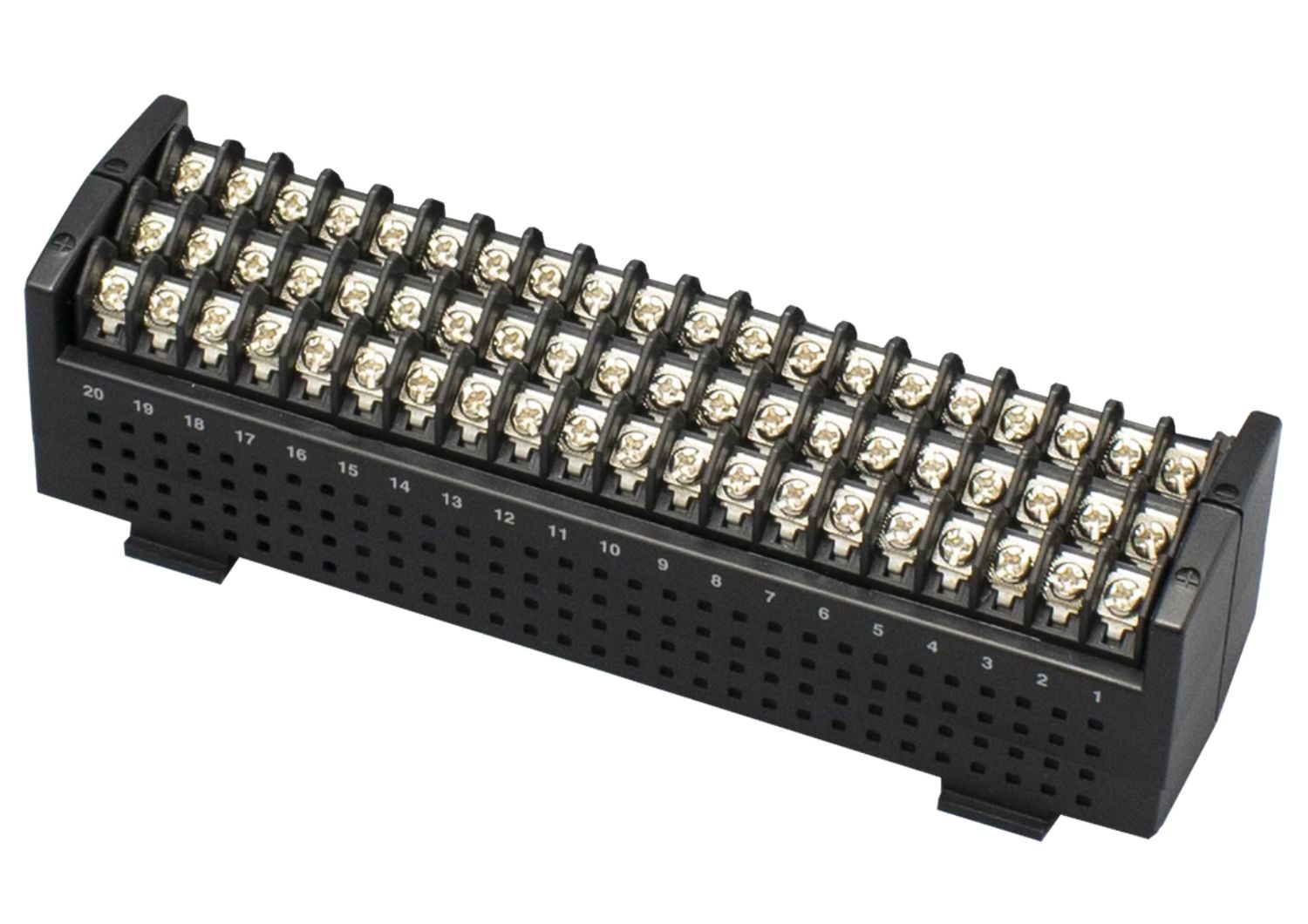

Graphtec B-565 High Withstand Voltage 20 Channel, CAT II 300V Screw Input Terminal

The Graphtec B-565 (M) High Withstand Voltage Input Terminal offers a voltage measurement range of 20mV to 100V with max input terminal to ground of 300V. Making it more suitable for monitoring high-voltage battery strings. The High Withstand Voltage Input Terminal also offers precision 3 wire precision resistance measurements/temperature measurements with 3-wire PT100 temperature sensors.

Maximum Input Voltage:

Between +/- Terminals

60Vp-p (Range of 20mV to 2V) 110Vp-p (Range of 5V to 100V)

Input Terminal / Input Terminal

Maximum Input Voltage: 600Vp-p Withstand Voltage: 600Vp-p

Input Terminal / GND

Maximum Input Voltage: 300Vp-p Withstand Voltage: 2300Vp-p at 1 minute

Parameter	Measurement Range
Voltages	20, 50, 100, 200, 500mV, 1, 2, 5, 10, 20, 50, 100V, 1-5V F.S.

Thermocouple Type	Measuring Temperature Range	Measurement Accuracy
R/S	0 ≤ TS ≤ 100°C	±4.5°C
	100 < TS ≤ 300°C	±3.0°C
	R: 300 < TS ≤ 1600°C	±2.2°C
	S: 300 < TS ≤ 1760°C	±2.2°C
B	400 ≤ TS ≤ 600°C	±3.5°C
	600 < TS ≤ 1820°C	±2.5°C
K	-200 ≤ TS ≤ -100°C	±1.5°C
	-100 < TS ≤ 1370°C	±0.8°C
E	-200 ≤ TS ≤ -100°C	±1.0°C
	-100 < TS ≤ 800°C	±0.8°C
T	-200 ≤ TS ≤ -100°C	±1.5°C
	-100 < TS ≤ 400°C	±0.6°C
J	-200 ≤ TS ≤ -100°C	±1.0°C
	100 < TS ≤ 100°C	±0.8°C
	100 < TS ≤ 1100°C	±0.6°C
N	-200 ≤ TS ≤ 0°C	±2.2°C
	0 < TS ≤ 1300°C	±1.0°C
C(W)	0 ≤ TS ≤ 2000°C	±1.8°C
Reference contact compensation accuracy		±0.3°C

Resistance Bulb Type	Measuring Temperature Range	Applied Current	Measurement Accuracy
PT100	-200 ≤ TS ≤ 100°C	1mA	±0.6°C
	100 < TS ≤ 500°C		±0.8°C
	500 < TS ≤ 850°C		±1.0°C
JPT100	-200 ≤ TS ≤ 100°C	1mA	±0.6°C
JPT100	100 < TS ≤ 500°C	1mA	±0.8°C
PT1000	-200 ≤ TS ≤ 100°C	0.3mA	±0.6°C
PT1000	100 < TS ≤ 500°C	0.3mA	±0.6°C

B-530 Humidity Sensor	Measurement Range
Humidity	0-100% Using optional

Graphtec B-565 High Withstand Voltage 20 Channel, CAT II 300V Screw Input Terminal

Notify Me When In Stock

Description

Graphtec B-565 High Withstand Voltage 20 Channel, CAT II 300V Screw Input Terminal
