Danisense DR10000IM Zero Flux Current Transducer AC:7000Arms, DC:10000A

£13184.00 (£15820.80 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: DR10000IM Categories: , Tag: Brand:

Description

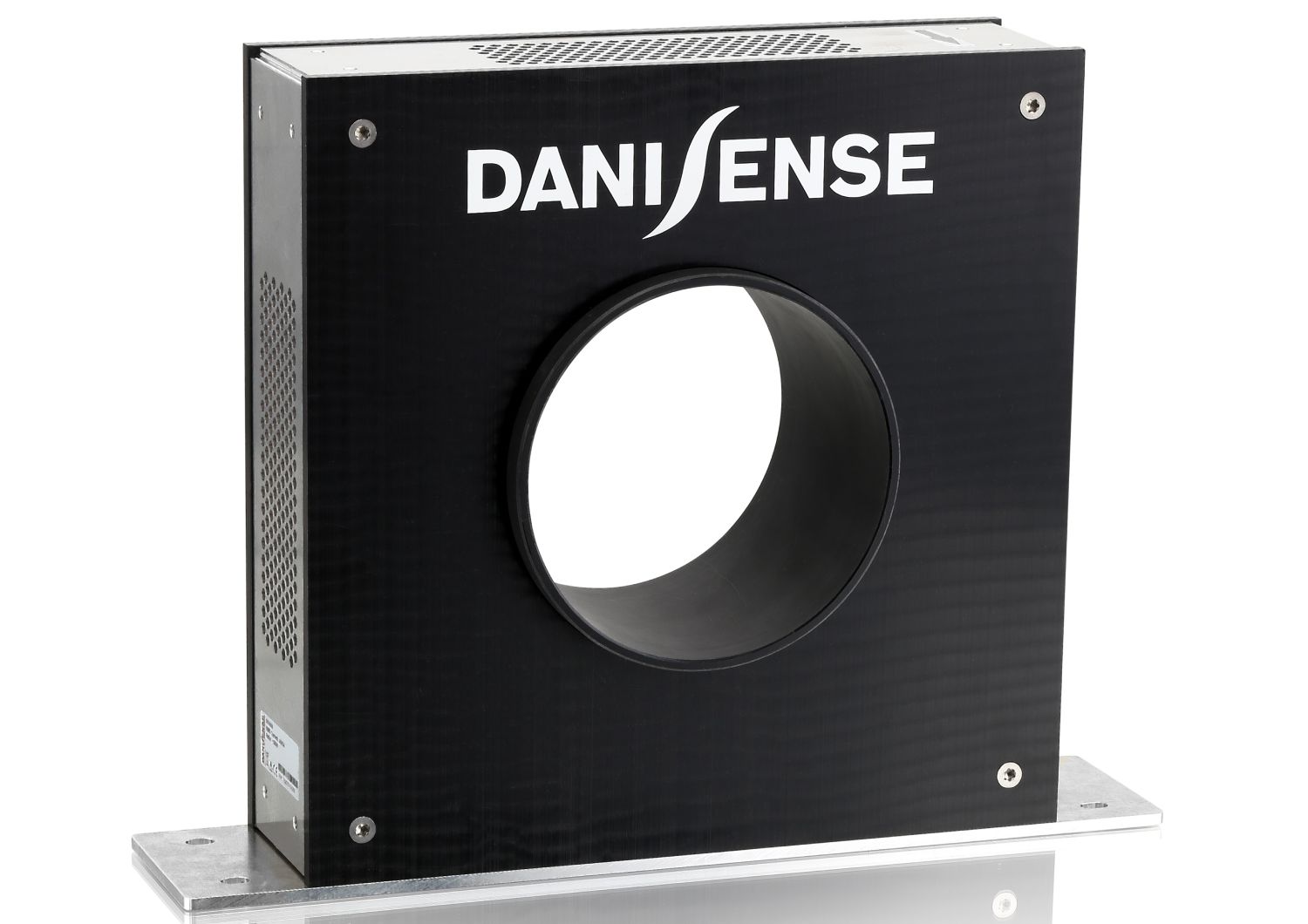

Danisense DR10000IM Zero Flux Current Transducer

Ultra-stable, high precision (ppm class) fluxgate technology DR Series current transducer for non-intrusive, isolated DC and AC measurement up to 11000A.

Features
  • Linearity error maximum 1 ppm
  • 4mm banana jack for secondary current
  • Transducer core optimised for high level of immunity against external magnetic fields
  • Operating temperature: Transducer head 0-70°C - Electronics 0-45°C
  • Turns ratio 1:2500
  • Aperture diameter 140 mm

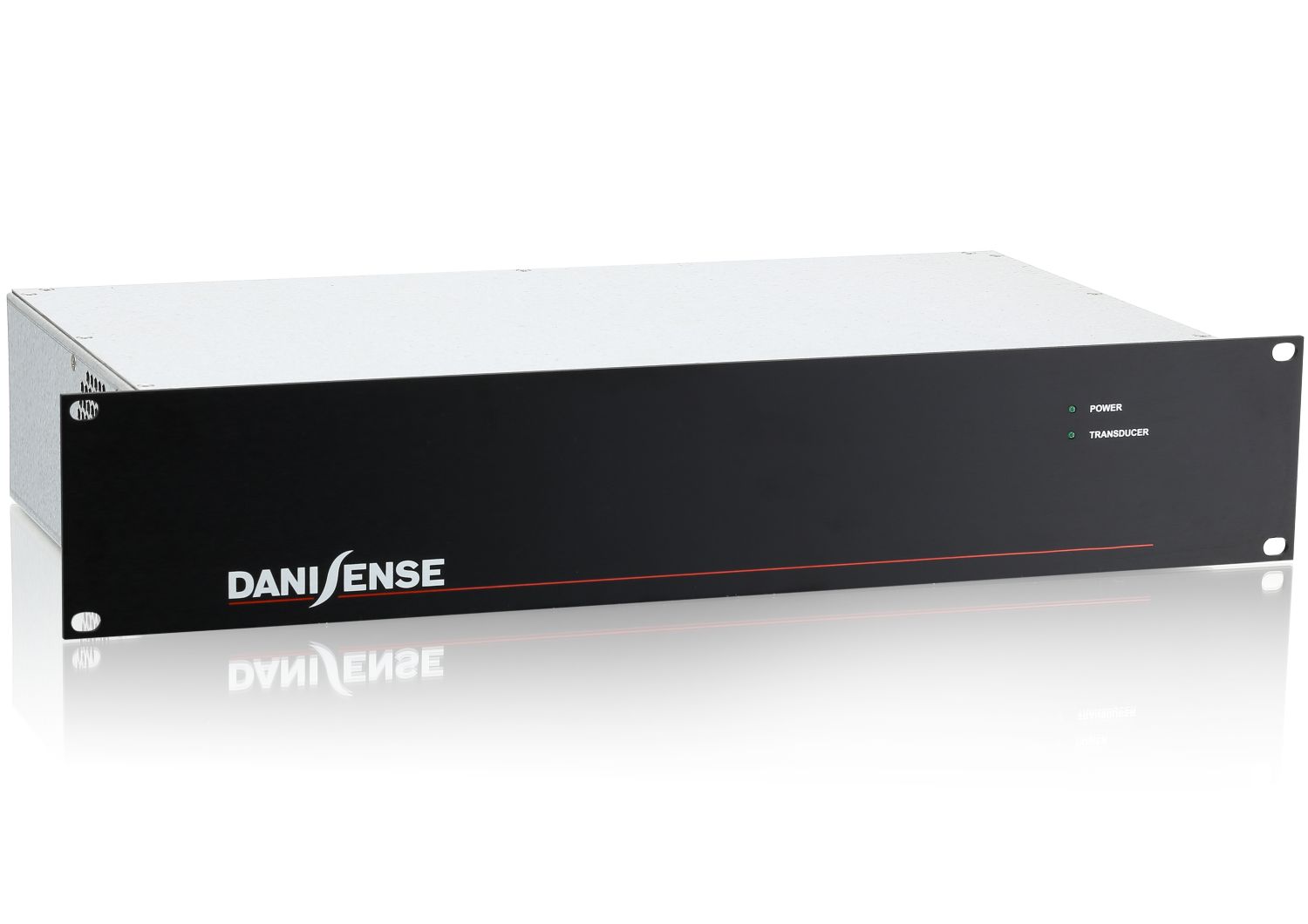

  • 2U 19” Control unit with universal (100-240V AC 50/60Hz) AC input voltage or 120-370V DC input voltage
  • Danisense advanced sensor protection circuit “ASPC”
Applications
  • MPS for particle accelerators
  • Stable power supplies
  • Precision drives
  • Battery testing and evaluation systems
  • Power measurement and power analysis
  • Current calibration purposes

Documentation

Datasheets: Current transducer 3000A+

Specifications Highlights Symbol Unit Min Typ Max
Nominal primary AC current IPN AC Arms 7000
Nominal primary DC current IP N DC A -10000 10000
Measuring range ÎP M A -11000 11000
Primary / secondary ratio n1:n2 1:2500 1:2500
Linearity error ƐL ppm -1 1
Offset current (including earth field) IOE ppm -5 5
DC-10Hz Overall accuracy @25°C (= ƐL + IOE ) accƐ ppm -6 6
AC Maximum gain error 10Hz to 1kHz ƐG % ±0.05
Operating temperature range Ta °C 0 70

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
