Danisense DQ600ID-P1300 Zero Flux Current Transducer AC:600Arms, DC:900A

£1019.00 (£1,222.80 inc VAT)

Available on back-order

Request QuoteRemove from Quote
Request Quote
SKU: DQ600ID-P1300 Categories: ,

Description

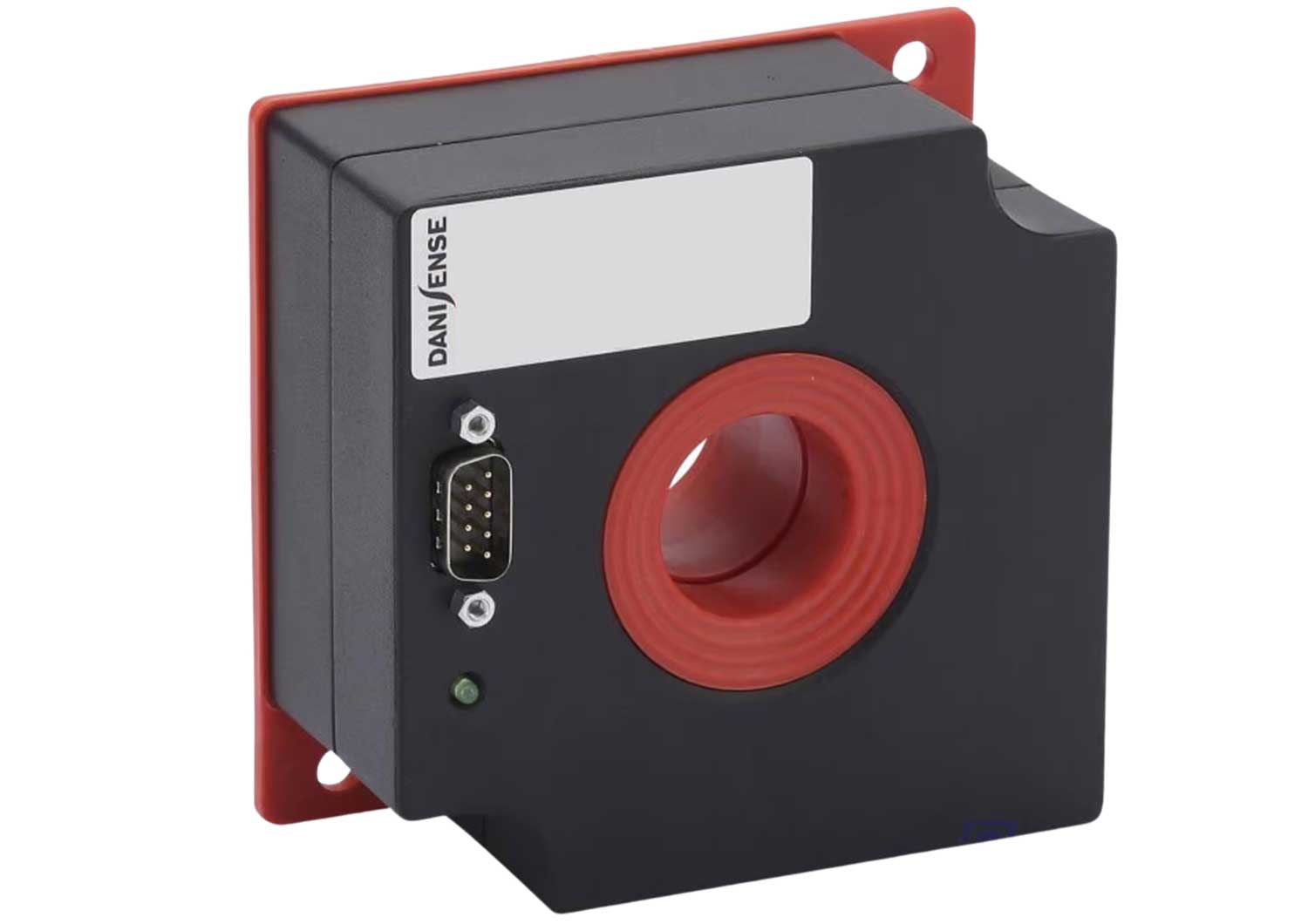

Danisense DQ600ID-P1300 Current Transducer

Danisense DQ600ID-P1300 (AC:600Arms, DC:900A) is an ultra-stable, high precision (ppm class) fluxgate technology DS series Current Transducer for non-intrusive, isolated DC and AC current measurement up to 1300A

  • MPS for particles accelerators
  • Gradient amplifiers for MRI devices
  • Stable power supplies
  • Precision Drives
  • Batteries testing and evaluation systems
  • Power measurement and power analysis
  • Precision current calibration purposes

Features:

  • Linearity error maximum 1 ppm
  • Single supply 15V
  • Industry standard DSUB 9 pin connection
  • Green diode for normal operation indication
  • Full aluminium body for superior EMI shielding and extended operating temperature range
  • Large aperture 27.6mm for cables and bus bars
Specifications HighlightsSymbolUnitMinTypMax
Nominal primary AC currentIPN ACArms600
Nominal primary DC currentIP N DCA-900900
Measuring rangeÎP MA-13001300
Primary / secondary ration1 : n21:15001:1500
Linearity errorƐLppm-11
Offset current (including earth field)IOEppm-1010
DC-10Hz Overall accuracy @25°C (= ƐL + IOE )accƐppm-1111
AC Maximum gain error 10Hz to 2kHzƐG%±0.07
Operating temperature rangeTa°C00
Power supply voltagesUcV1416

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
