Danisense DM1200UB-10V Zero Flux Current Transducer AC:850Arms, DC:1200A

£1838.00 (£2,205.60 inc VAT)

SKU: DM1200UB-10V Categories: ,

Description

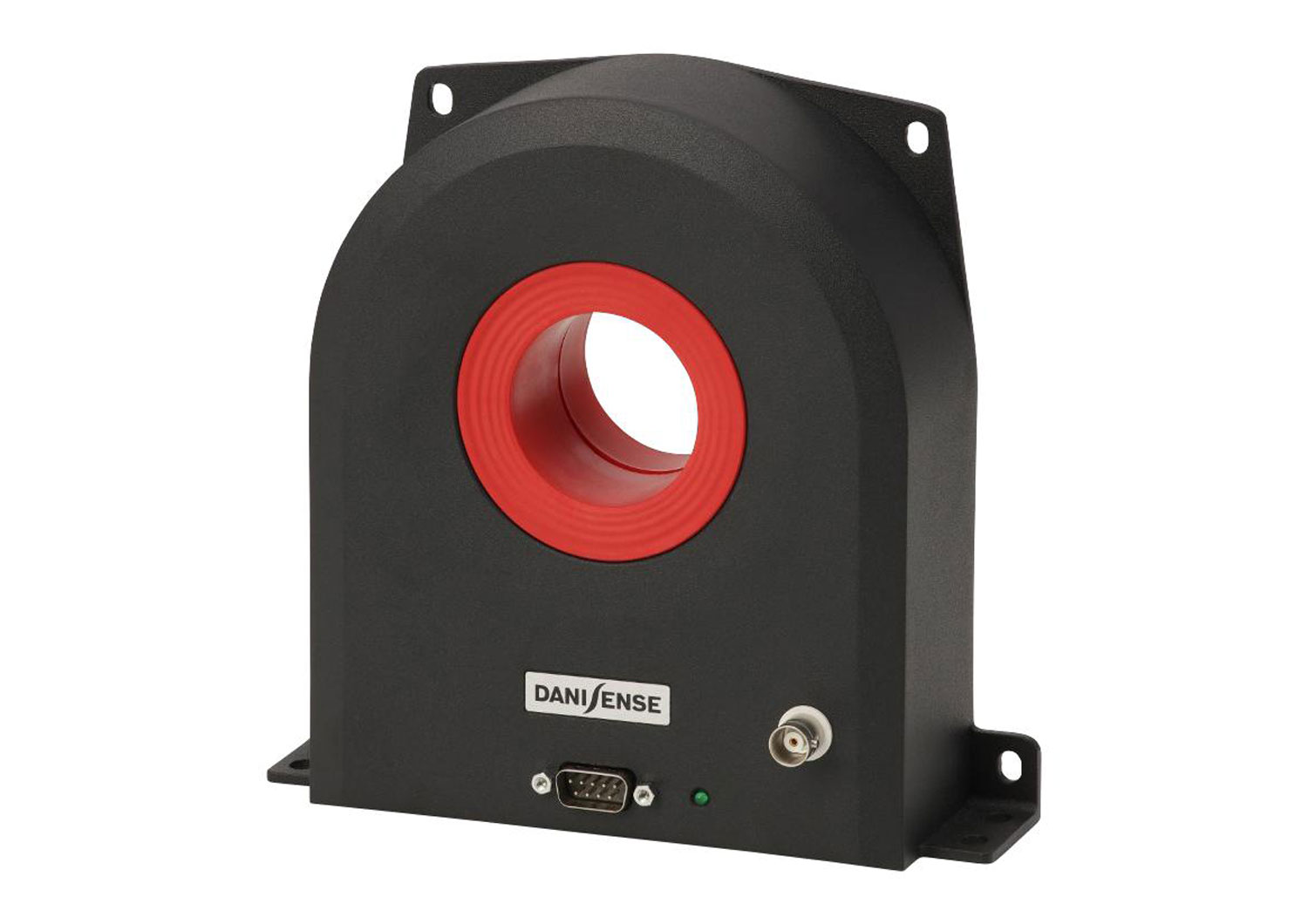

Danisense DM1200UB-10V Current Transducer

Danisense DM1200UB-10V (AC:850Arms, DC:1200A) is an Ultra-stable, high precision (ppm class) fluxgate technology DM Series Current Transducer for non-intrusive, isolated DC and AC current measurement up to 1320A.
  • Power measurement and power analysis
  • Stable power supplies
  • MPS for particles accelerators
  • Gradient amplifiers for MRI devices
  • Precision drives
  • Batteries testing and evaluation systems
  • Current calibration purposes
Features:
  • Ø45mm aperture
  • 15 ppm linearity,
  • 10 ppm offset
  • 10V output
  • Fluxgate, closed loop compensated technology with crystal driven excitation frequency for increased stability
  • Industry standard DSUB 9 pin connection
  • Full aluminium body for superior EMI shielding and extended operating temperature range
Specifications Highlights Symbol Unit Min Typ Max
Nominal primary AC current IPN AC Arms 850
Nominal primary DC current IPN DC A -1200 1200
Nominal Output Voltage V Out V -10 10
Measuring Range ÎP M A -1320 1320
Primary/Secondary Ratio V/kA 8.3333 8.3333
Linearity Error ƐL ppm -15 15
Offset Voltage (Including Earth Field) VOE ppm -10 10
Ratio Error ƐG ppm -10 10
DC-10Hz Overall accuracy @25°C (=VOE+ƐL + IOE ) accƐ ppm -35 35
AC Maximum gain error 10Hz to 1kHz 100ppm(0.01%)
Bandwidth (3dB) f3dB kHz 300
Operating temperature range Ta °C -40 65
Power supply voltages Uc V ±14.25 ±15.75

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
