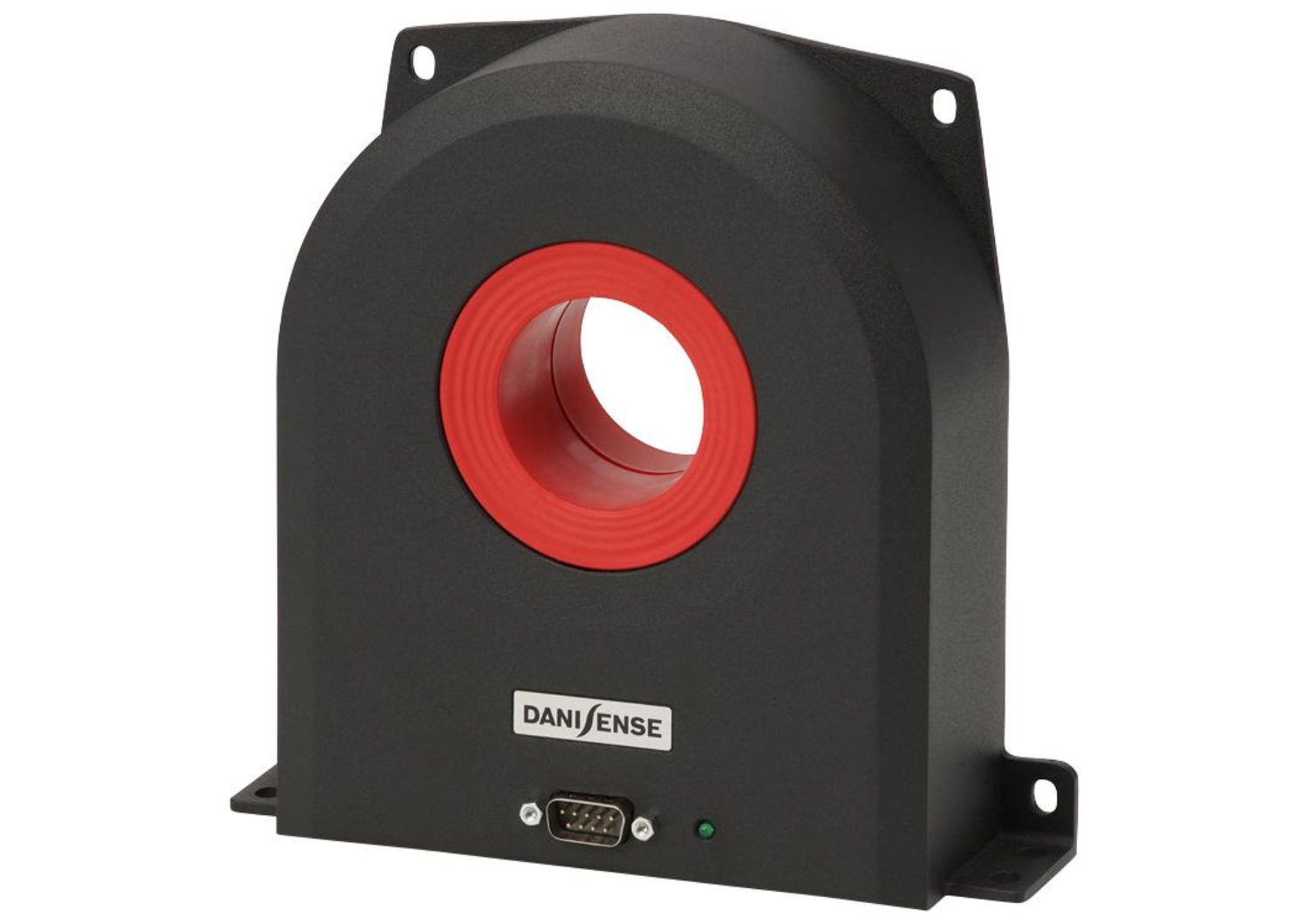

Image of Dm1200id

Danisense DM1200ID-CD3000 Zero Flux Current Transducer AC:1200Arms, DC:1500A

£1719.00 (£2062.80 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: DM1200ID-CD3000 Categories: , Brand:

Compare with other 600A to 3000A Current Transducers

SKUImageOutput TypeOptionsRangeACDCRatioAccuracyBandwidthAperture DiameterStockPrice
DM1200ID-CD3000Image of Dm1200idCurrentCalibration Winding1800 A 1200 A1500 A1:15006 ppm400 kHz45.0 mmOn Backorder£1,719.00
DL2000IDImage of Dl2000idCurrentStandard3000 A2000 A3000 A1:15007 ppm300 kHz68.0 mmOn Backorder£3,605.00
DL2000ID-CB100Image of Danisense 5CurrentCalibration Winding1500 A1000 A1000 A1:50007 ppm400 kHz41.2 mmOn Backorder£3,831.00
DL2000ID-CD100Image of Dl2000idCurrentCalibration Winding3000 A2000 A3000 A1:15007 ppm300 kHz68.0 mmOn Backorder£3,831.00
DL2000UB-10VImage of Danisense dl2000ub 1vVoltageStandard2200 A1414 A2000 A5 mV/A108 ppm300 kHz150.0 mmOn Backorder£4,056.00
DL2000UB-1VImage of Danisense dl2000ub 1vVoltageStandard3000 A2000 A3000 A0.5 mV/A106 ppm300 kHz68.0 mmOn Backorder£3,943.00
DM1200IDImage of Dm1200idCurrentStandard1800 A 1200 A1500 A1:15006 ppm400 kHz45.0 mmOn Backorder£1,505.00
DM1200UB-10VImage of Danisense dm1200ub 1v telonicukVoltageStandard1320 A850 A1200 A8.33 mVIA75 ppm300 kHz27.6 mmOn Backorder£1,828.00
DS1000UB-10VImage of Danisense ds voltage telonicukVoltageStandard1100 A700 A1000 A10 mV/A45 ppm300 kHz27.6 mmOn Backorder£1,239.00

Description


Danisense DM1200ID-CD3000 Zero Flux Current Transducer

Ultra-stable, high precision (ppm class) fluxgate technology DM Series current transducer for non-intrusive, isolated DC and AC current measurement up to 1500A.

Features
  • Ø45mm aperture enabling large isolated cables and the possibility to measure leakage current at high precision.
  • 3 ppm linearity, 12 ppm offset
  • Current output
  • Fluxgate, closed-loop compensated technology with crystal-driven excitation frequency for increased stability
  • Access to 3000 turns calibration winding in DSUB
  • Possibility to perform 1500A calibration with 500mA source through calibration winding of 3000 turns
  • Not suitable for frequencies above 15kHz due to calibration winding
Applications
  • Stable power supplies
  • MPS for particles accelerators
  • Batteries testing and evaluation systems
  • Current calibration—Metrology

Documentation

Datasheets: Current transducer 600A to 3000A

Specifications Highlights Symbol Unit Min Typ Max
Nominal primary AC current IPN AC Arms 1200
Nominal primary DC current IP N DC A -1500 1500
Measuring range ÎP M A -1800 1800
Primary / secondary ratio n1 : n2 1:1500 1:1500
Linearity error ƐL ppm -3 3
Offset current (including earth field) IOE ppm -12 12
DC-10Hz Overall accuracy @25°C (= ƐL + IOE ) accƐ ppm -15 15
AC Maximum gain error 10Hz to 500Hz ƐG % ±0.01
Operating temperature range Ta °C -40 65
Power supply voltages Uc V ±14.25 ±15.75

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
