Micsig RCP Series Rogowski AC Current Probes

Slide

RCP Series

Rogowski AC Current Probe

- Max. Bandwidth: 2Hz-30MHz
- Minimum Coil cross-section (diameter): 1.6mm
- Accuracy (typical): 2%
- Peak Current: 12000Apk
- Interface: BNC

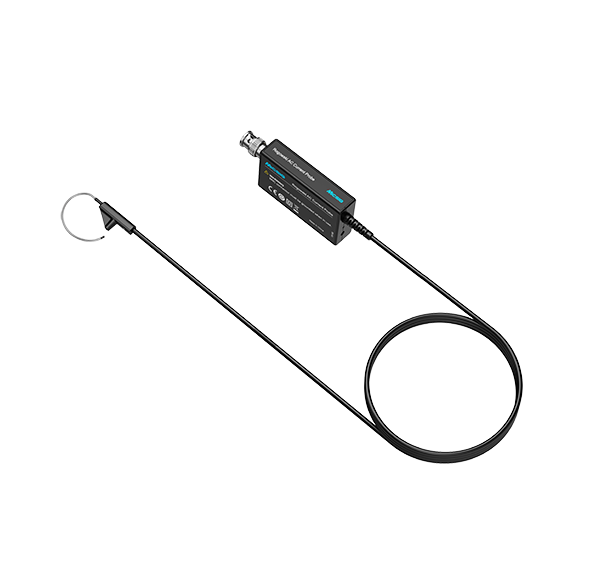

The Micsig RCP series Rogowski current probe measures AC currents up to 12000 Apk, and offers a maximum bandwidth of 30MHz. With nearly zero insertion impedance, the probes minimise interference to the circuit under test. The coils exhibit high voltage resistance (up to 10 kVpk) and support customisation of coil cross-sectional diameter, perimeter, and lead length to accommodate complex application scenarios.

It features a standard BNC interface for use with any oscilloscope. Its compact, flexible design easily solves the hard-to-reach part issue, and the coil diameter supports customisation to meet more test requirements.

SKU	Image	Brand	Bandwidth	Rise Time	Ranges	Current Input Max	Accuracy	Noise	Conductor Size	Power	Interface	Stock	Price
RCP500		Micsig	300KHz	N/A	200mApk-500Apk	N/A	1%	＜2mv rms	≤Φ50mm	DC-5V	BNC	Out of Stock	£179.00 £152.15
RCP300-XS		Micsig	10Hz-30MHz	≤ 11.6ns	N/A	N/A	2%	＜18mVpp	≤ 20mm	DC 12V	BNC	1	£818.00
RCP600-XS		Micsig	10Hz-30MHz	≤ 11.6ns	N/A	N/A	2%	＜12mVpp	≤ 20mm	DC 12V	BNC	2	£818.00

Showing all 3 results

• Sale!

  Discontinued: Micsig RCP500 Rogowski AC Current Probe

  £179.00 Original price was: £179.00.£152.15Current price is: £152.15.

  Out of stock

  Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

  Read more
•

  Micsig RCP300-XS 300A Rogowski AC Current Probe

  £818.00

  1 in stock (can be backordered)

  Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

  Add to basket
•

  Micsig RCP600-XS 600A Rogowski AC Current Probe

  £818.00

  2 in stock (can be backordered)

  Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

  Add to basket
