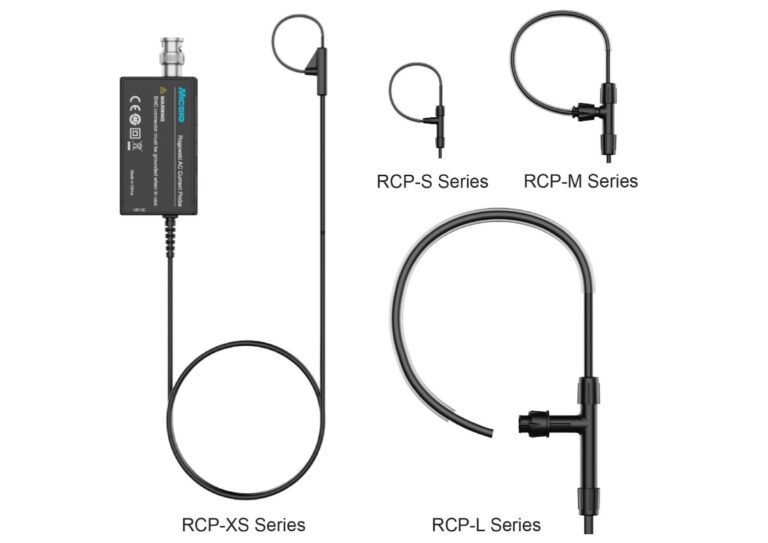

Image of Micsig rcp300 rogowski ac current probe telonic uk
Image of Smallest coil cross section

Micsig RCP300-XS 300A Rogowski AC Current Probe

£818.00 (£981.60 inc. VAT)

Available on back-order

SKU: RCP300-XS Categories: , , , , , Tags: , , Brand:

Description


Micsig RCP300-XS Rogowski AC Current Probe

The Micsig RCP series Rogowski current probe measures AC currents up to 12000 Apk and offers a maximum bandwidth of 30MHz. With nearly zero insertion impedance, the probes minimise interference to the circuit under test. The coils exhibit high voltage resistance (up to 10 kVpk) and support customisation of coil cross-sectional diameter, perimeter, and lead length to accommodate complex application scenarios.

It features a standard BNC interface for use with any oscilloscope. Its compact, flexible design easily solves the hard-to-reach part issue, and the coil diameter supports customisation to meet more test requirements.

Features
  • Measure the Id current of the MOSFET: The RCP has excellent high-frequency measurement capabilities, easily handles high-speed signals and rapidly changing current waveforms, helping to observe high-frequency harmonic components when measuring the Id current of MOSFETs.
  • Smallest coil cross-section: RCP-XS series coil has a cross-sectional diameter of just 1.6 mm, effortlessly passing through the narrow lead pitch of semiconductor devices such as TO-220 and TO-47. Most compact flexible design easily solved the hard-to-reach part issue, coil diameter support customised made to meet more test requirements.
  • BNC Interface: Standard BNC interface to use on any oscilloscope.
Applications
  • Measuring current in motor drives and, in particular, power quality measurements in VSD, UPS or SMPS circuits
  • Double-pulse testing to measure the pin currents of MOSFET and IGBT chips made of materials such as SiC and GaN
  • Measurement of load current and high-order harmonic current in power electronics
  • Measuring high-frequency sinusoidal, pulsed or transient currents
  • Measuring AC currents in a 3-phase supply system
  • Measuring the power consumption in semiconductors
  • Measurement of 50/60Hz power frequency current
  • Power converter development and diagnostics

Product Images

Measure the Id current of MOSFET<br /> Excellent high-frequency measurement capabilities,<br /> easily measures high-speed signals, able to observe<br /> HF harmonic components when measuring the Id<br /> current of MOSFET (as shown the oscillation section).

Measure the Id current of MOSFET

The cross-sectional diameter of the coil is only 1.6mm, allow engineers measure current in most difficult-to-reach parts of the circuit, such as narrow pin spacing chip like TO-220, TO-47.

Smallest coil cross-section

×

Measure the Id current of MOSFET
Excellent high-frequency measurement capabilities,
easily measures high-speed signals, able to observe
HF harmonic components when measuring the Id
current of MOSFET (as shown the oscillation section).
The cross-sectional diameter of the coil is only 1.6mm, allow engineers measure current in most difficult-to-reach parts of the circuit, such as narrow pin spacing chip like TO-220, TO-47.

Documentation


RCP300-XS Specifications
Model RCP300-XS
Bandwidth 10Hz-30MHz
Measurement range 200mApk-300Apk
Output sensitivity 20mV/A（50X）
Peak di/dt 20kA/μs
Typical Accuracy 1%
Droop (%/ms) 9%/ms
Output noise ＜ 18mVpp
Peak coil isolation voltage AC 2kVrms (1 min) (50Hz/60Hz) (Rogowski coil part only)
Coil cross-section diameter 1.6mm
Interface 1MΩ BNC

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
