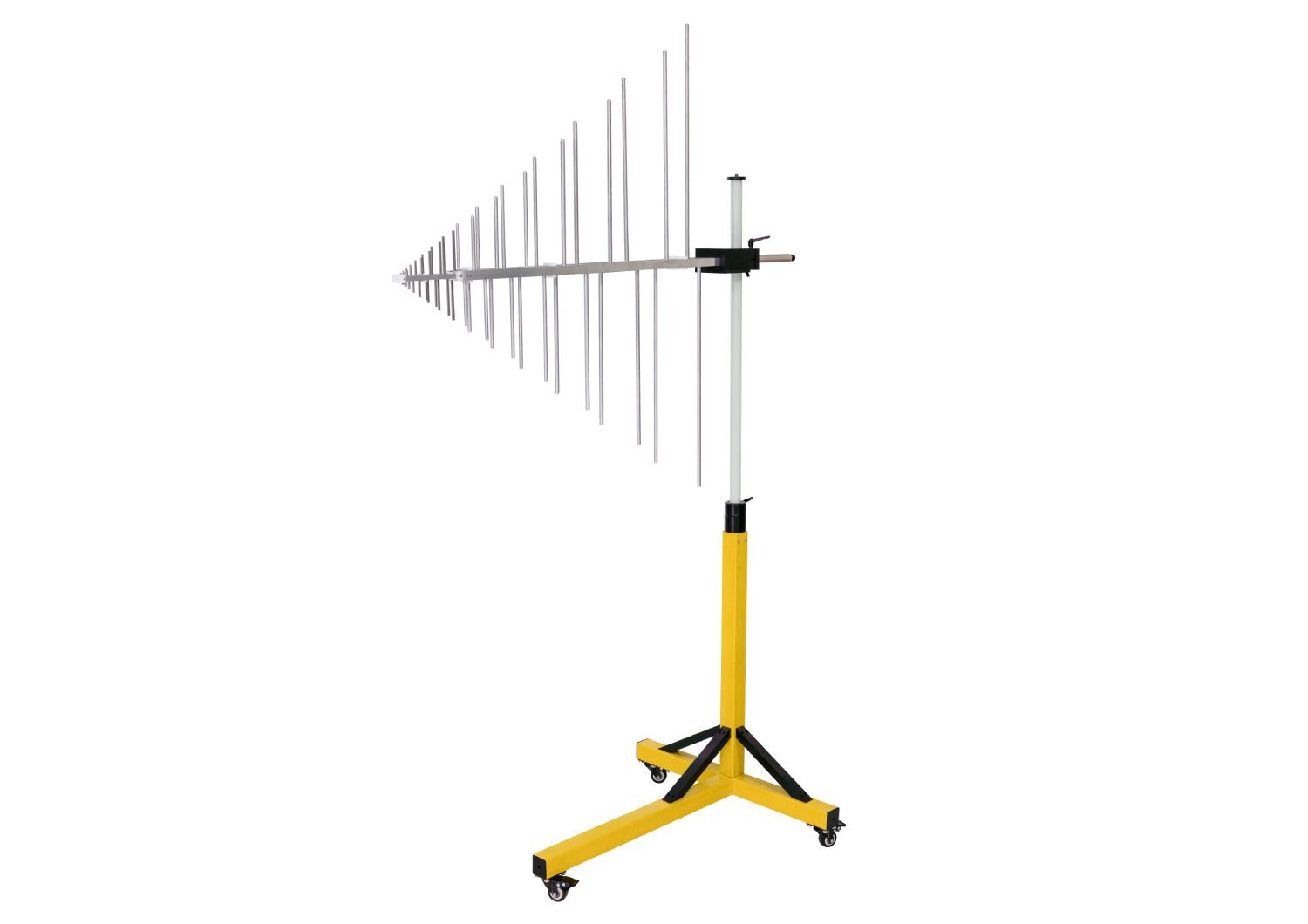

Tekbox TBMA11 130 MHz – 6000 MHz Hybrid Measurement Antenna

£1664.00 (£1996.80 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBMA11 Categories: , Brand:

Description


Tekbox TBMA11 130 MHz – 6000 MHz Hybrid Measurement Antenna

The TBMA11 is an affordable logarithmic-periodic measurement antenna for radiated emission measurements.

The TBMA11 is characterised from 130 MHz to 6000 MHz and has VSWR and antenna factor values typical for logarithmic-periodic measurement antennas.

The TBMA11 is an average sized logarithmic-periodic antenna, with its radiating elements and supporting booms made from aluminium. It is equipped with a standard female N-connector. The antenna provides a 22mm diameter mounting shaft. A suitable fiberglass tripod, model TBTP5 and mounting adapter TBMA8 -PAT are available as optional accessories.

The TBMA11 is shipped in a robust carrying case.

Documentation

Documents: LNAs
Documents: Measurement Antennas
Documents: MIL-STD-461 Antennas

  • Type: logarithmic periodic
  • Frequency range: 130 MHz– 6000 MHz
  • VSWR: < 2.1:1 over the entire frequency range ; 1.45:1 average
  • Isotropic gain at 3m spacing: 4 …. 8.5 dBi
  • Antenna factor at 3m spacing: 7… 41 dB/m
  • Maximum continuous input RF power: 130W
  • Nominal impedance: 50 Ω
  • RF Connector: N type female
  • Mounting: 22 mm diameter mounting shaft (tube)
  • Mechanical Dimensions: L x W x H: 1296 mm x 1140 mm x 100 mm (51.02” x 44.88” x 3.94”)
  • Weight: 3.3 kg (7.27 lbs)
