Siglent SNA6034A 100kHz – 26.5GHz Vector Network Analyser
The SIGLENT SNA6000A Series Vector Network Analyzers (VNAs) are versatile tools designed for high-performance RF testing and analysis. With frequency ranges of 100 kHz to 13.5 GHz and 100 kHz to 26.5 GHz, these VNAs offer 2/4-port scattering, differential-parameter, and time-domain parameter measurements, making them ideal for a wide variety of R&D and manufacturing applications.
The SNA6000A series excels in measuring Q-factor, bandwidth, and insertion loss of filters, while also offering features such as impedance conversion, fixture simulation, limit testing, and ripple tests. Its five sweep modes—Linear-Frequency, Log-Frequency, Power-Sweep, CW-Time, and Segment-Sweep—provide users with flexible measurement options.
Key features include:
– Frequency range: 100 kHz to 26.5 GHz
– Frequency resolution: 1 Hz; Level resolution: 0.05 dB
– Dynamic range: 135 dB
– Multiple calibration types: SOLT, SOLR, TRL, and Enhanced Response
– Built-in Bias-Tee connections and material measurement capabilities
– Remote control via SCPI, Labview, IVI, and WebServer
– 12.1-inch touch screen with HDMI/DVI-D/DP video output
The SNA6000A series delivers precision and flexibility for tasks ranging from scattering-parameter analysis to time-domain testing, enhancing performance in RF circuit design and production environments.
Siglent SNA6000A Vector Network Analyser Comparison Table
Model | Frequency Range | Ports | Dynamic Range | Trace Noise | Range of Output |
---|---|---|---|---|---|
SNA6034A | 100 kHz to 26.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm |
SNA6032A | 100 kHz to 26.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm |
SNA6024A | 100 kHz to 13.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm |
SNA6022A | 100 kHz to 13.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm |
SNA6134A | 100 kHz to 26.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm |
SNA6132A | 100 kHz to 26.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm |
SNA6124A | 100 kHz to 13.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm |
SNA6122A | 100 kHz to 13.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm |
Product Images
Product Videos
-
UK Power Cord
Standard Hardware Accessories
-
Siglent "F503FE" SVA1000X Mechanical Calibration Kit
£308 -
Siglent "F503ME" SVA1000X Mechanical Calibration Kit
£308 -
Siglent "F504FS" SVA1000X Mechanical Calibration Kit
£1154 -
Siglent "F504MS" SVA1000X Mechanical Calibration Kit
£1154 -
Siglent "F603FE" SVA1000X Mechanical Calibration Kit
£364 -
Siglent "F603ME" SVA1000X Mechanical Calibration Kit
£381 -
Siglent "F604FS" SVA1000X Mechanical Calibration Kit
£1363 -
Siglent "F604MS" SVA1000X Mechanical Calibration Kit
£1363 -
Siglent Male N to BNC Cable
£31 -
Siglent Male N to Male N Cable
£199 -
Siglent Male N to Male N Cable
£40 -
Siglent Male N to Male SMA Cable
£40 -
Siglent N to SMA Cable
£199 -
Siglent Spectrum Analyser Hardware Utility Kit
£211 -

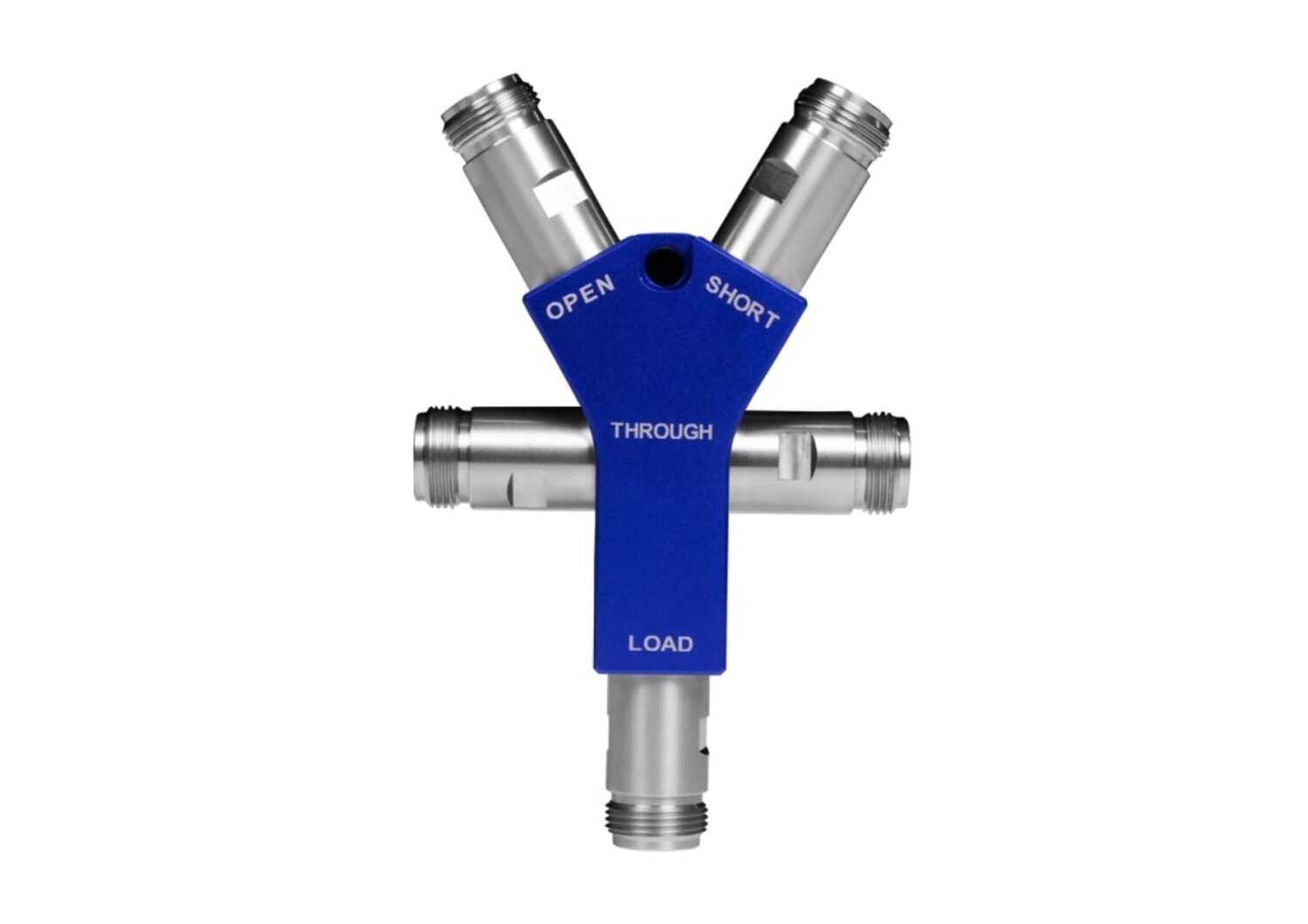

Siglent Y504FS
£1598 -
Siglent Y504MS
£1598
Optional Hardware Accessories
Documentation
Datasheet
Product Manual
Siglent SNA6000A Product Manual
Application Notes
-RF and Communication Solutions-How to Make a Multiport Measurement
Model | Frequency Range | Ports | Frequency Resolution | Level Resolution | Range of IFBW | Number of Points | Setting Range of Output Level | Dynamic Range | Types of Calibration | Types of Measurement | Bias-Tees | Interface | Remote Control | Display | Video Output |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SNA6034A | 100 kHz – 26.5 GHz | 4 | 1 Hz | 0.05 dB | 1 Hz ~ 10 MHz | 2 to 100,001 | -55 dBm ~ +10 dBm | 135 dB | Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration | Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, enhanced time-domain parameter analysis (TDR), spectrum analysis, frequency offset, scalar mixer measurement, pulse measurement, Material Measurement | Support | LAN, USB Device, USB Host (USB-GPIB) | SCPI/ Labview/ IVI based on USB-TMC/ VXI-11/ Socket/ Telnet/ WebServer | 12.1-inch touch screen | HDMI/DVI-D/DP |
SNA6134A | 100 kHz – 26.5 GHz | 4 | 1 Hz | 0.05 dB | 1 Hz ~ 10 MHz | 2 to 100,001 | -55 dBm ~ +10 dBm | 135 dB | |||||||
SNA6032A | 100 kHz – 26.5 GHz | 2 | 1 Hz | 0.05 dB | 1 Hz ~ 10 MHz | 2 to 100,001 | -55 dBm ~ +10 dBm | 135 dB | |||||||
SNA6132A | 100 kHz – 26.5 GHz | 2 | 1 Hz | 0.05 dB | 1 Hz ~ 10 MHz | 2 to 100,001 | -55 dBm ~ +10 dBm | 135 dB | |||||||
SNA6024A | 100 kHz – 13.5 GHz | 4 | 1 Hz | 0.05 dB | 1 Hz ~ 10 MHz | 2 to 100,001 | -55 dBm ~ +10 dBm | 135 dB | |||||||
SNA6124A | 100 kHz – 13.5 GHz | 4 | 1 Hz | 0.05 dB | 1 Hz ~ 10 MHz | 2 to 100,001 | -55 dBm ~ +10 dBm | 135 dB | |||||||
SNA6022A | 100 kHz – 13.5 GHz | 2 | 1 Hz | 0.05 dB | 1 Hz ~ 10 MHz | 2 to 100,001 | -55 dBm ~ +10 dBm | 135 dB | |||||||
SNA6122A | 100 kHz – 13.5 GHz | 2 | 1 Hz | 0.05 dB | 1 Hz ~ 10 MHz | 2 to 100,001 | -55 dBm ~ +10 dBm | 135 dB |
